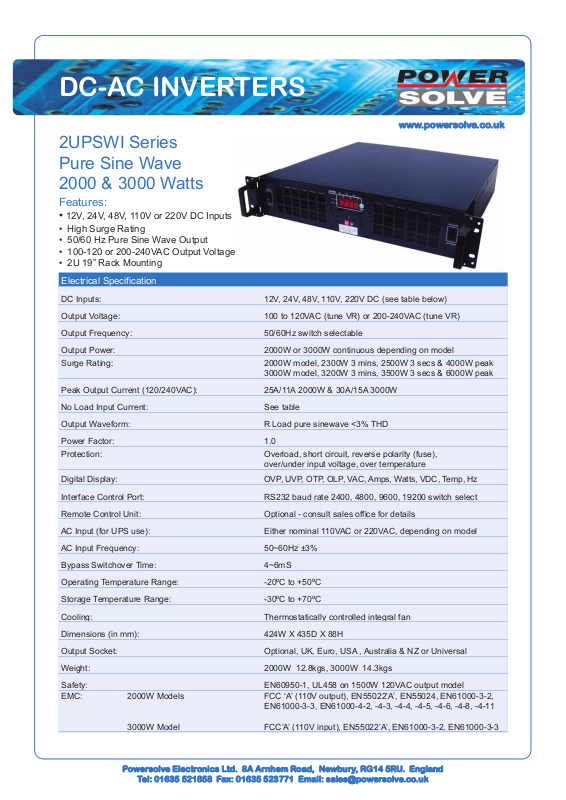

DC-AC INVERTERS
www.powersolve.co.uk

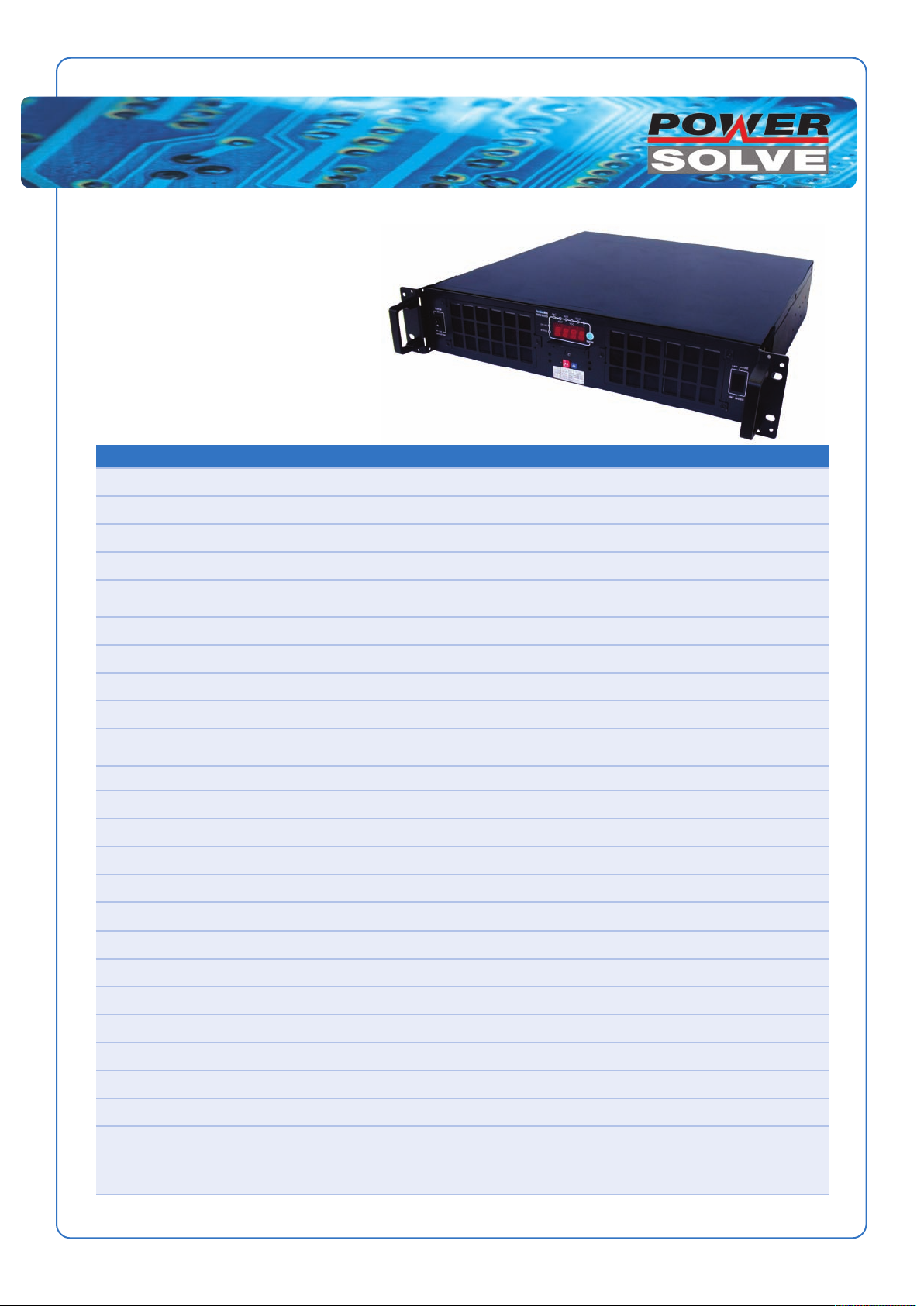

2UPSWI Series
Pure Sine Wave
2000 & 3000 Watts
Features:
• 12V, 24V, 48V, 110V or 220V DC Inputs
• High Surge Rating
• 50/60 Hz Pure Sine Wave Output
• 100-120 or 200-240VAC Output Voltage
• 2U 19” Rack Mounting
Electrical Specification
DC Inputs: 12V, 24V, 48V, 110V, 220V DC (see table below)
Output Voltage: 100 to 120VAC (tune VR) or 200-240VAC (tune VR)
Output Frequency: 50/60Hz switch selectable
Output Power: 2000W or 3000W continuous depending on model
Surge Rating: 2000W model, 2300W 3 mins, 2500W 3 secs & 4000W peak
3000W model, 3200W 3 mins, 3500W 3 secs & 6000W peak
Peak Output Current (120/240VAC): 25A/11A 2000W & 30A/15A 3000W
No Load Input Current: See table
Output Waveform: R Load pure sinewave <3% THD
Power Factor: 1.0
Protection: Overload, short circuit, reverse polarity (fuse),
over/under input voltage, over temperature
Digital Display: OVP, UVP, OTP, OLP, VAC, Amps, Watts, VDC, Temp, Hz
Interface Control Port: RS232 baud rate 2400, 4800, 9600, 19200 switch select
Remote Control Unit: Optional - consult sales office for details
AC Input (for UPS use): Either nominal 110VAC or 220VAC, depending on model
AC Input Frequency: 50~60Hz ±3%
Bypass Switchover Time: 4~6mS
Operating Temperature Range: -20ºC to +50ºC
Storage Temperature Range: -30ºC to +70ºC
Cooling: Thermostatically controlled integral fan
Dimensions (in mm): 424W X 435D X 88H
Output Socket: Optional, UK, Euro, USA , Australia & NZ or Universal
Weight: 2000W 12.8kgs, 3000W 14.3kgs
Safety: EN60950-1, UL458 on 1500W 120VAC output model
EMC: 2000W Models FCC ‘A’ (110V output), EN55022’A’, EN55024, EN61000-3-2,
EN61000-3-3, EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11
3000W Model FCC’A’ (110V input), EN55022’A’, EN61000-3-2, EN61000-3-3
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
DC-AC INVERTERS
Input & Output Ratings
www.powersolve.co.uk
Model
2UPSWI-2000-12-110 10-16V DC 110V AC 2000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 86% 1.45A
2UPSWI-2000-12-220 10-16V DC 220V AC 2000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 87% 1.47A
2UPSWI-2000-24-110 20-32V DC 110V AC 2000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 88% 0.70A
2UPSWI-2000-24-220 20-32V DC 220V AC 2000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 90% 0.80A
2UPSWI-2000-48-110 42-62V DC 110V AC 2000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 90% 0.47A
2UPSWI-2000-48-220 42-62V DC 220V AC 2000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 92% 0.57A
2UPSWI-2000-110-110 90-140V DC 110V AC 2000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.38A
2UPSWI-2000-110-220 90-140V DC 220V AC 2000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.40A
2UPSWI-2000-220-110 180-275V DC 110V AC 2000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.18A
2UPSWI-2000-220-220 180-275V DC 220V AC 2000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.20A
2UPSWI-3000-12-110 10-16V DC 110 VAC 3000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 84% 1.50A
2UPSWI-3000-12-220 10-16V DC 220V AC 3000W 15.5V DC 16.0V DC 10.5V DC 10.0V DC 85% 2.20A
2UPSWI-3000-24-110 20-32V DC 110V AC 3000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 86% 0.82A
2UPSWI-3000-24-220 20-32V DC 220V AC 3000W 31.0V DC 32.0V DC 21.0V DC 20.0V DC 88% 1.08A
2UPSWI-3000-48-110 42-62V DC 110V AC 3000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 87% 0.39A
2UPSWI-3000-48-220 42-62V DC 220V AC 3000W 61.0V DC 62.0V DC 43.0V DC 42.0V DC 90% 0.55A
2UPSWI-3000-110-110 90-140V DC 110V AC 3000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.16A
2UPSWI-3000-110-220 90-140V DC 220V AC 3000W 135.0V DC 140.0V DC 95.0V DC 90.0V DC 94% 0.28A
2UPSWI-3000-220-110 180-275V DC 110V AC 3000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.11A
2UPSWI-3000-220-220 180-275V DC 220V AC 3000W 270.0V DC 275.0V DC 185.0V DC 180.0V DC 94% 0.12A
DC
Input
AC
Output
Power
Cont.
Input OV
Alarm
Input OV
Shutdown
Input UV
Alarm
Input UV
Shutdown
Efficiency
Full Load
No Load
Current
For output connectors add suffix -UK after part number for 13A socket, -EU for Euro socket, -US or USGFCI for USA socket, -AU for Australia/New Zealand or -UV for universal version.

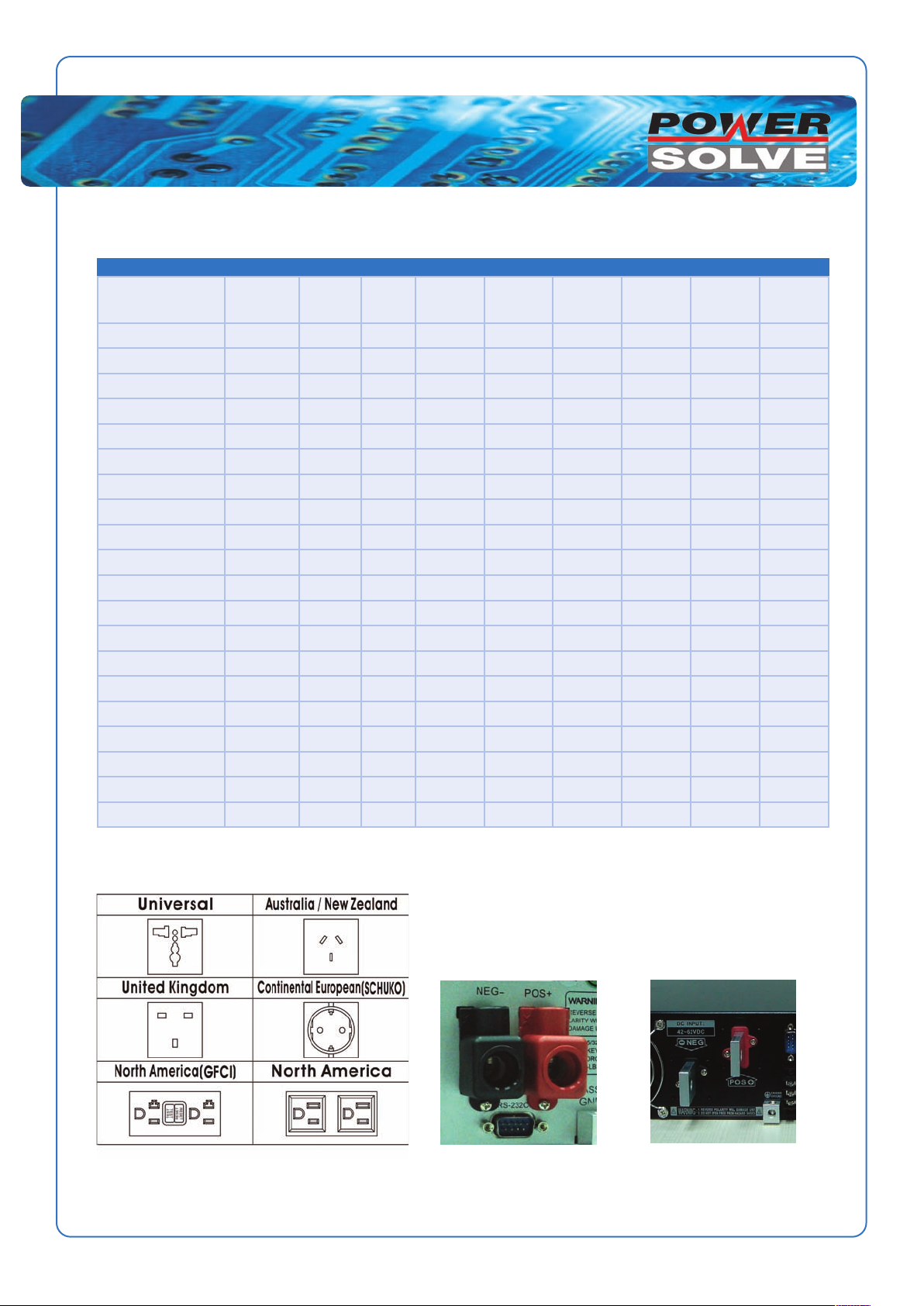

DC Input Connectors as per photos below showing
coloured screw terminals for 1500W and 2000W
units and heavy duty bus bar for 3000W units.
RS232 interface is via a 9 pin D type connector.
2000 Watts 3000 Watts
Other options: Remote control unit, Locking hinged front panel cover - consult sales office for details
