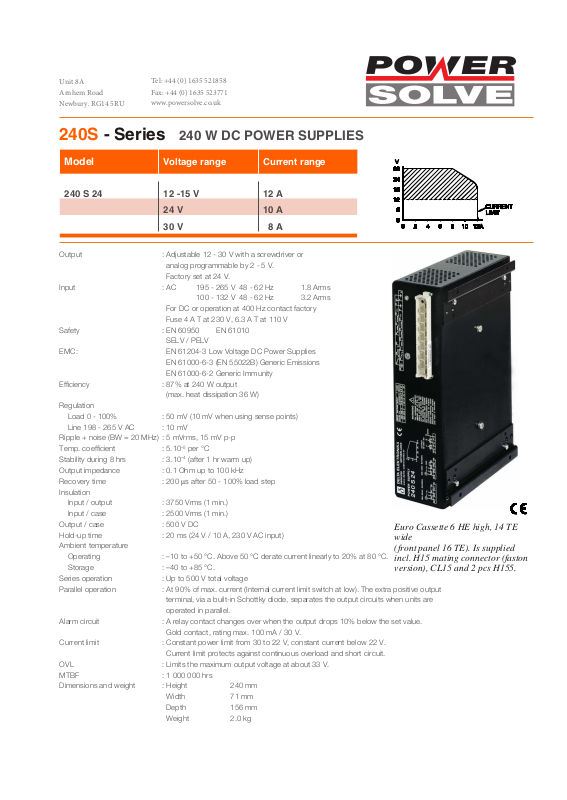

Powersolve 240S User Manual

T
U
nit 8A Arnhem Road Newbury. RG14 5RU
el: +44 (0) 1635 521858
Fax: +44 (0) 1635 523771 www.powersolve.co.uk
240S - Se ries 240 W DC POWER SUP PLIES
Mod el
Volt age range
Cur rent range
240 S 24 12 -15 V 12 A
24 V 10 A
30 V 8 A
Output : Adjustable 12 - 30 V with a screwdriver or
analog programmable by 2 - 5 V. Factory set at 24 V.
Input : AC 195 - 265 V 48 - 62 Hz 1.8 Arms
100 - 132 V 48 - 62 Hz 3.2 Arms For DC or operation at 400 Hz contact factory Fuse 4 A T at 230 V, 6.3 A T at 110 V
Safety : EN 60950 EN 61010
EMC: EN 61204-3 Low Voltage DC Power Supplies
EN 61000-6-3 (EN 55022B) Generic Emissions EN 61000-6-2 Generic Immunity
Efficiency : 87% at 240 W output
(max. heat dissipation 36 W)
Regulation Load 0 - 100% : 50 mV (10 mV when using sense points) Line 198 - 265 V AC : 10 mV Ripple + noise (BW = 20 MHz) : 5 mVrms, 15 mV p-p Temp. coefficient : 5.10–5 per °C Stability during 8 hrs : 3.10–4 (after 1 hr warm up) Output impedance : 0.1 Ohm up to 100 kHz Recovery time : 200 µs after 50 - 100% load step Insulation Input / output : 3750 Vrms (1 min.) Input / case : 2500 Vrms (1 min.) Output / case : 500 V DC Hold-up time : 20 ms (24 V / 10 A, 230 V AC input) Ambient temperature Operating : –10 to +50 °C. Above 50 °C derate current linearly to 20% at 80 °C. Storage : –40 to +85 °C. Series operation : Up to 500 V total voltage Parallel operation : At 90% of max. current (Internal current limit switch at low). The extra positive output
terminal, via a built-in Schottky diode, separates the output circuits when units are operated in parallel.
Alarm circuit : A relay contact changes over when the output drops 10% below the set value.
Gold contact, rating max. 100 mA / 30 V.
Current limit : Constant power limit from 30 to 22 V, constant current below 22 V.
Current limit protects against continuous overload and short circuit.
OVL : Limits the maximum output voltage at about 33 V. MTBF : 1 000 000 hrs Dimensions and weight : Height 240 mm
Width 71 mm Depth 156 mm Weight 2.0 kg
Euro Cas sette 6 HE high, 14 TE wide (front panel 16 TE). Is sup plied incl. H15 mat ing con nec tor (faston ver sion), CL15 and 2 pcs H155.
240 S 24
Mounting :The 240S24 should be mounted vertically for optimal cooling. When mounted horizontally, put
internal current limit switch at low and keep the ambient temp. below 40 °C.
Remote sensing :The sense points (pin 8 and 10) are internally connected to + and – output (pin 6 and pin 12), but these links can be
removed when remote sensing is required. The voltage drop across the leads plus the load can never exceed the supply maximum output rating. For example at 24 V 8 A it is possible to compensate 6 V (3 V per lead) because the unit can supply max. 30 V 8 A.
Remote progr. :2 - 5 V between pin 14 and 10 gives 12 - 30 V output (internal switch in position P). Programming input is not
isolated (connected to – output). Voltage adj. with :Is possible if an internal link and a resistor are removed. external potmeter
H 15 con nec tor
Re dun dant par al lel op er a tion with un der volt age alarm. Out puts are sep a rated by the built-in Schottky se ries di odes.
240S24 with bench adapter BA 150
240S24
Front panel F 16-6
Two ways of ver ti cal wall moun t ing. Mat ing con nec tor (H15 with faston or screw con nec tions) can be fixed
Front panel F 19/2 for hor i zon tal 19" rack mount ing of one unit
Page 1 - 2 DATASHEET Rev. Sept. 2012
with sup plied clamp.
