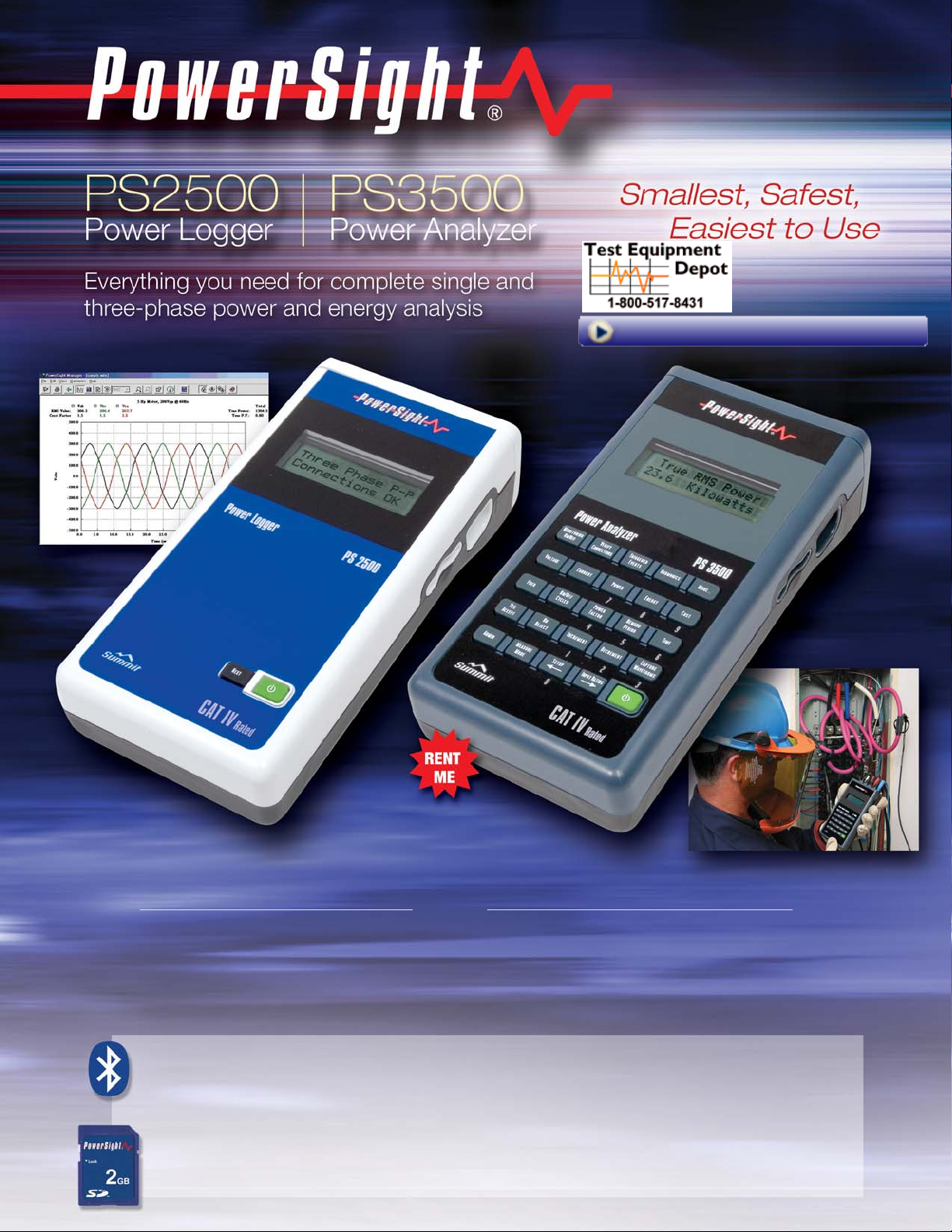

PS2500 features
Simple, foolproof data logging
▲
the perfect instrument for basic
power studies
▲
4 current & 3 voltage channels
▲
optional harmonics
PS3500 features
Complete power/energy analyzer
▲
great for handheld studies and
long-term data logging
▲
control from keypad or PC
▲
view individual harmonics in display
Bluetooth
™
Wireless communications
SureStart
™
Technology that eliminates connection errors
PowerSight Manager
™
PC software simplifies setup and built-in Report Writer
produces complete, concise reports
CAT IV Rated For safe connections to 600 VAC service
SD Card Slot Store more data on removable memory cards
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Two Powerful Choices
The PS2500 and PS3500 are inexpensive yet versatile, handheld
power monitors. Both provide a complete solution for the process of
performing power studies - from setup, to data gathering, to issuing
a comprehensive final report. Both are excellent choices for power
studies; the PS3500 offers more measurements and features that
are accessible through the keypad. Note their contoured, rubberized
grip that fits securely and comfortably in the hand. They are
lightweight (only 1.1 lb.), compact and rugged, — ideal for field work!
AC & DC Power Measurements
Both are equipped with 4 current and 3 voltage channels to measure
voltage, current, and power on all phases as well as neutral currents
for single-phase, two-phase, three-phase, split-delta, 2PT/2CT, DC,
45-66 Hz, and 360-440 Hz applications.
Comprehensive Logging Capabilities
Both allow for logging of voltage and current, power usage and
energy consumption in kWh. They have ample internal memory for
monitoring up to months at a time. These units measure, record, and
log: V, I, W, VA, VAR, PF, Hz, THD, – all simultaneously. You can audit
individual loads or entire facilities, measure and profile circuit capacity,
check load panel imbalance, track harmonic distortion and more.
SD Memory Card Slot
With inexpensive Secure Digital memory cards logging times can be
extended and multiple surveys can be saved. SD cards offer an
alternative download method to a PC. Whenever an SD card is
inserted data is always saved automatically to the card. A card can
be swapped after pausing and then monitoring resumed. Cards can
be taken to a PC thus avoiding the need to take a PC to the meter in
the field.
Bluetooth Communications
Each unit communicates wirelessly to a PC via Bluetooth so there’s
no need to connect a cable and be “tethered” to a PC! On a nearby
PC screen a few feet away, real-time waveforms, phasors and
harmonic spectra can be displayed. Also, from a few feet away, you
can remotely control a PowerSight monitor
wirelessly
.
PC Software & Report Generator
All PowerSight monitors include PowerSight Manager PC software
for data analysis. This software can display individual graphical logs,
zoom and expand for detail, print, and export data to a spreadsheet
file. The automatic Report Writer compiles the survey data into tables
and graphs in just seconds to eliminate tedious manual cutting and
pasting. The report is editable so you can insert your conclusions
and recommendations. The comparison mode is ideal for comparing
surveys such as “before and after” adding new loads or making
circuit changes, or verifying the financial savings after implementing
energy savings measures.
Safety First!
Both are CAT IV rated, the most stringent safety rating
for handheld test equipment. Thus, the PS2500 and PS3500
are deemed safe for connection to up to 600 V service
anywhere in a facility.
No More Connection Errors or Wasted Surveys
Our patented, built-in SureStart™intelligence checks your voltage and
current connections and advises you before you begin monitoring.

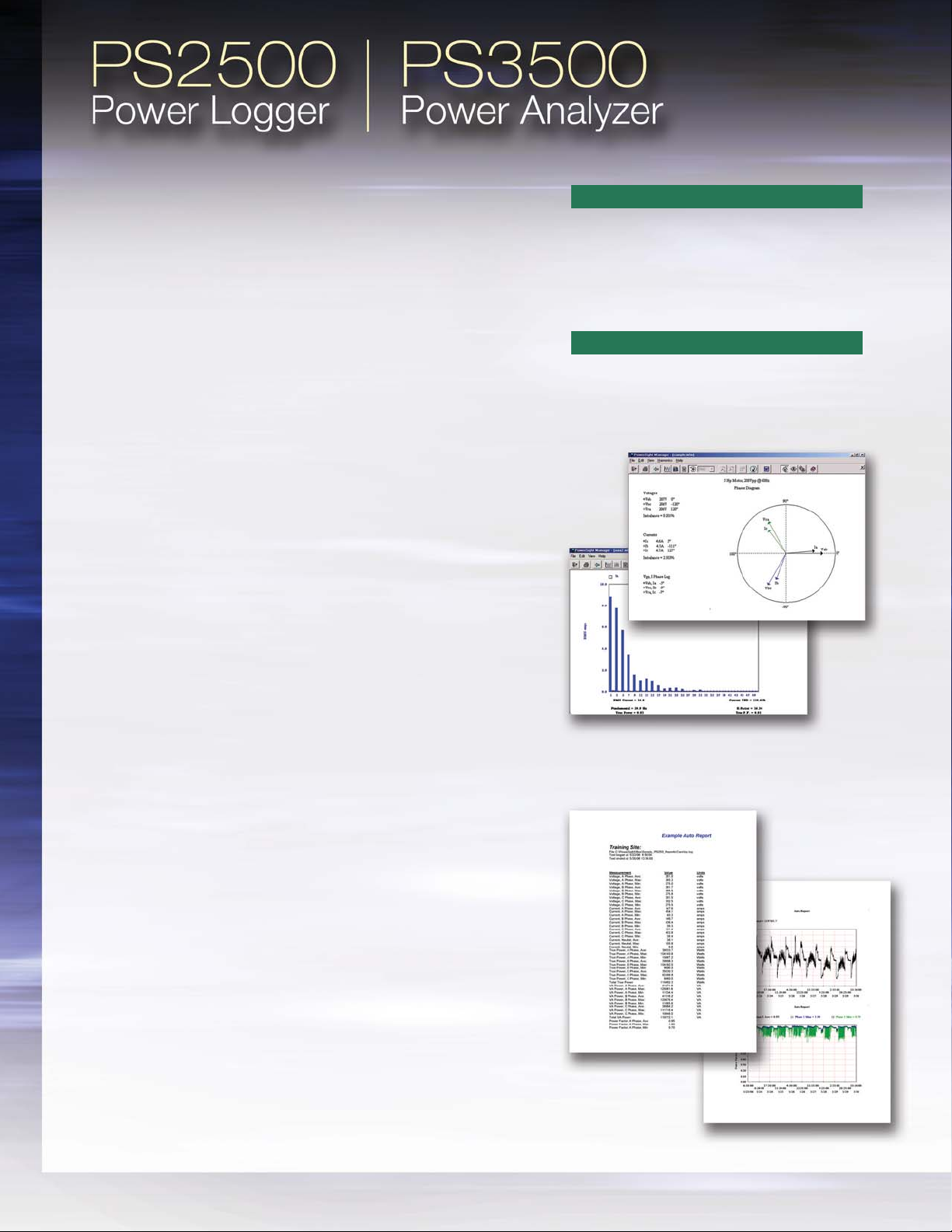

Display waveforms,
phasors, and harmonic
spectra on your PC.
Going Green?
First start with a PowerSight monitor to
identify energy savings opportunities. Find out
how much energy you are using – and when.
Implement a solution and monitor again to
verify. Get the results the way you want, in
watts or in dollars.
Going Solar or Wind-Powered?
PowerSight meters are smart and tell you
when you are consuming power and when
you are generating and sending power back
to the grid.
Create customized
professional
reports with PSM
Report Writer.

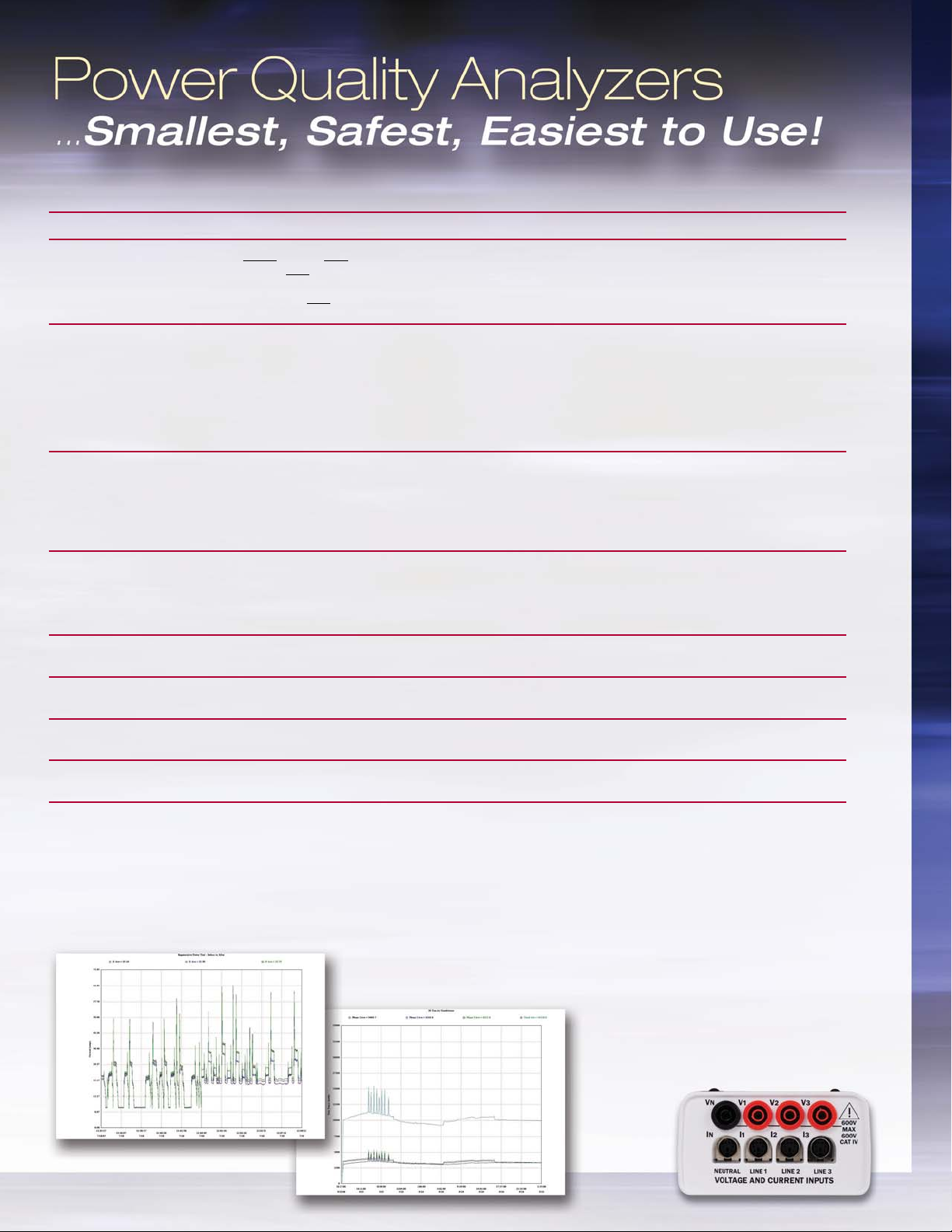

Voltage and current connections
for both single and three-phase
measurements.
Comparison Chart
PS2500 PS3500 Recommendation
Keypad
Two keys. On/Of
f key and Next 25-button keypad with individually Choose the PS3500 if you often perform
key. Each press of Next
scrolls labeled keys for immediate viewing of spot checks or make handheld multithrough a list of real-time meter values, real-time values like a multimeter without meter measurements and prefer using
similar to a multimeter. Next
also scrolling. The keypad can program setup a labeled keypad instead of scrolling
controls Start/Stop of monitoring. and control Start/Stop of monitoring. through a list.
Display Functions
Certain functions are only available More functions are available directly on Choose the PS3500 to get additional
on the PC, including: THD, individual the meter display, including: min/max/ measurement functions on the meter
harmonic content, VAR, KWh, cost, average summaries, THD, individual display or to immediately view a
frequency, duty cycle, displacement harmonic content, VAR, kWh, cost, summary of results after monitoring
power factor, phase lag angle, frequency, duty cycle, displacement instead of having to download to a PC.
peak demand power, and peak power factor, phase lag angle, peak The backlit display of the PS3500 is
demand period. The PS2500 display demand power, and peak demand. better for low light conditions.
is not backlit. period. The PS3500 display is backlit.
PC Setup
Setup is via the PC only and saved Either the PC or the keypad can be PS2500 setup is done only via a PC.
to the meter. Meter can be turned used to program the meter. Setup and Choose the PS3500 if programming
off and taken to the field. Monitoring Start/Stop of monitoring can be the setup with or without a PC offers
Start/Stop can be controlled on meter performed in the field with or without you more flexibility. You can change
or by a PC. Changing the setup for a PC. setup anytime from the PS3500 keypad;
the PS2500 requires a PC. no PC is needed on site.
Demand Power
Generated in the PSM software Available in the meter display from the Both perform logging. Choose the
KWh, and Cost
and can be viewed only on a PC. keypad or can be viewed in the PSM PS3500 if you prefer using the meter’s
Summary
software on a PC. keypad buttons to view a summary of
energy measurements in the display
without having to download to a PC.
Duty Cycle
Not available Available Choose the PS3500 for duty cycle
(% On/Off)
measurements.
Transient
Not available Available on one channel. Transient Choose the PS3500 for logging of
Disturbances
count, worst magnitude and duration. transient disturbances.
Harmonics
Optional. Displayed on PC only in Included. Displayed on meter or on PC Both log THD. The PS3500 is better
PSM software. suited to handheld measurements.
Cost
Lowest Low Both are good value. Choose which
features are important to you.
Role or mode
Better suited as an economical, Very good for logging and better Choose the PS2500 for an economical
of application
easy-to-use power logger; logging for spot checks and handheld data-logger. Choose the PS3500
is its main role. Best suited for measurements like a multimeter. if, in addition to logging, you often
applications needing a logger that More display functions are available need to perform spot checks or handis brought back to a PC for analysis in PS3500. held measurements like a multimeter
and reports. Has fewer handheld and prefer using the meter's keypad
operation and meter display functions. instead of scrolling through a list.
View plots and summaries in PSM
software on a PC. Use zoom, expand,
annotate and export data functions.
© 2008. PowerSight®is a trademark of Summit Technology. Inc. Specifications are subject to change without notice.
Specifications
Size:
3.88" (9.86 cm) W x 7.72" (19.61 cm) L x 1.58" (4.01 cm) D;
In handheld region: 2.14" (5.44 cm) deep at top end
Weight:
1.1 lb. (0.5 kg)
Operating Range:
32 - 122 degrees F (0 - 50 degrees C)
Relative humidity to 70% (non-condensing)
Power Requirement:
12 VDC @ 500 mA, wall-mount power
supply included (specify 120 V or 240 V). Internal Ni-Cad battery operates
8-10 hours after full charge.
Measurement Rate:
Analyzes two cycles per second of each voltage
and current input at 16 μs; uses 130 samples per cycle @ 60 Hz. All
measurements updated once per second
Voltage Measurement Ranges:
1-600 Vrms steady-state (direct input); 1- 600 Vdc
or 600–5,000 Vrms with 5 KVP probes,
or 600–15,000 Vrms with 15 KVP probes.
Display Range: 1-6 MV (using input ratios)
Meter Display Resolution: 1V (PS2500); 0.1V (PS3500)
Accuracy: 0.5% of reading ±0.3 Vrms
Current Measurement Ranges:
With HA5: 0.02 - 5 A
With HA100: 0.1 - 100 A
With HA1000: 1 - 1000 A
With FX3000: 10 – 3000 A
With FX5000: 100 - 5000 A
With DC600: 5 - 600 A DC
Display Range: 1 mA - 6 MA (using input ratios)
Meter Display Resolution: 1A (PS2500); 0.1A (PS3500)
Accuracy: 0.5% of reading plus accuracy of probe
Phasor diagram: via PC
Imbalance: via PC
Frequency Measurement:
Range: DC, 45 - 66 Hz, 360 - 440 Hz fundamental
Display on meter: (PS3500 ONLY)
Accuracy: ±0.5%
Harmonics Measurement:
45 - 3000 Hz (50th harmonic @ 50/60 Hz,
7th @ 400 Hz); (HAO option needed with the PS2500)
THD Accuracy:
1%; Displays THD and individual harmonics through
25th harmonic of all signals on PS3500 only. PowerSight Manager software
displays harmonics through 50th harmonic for both units on a PC; (HAO
option needed with the PS2500)
Power, Energy, Cost, Power Factor:
VA, VAR, True Power Factor (TPF), Displacement Power Factor (DPF),
Phase Lag Angle, Energy kWh, Energy cost in $, Waveform snapshot
Display Range: 1 watt - 60 MW (using input ratios)
Accuracy: 1% plus accuracy of current probe
Transient Detection: one channel (PS3500 ONLY)
Logging Period
(resolution)
User selectable from 1 second — 99 minutes
Logging Duration
(length of monitoring session)
User selectable up to 2 years according to memory allocation
Other Features:
Crest Factor, K Factor, Peak Demand Period, Peak Demand of Peak
Demand Period.
Duty cycle, On/Off cycle %, avg On time, avg Off time (PS3500 ONLY)
SureStart™ checks connections for error free monitoring
Backlit Display (PS3500 ONLY)
Wireless communications: Bluetooth
SD memory card slot to 2GB
CE 600V Cat IV
Keypad control of functions (PS2500: 2 keys; PS3500: 25 keys)
Programming and set-up with PC (required for PS2500)
Setup of operating parameters in the field without PC (PS3500 ONLY)
Review of max/min/avg of measurements in meter display (PS3500 ONLY)
Spanish language user interface (PS3500 ONLY)
Regenerative power measurement mode (alternating consume/generate)
Two CT power measurement mode, open delta measurement mode
wye, 3-wire delta, 4-wire delta measurement modes
Data Exportable to Excel
Compatible with SafeConnect™ accessory
Report Writer Software, summary or comparison, w or w/o graphs, text
editable
Long-term monitoring via external 12 V battery
Derive operating power off power being monitored with LDC accessory
Non-intrusive monitoring of appliances:
with 120ADP accessory
Internal Data Retention:
8 years
HA5 0.02 A to 5 A AC
HA100 0.1 A to 100 A AC
Accuracy: 2%,
Size: 5.25” x 2.1” x 1.35” for
conductors up to 0.8” diameter
DC600
5 A to 600 A DC;
5 A to 400 A, DC/AC
Accuracy ±1A ±2%, 5A to 400A;
±1A ±3%, 400 A to 600 A DC
Size: 7.68” x 2.6” x 1.34” for
conductors up to 1.18” diameter

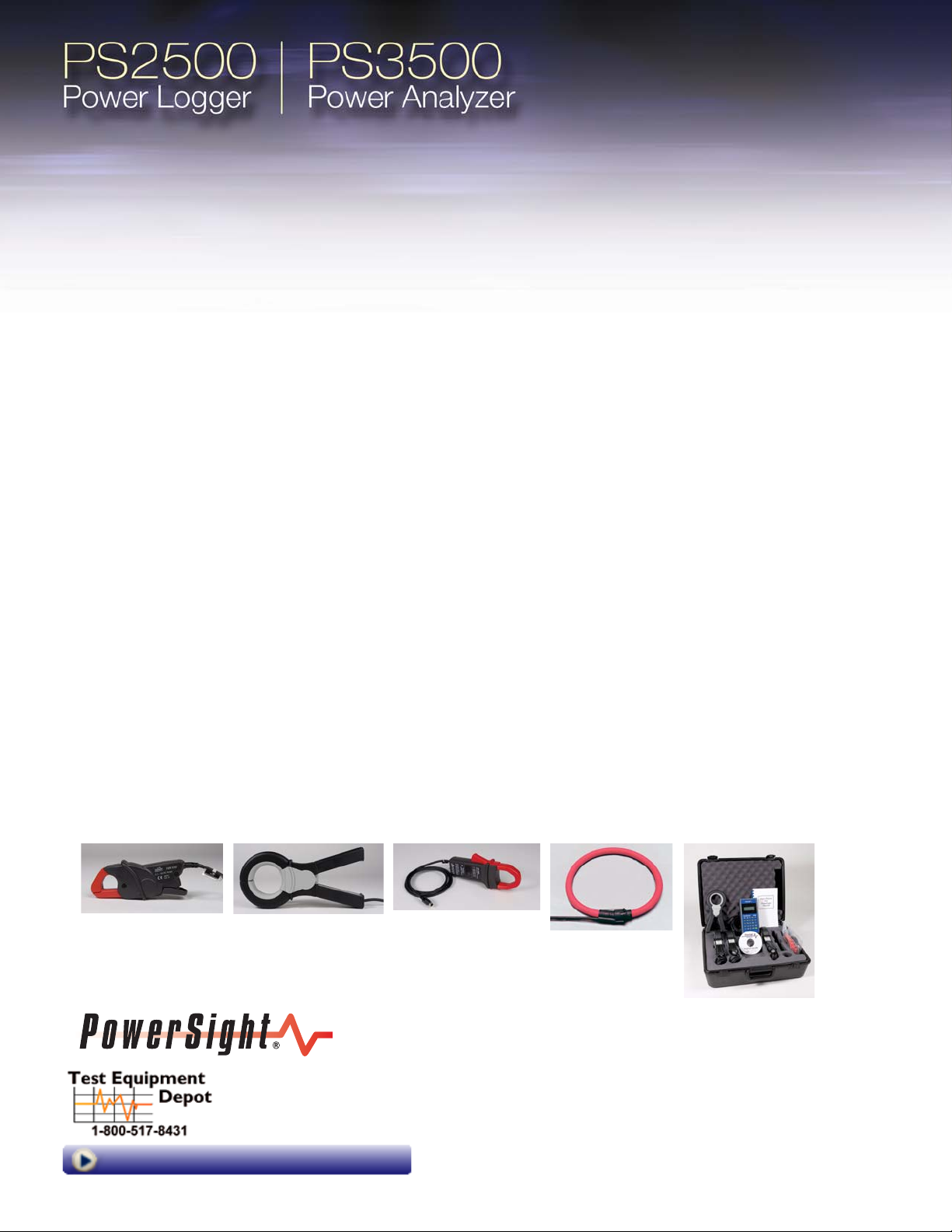

Complete, pre-packaged
systems
Systems are equipped with your choice
of clamp-on or flexible current probes,
voltage leads, plug-in charger unit, PC
software and instruction manual.
OOtthheerr ooppttiioonnss aavvaaiillaabbllee
: 5 KV and 15 KV
medium voltage probes; soft carry case;
weatherproof operating case; line-to-DC
converter.
FX3000
10 A to 3000 A AC
FX5000 100 A to 5000 A
AC
Both models: Accuracy 2%,
Size 24” long for conductors
up to 7.5” diameter
HA1000
1 A to 1000 A AC
Accuracy: 0.5%,
Size 9” x 4.4” x 1.75” for
conductors up to 2.13” diameter
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Loading...
