Power Sense Wireless POWERTAGS User Manual

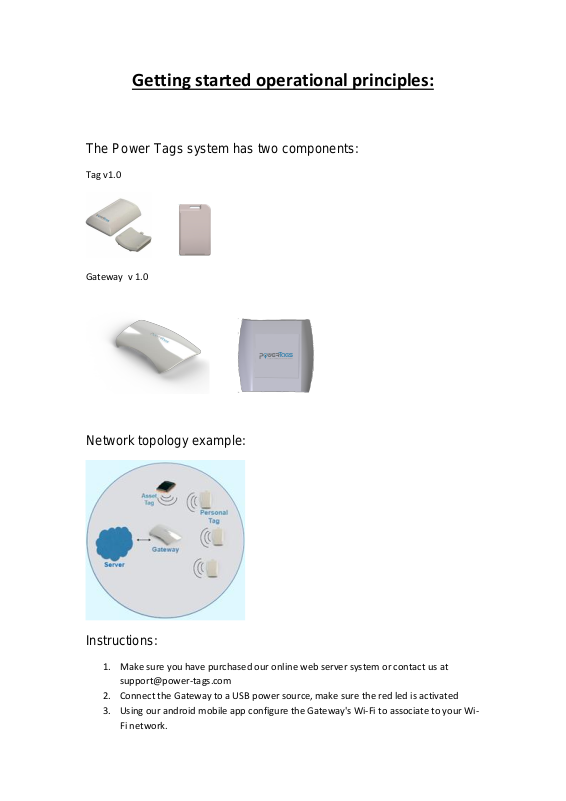

Getting started operational principles:

The Power Tags system has two components:

Tag v1.0

Gateway v 1.0

Network topology example:

Instructions:

1. Make sure you have purchased our online web server system or contact us at

[e-mail]

2. Connect the Gateway to a USB power source, make sure the red led is activated

3. Using our android mobile app configure the Gateway's Wi-Fi to associate to your Wi-

Fi network.

4. Place the Tag it the upright position, make sure the red led on the tag is blinking and

the red led in the gateway is blinking as well.

5. Open the Live Map view in web server dashboard, make sure the tag icon is

reported.

Operational principle

The PowerTags’ technology enables tracking people and assets indoors by attaching tags to
them.
The first component of the system is the tag which is operated by a small, long-life battery
that lasts years and doesn’t require replacing or recharging. It communicates via 915MGHz
RF with a number of gateways and pre-installed tags that are placed throughout the facility.
The data collected hold estimated range of the tag from each installed unit is then
transferred via the gateways WiFi to a web based server which uses trilateration algorithms
to locate the tag’s position.
The location data is used via a web based dashboard to display data on a map and perform

analytics on the collected data.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.
—Consult the dealer or an experienced radio/TV technician for help.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause

undesired operation.

Caution!

Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
