For Technical Support Call 813.689.9932 option 2
Compatible with all C-Monster Control Systems
Programming Instructions
PROGRAM
LED
Hydraulic Pump Unit (HPU)
MICRO Driver Unit
LED
PROGRAM
Pairing Key Fob Remote:
1. Press and hold the PROGRA M button
on the top of the unit for 3 seconds until
the LED turns green (HPU will also beep).
The unit is now ready to be paired with
the key fob remote.
NOTE: If dual units are installed, repeat
Steps 1-3 to pair multiple units to a
single key fob remote. Up to ten (10) wireless
controllers can be programmed to each unit.
IMPORTANT: Refer to your Installation Manual
for programming dual units.
2. Press the button on the key fob remote control
for one second and release. The green LED
on the unit(s) will initially turn off, then flash
steadily (HPU will also beep) indicating that
the pairing is complete.
3. The key fob remote is now paired to the unit.
Test its functionality by following the operating
instructions to ensure that the pairing
procedure was completed successfully.
9010 Palm River Road, Tampa, Florida 33619
phone 813.689.9932 • fax 813.689.8883
power-pole.com
To activate your warranty or find a
Power-Pole Certified Warranty Center,
go to www.power-pole.com
2
IC RSS-GEN, Sec 7.1.2 Warning Statement
ENGLISH: Under Industr y Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
FRENCH: Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et d’un gain
maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans
le but de réduire les risques de brouillage radioélectrique à l’intention des
autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que
la puissance isotrope rayonnée quivalente (p.i.r.e.) ne dépassepas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.
IC RSS-102, Sec 2.6 Warning Statements
ENGLISH: The applicant is responsible for providing proper instructions to
the user of the radio device, and any usage restrictions, including limits of
exposure durations. The user manual shall provide installation and operation
instructions, as well as any special usage conditions, to ensure compliance
with SAR and/or RF field strength limits. For instance, compliance distance
shall be clearly stated in the user manual.
FRENCH: Le mode d’emploi des appareils destinés à l’utilisation contrôlée
doit aussi inclure des informations sur les caractéristiques de fonctionnement
de l’appareil; les instructions de fonctionnement pour assurer la conformité
avec SAR et / ou les limites d’intensité de champ RF; informations sur
l’installation et l’exploitation d’accessoires pour assurer le respect des
SAR et / ou les limites d’intensité de champ RF; et les coordonnées où
l’utilisateur peut obtenir des informations sur l’exposition canadienne de
radiofréquences et la conformité. Autres renseignements connexes peuvent
également être inclus.

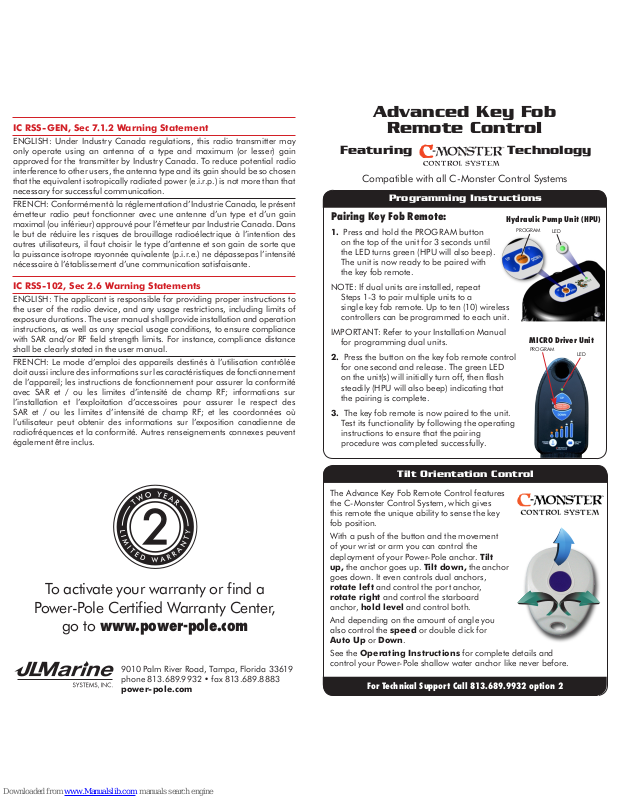

Advanced Key Fob
Remote Control
Featuring Technology
Tilt Orientation Control
The Advance Key Fob Remote Control features
the C-Monster Control System, which gives
this remote the unique ability to sense the key
fob position.
With a push of the but ton and the movement
of your wrist or arm you can control the
deployment of your Power-Pole anchor. Tilt
up, the anchor goes up. Tilt down, the anchor
goes down. It even controls dual anchors,
rotate left and control the port anchor,
rotate right and control the starboard
anchor, hold level and control both.
And depending on the amount of angle you
also control the speed or double click for
Auto Up or Down.
See the Operating Instructions for complete details and
control your Power-Pole shallow water anchor like never before.
Operating Instructions
The new Advanced Key Fob Remote will react to match the angle or
attitude that you hold the fob. While holding the fob in the desired
speed position, press and hold for Manual Deploy or Retract and
double click for Auto Up or Down.
Using SPEED control
Power-Pole DOWN – While holding the Key Fob at desired position,
press and hold button for Manual Control or double click for Auto
Mode.
Angle the fob slightly down = DOWN SLOWLY
Continue down angle = DOWN MEDIUM
Steep down angle = DOWN FAST
Power-Pole UP – While holding the Key Fob at desired position, press
and hold button for Manual Control or double click for Auto Mode.
Angle the fob slightly up = UP SLOWLY
Continue up angle = UP MEDIUM
Steep up angle = UP FAST
Power-Pole DOWN
SLOW
MEDIUM
FAST
Power-Pole UP
SLOW
MEDIUM
FAST
Operating Instructions
DUAL Power-Pole operation
The Advanced Key Fob Remote provides total flexibility and more
control when operating DUAL Power-Pole shallow water anchors.
To operate BOTH Power-Pole anchors at the same time:
1. Hold the fob level, press the button and BOTH anchors will
operate together.
To operate the LEFT Power-Pole individually:
1. Rotate the fob to the LEFT, the fob will operate the left Power-Pole
independently.
To operate the RIGHT Power-Pole individually:
1. Rotate the fob to the RIGHT, the fob will operate the right PowerPole independently.
BOTH ANCHORS
HOLD THE FOB LEVEL
LEFT OR RIGHT ANCHOR
ROTATE
LEFT
OR
RIGHT
FCC Part 15.19 Warning Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPER ATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE
MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DE VICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
FCC Part 15.21 Warning Statement
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR
MODIFICATIONS NOT EXPRES SLY APPROVED BY THE PARTY RESPONSIBLE
FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
IC RSS-GEN, Sec 7.1.3 Warning Statement
ENGLISH: This device complies with Industr y Canada license-exempt RSS
standard(s). Operation is subject to the following t wo conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of
the device.
FRENCH: Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement.
Changing the Battery
1. Ensure the surrounding area is as dry as
possible to avoid any moisture intrusion.
2. Use a small slotted screwdriver to
remove the top cover for the remote
control key fob. Fig. 1
3. Remove the rubber switch membrane
and the board from the bottom cover.
4. Remove the battery from the holder on
the front of the board and replace with
any CR2032 3V Lithium Coin Battery.
5. Place the board and rubber switch
membrane back into the bottom cover
and ensure that the rubber switch
membrane is seated properly prior to
installing the top cover.
Figure 1
