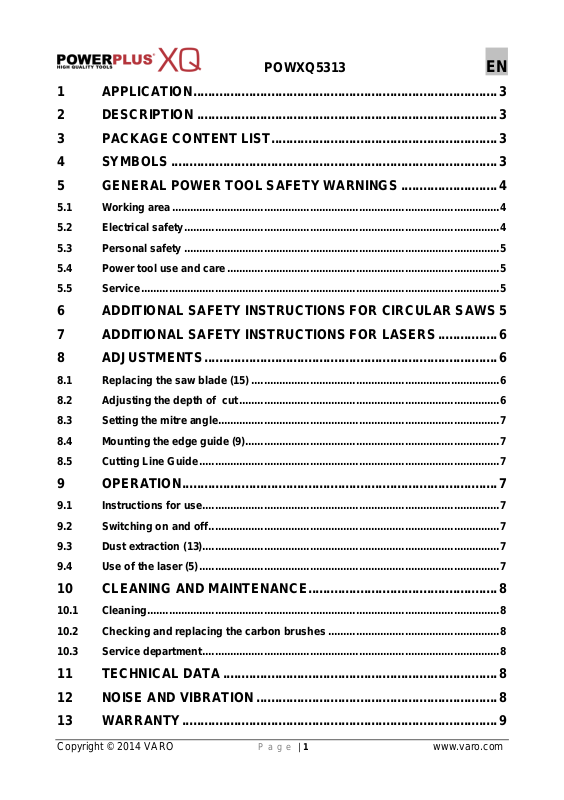

Powerplus POWXQ5313 User Manual
POWXQ5313 EN
1 APPLICATION .................................................................................. 3
2 DESCRIPTION ................................................................................. 3
3 PACKAGE CONTENT LIST ............................................................. 3
4 SYMBOLS ........................................................................................ 3
5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1 Working area ........................................................................................................... 4
5.2 Electrical safety ....................................................................................................... 4
5.3 Personal safety ....................................................................................................... 5
5.4 Power tool use and care ......................................................................................... 5
5.5 Service ..................................................................................................................... 5
6 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS 5
7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS ................ 6
8 ADJUSTMENTS ............................................................................... 6
8.1 Replacing the saw blade (15) ................................................................................. 6
8.2 Adjusting the depth of cut ..................................................................................... 6
8.3 Setting the mitre angle............................................................................................ 7
8.4 Mounting the edge guide (9) ................................................................................... 7
8.5 Cutting Line Guide .................................................................................................. 7
9 OPERATION ..................................................................................... 7
9.1 Instructions for use ................................................................................................. 7
9.2 Switching on and off ............................................................................................... 7
9.3 Dust extraction (13) ................................................................................................. 7
9.4 Use of the laser (5) .................................................................................................. 7
10 CLEANING AND MAINTENANCE ................................................... 8
10.1 Cleaning................................................................................................................... 8
10.2 Checking and replacing the carbon brushes ........................................................ 8
10.3 Service department ................................................................................................. 8
11 TECHNICAL DATA .......................................................................... 8
12 NOISE AND VIBRATION ................................................................. 8
13 WARRANTY ..................................................................................... 9
Copyright © 2014 VARO P a g e | 1 www.varo.com
POWXQ5313 EN
14 ENVIRONMENT ............................................................................... 9
15 DECLARATION OF CONFORMITY .............................................. 10
Copyright © 2014 VARO P a g e | 2 www.varo.com
POWXQ5313 EN
CIRCULAR SAW 1350W
POWXQ5313
1 APPLICATION
Your circular saw has been designed for sawing wooden workpieces. The machine is only
suitable for right-hand use. The machine is not suitable for stationary use. It is not designed for
commercial use.
WARNING! For your own safety, read this manual and the general safety
instructions carefully before using the appliance. Your power tool should
only be given to other users together with these instructions.
2 DESCRIPTION
Fig 1
1. Power Cable
2. Handle
3. Laser on/off switch
4. Guide handle
5. Laser
6. Spindle lock button
7. Lock lever for angle adjustment
8. Lock screw for edge guide
9. Edge guide
10. Marking for bevel cuts
11. Marking for straight cuts
3 PACKAGE CONTENT LIST
Remove all packaging materials.
Remove remaining packaging and packing inserts (if included).
Check that the package contents are complete.
Check the appliance, the power cord, the power plug and all accessories for transportation
damage.
Keep the packaging materials as far as possible until the end of the warranty period. Then
take it to your local waste disposal system.
12. Shoe
13. Dust extraction port
14. Lower guard lever
15. Saw blade
16. Outer Flange
17. Blade clamp screw
18. Lower guard
Fig 2
19. Lock lever for depth adjustment
20. Lock-off button
21. On/off switch
WARNING Packaging materials are not toys! Children must not play with
plastic bags! There is a danger of suffocation!
1 set of carbon brushes
1 wood-cutting saw blade (assembled)
1 edge guide
1 wrench
1 manual
1 small XQ catalogue
If any parts are missing or damaged, please contact your dealer.
4 SYMBOLS
The following symbols are used in this manual and/or on the machine:
Copyright © 2014 VARO P a g e | 3 www.varo.com
