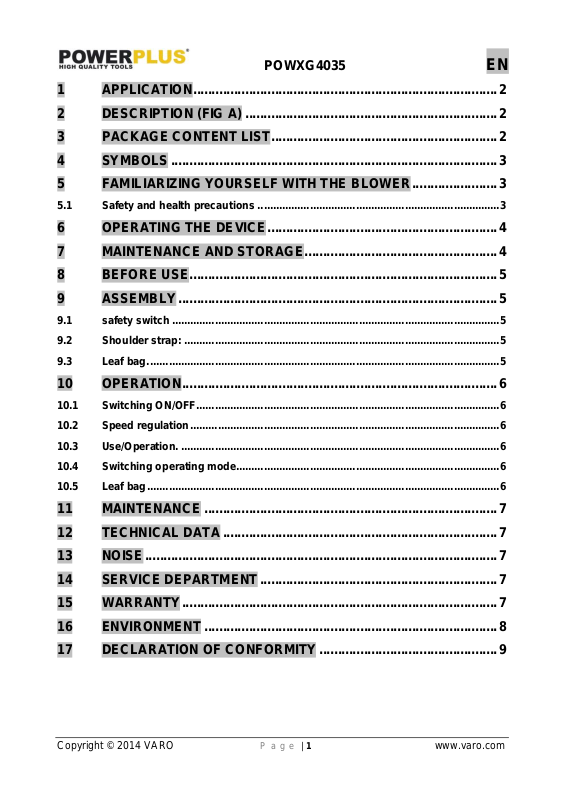

1 APPLICATION .................................................................................. 2

2 DESCRIPTION (FIG A) .................................................................... 2

3 PACKAGE CONTENT LIST ............................................................. 2

4 SYMBOLS ........................................................................................ 3

5 FAMILIARIZING YOURSELF WITH THE BLOWER ....................... 3

5.1 Safety and health precautions ............................................................................... 3

6 OPERATING THE DEVICE .............................................................. 4

7 MAINTENANCE AND STORAGE .................................................... 4

8 BEFORE USE ................................................................................... 5

9 ASSEMBLY ...................................................................................... 5

9.1 safety switch ........................................................................................................... 5

9.2 Shoulder strap: ....................................................................................................... 5

9.3 Leaf bag. .................................................................................................................. 5

10 OPERATION ..................................................................................... 6

10.1 Switching ON/OFF ................................................................................................... 6

10.2 Speed regulation ................................................................ ..................................... 6

10.3 Use/Operation. ........................................................................................................ 6

10.4 Switching operating mode...................................................................................... 6

10.5 Leaf bag ................................................................................................................... 6

11 MAINTENANCE ............................................................................... 7

12 TECHNICAL DATA .......................................................................... 7

13 NOISE ............................................................................................... 7

14 SERVICE DEPARTMENT ................................................................ 7

15 WARRANTY ..................................................................................... 7

16 ENVIRONMENT ............................................................................... 8

17 DECLARATION OF CONFORMITY ................................................ 9

Page 2

POWXG4035 EN

LEAF BLOWER/ VACUUM 3000W POWXG4035

1 APPLICATION

The blower/vacuum is designed to blow/vacuum leaves as well as lawn debris such as grass clippings and small twigs. It is not to be used for any other purpose The device is only to be used on dry surfaces, The device is intended for non-commercial use in private home* and gardens. Under no circumstances is it to be used in public outdoor areas, sports stadiums or in agricultural or forestry settings. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1. Bottom tube section

2. Rollers

3. Top tube section

4. Leaf bag securing clip on the top tube

5. Leaf bag

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

6. Blow - Vacuum function selector lever

7. Motor casing

8. Shoulder strap

9. Main ON/OFF switch

10. Speed Control

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

leaf blower/ vacuum 3000W Shoulder strap Leaf bag Instruction Manual

When parts are missing or damaged, please contact your dealer.

Page 3

POWXG4035 EN

Warning / Danger

Keep bystanders away.

Read manual before usage

Remove plug from the mains immediately if the cable is damaged or cut.

In accordance with essential applicable safety standards of European directives

Switch off and unplug the device before cleaning or performing maintenance on it.

Never operate or leave the machine in the rain or in damp or wet conditions. Moisture is an electrical shock hazard.

Wear ear guards and goggles.

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

5 FAMILIARIZING YOURSELF WITH THE BLOWER

 Read these instructions carefully so as to familiarize yourself with proper use of the device

and its operating and control functions.

 Under no circumstances should children be permitted to operate the blower.  Under no circumstances should persons who are unfamiliar with the contents of these

instructions be permitted to operate the device. Ordinances and regulations in some municipalities may set a minimum age for operation of the blower

 Under no circumstances should the blower ever be operated when other persons,

particularly children, or pets are nearby.

 The user is liable for any accidents or damage incurred by third parties or their property.

5.1 Safety and health precautions

 When you operate t he blower, always wear full-length trousers, as well as sturdy, closed

shoes that provide good support.

 Under no circumstances should jewelry, any other body ornamentation,

or loose clothing be worn while operating the device as these items could be drawn into the suction orifice. When working outdoors, rubber gloves and n on-slip footwear should always be worn. If you have long hair, put it in a hair net.

 Wear protective garb and goggles.

Wearing protective garb such as a dust mask, non-slip footwear, protective gloves, a helmet and/or hearing protection (depending on the type and application of the electrical device concerned) reduces the risk of injury.

 When performing work that generates dust, wear a breathing mask.

Page 4

 Each time you use the blower, check the integrity of the device's power cord and your own

extension cord. The device should only be operated when its accessories are in perfect working order. Any damaged or defective components should be repaired immediately by a qualified technician.

 Under no circumstances should the blower be operated while you are wearing damaged

protective garb, shielding or without basic safely equipment such as a deflection device or collection bag.

 Only extension cords that are rated for outdoor use should be used outdoors. Any

extension cord used should measure a minimum of 1.5 mm across.

 All plug-in connections should have an earthing contact and water-spray shielding.

6 OPERATING THE DEVICE

 Make sure the power cord is kept behind and away from the device while you work.  If the power cord or extension cord are damaged while you work, unplug the blower

immediately. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Never use the power cord as a handle to lift or carry the device.

POWXG4035 EN

 Always unplug the device under the fol lowing circumstances:

 Use the blower in daylight or with adequate illumination.  Bear in mind that the force generated by an electrical device can make you lose your

balance. Therefore, make sure that your feet are firmly planted and that your body is well balanced when you are operating the device.

 Never operate the blower on damp or wet grass.  Using the blower on sloping areas: Do not work in areas with unduly steep slopes.  Use the blower as follows when working on slopes:  Always position yourself horizontally to the slope and make sure your feet are firmly

planted. Exercise particular caution whenever you change directions while working on a slope.

 Walk at a measured pace while operating the blower. DO NOT RUN.  Keep the air outlet unobstructed and clean at all times.  Never direct the suction/blown air opening toward persons or animals.

o When the blower is not in use, is being carried/transported, or is left

unattended.

o While examining, cleaning or unclogging the device. o When cleaning the device, performing maintenance on it, or attaching

accessories to it.

o If the device strikes a foreign object or begins vibrating abnormally.

7 MAINTENANCE AND STORAGE

 Make sure that all screws, nuts and bolts are tight; doing this will ensure that the blower is

safe to operate.

 Check the collection bag regularly for signs of wear and/or distortion.  Make sure the correct type of replacement cutting blades are used.  For reasons of safety, any worn or damaged component should be replaced or repaired

immediately by a qualified technician.

 When not in use, the blower should be stored in a dry location that is inaccessible to

children.

 The blower can be plugged into any 230 volt AC outlet with 10 amps of fuse protection.

The electrical outlet is to be protected by an earth leakage circuit breaker (ELCB). with a max triggering current of 30 m amps.

Page 5

POWXG4035 EN

8 BEFORE USE

Steps prior to operation Only operate the device after completely assembling it. Prior to each use, check the power cord for signs of damage. Under no circumstances should the power cord be used if it shows any signs of damage.

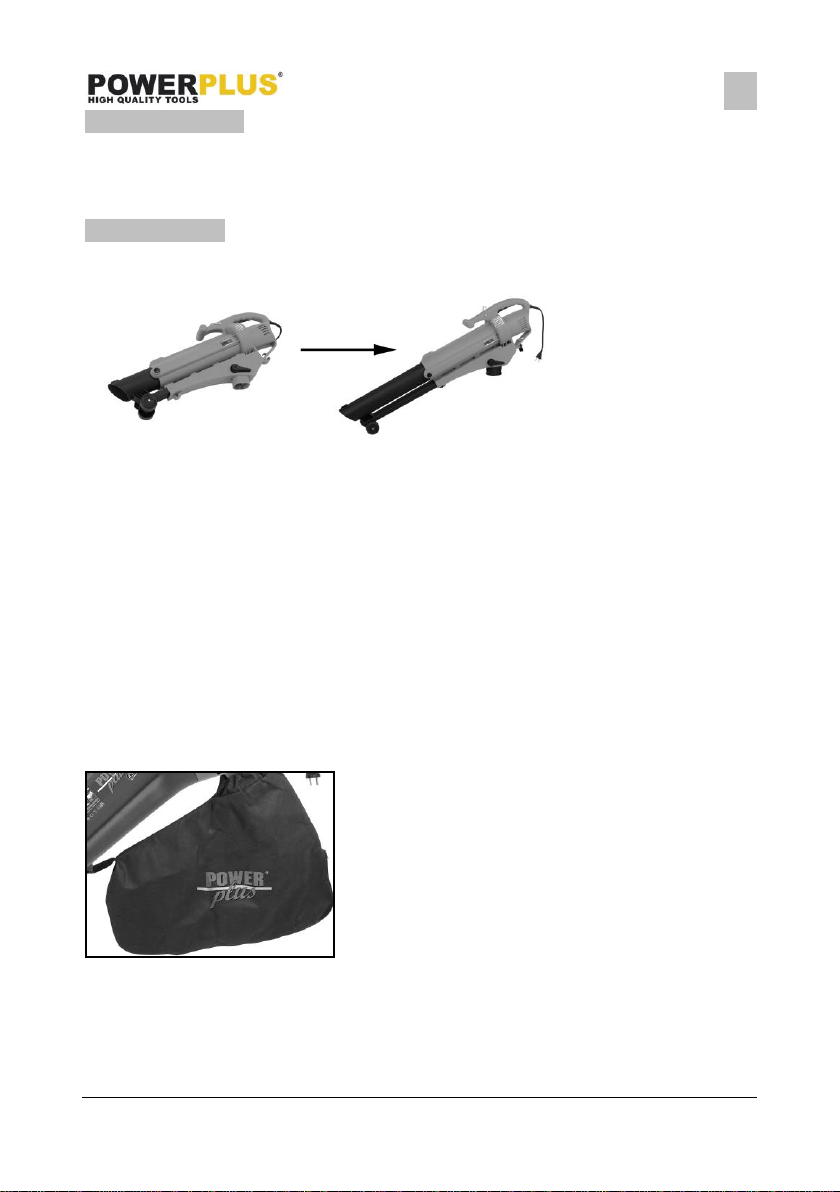

9 ASSEMBLY

You new blower vac requires very little assembly work before it is ready for use.

ATTENTION ! The 2 supplied tube parts have to be mounted otherwise the machine will NOT work ! (build in safety switch !)

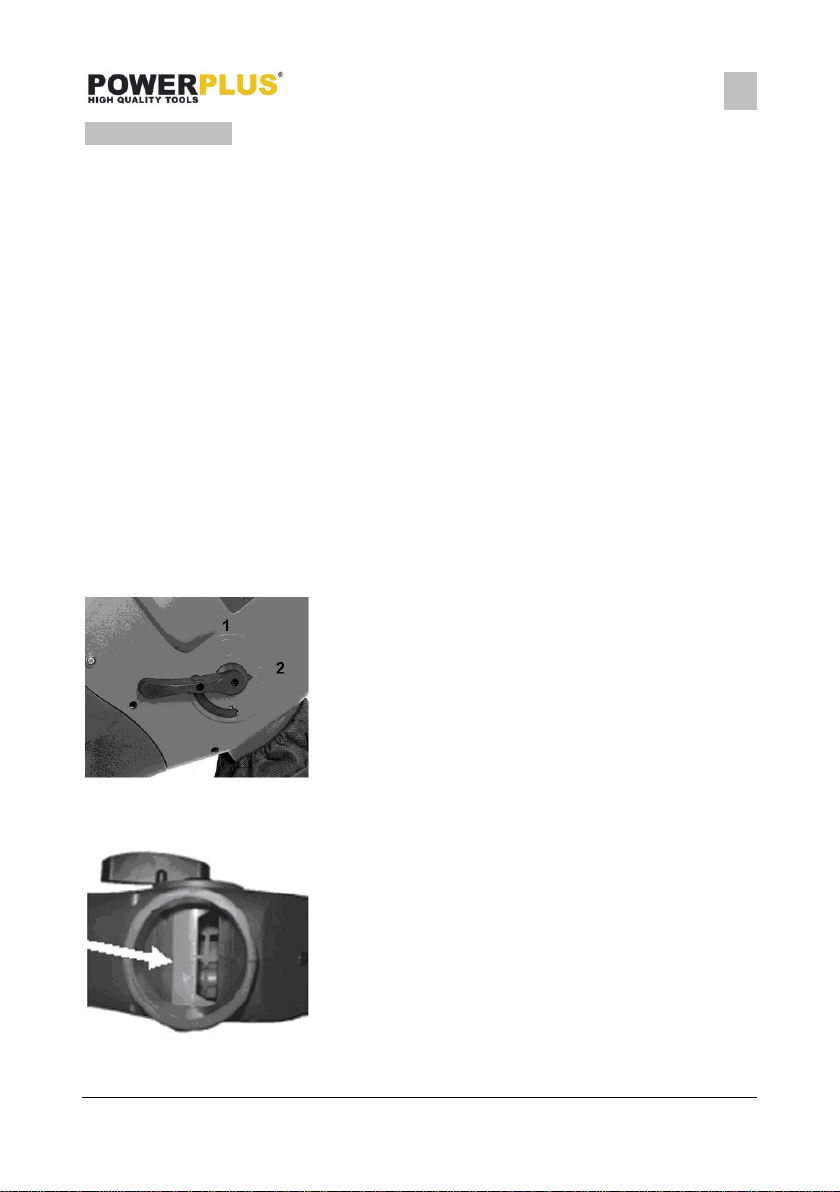

9.1 safety switch

Your blow-vac has a build in safety switch that prevents the machine from being started in case the supplied tubes are not mounted.

9.2 Shoulder strap:

The shoulder strap will be supplied inside the leaf bag. Take the shoulder strap out of the leaf bag, open the snap fastener, thread the strap through the metal clip on the top of the motor casing and then close the snap fastener. To adjust the shoulder strap to the required length, simply slide the adjustable strap buckle forward or backwards.

9.3 Leaf bag.

To secure the leaf bag to the machine, simply attach the buckle to the top tube section and pull the expanding bag opening over the leaf discharge point on the bottom of the motor casing. Then tighten the securing belt.

Page 6

POWXG4035 EN

To switch the machine from blower mode to vacuum mode, simply switch it off at the main switch and move the function selector lever to the other position.

To empty the leaf bag simply open the zip fastener, empty the bag and then close the zip fastener again. When the leaf bag is open you can also check the

function of the blower vac’s slide control. If there is a

blockage in the machine, check this function and remove the blockage.

10 OPERATION

Ensure that the blower vac is only connected to conventional sockets with a 240V alternating current supply. Only use extension cables if they are really necessary. The use of extension cables may cause a drop in voltage, which will result in the machine not performing to its peak or the motor overheating.

10.1 Switching ON/OFF

To switch on the blow/vac push in the on/off trigger switch (9). And hold to switch off the machine, release the on/off trigger switch.

10.2 Speed regulation

You can vary the speed by turning the switch (10) from 1 (low speed) to 6 (high speed)

10.3 Use/Operation.

The easiest way to use the blower vac is to place the shoulder strap in a comfortable position

over your shoulder and hold the rear handle at hip height so that the majority of the machine’s

weight rests on the rollers. When using the blower vac to pick up leaves it is best to move the machine on the rollers. This ensures that the blower vac is at the perfect height above the ground. The blower vac is designed only to pick up leaves. To avoid machine damage that is not covered by the warranty, do not use it to pick up branches, stones or other hard materials. When using the machine as a leaf blower always work away from solid objects such as walls, fences, etc. Whilst you work do not place the blower vac tube too close to the leaves. The machine will be more effective if you keep it at a certain distance away from the leaves and blow the leaves forwards.

10.4 Switching operating mode

10.5 Leaf bag

Note: Before you remove and empty the leaf bag ensure that the machine has been disconnected from the mains power supply.

Page 7

POWXG4035 EN

POWXG4035

voltage :

230V-240V~ 50 Hz

Power

3000W

no load speed :

6000-15000 min-1

max airspeed

270 km/h

max air volume

14 m³/min

dust bag

50 L

shredding ratio :

10:1

Acoustic pressure level LpA

86 dB(A)

Acoustic power level LwA

99 dB(A)

aw (Vibration)

1.3 m/s²

K = 1,5 m/s²

11 MAINTENANCE

Check the blower vac for any signs of damage before each use After using the machine

1. Empty the leaf bag.

2. Check the vacuum tube and remove leaf residue.

3. Check the blower vac’s slide control for leaf residue.

4. Clean the machine with a soft dry cloth.

5. Store the machine in a safe place where it is out of the reach of children.

12 TECHNICAL DATA

13 NOISE

Noise emission values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

14 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a particular

connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

15 WARRANTY

 This product is warranted for a 36-month period effective from the date of purchase by the

first user.

 This warranty covers all material or production flaws excluding : batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

Page 8

 Any transportation costs shall always be borne by the customer, unless agreed otherwise

POWXG4035 EN

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 9

POWXG4035 EN

17 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: leaf blower/ vacuum 3000W Trade mark: POWERplus Model: POWXG4035

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU 2006/42/EC 2004/108/EC 2000/14/EC Annex V LwA 97dB / 99dB

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60335-1 : 2012 IEC60335-2-100 : 1.0 : 2002 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-3 : 2008

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove Regulatory Affairs – Compliance Manager 18/11/13
