Powerplus POWX180 User Manual

POWX180 EN

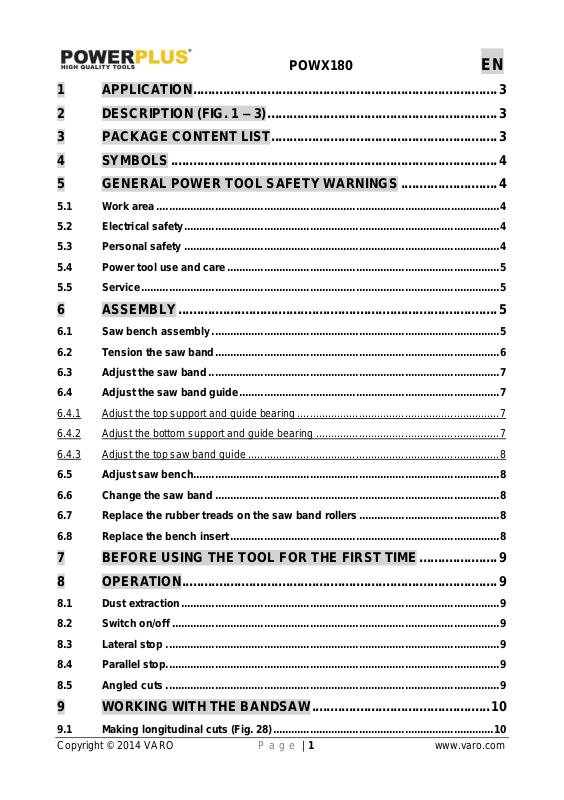

1 APPLICATION .................................................................................. 3

2 DESCRIPTION (FIG. 1 – 3) .............................................................. 3

3 PACKAGE CONTENT LIST ............................................................. 3

4 SYMBOLS ........................................................................................ 4

5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4

5.1 Work area ................................................................................................................ 4

5.2 Electrical safety ....................................................................................................... 4

5.3 Personal safety ....................................................................................................... 4

5.4 Power tool use and care ......................................................................................... 5

5.5 Service ..................................................................................................................... 5

6 ASSEMBLY ...................................................................................... 5

6.1 Saw bench assembly .............................................................................................. 5

6.2 Tension the saw band ............................................................................................. 6

6.3 Adjust the saw band ............................................................................................... 7

6.4 Adjust the saw band guide ..................................................................................... 7

6.4.1 Adjust the top support and guide bearing .................................................................. 7

6.4.2 Adjust the bottom support and guide bearing ............................................................ 7

6.4.3 Adjust the top saw band guide .................................................................................. 8

6.5 Adjust saw bench.................................................................................................... 8

6.6 Change the saw band ................................................................ ............................. 8

6.7 Replace the rubber treads on the saw band rollers .............................................. 8

6.8 Replace the bench insert ........................................................................................ 8

7 BEFORE USING THE TOOL FOR THE FIRST TIME ..................... 9

8 OPERATION ..................................................................................... 9

8.1 Dust extraction ........................................................................................................ 9

8.2 Switch on/off ........................................................................................................... 9

8.3 Lateral stop ............................................................................................................. 9

8.4 Parallel stop............................................................................................................. 9

8.5 Angled cuts ............................................................................................................. 9

9 WORKING WITH THE BANDSAW ................................................ 10

9.1 Making longitudinal cuts (Fig. 28) ........................................................................ 10

POWX180 EN

9.2 Making cross cuts (Fig. 29) .................................................................................. 10

9.3 Making angled cuts (Fig. 30) ................................................................................ 10

9.4 Making double mitre cuts (Fig. 31) ....................................................................... 11

9.5 Making free-hand cuts (Fig. 32) ............................................................................ 11

10 MAINTENANCE AND CARE ......................................................... 11

10.1 Cleaning................................................................................................................. 11

10.2 Lubrication ............................................................................................................ 11

11 TECHNICAL DATA ........................................................................ 12

12 NOISE ............................................................................................. 12

13 SERVICE DEPARTMENT .............................................................. 12

14 STORAGE ...................................................................................... 12

15 WARRANTY ................................................................................... 13

16 ENVIRONMENT ............................................................................. 13

17 DECLARATION OF CONFORMITY .............................................. 14

POWX180 EN

BANDSAW 350W POWX180

1 APPLICATION

This machine is designed for the longitudinal cut and lateral cutting of wood and similar materials. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. 1 – 3)

1. Machine foot

2. Machine casing

3. Extractor connector

4. Motor

5. ON/OFF switch

6. Saw bench

7. Securing screw

8. Securing screw

9. Locking handle

10. Graduated scale

11. Lock nut for top saw band roller

12. Setting screw for top saw band roller

13. Clamping screw

14. Saw band

15. Side cover

16. Sealing screw

17. Top saw band roller

18. Bottom saw band roller

19. Top guide bearing

20. Top support bearing

21. Bottom support and guide bearing

22. Saw band guide

23. Saw band guide securing screw

24. Saw band guard

25. Rubber treads on the saw band rollers

26. Bench insert

27. Parallel stop

28. Parallel stop clamping bar

29. Lateral stop

30. Lateral stop securing screw

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

Bandsaw 350W Lateral stop Parallel stop

When parts are missing or damaged, please contact your dealer.

hex key push stick Instruction manual

POWX180 EN

Read manual before usage

Attention Laser radiation! Do not look into the beam. Laser class 2

Warning / Danger

In accordance with essential requirements of the European directive(s)

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

 Keep work area clean and well lit. Cluttered and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

5.2 Electrical safety

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

 Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

 Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

POWX180 EN

 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key

left attached to a rotating part of the power tool may result in personal injury.

 Do not overreach. Keep proper footing and balance at all times. This enables better

control of the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

 If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

 Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

 Do not use the power tool if the switch does not turn it on and off. Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store idle power tools out of the reach of children and do not allow persons unfamiliar with

the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or sticking of moving parts, breakage of

parts and any other condition that may affect the power tool’s operation. If damaged, have

the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to stick and are easier to control.

 Use the power tool, accessories and tool bits etc., in accordance with these instructions

and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

 Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

6 ASSEMBLY

Important. Pull the mains plug before starting any servicing, adjustment and assembly work.

6.1 Saw bench assembly

 Unscrew the securing screw (8) (Fig. 4).  Unscrew the locking handle (9) using a screwdriver (Fig. 4).  To do this, pull the handle towards yourself and turn the screw anti-clockwise using the

screwdriver.

 Remove the securing screw (7) on the saw bench (6) (Fig. 5).  Push the saw bench (6) from the right on to the machine casing (2). Ensure that the saw

band (14) is in the centre of the saw bench (6). Ensure that the graduated scale (10) on the saw bench (6) is positioned in the guide on the machine casing (2) (Fig. 6).

 Insert the securing screw (8) again and tighten it.  Fit the locking handle (9) again and tighten it using a screwdriver (Fig. 7).

+ 9 hidden pages
