Powerplus POWX1725 User Manual

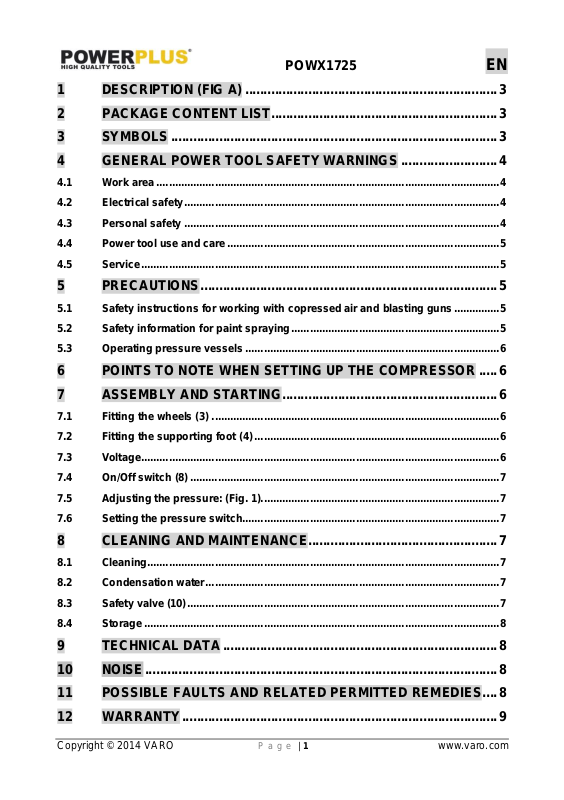

POWX1725 EN
1 DESCRIPTION (FIG A) .................................................................... 3
2 PACKAGE CONTENT LIST ............................................................. 3
3 SYMBOLS ........................................................................................ 3
4 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
4.1 Work area ................................................................................................................ 4
4.2 Electrical safety ....................................................................................................... 4
4.3 Personal safety ....................................................................................................... 4
4.4 Power tool use and care ......................................................................................... 5
4.5 Service ..................................................................................................................... 5
5 PRECAUTIONS ................................................................................ 5
5.1 Safety instructions for working with copressed air and blasting guns ............... 5
5.2 Safety information for paint spraying .................................................................... 5
5.3 Operating pressure vessels ................................................................................... 6
6 POINTS TO NOTE WHEN SETTING UP THE COMPRESSOR ..... 6
7 ASSEMBLY AND STARTING .......................................................... 6
7.1 Fitting the wheels (3) .............................................................................................. 6
7.2 Fitting the supporting foot (4) ................................................................................ 6
7.3 Voltage ..................................................................................................................... 6
7.4 On/Off switch (8) ..................................................................................................... 7
7.5 Adjusting the pressure: (Fig. 1).............................................................................. 7
7.6 Setting the pressure switch.................................................................................... 7
8 CLEANING AND MAINTENANCE ................................................... 7
8.1 Cleaning................................................................................................................... 7
8.2 Condensation water ................................................................................................ 7
8.3 Safety valve (10) ...................................................................................................... 7
8.4 Storage .................................................................................................................... 8
9 TECHNICAL DATA .......................................................................... 8
10 NOISE ............................................................................................... 8
11 POSSIBLE FAULTS AND RELATED PERMITTED REMEDIES .... 8
12 WARRANTY ..................................................................................... 9
Copyright © 2014 VARO P a g e | 1 www.varo.com
POWX1725 EN
13 ENVIRONMENT ............................................................................... 9
14 DECLARATION OF CONFORMITY .............................................. 10
Copyright © 2014 VARO P a g e | 2 www.varo.com
POWX1725 EN
Before use, read the handbook
carefully
Warning, hot surfaces
Obligatory eye protection
Danger - automatic control
(closed loop)
Dangerous voltage
OILLESS COMPRESSOR
POWX1725
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
1 DESCRIPTION (FIG A)
1. Housing cover
2. Pressure vessel
3. Wheel
4. Supporting foot
5. Quick-lock coupling (regulated
compressed air)
6. Pressure gauge (for reading the
preset tank pressure)
2 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
7. Pressure regulator
8. ON/OFF switch
9. Transportation handle
10. Safety valve
11. Drainage screw for condensation
water
Compressor
Manual
When parts are missing or damaged, please contact your dealer.
3 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Copyright © 2014 VARO P a g e | 3 www.varo.com
