Powerplus POWX1365 User Manual

POWX1365 EN

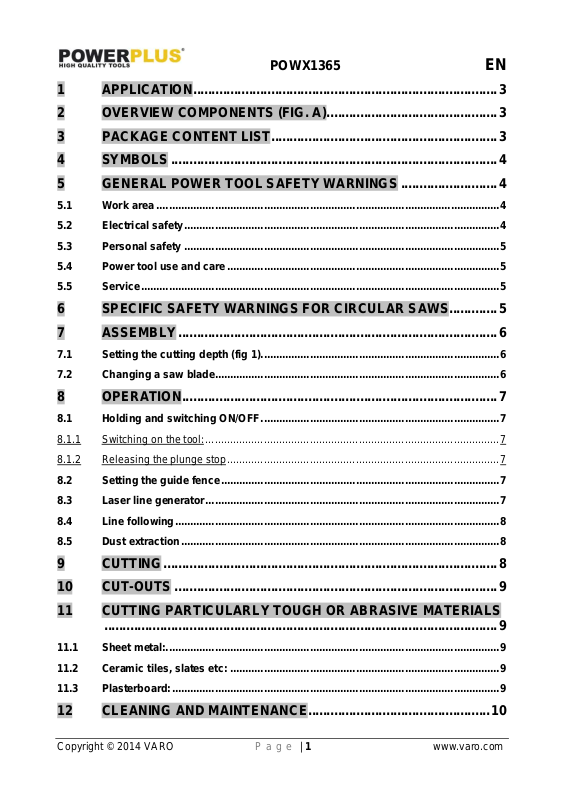

1 APPLICATION .................................................................................. 3

2 OVERVIEW COMPONENTS (FIG. A).............................................. 3

3 PACKAGE CONTENT LIST ............................................................. 3

4 SYMBOLS ........................................................................................ 4

5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4

5.1 Work area ................................................................................................................ 4

5.2 Electrical safety ....................................................................................................... 4

5.3 Personal safety ....................................................................................................... 5

5.4 Power tool use and care ......................................................................................... 5

5.5 Service ..................................................................................................................... 5

6 SPECIFIC SAFETY WARNINGS FOR CIRCULAR SAWS............. 5

7 ASSEMBLY ...................................................................................... 6

7.1 Setting the cutting depth (fig 1).............................................................................. 6

7.2 Changing a saw blade............................................................................................. 6

8 OPERATION ..................................................................................... 7

8.1 Holding and switching ON/OFF .............................................................................. 7

8.1.1 Switching on the tool: ................................................................................................ 7

8.1.2 Releasing the plunge stop ......................................................................................... 7

8.2 Setting the guide fence ........................................................................................... 7

8.3 Laser line generator ................................................................................................ 7

8.4 Line following .......................................................................................................... 8

8.5 Dust extraction ........................................................................................................ 8

9 CUTTING .......................................................................................... 8

10 CUT-OUTS ....................................................................................... 9

11 CUTTING PARTICULARLY TOUGH OR ABRASIVE MATERIALS

.......................................................................................................... 9

11.1 Sheet metal:............................................................................................................. 9

11.2 Ceramic tiles, slates etc: ........................................................................................ 9

11.3 Plasterboard: ........................................................................................................... 9

12 CLEANING AND MAINTENANCE ................................................. 10

POWX1365 EN

12.1 Blades .................................................................................................................... 10

13 TECHNICAL DATA ........................................................................ 10

14 NOISE ............................................................................................. 10

15 WARRANTY ................................................................................... 11

16 ENVIRONMENT ............................................................................. 11

17 DECLARATION OF CONFORMITY .............................................. 12

POWX1365 EN

MINI CIRCULAR SAW 600W POWX1365

1 APPLICATION

This machine is primarily intended for the sawing, longitudinally and transversely, of solid wood, chipboard, plywood, aluminium, tiles and stone held in a fixed position. Please note that the blade pre-installed in the saw as supplied is intended for use with wood only. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. Not suitable for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 OVERVIEW COMPONENTS (FIG. A)

1 Laser generator 2 Laser generator switch 3 Safety lock button for mechanical

plunge stop 4 Cutting depth scale 5 ON/OFF switch trigger 6 Lock-off button 7 Cutting depth setting clamp with lock

lever 8 Clamping screw with plain washer

3 PACKAGE CONTENT LIST

 Remove all packing materials.  Remove remaining packaging and transit supports (if existing).  Check the completeness of the packing content.  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

9 Saw blade 10 Guide fence slot 11 Lock screw for guide fence 12 Removable protective cover 13 Storage for hexagon wrench 14 LED Power-on indicator 15 Soft grip 16 Spindle lock button 17 Dust extraction nozzle 18 Base plate

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1x tool 1x manual 1x saw blade with hardened metal teeth (A): suitable for: softwood, hardwood, boards of all type 1x diamond saw blade (c): suitable for: ceramic, tile

When parts are missing or damaged, please contact your dealer.

1x HSS saw blade (d): suitable for: soft metal, aluminium 1x dust extraction hose (b) 1x inner hexagon wrench (f) 1x guide fence (g)

POWX1365 EN

Denotes risk of personal injury or damage to the tool.

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

Read the manual carefully before use.

Always wear safety goggles.

In accordance with essential requirements of the European directive(s).

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

 Keep work area clean and well lit. Cluttered and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

 Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
