Powerplus POWX131 User Manual
POWX131 EN

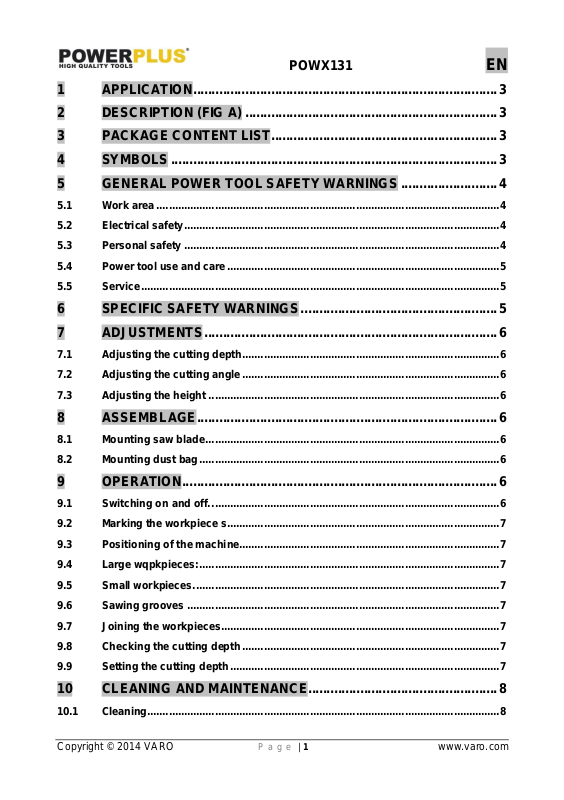

1 APPLICATION .................................................................................. 3
2 DESCRIPTION (FIG A) .................................................................... 3
3 PACKAGE CONTENT LIST ............................................................. 3
4 SYMBOLS ........................................................................................ 3
5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1 Work area ................................................................................................................ 4
5.2 Electrical safety ....................................................................................................... 4
5.3 Personal safety ....................................................................................................... 4
5.4 Power tool use and care ......................................................................................... 5
5.5 Service ..................................................................................................................... 5
6 SPECIFIC SAFETY WARNINGS ..................................................... 5
7 ADJUSTMENTS ............................................................................... 6
7.1 Adjusting the cutting depth .................................................................................... 6
7.2 Adjusting the cutting angle .................................................................................... 6
7.3 Adjusting the height ............................................................................................... 6
8 ASSEMBLAGE ................................................................................. 6
8.1 Mounting saw blade ................................................................................................ 6
8.2 Mounting dust bag .................................................................................................. 6
9 OPERATION ..................................................................................... 6
9.1 Switching on and off. .............................................................................................. 6
9.2 Marking the workpiece s. ........................................................................................ 7
9.3 Positioning of the machine..................................................................................... 7
9.4 Large wqpkpieces: .................................................................................................. 7
9.5 Small workpieces. ................................................................................................... 7
9.6 Sawing grooves ...................................................................................................... 7
9.7 Joining the workpieces ........................................................................................... 7
9.8 Checking the cutting depth .................................................................................... 7
9.9 Setting the cutting depth ........................................................................................ 7
10 CLEANING AND MAINTENANCE ................................................... 8
10.1 Cleaning................................................................................................................... 8
Copyright © 2014 VARO P a g e | 1 www.varo.com
POWX131 EN
11 TECHNICAL DATA .......................................................................... 8
12 NOISE ............................................................................................... 8
13 SERVICE DEPARTMENT ................................................................ 8
14 STORAGE ........................................................................................ 8
15 WARRANTY ..................................................................................... 9
16 ENVIRONMENT ............................................................................... 9
17 DECLARATION OF CONFORMITY .............................................. 10
Copyright © 2014 VARO P a g e | 2 www.varo.com
POWX131 EN
Denotes risk of personal injury
or damage to the tool.
In accordance with essential
safety standards of applicable
European directives
Always wear hearing protection
Always wear safety goggles
Class II - The machine is double insulated; Earthing wire is therefore not
necessary.
BISCUIT JOINTER 900W
POWX131
1 APPLICATION
The biscuit jointer is suitable for culling grooves for biscuit dowel joints in solid wood, plywood,
chipboard, fiberboard, Plexiglas and artificial marble. It is not designed for commercial use.
WARNING! Please read and understand this operating manual before use
and keep it for your future reference. Your power tool should only be
passed on with these instructions.
2 DESCRIPTION (FIG A)
1. On/off switch
2. Auxiliary handle
3. Spindle lock.
4. Angle stop
5. Scale for the fence angle
6. Cutting depth adjustment knob
7. Clamping knob for angle adjustment
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
8. Clamping knob for height adjustment
9. Knob for height adjustment
10. Scale for the height adjustment
11. Base plate
12. Dust bag connection
13. Dustbag
14. Motor base
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
1 x dust bag
1 x wrench
Set of spare carbon brushes
When parts are missing or damaged, please contact your dealer.
4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Copyright © 2014 VARO P a g e | 3 www.varo.com
