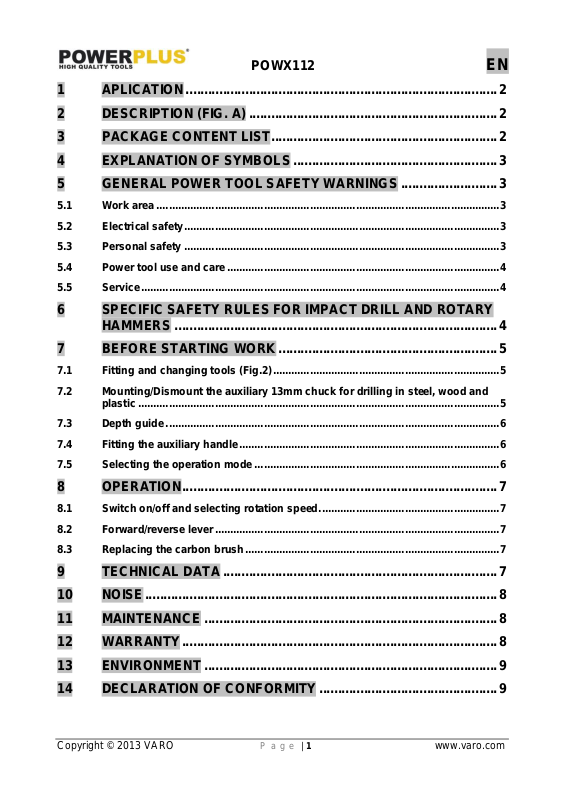

1 APLICATION .................................................................................... 2
2 DESCRIPTION (FIG. A) ................................................................... 2
3 PACKAGE CONTENT LIST ............................................................. 2
4 EXPLANATION OF SYMBOLS ....................................................... 3
5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 3
5.1 Work area ................................................................................................................ 3
5.2 Electrical safety ....................................................................................................... 3
5.3 Personal safety ....................................................................................................... 3
5.4 Power tool use and care ......................................................................................... 4
5.5 Service ..................................................................................................................... 4
6 SPECIFIC SAFETY RULES FOR IMPACT DRILL AND ROTARY
HAMMERS ....................................................................................... 4
7 BEFORE STARTING WORK ........................................................... 5
7.1 Fitting and changing tools (Fig.2) .......................................................................... 5
7.2 Mounting/Dismount the auxiliary 13mm chuck for drilling in steel, wood and
7.3 Depth guide ............................................................................................................. 6
7.4 Fitting the auxiliary handle ..................................................................................... 6
7.5 Selecting the operation mode ................................................................................ 6
plastic ...................................................................................................................... 5
8 OPERATION ..................................................................................... 7
8.1 Switch on/off and selecting rotation speed. .......................................................... 7
8.2 Forward/reverse lever ............................................................................................. 7
8.3 Replacing the carbon brush ................................................................................... 7
9 TECHNICAL DATA .......................................................................... 7
10 NOISE ............................................................................................... 8
11 MAINTENANCE ............................................................................... 8
12 WARRANTY ..................................................................................... 8
13 ENVIRONMENT ............................................................................... 9
14 DECLARATION OF CONFORMITY ................................................ 9
Copyright © 2013 VARO P a g e | 1 www.varo.com
POWX112 EN
1 pneumatic hammer drill
1 manual
3 SDS drill (8/10/12 x 150mm)
2 chisel (14 x 250mm, 1 point, 1 flat)
1 x 13mm chuck and adapter
PNEUMATIC HAMMER DRILL 1050W
POWX112
1 APLICATION
The power tool is intended for driving and drilling through wood, metal, plastics and masonry.
It is not designed for commercial use.
WARNING Please read and understand this operating manual before use
and keep it for your future reference.
2 DESCRIPTION (FIG. A)
1. Depth stop
2. SDS Chuck
3. Auxiliary handle
4. Mode selector
5. Rating plate
6. Soft grip
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as long as possible till the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
7. Forward/reverse lever
8. On/off trigger
9. Lock on button
10. Carbon brush indicator
11. Power cable & plug
12. Speed regulator
When parts are missing or damaged, please contact your dealer.
Copyright © 2013 VARO P a g e | 2 www.varo.com
POWX112 EN
In accordance with essential
applicable safety standards
of European directives
Read instructions carefully
Class II machine – Double
insulation – You don’t need
any earthed plug.
Wear safety glasses and ear
protection
Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual
4 EXPLANATION OF SYMBOLS
In this manual and/or on the machine the following symbols are used:
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and all instructions. Failure to follow all warnings and instructions
may result in electric shock, fire and/or serious injury. Save all warnings and instructions for
future reference. The term "power tool" in the warnings refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
5.1 Work area
Keep work area clean and well lit. Cluttered and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
5.2 Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
5.3 Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used whenever conditions require
will reduce personal injuries.
Copyright © 2013 VARO P a g e | 3 www.varo.com
