Powerplus POWX093 User Manual

POWX093 EN

1 APPLICATION .................................................................................. 3

2 DESCRIPTION (FIG A) .................................................................... 3

3 PACKAGE CONTENT LIST ............................................................. 3

4 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4

4.1 Work area ................................................................................................................ 4

4.2 Electrical safety ....................................................................................................... 4

4.3 Personal safety ....................................................................................................... 4

4.4 Power tool use and care ......................................................................................... 5

4.5 Service ..................................................................................................................... 5

5 SPECIFIC SAFETY WARNINGS ..................................................... 5

6 OPERATION ..................................................................................... 6

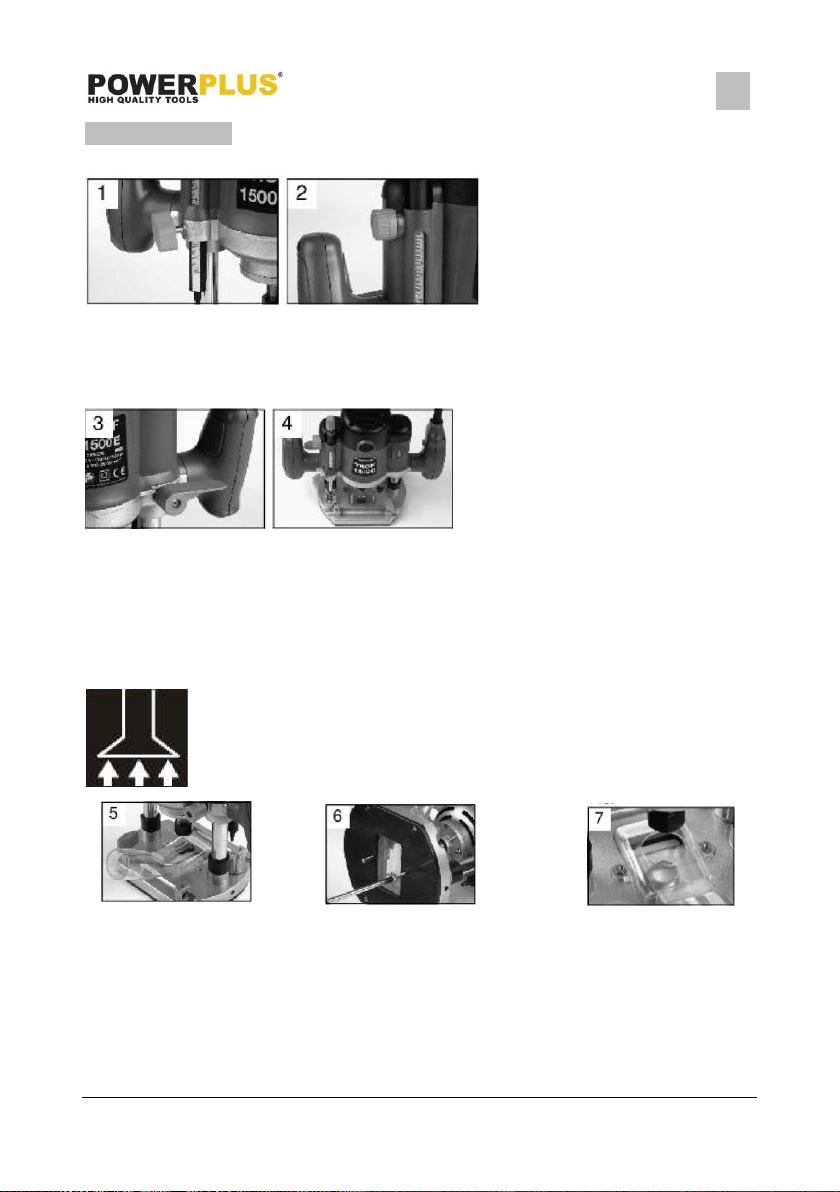

6.1 Depth Stop ............................................................................................................... 6

6.2 Locking lever for cutting machine body ................................................................ 6

6.3 Dust extraction outlet ................................................................ ............................. 6

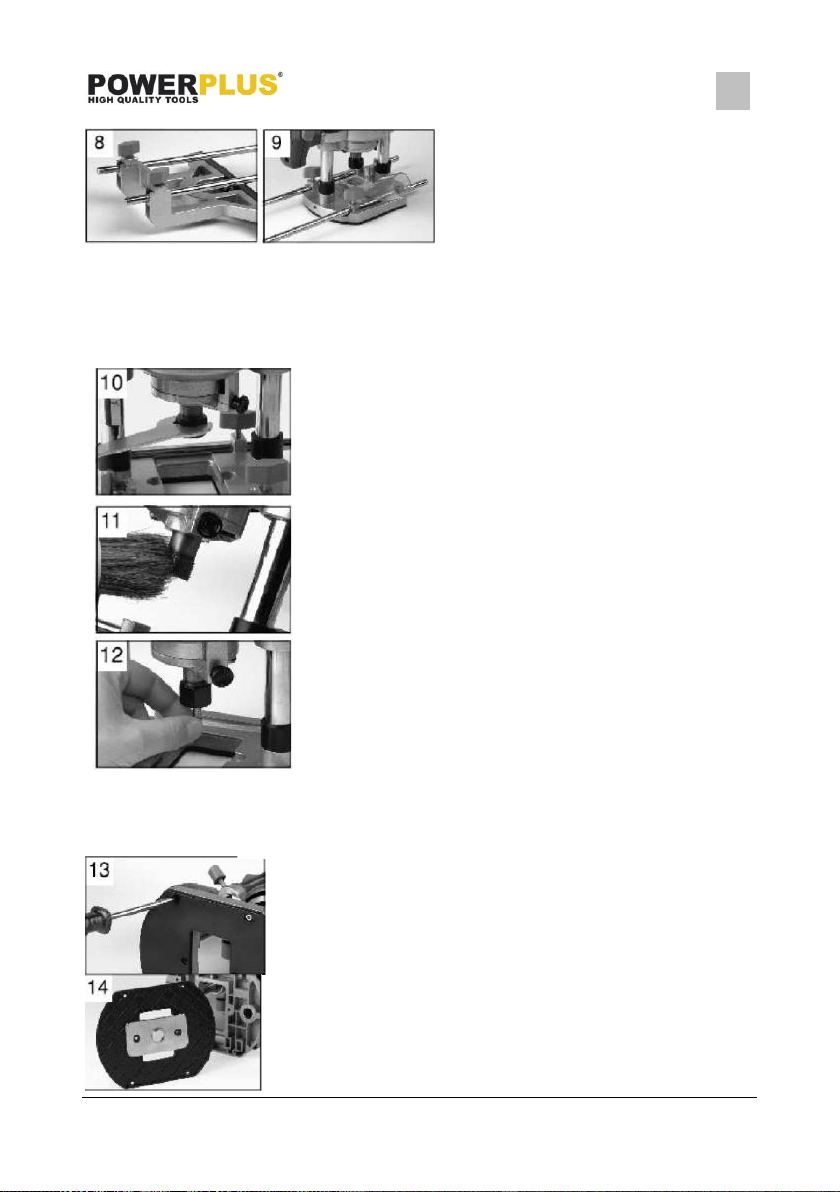

6.4 Assembly of parallel stop ....................................................................................... 7

6.5 Inserting and removing the chuck and cutting heads n ....................................... 7

6.6 Cutter guide sleeve ................................................................................................. 7

6.7 Profile accessories ................................................................................................. 8

6.8 Circle cutting accessories ...................................................................................... 8

6.9 Setting the working depth ...................................................................................... 8

6.10 Fine adjustment ...................................................................................................... 8

6.11 Cutting in serval operations ................................................................................... 9

6.12 Switching on and off ............................................................................................... 9

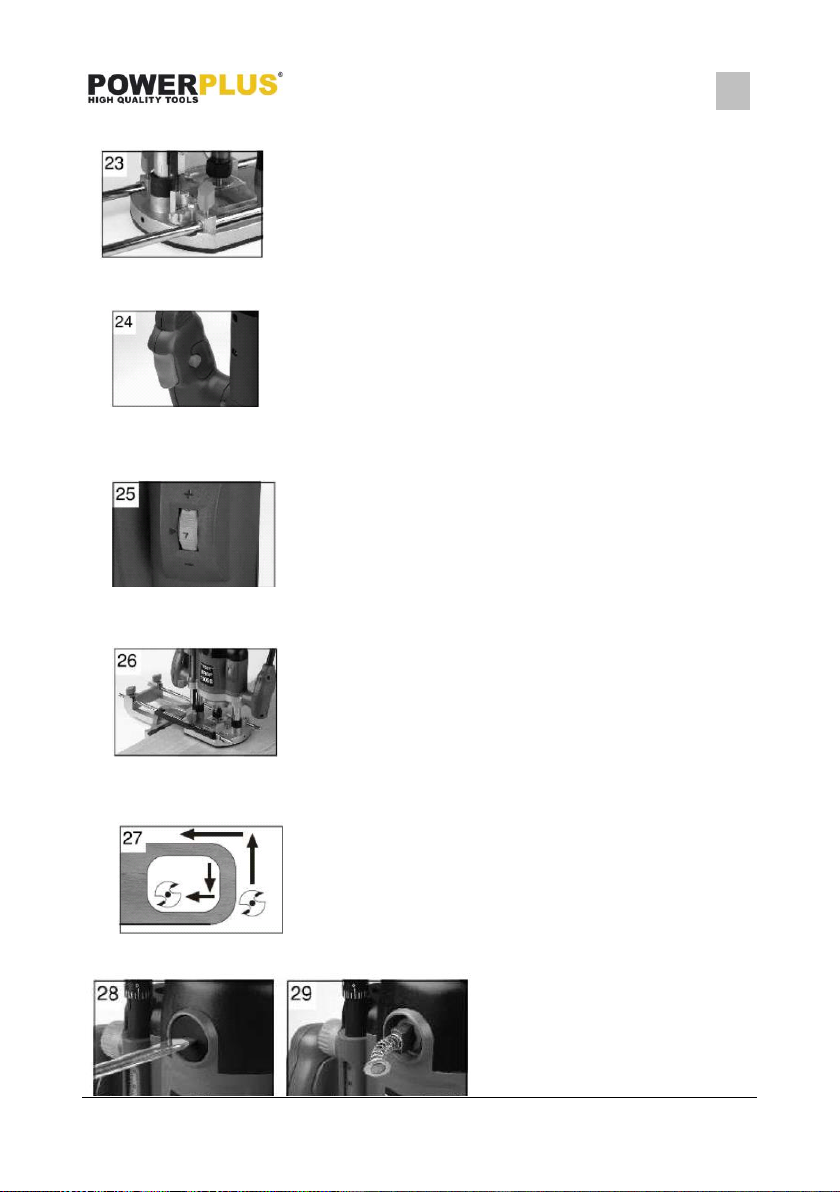

6.13 Adjustable speed .................................................................................................... 9

6.14 Using the parallel guide .......................................................................................... 9

6.15 Cutting direction ..................................................................................................... 9

6.16 Replacing the carbon brushes ............................................................................... 9

7 CLEANING AND MAINTENANCE ................................................. 10

7.1 Cleaning................................................................................................................. 10

8 TECHNICAL DATA ........................................................................ 10

9 NOISE ............................................................................................. 10

POWX093 EN

10 SERVICE DEPARTMENT .............................................................. 10

11 STORAGE ...................................................................................... 11

12 WARRANTY ................................................................................... 11

13 ENVIRONMENT ............................................................................. 11

14 DECLARATION OF CONFORMITY .............................................. 12

POWX093 EN

ROUTER POWX093

1 APPLICATION

Milling of holes, slots, edges and tenors (dovetail joints). All other uses are expressly excluded. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1. Motor housing.

2. Fixing screw for depth stop

3. On/off switch

4. Carbon brush cover

5. Spindle lock

6. Handle

7. Fixing screw for parallel stop

8. Depth stop guide

9. Depth stop scale

10. Depth stop

11. Distance scale

12. Depth stop fixing lever

13. Culling base

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

14. Dust extraction

15. Parallel stop

16. Fine adjustment

17. Cutter guide plate

18. Wrench

19. Depth stop setting

20. Cutter chuck

21. Circle cutting accessories

22. Colet chucks

23. Cutler heads

24. Speed setting

25. Adjustment dimension

26. Safety lock

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

Parallel guide Circle cutting accessories Collet chuck Dust extraction

When parts are missing or damaged, please contact your dealer.

12 cutting heads Wrench Carbon brushes

POWX093 EN

4 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

4.1 Work area

 Keep work area clean and well lit. Cluttered and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

4.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

 Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

4.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

 Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key

left attached to a rotating part of the power tool may result in personal injury.

 Do not overreach. Keep proper footing and balance at all times. This enables better

control of the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
