Powerplus POWX091 User Manual

Download

Page 1

POWX091 EN

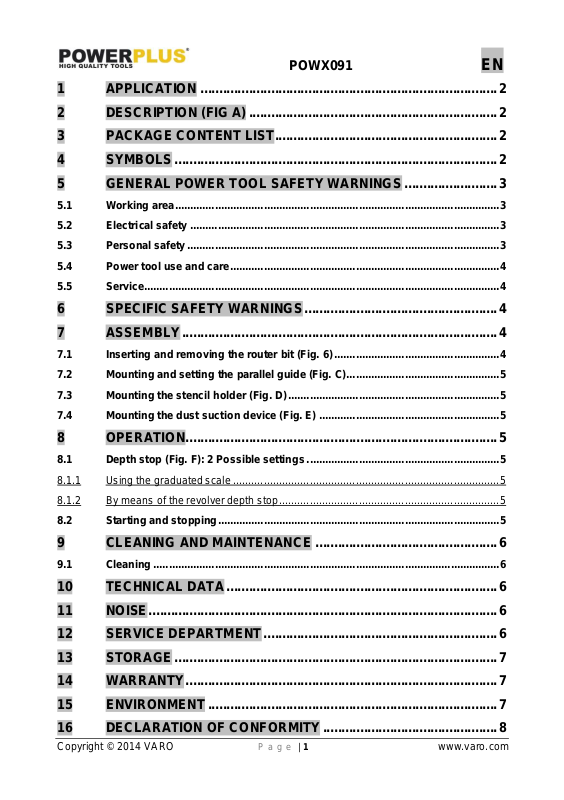

1 APPLICATION ................................................................................ 2

2 DESCRIPTION (FIG A) ................................................................... 2

3 PACKAGE CONTENT LIST ............................................................ 2

4 SYMBOLS ....................................................................................... 2

5 GENERAL POWER TOOL SAFETY WARNINGS ......................... 3

5.1 Working area .......................................................................................................... 3

5.2 Electrical safety ................................................................ ..................................... 3

5.3 Personal safety ...................................................................................................... 3

5.4 Power tool use and care ........................................................................................ 4

5.5 Service .................................................................................................................... 4

6 SPECIFIC SAFETY WARNINGS .................................................... 4

7 ASSEMBLY ..................................................................................... 4

7.1 Inserting and removing the router bit (Fig. 6) ...................................................... 4

7.2 Mounting and setting the parallel guide (Fig. C) .................................................. 5

7.3 Mounting the stencil holder (Fig. D) ..................................................................... 5

7.4 Mounting the dust suction device (Fig. E) ........................................................... 5

8 OPERATION.................................................................................... 5

8.1 Depth stop (Fig. F): 2 Possible settings ............................................................... 5

8.1.1 Using the graduated scale ....................................................................................... 5

8.1.2 By means of the revolver depth stop ........................................................................ 5

8.2 Starting and stopping ............................................................................................ 5

9 CLEANING AND MAINTENANCE ................................................. 6

9.1 Cleaning ................................................................................................................. 6

10 TECHNICAL DATA ......................................................................... 6

11 NOISE .............................................................................................. 6

12 SERVICE DEPARTMENT ............................................................... 6

13 STORAGE ....................................................................................... 7

14 WARRANTY .................................................................................... 7

15 ENVIRONMENT .............................................................................. 7

16 DECLARATION OF CONFORMITY ............................................... 8

Page 2

POWX091 EN

Denotes risk of personal injury or damage to the tool.

Wear ear guards and goggles

Read manual before use

Wear a mask In dusty conditions

ROUTER POWX091

1 APPLICATION

The router is suited for routing work to wood and wood-like materials as well as plastics. It is not designed for commercial use.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

2 DESCRIPTION (FIG A)

1. On/off switch

2. Handle

3. Router base

4. Clamp screw for parallel guide bar

5. Fitting for parallel guide bar

6. Collet nut

7. Spindle lock

3 PACKAGE CONTENT LIST

 Remove all packaging materials.  Remove remaining packaging and packing inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug and all accessories for transportation

damage.

 Keep the packaging materials as far as possible until the end of the warranty period. Then

take it to your local waste disposal system.

8. Revolver depth stop

9. Clamp screw for depth stop

10. Depth stop

11. Blocking handle

12. Graduated scale for routing depth

13. Adjustment wheel for electronic speed regulation

WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1 router 1 spanner 12 router bits in Blow Moulded Case 1 needle

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

1 set screws 1 set parallel guide 1 frame Instruction manual

Page 3

POWX091 EN

In accordance with essential requirements of the European directive(s)

"Class II - The machine is double insulated; Earthing wire is therefore not necessary

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

 Keep working area clean and well lit. Untidy and dark areas can lead to accidents.  Do not operate power tools in potentially explosive surroundings, for example, in the

presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders at a distance when operating a power tool. Distractions can

cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.

 Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and

refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.

 Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will

increase the risk of a lethal electric shock.

 Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.

 When operating a power tool outdoors, use an extension cable suitable for outdoor use.

Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.

 If operating a power tool in a damp location is unavoidable, use a power supply protected

by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Using safety equipment such as a

dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

 Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.

Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

 Remove any adjusting keys or spanners before turning on the power tool. A spanner or

key left attached to a rotating part of the power tool may result in personal injury.

Page 4

 Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable

you retain control over the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

 If there are devices for connecting dust extraction and collection facilities, please ensure

that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

 Do not expect the power tool to do more than it can. Use the correct power tool for what

you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

 Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken

switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store power tools, when not in use, out of the reach of children and do not allow people

who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

 Maintenance. Check for misalignment or jammed moving parts, breakages or any other

feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to jam and are easier to control.

 Use the power tool, accessories and cutting tools, etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

 Your power tool should be serviced by a qualified specialist using only standard spare

parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY WARNINGS

 Always use cutters with the correct spindle diameter.  Always use cutters suitable for the speed of the machine.

POWX091 EN

7 ASSEMBLY

7.1 Inserting and removing the router bit (Fig. 6)

 Press the spindle lock (7) in and turn the collet nut (6) until it enters the slot of the spindle

lock. Keep holding the spindle lock pressed in as you complete this procedure.

 Open the collet nut with the spanner.  Place the shaft of the router bit in the opening of the bit holder.  Tighten the collet nut until the router bit is firmly in place.  Loosen the collet nut again when you want to replace the bit.

If you wish to replace the bit during your work wait until the tool has come to a complete stop and the router bit has cooled down.

Page 5

7.2 Mounting and setting the parallel guide (Fig. C)

The parallel guide is intended as an aid in routing small pieces. Assembling the parallel guide.

 Attach the rods of the parallel guide (18) to the frame (14) using the bolts (19).  Loosen the clamp screws (4) and insert the rods in the fittings (5).  Set the parallel guide to the desired distance.  Retighten the screws.

7.3 Mounting the stencil holder (Fig. D)

The stencil holder is intended as an aid in routing accordance to a pattern.  Mount the stencil holder (15) with the screws (17) and nut (20) to the router base (3).

7.4 Mounting the dust suction device (Fig. E)

Using the adapter for removing dust and pieces from routing.  Mount the adapter for the dust suction (16) by means of the screws (17) and nut (20) to

the router base (3).

 Place the nozzle of the dust suction in the adapter outlet.

For a clear view of the workpiece keep the adapter outlet behind the tool.

8 OPERATION

Always follow the safety instructions and observe the rules.

Hold the tool steady on the workpiece when turning the tool on or off. The router bit in the bit holder can damage the workpiece.  Hold the workpiece firmly or otherwise ensure that it does not slip under the machine

during use.

 Hold the machine firmly and move it evenly over the workpiece. Do not force the machine.

Always use bits that as yet show no signs of wear. Worn bits impair the efficiency of the machine.

 When you are finished using the machine always switch if off before you remove the plug

from the socket.

8.1 Depth stop (Fig. F): 2 Possible settings

POWX091 EN

8.1.1 Using the graduated scale

 Remove the clamp screw from the depth stop (9).  Remove the blocking handle (11) and lower the tool to the workpiece.  Attach and tighten the blocking handle again.  Set the desired depth (10) using the graduated scale (12).  Screw the clamp screw back on.

8.1.2 By means of the revolver depth stop  This device enables you quickly to select 2 depths.

This is done with the 3 adjustable screws located on the depth stop.

8.2 Starting and stopping

 To start press the on/off switch (I).  Set the speed using the speed adjustment wheel (13).  To hold still set the same switch to ‘0’.

Page 6

Attention: Plastic parts are best routed at low speeds!

Voltage

230-240V

Mains frequency

50 Hz

Power

1200W

No load speed

11 500-30 000 min-1

Cutting depth

35 mm

Spindle diameter cutter

8 mm

Weight

3.3 kg

Protection Class

Double insulated Acoustic pressure level LpA

86 dB(A)

Acoustic power level LwA

97 dB(A)

aw (Vibration)

6,23 m/s²

K = 1,5 m/s²

Do not store the tool until it has completely stopped. Do not store in dusty places. Dust can get into the machine everywhere and cause the mechanical parts to malfunction.

9 CLEANING AND MAINTENANCE

POWX091 EN

Attention! Before performing any work on the equipment, pull the power plug.

9.1 Cleaning

 Keep the ventilation slots of the machine clean to prevent overheating of the engine.  Regularly clean the machine housing with a soft cloth, preferably after each use.  Keep the ventilation slots free from dust and dirt.  If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

10 TECHNICAL DATA

11 NOISE

Noise emission values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

12 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a special

connecting cable which is available from our service department. Replacement of the connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).

Page 7

POWX091 EN

13 STORAGE

 Thoroughly clean the whole machine and its accessories.  Store it out of the reach of children, in a stable and secure position, in a cool and dry

place, avoid too high and too low temperatures.

 Protect it from exposure to direct sunlight. Keep it in the dark, if possible.  Don’t keep it in plastic bags to avoid humidity build-up.

14 WARRANTY

 This product is warranted for a 36-month period effective from the date of purchase by the

first user.

 This warranty covers all material or production flaws excluding : batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

15 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 8

POWX091 EN

16 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product : Router trade mark : POWERplus model : POWX091

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2006/42/EC 2004/108/EC

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1 : 2009 EN60745-2-17 : 2010 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-3 : 2008

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Hugo Cuypers Regulatory Affairs – Compliance Manager Date: 13/07/2012
