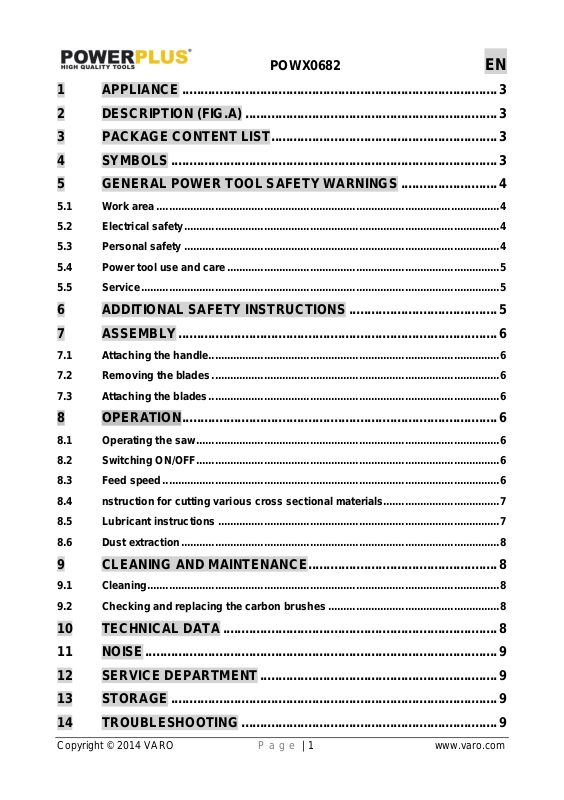

Powerplus POWX0682 User Manual
POWX0682 EN
1 APPLIANCE ..................................................................................... 3
2 DESCRIPTION (FIG.A) .................................................................... 3
3 PACKAGE CONTENT LIST ............................................................. 3
4 SYMBOLS ........................................................................................ 3
5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1 Work area ................................................................................................................ 4
5.2 Electrical safety ....................................................................................................... 4
5.3 Personal safety ....................................................................................................... 4
5.4 Power tool use and care ......................................................................................... 5
5.5 Service ..................................................................................................................... 5
6 ADDITIONAL SAFETY INSTRUCTIONS ........................................ 5
7 ASSEMBLY ...................................................................................... 6
7.1 Attaching the handle ............................................................................................... 6
7.2 Removing the blades .............................................................................................. 6
7.3 Attaching the blades ............................................................................................... 6
8 OPERATION ..................................................................................... 6
8.1 Operating the saw ................................................................................................... 6
8.2 Switching ON/OFF ................................................................................................... 6
8.3 Feed speed .............................................................................................................. 6
8.4 nstruction for cutting various cross sectional materials...................................... 7
8.5 Lubricant instructions ............................................................................................ 7
8.6 Dust extraction ........................................................................................................ 8
9 CLEANING AND MAINTENANCE ................................................... 8
9.1 Cleaning................................................................................................................... 8
9.2 Checking and replacing the carbon brushes ........................................................ 8
10 TECHNICAL DATA .......................................................................... 8
11 NOISE ............................................................................................... 9
12 SERVICE DEPARTMENT ................................................................ 9
13 STORAGE ........................................................................................ 9
14 TROUBLESHOOTING ..................................................................... 9
Copyright © 2014 VARO P a g e | 1 www.varo.com
POWX0682 EN
15 WARRANTY ................................................................................... 10
16 ENVIRONMENT ............................................................................. 10
17 DECLARATION OF CONFORMITY .............................................. 11
Copyright © 2014 VARO P a g e | 2 www.varo.com
POWX0682 EN
Denotes risk of personal
injury or damage to the tool.
Read manual before use.
In accordance with essential
safety standards of applicable
European directives.
Class II - The machine is double
insulated; earth wire is therefore
not necessary.
DUAL SAW 1500W
POWX0682
1 APPLIANCE
This item is designed to saw all material without changing the saw blades. It makes smoother,
cleaner cuts with less vibration and kickback then any other single blade saw.
It is not designed for commercial use.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION (FIG.A)
1. ON/OFF switch
2. Auxiliary handle
3. Dust extraction outlet
4. Protection cover
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
5. Wax stick
6. Saw blades
7. Lock button
1 x dual saw
2 x Tungsten universal saw blades
(assembled)
10 x wax stick
When parts are missing or damaged, please contact your dealer.
4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Copyright © 2014 VARO P a g e | 3 www.varo.com
1 x auxiliary handle
1 x wrench
1 x manual
POWX0682 EN
Wear noise protection.
Wear a mask in dusty conditions.
Wear eye protection.
Wear gloves.
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and all instructions. Failure to follow all warnings and instructions
may result in electric shock, fire and/or serious injury. Save all warnings and instructions for
future reference. The term "power tool" in the warnings refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
5.1 Work area
Keep work area clean and well lit. Cluttered and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
5.2 Electrical safety
Always check that the power supply corresponds to the voltage on the
rating plate.
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
5.3 Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used whenever conditions require
will reduce personal injuries.
Copyright © 2014 VARO P a g e | 4 www.varo.com
