Page 1

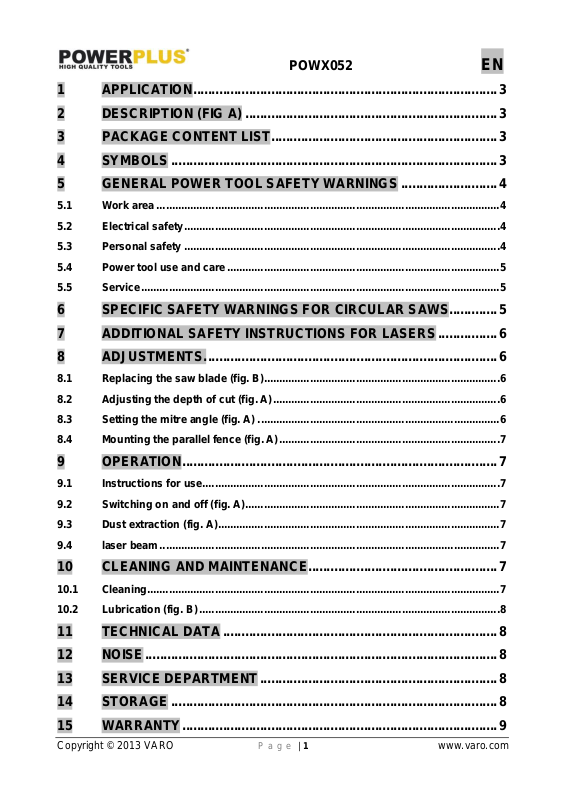

POWX052 EN

1 APPLICATION .................................................................................. 3

2 DESCRIPTION (FIG A) .................................................................... 3

3 PACKAGE CONTENT LIST ............................................................. 3

4 SYMBOLS ........................................................................................ 3

5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4

5.1 Work area ................................................................................................................ 4

5.2 Electrical safety ....................................................................................................... 4

5.3 Personal safety ....................................................................................................... 4

5.4 Power tool use and care ......................................................................................... 5

5.5 Service ..................................................................................................................... 5

6 SPECIFIC SAFETY WARNINGS FOR CIRCULAR SAWS............. 5

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS ................ 6

8 ADJUSTMENTS. .............................................................................. 6

8.1 Replacing the saw blade (fig. B)............................................................................. 6

8.2 Adjusting the depth of cut (fig. A) .......................................................................... 6

8.3 Setting the mitre angle (fig. A) ............................................................................... 6

8.4 Mounting the parallel fence (fig. A) ........................................................................ 7

9 OPERATION ..................................................................................... 7

9.1 Instructions for use ................................................................................................. 7

9.2 Switching on and off (fig. A) ................................................................................... 7

9.3 Dust extraction (fig. A) ............................................................................................ 7

9.4 laser beam ............................................................................................................... 7

10 CLEANING AND MAINTENANCE ................................................... 7

10.1 Cleaning................................................................................................................... 7

10.2 Lubrication (fig. B) .................................................................................................. 8

11 TECHNICAL DATA .......................................................................... 8

12 NOISE ............................................................................................... 8

13 SERVICE DEPARTMENT ................................................................ 8

14 STORAGE ........................................................................................ 8

15 WARRANTY ..................................................................................... 9

Page 2

POWX052 EN

16 ENVIRONMENT ............................................................................... 9

17 DECLARATION OF CONFORMITY .............................................. 10

Page 3

POWX052 EN

Denotes risk of personal injury or damage to the tool.

Always wear hearing protection

Always wear safety goggles

Always wear protective gloves

Always wear a dust mask.

CIRCULAR SAW 1400W POWX052

1 APPLICATION

Your circular saw has been designed for sawing wooden workpieces. The machine is only suitable for right-hand use. The machine is not suitable for stationary use. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1. On/off switch

2. Lock-off button

3. Dust extraction connector

4. Scale for saw blade depth

5. Adjusting screw for depth of cut

6. Guide handle

7. Scale for mitre angle

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

8. Adjusting screw for mitre angle

9. Shoe

10. Marking for bevel cuts

11. Marking for straight cuts

12. Adjusting screw for parallel fence

13. Laser on/off switch

14. Laser

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1pc two pin spanner 1pc spanner

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

1pc guide bar 1pc extra saw blade

Page 4

POWX052 EN

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

 Keep work area clean and well lit. Cluttered and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

 Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

 Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key

left attached to a rotating part of the power tool may result in personal injury.

 Do not overreach. Keep proper footing and balance at all times. This enables better

control of the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

Page 5

 If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

 Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

 Do not use the power tool if the switch does not turn it on and off. Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store idle power tools out of the reach of children and do not allow persons unfamiliar with

the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or sticking of moving parts, breakage of

parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to stick and are easier to control.

 Use the power tool, accessories and tool bits etc., in accordance with these instructions

and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

 Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

6 SPECIFIC SAFETY WARNINGS FOR CIRCULAR SAWS

 Make sure that all devices screening the saw blade are in perfect working order.  Make sure that the saw blade is screened correctly. Especially observe the following

instructions:

 Never block the saw blade guard. Repair a jammed saw blade guard before using the

machine again.

 Replace a broken tension spring before using the machine again.  Never remove the riving knife. The distance between the toothed rim and the riving knife

should be 5 mm maximum. The height difference between the riving knife and the toothed rim should be 5 mm maximum.

 Do not use saw blades made of HSS steel.  Do not use bent, deformed or otherwise damaged saw blades.  Do not use saw blades which do not meet the specifications stated in this manual.  Before sawing, remove all nails and other metal objects from the workpiece.  Never start sawing before the saw reaches its full speed.  Securely clamp the workpiece. Never attempt to saw extremely small workpieces.  Only put the machine aside after switching off and when the saw blade has come to a

complete standstill.

 Never try to slow the saw blade down by exerting pressure on the side.  Before performing maintenance to the machine, always unplug the machine.

POWX052 EN

Page 6

POWX052 EN

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS

Leaser beam warning

Laser beam characteristics

 Warning! The laser beam potentially causes severe eye damage. Never look or stare

directly into the leaser beam.

 During use, do not point the laser beam at people, directly or indirectly through reflecting

surfaces.

 This laser complies with class 2 according to EN 60825-1/A11, 1996. The unit includes no

servicing components. Do not open the housing for any reason. If the unit is damaged, have the damage repaired by an authorized repair agent.

8 ADJUSTMENTS.

8.1 Replacing the saw blade (fig. B)

Only use sharp and undamaged saw blades. Cracked or bent saw blades must be replaced immediately.

 Hold the flange (18) using the spanner .  Use the spanner to loosen the fixing screw (17) and remove it.  Remove the flange (18).  Hold the saw blade guard (15) in the position shown in the illustration.  Remove the old saw blade and place the new saw blade (16) with the teeth pointing in the

direction of rotation. See the arrow on the housing.

 Move the saw blade guard back into its normal position.

 Place the flange on the saw blade and secure the fixing screw.

Before replacing the saw blade always unplug the tool.

 Never use saw blades with a thickness exceeding the thickness of the riving knife or saw

blades with a tooth setting smaller than the thickness of the riving knife.

 Do not use saw blades made of HSS steel. Make sure that the spindle diameter

corresponds to the bore diameter.

8.2 Adjusting the depth of cut (fig. A)

The depth of cut is infinitely adjustable. A clean cut is achieved with the saw blade protruding from the material by approx. 3 mm.

 Loosen the adjusting screw (5).  Set the required depth of cut according to the scale (4).  Tighten the adjusting screw.

8.3 Setting the mitre angle (fig. A)

The mitre angle is infinitely variable between 0° and 45°.

 Loosen the set screws (8).  Set the required mitre angle using the scale (7).  Tighten the set screws.

Page 7

POWX052 EN

8.4 Mounting the parallel fence (fig. A)

The parallel fence allows sawing parallel to an edge at a maximum distance of 10 cm.

 Loosen the adjusting screw (12).  Insert the parallel fence into the saw base (9) as shown in the illustration.  Set the parallel fence to the required distance.  Tighten the adjusting screw.

9 OPERATION

9.1 Instructions for use

 Clamp the workpiece. Make sure that the side which will be visible later is facing down,

because the cut is most accurate at that side.

 Switch on the machine before it touches the workpiece. Do not exert pressure on the saw

blade. Allow the machine enough time to cut the workpiece.

 Hold the machine with both hands using both grips. This ensures optimum control over the

machine.

 For straight cuts along a drawn line use the marking for straight cuts .  For bevel cuts along a drawn line use the marking for bevel cuts (11).

9.2 Switching on and off (fig. A)

 To switch the tool on, keep the lock-off button (2) depressed and press the on/off switch

(1).

 To switch the tool off, release the on/off switch.

9.3 Dust extraction (fig. A)

A vacuum cleaner can be connected to the dust extraction connector, either directly to the connector or using an adapter.

 If necessary, connect an adapter to the connector (3).  Preferably use a vacuum cleaner for industrial use.

9.4 laser beam

The laser beam is used for projection of the cut on the workpiece. Switch the laser (14) on by means of the laser on/off switch (13)  Place the machine on the workpiece with the saw marking above the start of the cutting

line.

 Check that the laser line aligns with the cutting line as marked on the workpiece.  Switch on the machine.  Follow the “instructions for use” to perform a cut.  After use , switch off the laser.

10 CLEANING AND MAINTENANCE

Attention !Before performing any work on the equipment, pull the power plug.

10.1 Cleaning

 Keep the ventilation slots of the machine clean to prevent overheating of the engine.  Regularly clean the machine housing with a soft cloth, preferably after each use.  Keep the ventilation slots free from dust and dirt.  If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Page 8

10.2 Lubrication (fig. B)

Voltage / frequency

230-240V / 50Hz

Power input

1400W

No load speed

4500 min-1

Max. speed rating saw blade

5000 min-1

Saw blade

Ø 185 x Ø 20 x 1.4 mm

Min. tooth thickness

2.5 mm

Max. depth of cut

63 mm

Mitre angle

0 – 45°

Weight

4.2 kg

Acoustic pressure level LpA

98 dB(A)

Acoustic power level LwA

109 dB(A)

aw (Vibration)

5,0 m/s²

K = 1,5 m/s²

From time to time, apply a drop of oil to the thread of the lock screw (17).

11 TECHNICAL DATA

12 NOISE

POWX052 EN

Noise values measured according to relevant standard. (K=3)

ATTENTION! The sound power level may exceed 85 dB(A), in this case individual hearing protection shall be worn.

13 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a particular

connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

14 STORAGE

 Thoroughly clean the whole machine and its accessories.  Store it out of the reach of children, in a stable and secure position, in a cool and dry

place, avoid too high and too low temperatures.

 Protect it from exposure to direct sunlight. Keep it in the dark, if possible.  Don’t keep it in plastic bags to avoid humidity build-up.

Page 9

POWX052 EN

15 WARRANTY

 This product is warranted for a 36-month period effective from the date of purchase by the

first user.

 This warranty covers all material or production flaws excluding : batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 10

POWX052 EN

17 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product : Circular saw 1400W trade mark : POWERplus model : POWX052

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amending directives):

2004/108/EC 2006/42/EC

European harmonized standards (including, if applicable, their amendments):

EN60745-1 : 2009 EN60745-2-5 : 2010 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-11 : 2008

The undersigned acts on behalf of the company management,

Philippe Vankerkhove Certification Manager Date : 10/08/2012
