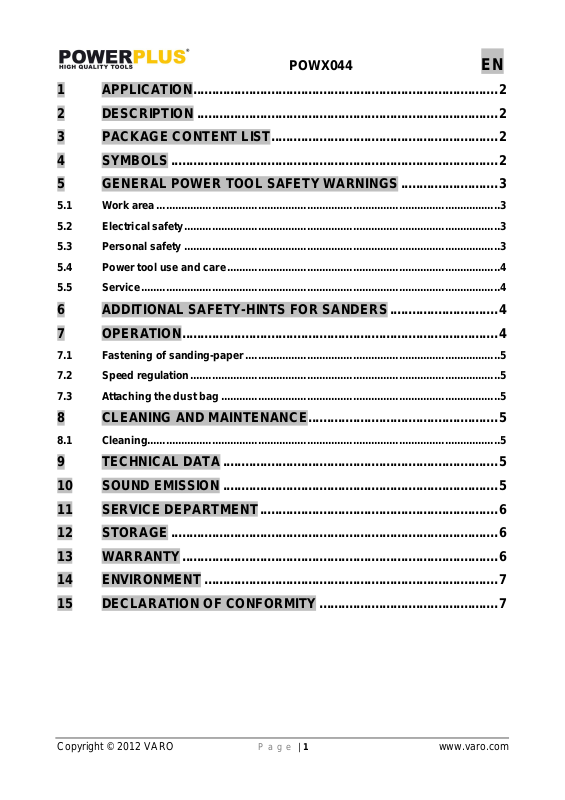

POWX044
APPLICATION .................................................................................. 2
DESCRIPTION ................................................................................. 2
PACKAGE CONTENT LIST ............................................................. 2
SYMBOLS ........................................................................................ 2
GENERAL POWER TOOL SAFETY WARNINGS .......................... 3
Work area ................................................................................................................ 3
Electrical safety ....................................................................................................... 3
Personal safety ....................................................................................................... 3
Power tool use and care ......................................................................................... 4
Service ..................................................................................................................... 4
ADDITIONAL SAFETY-HINTS FOR SANDERS ............................. 4
OPERATION ..................................................................................... 4
Fastening of sanding-paper ................................................................................... 5
Speed regulation ..................................................................................................... 5
Attaching the dust bag ........................................................................................... 5
CLEANING AND MAINTENANCE ................................................... 5
Cleaning................................................................................................................... 5
EN
9
TECHNICAL DATA .......................................................................... 5
10
SOUND EMISSION .......................................................................... 5
11
SERVICE DEPARTMENT ................................................................ 6
12
STORAGE ........................................................................................ 6
13
WARRANTY ..................................................................................... 6
14
ENVIRONMENT ............................................................................... 7
15
DECLARATION OF CONFORMITY ................................................ 7
Copyright © 2012 VARO
P a g e | 1
www.varo.com
POWX044
EN
FINISHING SANDER 330W
POWX044
1 APPLICATION
The sander is used to sand and buff wood, plastic and similar materials. It is very important to
use the correct sandpaper!
It is not designed for commercial use.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION
1. Front-handle
2. On-/off switch
3. Lock button
4. Handle
5. Sanding paper
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period. Dispose
it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
6. Base plate
7. Paper clamp
8. Dust bag
9. Power cord
10. Speed adjusting dial
1 Finishing Sander 330W
Dust bag
Set of spare cole brushes
10 x Sanding paper
manual
When parts are missing or damaged, please contact your dealer.
4 SYMBOLS
The following symbols are used in this manual and/or on the machine:
Denotes risk of personal
injury or damage to the tool.
Wear eye protection
Read manual before use
Copyright © 2012 VARO
P a g e | 2
Wear noise protection
www.varo.com
POWX044
In accordance with essential
safety standards of
applicable European
directives
Class II - The machine is
double insulated; Earthing
wire is therefore not
necessary.
Wear gloves
Wear a mask In dusty
conditions
EN
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and all instructions. Failure to follow all warnings and instructions
may result in electric shock, fire and/or serious injury. Save all warnings and instructions for
future reference. The term "power tool" in the warnings refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
5.1 Work area
Keep work area clean and well lit. Cluttered and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
5.2 Electrical safety
Always check that the power supply corresponds to the voltage on the
rating plate.
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
5.3 Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will
reduce personal injuries.
Copyright © 2012 VARO
P a g e | 3
www.varo.com
Avoid accidental starting. Ensure the switch is in the off position before plugging in.
POWX044
Carrying power tools with your finger on the switch or plugging in power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of these devices can reduce dust related
hazards.
5.4 Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to stick and are easier to control.
Use the power tool, accessories and tool bits etc., in accordance with these instructions and
in the manner intended for the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for operations different from
intended could lead to a hazardous situation.
5.5 Service
Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
EN
6 ADDITIONAL SAFETY-HINTS FOR SANDERS
Always wear safety-goggles and a dust-mask during your work with the finishing-sander.
Always secure the workpiece by clamps or else to avoid slipping away.
Always keep the holes in the baseplate clean from dust.
Always connect a vacuum cleaner to the attached adaptor during your work.
7 OPERATION
Always wear safety-goggles, dust-mask and ear-protection, when machine
is in use!
Recommended nominal operating time: approx. 20 minutes under permanent load.
Rest after permanent operation: approx. 5-10 minutes.
Copyright © 2012 VARO
P a g e | 4
www.varo.com
7.1 Fastening of sanding-paper
-
1
POWX044
Disconnect the tool from the power-supply before changing sanding paper.
Open the paper-clamps on both sides of the base-plate and remove the worn-out sanding-
paper.
Place a new sanding-paper on the base-plate observing the holes in the sanding-paper fit to
the holes of the base-plate.
Bend the paper to the base-plate and fasten one clamp first. Press the sanding-paper
against the base-plate, bend the other end and fasten second clamp.
Attention: This finishing sander is not suitable for wet sanding jobs.
7.2 Speed regulation
Turn to the speed adjusting dial (10) to regulate the vibration speed. The number of vibration
varies of 6000 to 11000 per minute
7.3 Attaching the dust bag
Use always the supplied dust bag in importance of your health (8) when you work with the
machine
EN
8 CLEANING AND MAINTENANCE
Attention !Before performing any work on the equipment, pull the power
plug.
8.1 Cleaning
Keep the ventilation slots of the machine clean to prevent overheating of the engine.
Regularly clean the machine housing with a soft cloth, preferably after each use.
Keep the ventilation slots free from dust and dirt.
If the dirt does not come off use a soft cloth moistened with soapy water.
Never use solvents such as petrol, alcohol, ammonia water, etc. These
solvents may damage the plastic parts.
9 TECHNICAL DATA
Voltage
Power input 330 W
Sanding area 230 x 115 mm
Sandpaper-size 280 x 115 mm
No. Of vibrations 6.000-11.000 min
Weight 2.3 kgs
Protection class
230 V AC∼ / 50 Hz
10 SOUND EMISSION
Noise emission values measured according to relevant standard.
Sound pressure level (LPA) 85 dB(A)
ATTENTION ! The sound power pressure may exceed 85 dB(A), in this case
individual hearing protection must be worn.
Vibration 7.7 m/s²
Copyright © 2012 VARO
P a g e | 5
www.varo.com
POWX044
EN
11 SERVICE DEPARTMENT
Damaged switches must be replaced by our after-sales service department.
If the connecting cable (or mains plug) is damaged, it must be replaced by a particular
connecting cable which is available from our service department. Replacement of the
connecting cable must only be carried out by our service department (see last page) or by a
qualified person (qualified electrician).
12 STORAGE
Thoroughly clean the whole machine and its accessories.
Store it out of the reach of children, in a stable and secure position, in a cool and dry place,
avoid too high and too low temperatures.
Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
Don’t keep it in plastic bags to avoid humidity build-up.
13 WARRANTY
This product is warranted for a 36-month period effective from the date of purchase by the
first user.
This warranty covers all material or production flaws. It does not include defective parts
subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories
such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment,
accidents or alterations; nor the cost of transportation.
This warranty covers all material or production flaws, excluding batteries, chargers,
defective parts subject to normal wear and tear such as, in particular, bearings, brushes,
cables, plugs… Accessories such as drills, drill bits, saw blades etc. also do not fall under
this warranty.
Damage and/or defects resulting from inappropriate use also do not fall under the warranty
provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
Repairs may only be carried out by an authorised customer service centre for Powerplus
tools.
You can always obtain more information at the number 00 32 3 292 92 90.
Any transportation costs shall always be borne by the customer, unless agreed otherwise in
writing.
At the same time, no claim can be made on the warranty if the damage of the device is the
result of negligent maintenance or overload.
Definitely excluded from the warranty is damage resulting from fluid permeation, excessive
dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate
usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not
following the instructions given in the manual), inexpert assembly, lightning strike, erroneus
net voltage. This list is not exhaustive.
Acceptance of claims under warranty can never lead to the prolongation of the warranty
period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of
Varo NV.
We reserve the right to reject a claim whenever the purchase cannot be verified or when it
is clear that the product has not been properly maintained. (Clean ventilation slots, carbon
brushes serviced regularly, etc.).
Your purchase receipt must be kept as proof of date of purchase.
Your appliance must be returned undismantled to your dealer in an acceptably clean state,
(in its original blow-moulded case if applicable to the unit), accompanied by proof of
purchase.
Copyright © 2012 VARO
P a g e | 6
www.varo.com
POWX044
EN
14 ENVIRONMENT
Should your appliance need replacement after extended use, do not discard it
with the household rubbish but dispose of it in an environmentally safe way.
Waste produced by electrical machine items should not be handled like normal
household rubbish. Please recycle where recycle facilities exist. Check with your
Local Authority or retailer for recycling advice.
15 DECLARATION OF CONFORMITY
VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,
Product : sander 330W
Trade mark : POWERplus
Model : POWX044
Is in conformity with the essential requirements and other relevant provisions of the applicable
European Directives, based on the application of European harmonized standards. Any
unauthorized modification of the apparatus voids this declaration.
European Directives (including, if applicable, their amending directives):
2006/95/EC The Low Voltage Directive
2004/108/EC The Electromagnetic Compatibility Directive
2006/42/EC The Machinery Directive
European harmonized standards, and their amendments:
EN60745-1 : 2009
EN60745-2-4 : 2009
EN55014-1 : 2006
EN55014-2 : 1997
EN61000-3-2 : 2006
EN61000-3-3 : 1995
The undersigned acts on behalf and under the power of attorney of the company
management,
Philippe Vankerkhove
Certification Manager
Date : 25/02/2010
Copyright © 2012 VARO
P a g e | 7
www.varo.com
Loading...
