Powerplus POWX036 User Manual

Download

POWX036 EN

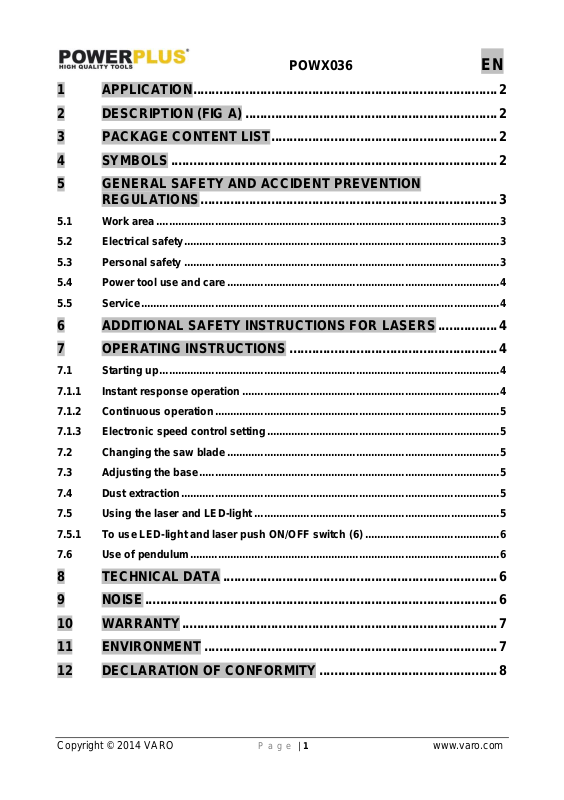

1 APPLICATION .................................................................................. 2

2 DESCRIPTION (FIG A) .................................................................... 2

3 PACKAGE CONTENT LIST ............................................................. 2

4 SYMBOLS ........................................................................................ 2

5 GENERAL SAFETY AND ACCIDENT PREVENTION

REGULATIONS ................................................................................ 3

5.1 Work area ................................................................................................................ 3

5.2 Electrical safety ....................................................................................................... 3

5.3 Personal safety ....................................................................................................... 3

5.4 Power tool use and care ......................................................................................... 4

5.5 Service ..................................................................................................................... 4

6 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS ................ 4

7 OPERATING INSTRUCTIONS ........................................................ 4

7.1 Starting up ............................................................................................................... 4

7.1.1 Instant response operation .................................................................................... 4

7.1.2 Continuous operation ............................................................................................. 5

7.1.3 Electronic speed control setting ............................................................................ 5

7.2 Changing the saw blade ......................................................................................... 5

7.3 Adjusting the base .................................................................................................. 5

7.4 Dust extraction ........................................................................................................ 5

7.5 Using the laser and LED-light ................................................................................ 5

7.5.1 To use LED-light and laser push ON/OFF switch (6) ............................................ 6

7.6 Use of pendulum ..................................................................................................... 6

8 TECHNICAL DATA .......................................................................... 6

9 NOISE ............................................................................................... 6

10 WARRANTY ..................................................................................... 7

11 ENVIRONMENT ............................................................................... 7

12 DECLARATION OF CONFORMITY ................................................ 8

POWX036 EN

Denotes risk of personal injury or damage to the tool.

In accordance with essential requirements of the European directive(s)

Read manual before use

"Class II - The machine is double insulated; Earthing wire is therefore not necessary

JIG SAW 800W POWX036

1 APPLICATION

The power tool is intended for sawing wood, metal and plastics. It is not designed for commercial use.

Warning! Please read and understand this operating manual before use and keep it for your future reference.

2 DESCRIPTION (FIG A)

1. Power cable

2. Locking button

3. On/Off switch

4. Speed regulator

5. Inspection guard

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

6. ON/Off switch laser/LED light

7. Guide roller

8. Adjustable base

9. Pendulum switch (4 positions)

10. Dust extractor socket

 Jig saw 500W  1 x Dust extractor socket  1 x Hex key  4 x Saw for wood

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

 2 x Saw for metal  1 x Guide bar  1 x Instruction Manual

POWX036 EN

5 GENERAL SAFETY AND ACCIDENT PREVENTION REGULATIONS

Warning! Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

 Keep work area clean and well lit. Cluttered and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

 Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

 Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key

left attached to a rotating part of the power tool may result in personal injury.

 Do not overreach. Keep proper footing and balance at all times. This enables better

control of the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

POWX036 EN

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

 If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

 Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

 Do not use the power tool if the switch does not turn it on and off. Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store idle power tools out of the reach of children and do not allow persons unfamiliar with

the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or sticking of moving parts, breakage of

parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to stick and are easier to control.

 Use the power tool, accessories and tool bits etc., in accordance with these instructions

and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

 Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS

Warning!

The laser beam potentially causes severe eye damage. Never look or stare directly into the laser beam.

During use, do not point the laser beam at people, directly or indirectly through reflecting surfaces.

 This laser complies with class 2 according to EN 60825-1/A11, 1996. The unit includes no

servicing components. Do not open the housing for any reason. If the unit is damaged, have the damage repaired by an authorized repair agent

7 OPERATING INSTRUCTIONS

7.1 Starting up

7.1.1 Instant response operation Switching on: Press the On/Off switch. Switching off: Release the On/Off switch

7.1.2 Continuous operation Switching on: Press the On/0ff switch, keep pressed and lock with the locking button Switching off: Press the On/Off switch and release

7.1.3 Electronic speed control setting Using the knurled screw on the On/Off switch you can pre-set any speed. Turn the knurled screw to a higher number for a higher speed and turn it to a lower number for a lower speed. The ideal cutting rate depends on the specific material and working conditions. The general rules for tool speed in cutting operations apply

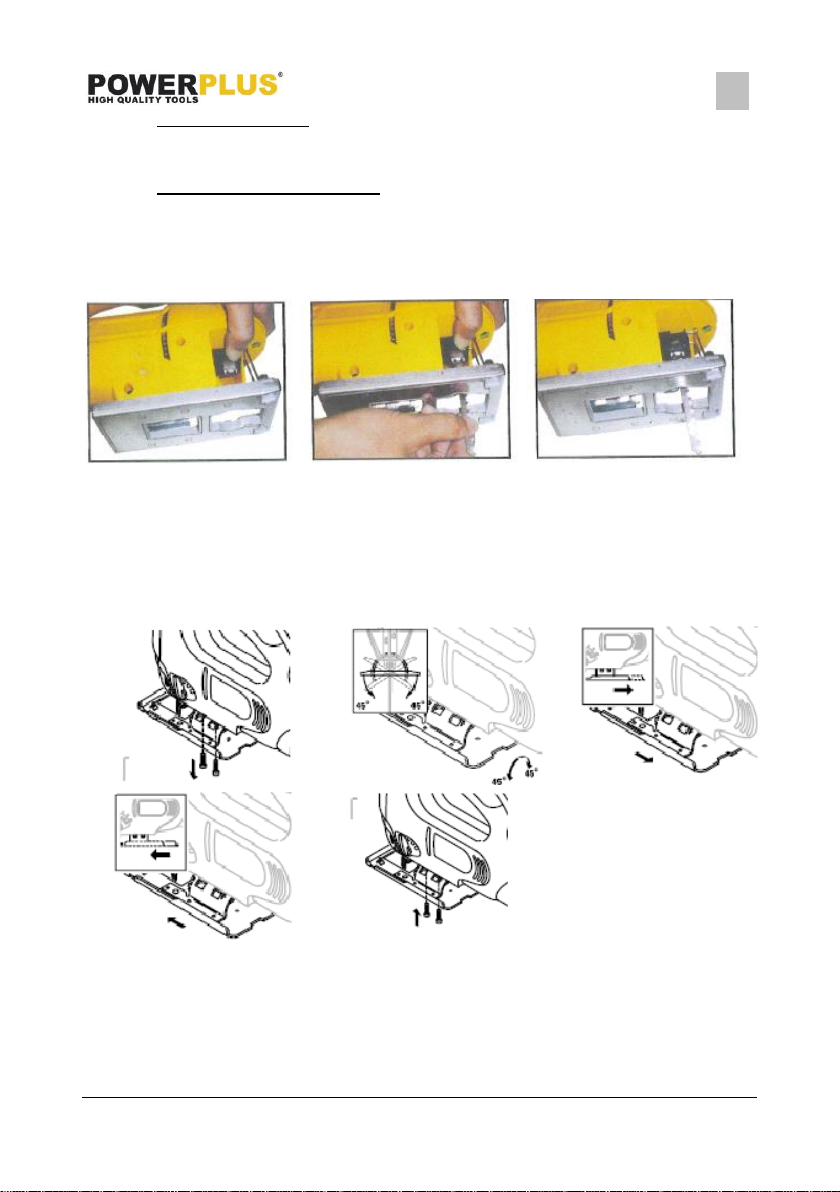

7.2 Changing the saw blade

7.3 Adjusting the base

(For mitering and sawing near edges.) For mitre and bevel cuts you can swivel the base by up to 45° in either direction after undoing the two screws on the bottom. The angles 15°, 30°and 45° are marked but you can adjust the saw to any angle between these markings as required. To adjust the cutting angle. undo the two screws until you can just about move the blade. Adjust to the required angle and re-tighten the two screws. To enable you to saw right up to the edge, the base can be pushed backward. To do so, undo the two screws underneath and push the base to the back. Re-tighten the two screws

POWX036 EN

7.4 Dust extraction

The jigsaw is equipped with a dust extractor socket. You can connect your vacuum cleaner to the socket at the rear of the jigsaw. If you require a special adapter, please contact the manufacturer of your vacuum cleaner.

7.5 Using the laser and LED-light

The laser beam projects a red cutting line on the workpiece.

Push switch (6)

LED-light

Laser

1 time

Off

2 times

Off

3 times

4 times

Off

Position

Cutting action

Applications

Straight line cutting action

For cutting mild steel, stainless steel and plastics. For clean cuts in wood and plywood.

Small orbit cutting action

For cutting mild steel, aluminum and hard wood.

Medium orbit cutting action

For cutting wood and plywood. For fast cutting in aluminum and mild steel.

III

Large orbit cutting action

For fast cutting in wood and plywood.

Nominal voltage

230-240V-50Hz

Power consumption

800 W

Cutting rate

800-3000 strokes/min

Stroke height

20 mm

Cutting depth in wood

80 mm

Cutting depth in plastic

20 mm

Cutting depth in steel

10 mm

Mitre cuts

up to 45' (left and right)

Double isolation

Yes

Weight

< 2,7 kg

Acoustic pressure level LpA

91 dB(A)

Acoustic power level LwA

102 dB(A)

aw (Vibration)

9,8 m/s²

K = 1,5 m/s²

 Switch the laser on by means of the on/off switch (6).  Place the machine on the workpiece with the saw marking above the start of the cutting

line.

 Check that the laser line aligns with the cutting line as marked on the workpiece.  Switch on the machine.  Follow the “Instructions for use” to perform a cut.  After use, switch off the laser.

7.5.1 To use LED-light and laser push ON/OFF switch (6)

7.6 Use of pendulum

8 TECHNICAL DATA

POWX036 EN

9 NOISE

Noise values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

POWX036 EN

10 WARRANTY

 This product is warranted for a 36-month period effective from the date of purchase by the

first user.

 This warranty covers all material or production flaws excluding : batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

11 ENVIRONMENT

Should your machine need replacement after extended use, do not put it in the domestic waste but dispose of it in an environmentally safe way. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

POWX036 EN

12 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product : Jig Saw Trade mark : POWERplus Model : POWX036

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2004/108/EC 2006/42/EC 2011/65/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1 : 2009 EN60745-2-11 : 2010 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-3 : 2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove Regulatory Affairs – Compliance Manager Date : 08/08/2014
