Powerplus POWPG40140 User manual
POWPG40140 EN
Copyright © 2019 VARO P a g e | 1 www.varo.com

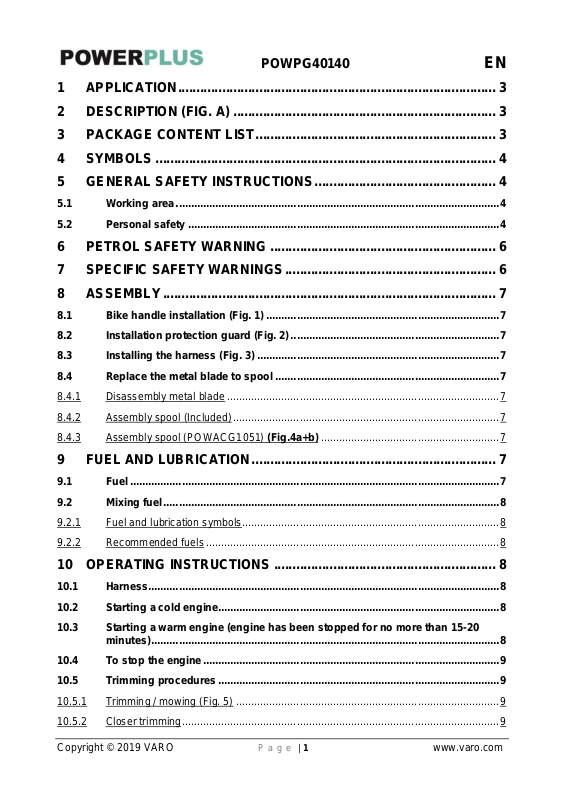

1 APPLICATION ...................................................................................... 3
2 DESCRIPTION (FIG. A) ....................................................................... 3
3 PACKAGE CONTENT LIST ................................................................. 3
4 SYMBOLS ............................................................................................ 4
5 GENERAL SAFETY INSTRUCTIONS ................................................. 4
5.1 Working area ........................................................................................................... 4
5.2 Personal safety ....................................................................................................... 4
6 PETROL SAFETY WARNING ............................................................. 6
7 SPECIFIC SAFETY WARNINGS ......................................................... 6
8 ASSEMBLY .......................................................................................... 7
8.1 Bike handle installation (Fig. 1) ............................................................................. 7
8.2 Installation protection guard (Fig. 2) ..................................................................... 7
8.3 Installing the harness (Fig. 3) ................................................................................ 7
8.4 Replace the metal blade to spool .......................................................................... 7
8.4.1 Disassembly metal blade .......................................................................................... 7
8.4.2 Assembly spool (Included) ........................................................................................ 7
8.4.3 Assembly spool (POWACG1051) (Fig.4a+b) ........................................................... 7
9 FUEL AND LUBRICATION .................................................................. 7
9.1 Fuel .......................................................................................................................... 7
9.2 Mixing fuel ............................................................................................................... 8
9.2.1 Fuel and lubrication symbols..................................................................................... 8
9.2.2 Recommended fuels ................................................................................................. 8
10 OPERATING INSTRUCTIONS ............................................................ 8
10.1 Harness .................................................................................................................... 8
10.2 Starting a cold engine............................................................................................. 8
10.3 Starting a warm engine (engine has been stopped for no more than 15-20
minutes) ................................................................................................................... 8
10.4 To stop the engine .................................................................................................. 9
10.5 Trimming procedures ............................................................................................. 9
10.5.1 Trimming / mowing (Fig. 5) ....................................................................................... 9
10.5.2 Closer trimming ......................................................................................................... 9
POWPG40140 EN
Copyright © 2019 VARO P a g e | 2 www.varo.com
10.5.3 Fence / foundation trimming...................................................................................... 9
10.5.4 Trimming around trees .............................................................................................. 9
10.5.5 Scalping (Fig. 6) ........................................................................................................ 9
10.5.6 Do not sweep with trimmer........................................................................................ 9
10.6 Cutting with blades ............................................................................................... 10
11 MAINTENANCE ................................................................................. 10
11.1 Air filter .................................................................................................................. 10
11.2 Fuel cap / fuel filter ............................................................................................... 10
11.3 Carburettor adjustment ........................................................................................ 11
12 TECHNICAL DATA ............................................................................ 11
13 NOISE ................................................................................................. 11
14 STORAGE .......................................................................................... 11
15 REMOVING A UNIT FROM STORAGE ............................................. 12
16 TROUBLE SHOOTING ...................................................................... 12
17 WARRANTY ....................................................................................... 13
18 ENVIRONMENT ................................................................................. 13
19 DECLARATION OF CONFORMITY .................................................. 14
POWPG40140 EN
Copyright © 2019 VARO P a g e | 3 www.varo.com
BRUSH CUTTER 41.2CC
POWPG40140
1 APPLICATION
Depending on the assembled cutting tools, the bush cutter can be used to mow lawns or
meadows, and to trim scrub, shrubs, bushes and very small trees.
WARNING! For your own safety, read this manual and general safety
instructions carefully before using the appliance. Your power tool should only
be passed on together with these instructions.
2 DESCRIPTION (FIG. A)
1. Cutting disc
2. Drive shaft assembly
3. Throttle trigger
4. Ignition switch
5. Safety switch
6. ‘Bike’ handle
7. Harness attachment
8. Air filter cover
9. Knob fuel tank
10. Fuel tank
11. Primer bulb
12. Choke
13. Protection guard
14. Spool
3 PACKAGE CONTENT LIST
▪ Remove all packaging materials.
▪ Remove remaining packing and package inserts (if included).
▪ Check that the package contents are complete.
▪ Check the appliance and all accessories for transportation damage.
▪ Keep the packing materials as long as possible till the end of the warranty period. Dispose
it into your local waste disposal system afterwards.
WARNING: Packaging materials are not toys! Children must not play with
plastic bags! Danger of suffocation!
Brush cutter
Protecting guard
Harness
Cutting disc
Spark plug wrench
Screwdriver
Spool
Manual
Bottle for 2-cycle lubricant (empty)
Double offset ring spanner
Wrench
If any parts are missing or damaged, please contact your dealer.
POWPG40140 EN
Copyright © 2019 VARO P a g e | 4 www.varo.com
4 SYMBOLS
The following symbols are used in this manual and/or on the machine:
Read the manual before
using the machine.
Wear sturdy shoes with antiskid
soles!
Denotes risk of personal
injury or damage to the tool.
Wear approved hearing
protection and safety glasses.
In accordance with essential
safety standards of
applicable European
directives.
Wear good and sturdy gloves!
Keep a minimum distance of
15m between the machine
and third parties during use.
Wear good and solid working
clothes!
Watch out for particles
generated by the cutting
installation.
The exhaust fumes are toxic
and can cause suffocation!
Use the cutting installation
exclusively in combination
with the shrub knife.
WATCH OUT: Fire hazard!
Petrol and vapour are easily
inflammable!
Use the cutting installation exclusively in combination with the threading
head.
5 GENERAL SAFETY INSTRUCTIONS
Read all safety warnings and instructions.
5.1 Working area
▪ Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
▪ Do not operate tools in potentially explosive surroundings, for example, in the presence of
inflammable liquids, gases or dust. Tools create sparks which may ignite the dust or
fumes.
▪ Keep children and bystanders at a distance when operating a tool. Distractions can cause
you to lose control of it.
5.2 Personal safety
▪ Stay alert, watch what you are doing and use common sense when operating a tool. Do
not use a tool when you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention when operating a tool may result in serious personal injury.
▪ Use safety equipment. Always wear eye protection. Using safety equipment such as a
dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed
will reduce the risk of personal injury.
▪ Remove any adjusting keys or spanners before turning on the tool. A spanner or key left
attached to a rotating part of the tool may result in personal injury.
POWPG40140 EN
Copyright © 2019 VARO P a g e | 5 www.varo.com
▪ Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable
you retain control over the tool in unexpected situations.
▪ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from the tool. Loose clothes, jewellery or long hair can become entangled in
the moving parts.
▪ Inspect the entire machine for loose parts (nuts, bolts, screws, etc.) and any damage.
Repair or replace as necessary before using the machine.
▪ DO NOT USE any attachment with this power head other than the ones recommended by
our company. Serious injury to the operator or bystanders could result as well as damage
to the machine.
▪ The blade guard and bike handle is very important to the machine. It must be screwed up
on the machine before the initial use. These guards must always be fixed when operating
the machine. Check the guard before each use. If any damage (crack, break, etc.) on the
guard, contact with your dealer for replacing it.
▪ If use of non-conformant replacement guards, or remove or modify these guards could
result in serious injury to the operator or bystanders.
▪ Always use proper handles and shoulder strap when cutting.
▪ Do not use the unit if it is damaged or poorly adjusted. Never remove the machine’s guard.
Serious injury to the operator or bystanders could result as well as damage to the
machine.
▪ Inspect the area to be cut and remove all debris that could become entangled in the nylon
cutting head. Also remove any objects that the unit may throw during cutting.
▪ Never leave the machine unattended.
▪ Do not use this unit for any job other than those for which it is intended as described in this
manual.
▪ Do not overreach. Keep proper footing and balance at all times. Do not run the unit while
standing on a ladder or on any other unstable footing location. Appropriately use the
harness provided when operating the machine.
▪ Keep hands and feet clear of the nylon cutting head or blade while unit is in use.
▪ Do not use this type of machine for sweeping away debris.
▪ Use nylon cutting head which is free of damage. If a stone or any other obstacle is hit,
stop the engine and check the nylon cutting head. A broken or unbalanced nylon cutting
head must never be used.
▪ Whenever approaching an operator of the machine, carefully call his attention and confirm
that the operator stop the engine. Be careful not to startle or distract the operator which
can cause an unsafe situation.
▪ Never touch the nylon cutting head or blade whenever the engine is running. If it is
necessary to replace the protector or cutting attachment, be sure to stop the engine and
confirm that the cutting device has stopped running.
▪ The engine should be turned off when the machine is moved between work areas.
▪ Pay attention to loosening and overheating of parts. If there is any abnormality of the
machine, stop operation immediately and check the machine carefully. If necessary, have
the machine serviced by an authorized dealer. Never continue to operate a machine which
may be malfunctioning.
▪ In start-up or during operation of the engine, never touch hot parts such as the muffler, the
high voltage wire or the spark plug.
▪ After the engine has stopped, the muffler is still hot. Never place the machine in any
places where there are flammable materials (dry grass, etc.), combustible gasses or
combustible liquids.
▪ Pay special attention to operation in the rain or just after the rain as the ground may be
slippery.
▪ If you slip or fall to the ground or into a hole, release the throttle lever immediately.
Loading...
