Page 1
POWLI425 EN

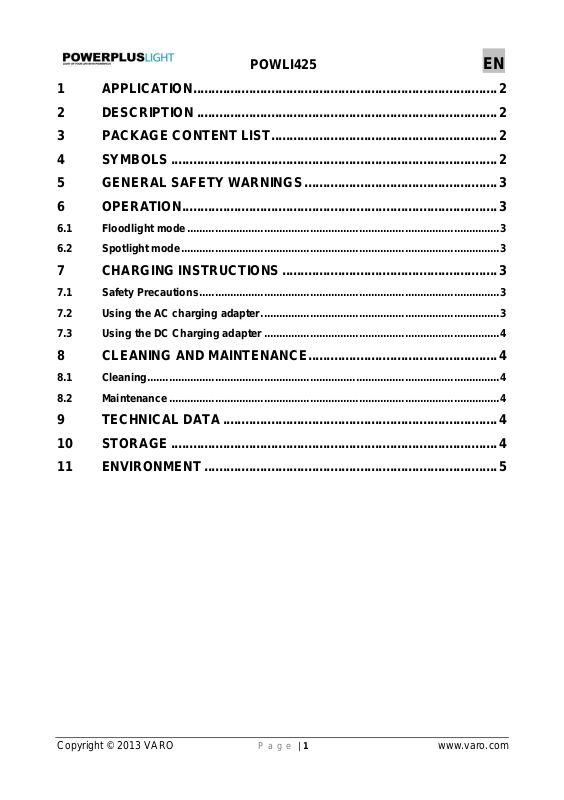

1 APPLICATION .................................................................................. 2
2 DESCRIPTION ................................................................................. 2
3 PACKAGE CONTENT LIST ............................................................. 2
4 SYMBOLS ........................................................................................ 2
5 GENERAL SAFETY WARNINGS .................................................... 3
6 OPERATION ..................................................................................... 3
6.1 Floodlight mode ...................................................................................................... 3
6.2 Spotlight mode ........................................................................................................ 3
7 CHARGING INSTRUCTIONS .......................................................... 3
7.1 Safety Precautions .................................................................................................. 3
7.2 Using the AC charging adapter .............................................................................. 3
7.3 Using the DC Charging adapter ............................................................................. 4
8 CLEANING AND MAINTENANCE ................................................... 4
8.1 Cleaning................................................................................................................... 4
8.2 Maintenance ............................................................................................................ 4
9 TECHNICAL DATA .......................................................................... 4
10 STORAGE ........................................................................................ 4
11 ENVIRONMENT ............................................................................... 5
Copyright © 2013 VARO P a g e | 1 www.varo.com
Page 2
POWLI425 EN
Denotes risk of personal injury or
damage to the tool.
Read manual before use
In accordance with essential
safety standards of applicable
European directives
36 LED EXTENDABLE WORK LIGHT
POWLI425
1 APPLICATION
Your new cordless rechargeable Extendable Work Light provides a safe and portable source
of light just where and when you need it. It is ideal to use during automotive repair work,
roadside emergencies, work around the home, camping, or during power failures.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION
1. Spotlight
2. On-/off switch
3. Flashlight extendable section
4. Stand up magnetic base
5. Charging jack
6. Charging indicator lamp
7. 12V DC Car charging adaptor
8. 230V AC Mains charging adaptor
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period. Dispose
it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
36 Led extendable worklight
Car charging adaptor
Mains charging adaptor
Instruction Manual
When parts are missing or damaged, please contact your dealer.
4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Copyright © 2013 VARO P a g e | 2 www.varo.com
Page 3
POWLI425 EN
5 GENERAL SAFETY WARNINGS
Do not use if broken, bent, cracked or damaged parts are presented. Any light that
appears damaged in any way or operates abnormally shall be removed from service
immediately. Inspect before each use.
This light is not to be used by children.
Keep out of reach of children.
Do not shine directly into eyes.
Do not leave the light turned on and unattended.
Do not alter or modify this product and do not attempt to repair the battery.
Do not use in wet conditions, it is not waterproof.
Do not expose to fire or high temperatures. The battery may explode.
Do not charge or use near open flames or glowing embers.
6 OPERATION
6.1 Floodlight mode
Hold the light by it’s body and pull the lens section upwards to open the lantern and turn on the
LED’s position(I). The Extendable Work Light operated as a floodlight using 30 LED’s for
maximum illumination. work time in this mode is up to more than 2,2 hours on a full charge. Do
not look directly at the light when opening the floodlight.
6.2 Spotlight mode
Press the on switch Position (II). In this mode the Extendable Work Light operates as a
spotlight using 6 LED, this gives a powerful focused light with a maximum illumination. work
time of up to more than 4,5 hours on a full charge.
7 CHARGING INSTRUCTIONS
The Extendable Work Light must be fully charged before being used for the first time as soon
as taken from the package
This will ensure that the battery gives its best performance now and on future re-charging
cycles. The AC/ DC charging adapters are for re-charging the battery only. They can not be
used to directly power the light. Always ensure the light is switched off whilst charging.
To prevent overheating do not charge for more than 8 hours
7.1 Safety Precautions
Store in dry location and do not allow the charging adapter to come in contact with water,
rain or snow.
If the charging adapter comes into contact with water, place in a dry location at room
temperature. on a soft absorbent towel and allow too dry thoroughly.
Do not operate the unit until it is completely free of moisture.
Use only the DC charging adapter supplied with this light. Do not attempt to charge the light
with an adapter that is not compatible as this could result a fire, damage to the light or
personal injury.
7.2 Using the AC charging adapter
Use 230V AC charging adapter indoors in a dry location only. Exposure to damp or wet
conditions could cause electrocution or damage to adapter.
Do not use the charger in the vicinity of flammable liquids or materials.
1. Stand the light vertically on its base. Plug the adapters jack plug into the socket on the
base of the light next to the charging indicator lamp.
2. Plug the adapter into a 230V socket and switch the socket on(if applicable).
3. The charging indicator lamp will glow RED while charging is in progress.
Copyright © 2013 VARO P a g e | 3 www.varo.com
Page 4
4. The battery will be fully charged after approximately 6 hours, and the RED charging
Power requirements
3,6VDC – 3,6W
Battery type
Internal, rechargeable, Ni-MH
Bulb type
White LED
LED life
100000 Hours
Running time 30LED
> 2,2 Hours
Running time 6LED
> 4,5 Hours
indicator will turn to GREEN when the unit is fully charged. Disconnect the jack plug from
the light, remove the adapter from the wall socket or switch off.
7.3 Using the DC Charging adapter
The DC charging adapter can be used in most vehicles by plugging into the 12V DC
cigarette lighter or accessory power socket.
1. Stand the light vertically on its base. Plug the adapters jack plug into the socket on
the base of the light next to the charging indicator lamp.
2. Plug the adapter into the vehicles 12V DC cigarette lighter or accessory power socket.
3. The charging indicator lamp will glow RED while charging is in process.
4. The battery will be fully charged after approximately 6 hours, and the RED charging
indicator will be turned to GREEN when the unit is fully charged.
5. Disconnect the jack plug from the light, and remove the DC adapter from the outlet
socket.
8 CLEANING AND MAINTENANCE
POWLI425 EN
8.1 Cleaning
All exterior surfaces of the Extendable Work Light can be wiped clean with soft cloth
dampened with a soap and water solution. Do not immerse or submerge any part of light in
water or any other solvent. Never use solvents such as petrol, alcohol, ammonia water, etc.
These solvents may damage the plastic parts.
8.2 Maintenance
Only qualified service personnel must perform repairs. Do not open the exterior casing of the
Extendable Work Light as there are no user serviceable parts inside. Opening or visible
attempts to open or repair a light may void any guarantee and / or cause damage to the
product or personal injury. LED bulbs will never wear out under normal conditions and do not
need to be replaced. Rechargeable battery pack cannot be replaced.
9 TECHNICAL DATA
10 STORAGE
Store the Extendable Work Light and charging adapters in a clean and dry area. Be sure to
keep the charging adapters supplied with this product stored separately from similar items
as only charging adapters included with this light are compatible. Using a non-compatible
charger could cause damage to the light or personal injury.
The torch may also be stored in a vehicle for use in roadside emergencies. If kept in a
vehicle, it is recommended that battery be re-charged every 30-50 days to ensure maximum
performance in an emergency. to prevent the light and any of the accessories being
damaged, please ensure that it is properly secure and in a safe place inside the vehicle.
Copyright © 2013 VARO P a g e | 4 www.varo.com
Page 5
POWLI425 EN
11 ENVIRONMENT
This product contains nickel-metal hydride. To preserve natural resources, please
recycle or dispose of batteries properly. Local, state or federal laws may prohibit
disposal of nickel-metal hydride batteries in ordinary trash. Consult you local
waste authority for information regarding available recycling and/or disposal
options.
Copyright © 2013 VARO P a g e | 5 www.varo.com
