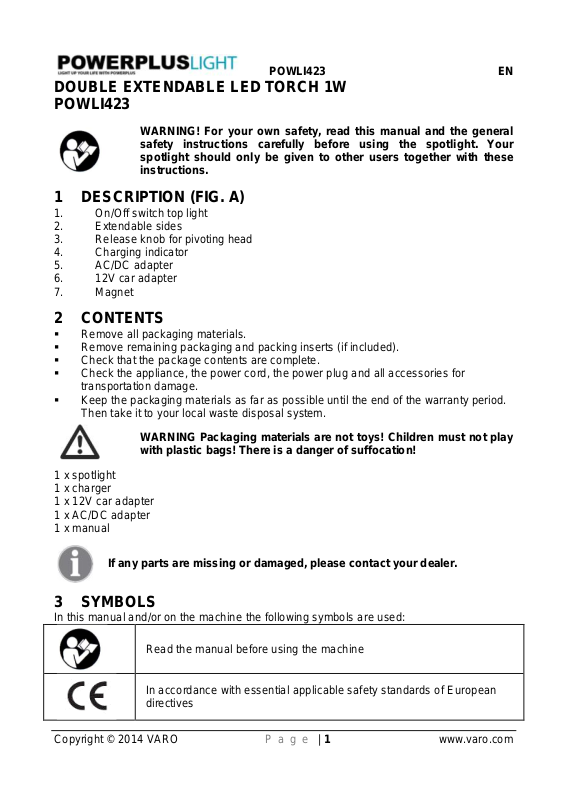

DOUBLE EXTENDABLE LED TORCH 1W
Read the manual before using the machine
In accordance with essential applicable safety standards of European
directives
POWLI423 EN
POWLI423
WARNING! For your own safety, read this manual and the general
safety instructions carefully before using the spotlight. Your
spotlight should only be given to other users together with these
instructions.
1 DESCRIPTION (FIG. A)
1. On/Off switch top light
2. Extendable sides
3. Release knob for pivoting head
4. Charging indicator
5. AC/DC adapter
6. 12V car adapter
7. Magnet
2 CONTENTS
Remove all packaging materials.
Remove remaining packaging and packing inserts (if included).
Check that the package contents are complete.
Check the appliance, the power cord, the power plug and all accessories for
transportation damage.
Keep the packaging materials as far as possible until the end of the warranty period.
Then take it to your local waste disposal system.
WARNING Packaging materials are not toys! Children must not play
with plastic bags! There is a danger of suffocation!
1 x spotlight
1 x charger
1 x 12V car adapter
1 x AC/DC adapter
1 x manual
If any parts are missing or damaged, please contact your dealer.
3 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Copyright © 2014 VARO P a g e | 1 www.varo.com
4 WARNINGS
Do not use if any parts are broken, bent, cracked or damaged. Any work light that
appears damaged in any way or operates abnormally must be removed from service
immediately. Inspect before each use.
This work light is not to be used by children. Keep out of reach of children.
Do not leave work light on and unattended.
Do not expose to fire or high temperatures; the battery may explode.
Do not charge or use near open flames or glowing embers.
Do not shine directly into eyes.
Never block lens and reflector during operation.
Do not store the work light for an extended period of time. Charge the battery every
three months during storage.
Do not charge the battery for an extended period of time. Overcharging will greatly
shorten battery life.
You must give the work light battery a top-up charge at the time of purchase.
Avoid charging at temperatures below 4℃.
The DC charging plug may very warm when in use. Unplug from receptacle with
caution.
POWLI423 EN
5 OPERATION
5.1 Magnetic base
The work light features a magnetic base on the bottom, allowing the light to be
magnetically attached to a vehicle or other metal objects.
NOTE Do not place the light on or near computer equipment,
computer disks or other types of magnetic storage equipment as
strong magnetic fields can erase or corrupt data.
5.2 Different modes
5.2.1 Floodlight mode
You can extend both sides of the torch. You can choose to use 15 LED or 30 LED.
Simply hold the torch and pull out the bottom and/or head. LED’s will illuminate
automatically. When you push in the sides, LED’s will automatically turn off.
5.2.2 Spotlight mode
To activate the top 1W light simply push the on/off switch situated on the pivoting head.
You can pivot the head by pressing the release knob and put the head at the desired
degree.
5.2.3 Emergency light
Emergecy light can be activated by pressing the on/off switch for the spotlight a second
time. Three red LED’s will start blinking. To switch of simply push the on/off switch one
more time.
Copyright © 2014 VARO P a g e | 2 www.varo.com
6 CHARGING THE BATTERY
Model
POWLI423
Nominal lifetime
50,000 Hours
Battery
Battery type
Li-ion
Battery pack
3.7V-1500mAh
Charging time
4-6 hour
Top light
Bulb type
1W LED
Working time
8 hours
Extendable light
Bulb type
30*1.8W LED
Working time low mode (15pcs LED)
5 hours
Working time high mode (30pcs LED)
3 hours
Emergency light
POWLI423 EN
The double extendable torch must be fully charged before being
used for the first time. This will ensure that the battery gives the
best performance now and on future re-charging cycles. The AC and
DC charging adapters are for re-charging the battery only. They
cannot be used to directly power the torch. Always ensure the torch
is switched off whilst charging.
6.1 Using the ac/dc charging adapter
Put the torch vertically on its base, Plug the adapter jack plug into the socket on the
base of the torch next to the charging indicator lamp.
Plug the adapter into a 230V socket.
The charging indicator lamp will glow RED while charging is in progress.
The battery will be fully charged after approximately 6 hours. Remove the adapter
from the wall socket and disconnect the jack plug from the torch.
To prevent overheating do not charge for more than ten hours.
6.2 Using 12V DC adapter to charge
Put the torch vertically on its base. Plug the adapter jack plug into the socket on the
base of the torch next to the charging indicator lamp.
Plug the adapter into the vehicles 12V DC cigarette lighter or accessory power
socket.
The charging indicator lamp will glow RED while charging is in progress.
The battery will be fully charged after approximately 6 hours. Remove the adapter
from the wall socket and disconnect the jack plug from the torch.
To prevent overheating do not charge for more than ten hours
7 TECHNICAL DATA
Copyright © 2014 VARO P a g e | 3 www.varo.com
POWLI423 EN
Bulb type
3*0.18W red LED
8 ENVIRONMENT
IMPORTANT: BATTERY DISPOSAL:
This product contains Li-ion. To preserve natural resources, please recycle or dispose of
batteries properly. Local, state or federal laws may prohibit disposal of Li-ion batteries in
ordinary trash. Consult you local waste authority for information regarding available
recycling and/or disposal options.
Should your spotlight need replacement after extended use, do not put it
in the domestic waste but dispose of it in an environmentally safe way.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
Copyright © 2014 VARO P a g e | 4 www.varo.com
