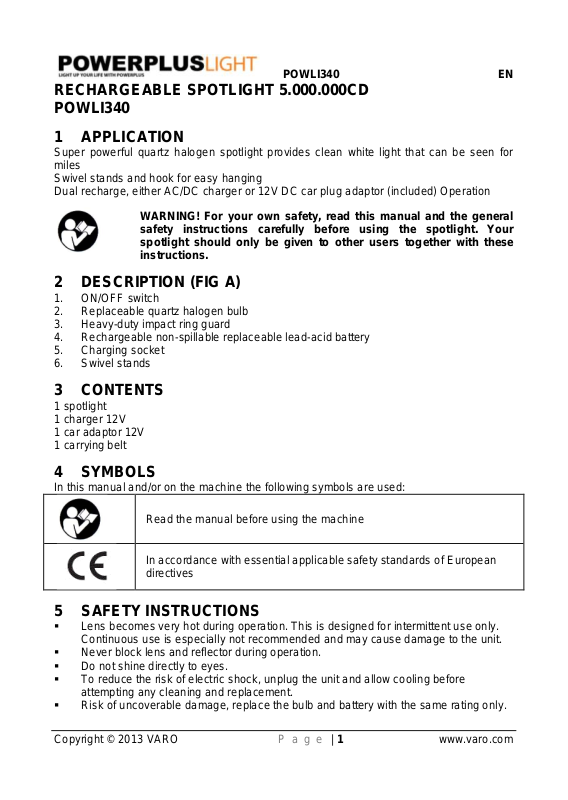

Powerplus POWLI340 User Manual

RECHARGEABLE SPOTLIGHT 5.000.000CD

Read the manual before using the machine

In accordance with essential applicable safety standards of European
directives

POWLI340 EN

POWLI340
1 APPLICATION

Super powerful quartz halogen spotlight provides clean white light that can be seen for
miles
Swivel stands and hook for easy hanging
Dual recharge, either AC/DC charger or 12V DC car plug adaptor (included) Operation

WARNING! For your own safety, read this manual and the general
safety instructions carefully before using the spotlight. Your
spotlight should only be given to other users together with these
instructions.

2 DESCRIPTION (FIG A)

1. ON/OFF switch

2. Replaceable quartz halogen bulb

3. Heavy-duty impact ring guard

4. Rechargeable non-spillable replaceable lead-acid battery

5. Charging socket

6. Swivel stands

3 CONTENTS

1 spotlight
1 charger 12V
1 car adaptor 12V
1 carrying belt

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

5 SAFETY INSTRUCTIONS

 Lens becomes very hot during operation. This is designed for intermittent use only.

Continuous use is especially not recommended and may cause damage to the unit.

 Never block lens and reflector during operation.
 Do not shine directly to eyes.
 To reduce the risk of electric shock, unplug the unit and allow cooling before

attempting any cleaning and replacement.

 Risk of uncoverable damage, replace the bulb and battery with the same rating only.

Copyright © 2013 VARO P a g e | 1 www.varo.com

6 CHARGING INSTRUCTIONS

Spotlight

POWLI340

Light emission POWER:

5.000.000 Million. candles

Batteries

Type

lead acid

Bulb

H4 (6V – 100 W)

AC / DC Adaptor Charger.

Input:

AC 230V -50Hz /7W

Output:

12V DC 300mA

Charging time

10 h

12V Car adaptor

Charging time

10 h

Charge the battery prior to initial use. Turn the switch to 'OFF' when charging. After fully
charged, the unit can operate for around 25 minutes of spotlight.

6.1 AC/DC charger

Plug the charger into the wall outlet; insert the charger into the DC jack of the lantern.
Time required to fully charge the battery is around 10 hours.

6.2 Car plug adaptor

Plug the included car plug adaptor into the cigarette lighter socket in your car (Truck or
boat), insert the adaptor plug into the DC jack of the lantern. Time required to fully charge
the battery is around 10 hours.

Important Never leave battery discharged, recharge battery
immediately after discharging. Recharge battery every 3 months
even the unit is not being used.

7 OPERATING INSTRUCTIONS

 Pull out the swivel stands to ensure the lantern is stable and for hands free operation,

hook for easy hanging.

 Charge the battery prior to initial use. (see CHARGING THE BATTERY)
 Turn the lantern On and Off by pushing the switch below the handle.

8 BULB REPLACEMENT

 Unscrew and remove the spotlight cover.
 Remove carefully the lens and the rubber ring, then take out the reflector.
 Release the bulb guarding wires and replace the bulb with a new one.
 Re-assemble the guarding wires, put back the reflector, rubber ring and the lens.

POWLI340 EN

9 TECHNICAL DATA

Copyright © 2013 VARO P a g e | 2 www.varo.com
