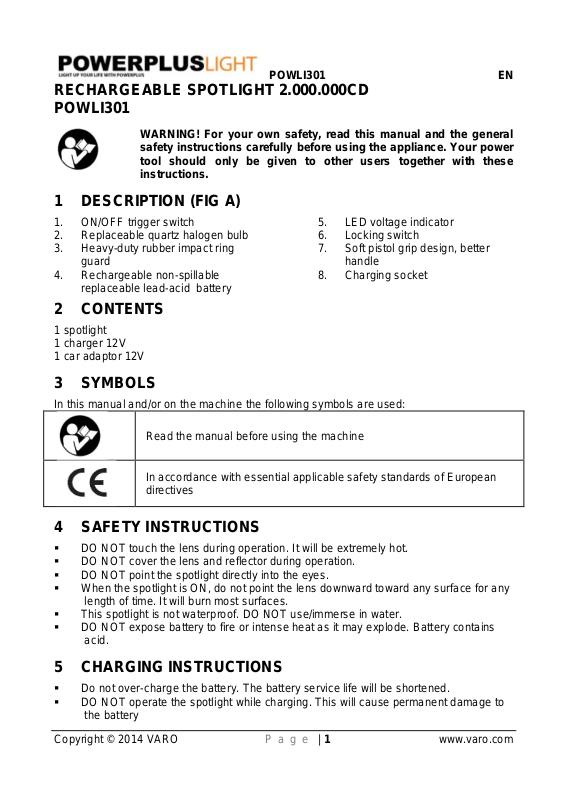

Powerplus POWLI301 User Manual
RECHARGEABLE SPOTLIGHT 2.000.000CD
Read the manual before using the machine
In accordance with essential applicable safety standards of European
directives
POWLI301 EN
POWLI301
WARNING! For your own safety, read this manual and the general
safety instructions carefully before using the appliance. Your power
tool should only be given to other users together with these
instructions.
1 DESCRIPTION (FIG A)
1. ON/OFF trigger switch
2. Replaceable quartz halogen bulb
3. Heavy-duty rubber impact ring
guard
4. Rechargeable non-spillable
replaceable lead-acid battery
5. LED voltage indicator
6. Locking switch
7. Soft pistol grip design, better
handle
8. Charging socket
2 CONTENTS
1 spotlight
1 charger 12V
1 car adaptor 12V
3 SYMBOLS
In this manual and/or on the machine the following symbols are used:
4 SAFETY INSTRUCTIONS
DO NOT touch the lens during operation. It will be extremely hot.
DO NOT cover the lens and reflector during operation.
DO NOT point the spotlight directly into the eyes.
When the spotlight is ON, do not point the lens downward toward any surface for any
length of time. It will burn most surfaces.
This spotlight is not waterproof. DO NOT use/immerse in water.
DO NOT expose battery to fire or intense heat as it may explode. Battery contains
acid.
5 CHARGING INSTRUCTIONS
Do not over-charge the battery. The battery service life will be shortened.
DO NOT operate the spotlight while charging. This will cause permanent damage to
the battery
Copyright © 2014 VARO P a g e | 1 www.varo.com
5.1 AC/DC charger
Insert the charger plug into the DC jack of the unit and plug the charger into a mains
supply socket (230V – 50Hz)
Make sure that the voltage rating of the mains supply corresponds with that of the
charger.
The time required to fully charge the battery is around 15 hours.
Important note: Only use the charger supplied by the manufacturer.
Other chargers may damage the unit.
5.2 12V DC car plug charger
Plug the car plug adaptor supplied into the cigarette lighter socket of your car and
insert the adaptor plug into the DC jack of the unit.
The time required to fully charge the battery is around 8-10 hours.
POWLI301 EN
6 OPERATING INSTRUCTIONS
Charge the battery completely before you use your spotlight for the first time.
To switch ON : press the trigger switch (1).
To prevent that the spotlight can be switched on accidentally (during storage : fire
may occur !) you can block the trigger by engaging the locking switch (6).
Trigger switch can be locked in the 'ON" position for continuous operation by sliding
the trigger switch into to the locking position. Slide back to un-lock
It is not recommended to use the unit continuously. It is designed for intermittent use
only.
Charge the battery immediately after each use.
7 MAINTENANCE
7.1 Battery replacement
Pull off the rubber impact ring guard.
Pull off the soft grip of the revolver handgrip.
Open the housing by loosening the 6 screws.
Attention: ON/OFF switch, lock, charging socket are held in place by
the 2 housing parts and may fall out !
Pull out the battery and its terminals, replace the 6V 4Ah Lead Acid Battery.
Re-assemble in opposite order. (take care not to place the rubber guard ring upside
down)
7.2 Bulb replacement
Pull off the rubber impact ring guard.
Pull off the soft grip of the revolver handgrip.
Open the housing by loosening the 6 screws.
Grasp and lift out the bulb guard mesh.
Replace the bad bulb with a new (type : H3/ 75W)Quartz Halogen bulb) and re-
assemble in opposite order. (take care not to place the rubber guard ring upside
down)
Copyright © 2014 VARO P a g e | 2 www.varo.com
