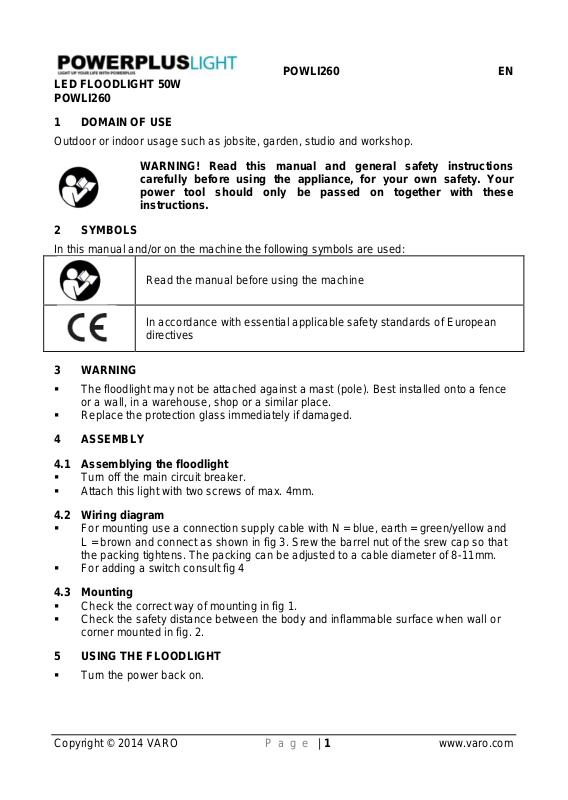

Powerplus POWLI260 User Manual
LED FLOODLIGHT 50W
Read the manual before using the machine
In accordance with essential applicable safety standards of European
directives
POWLI260
1 DOMAIN OF USE
Outdoor or indoor usage such as jobsite, garden, studio and workshop.
WARNING! Read this manual and general safety instructions
carefully before using the appliance, for your own safety. Your
power tool should only be passed on together with these
instructions.
2 SYMBOLS
In this manual and/or on the machine the following symbols are used:
3 WARNING
The floodlight may not be attached against a mast (pole). Best installed onto a fence
or a wall, in a warehouse, shop or a similar place.
Replace the protection glass immediately if damaged.
4 ASSEMBLY
4.1 Assemblying the floodlight
Turn off the main circuit breaker.
Attach this light with two screws of max. 4mm.
4.2 Wiring diagram
For mounting use a connection supply cable with N = blue, earth = green/yellow and
L = brown and connect as shown in fig 3. Srew the barrel nut of the srew cap so that
the packing tightens. The packing can be adjusted to a cable diameter of 8-11mm.
For adding a switch consult fig 4
4.3 Mounting
Check the correct way of mounting in fig 1.
Check the safety distance between the body and inflammable surface when wall or
corner mounted in fig. 2.
5 USING THE FLOODLIGHT
Turn the power back on.
POWLI260 EN
Copyright © 2014 VARO P a g e | 1 www.varo.com
6 TECHNICAL DATA
Type
POWLI260
Power
50W
Voltage/frequency
220V – 240V ~ 50Hz
Floodlight facade material
tempered glass
Waterproof protection grade
IP65
High power LED bulb
life-span
>50.000 hours
Lumen
3600
Color temperature
6500K
POWLI260 EN
7 ENVIRONMENT
Copyright © 2014 VARO P a g e | 2 www.varo.com
Should your appliance need replacement after extended use, do not
discard it with the household rubbish but dispose of it in an
environmentally safe way.
Waste produced by electrical machine items should not be handled like
normal household rubbish. Please recycle where recycle facilities exist.
Check with your Local Authority or retailer for recycling advice.
