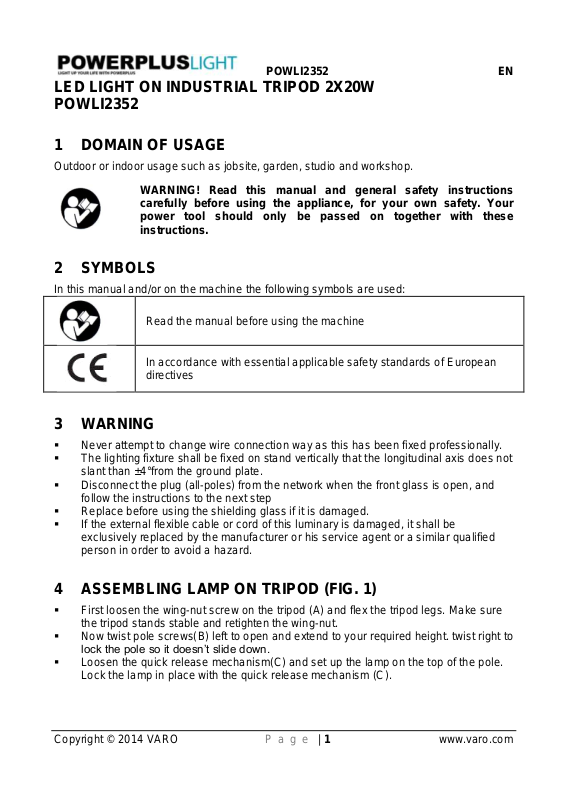

Powerplus POWLI2352 User Manual

LED LIGHT ON INDUSTRIAL TRIPOD 2X20W

Read the manual before using the machine

In accordance with essential applicable safety standards of European
directives

POWLI2352 EN

POWLI2352

1 DOMAIN OF USAGE

Outdoor or indoor usage such as jobsite, garden, studio and workshop.

WARNING! Read this manual and general safety instructions
carefully before using the appliance, for your own safety. Your
power tool should only be passed on together with these
instructions.

2 SYMBOLS

In this manual and/or on the machine the following symbols are used:

3 WARNING

 Never attempt to change wire connection way as this has been fixed professionally.
 The lighting fixture shall be fixed on stand vertically that the longitudinal axis does not

slant than ±4°from the ground plate.

 Disconnect the plug (all-poles) from the network when the front glass is open, and

follow the instructions to the next step

 Replace before using the shielding glass if it is damaged.
 If the external flexible cable or cord of this luminary is damaged, it shall be

exclusively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard.

4 ASSEMBLING LAMP ON TRIPOD (FIG. 1)

 First loosen the wing-nut screw on the tripod (A) and flex the tripod legs. Make sure

the tripod stands stable and retighten the wing-nut.

 Now twist pole screws(B) left to open and extend to your required height. twist right to

lock the pole so it doesn’t slide down.

 Loosen the quick release mechanism(C) and set up the lamp on the top of the pole.

Lock the lamp in place with the quick release mechanism (C).

Copyright © 2014 VARO P a g e | 1 www.varo.com

5 ASSEMBLING THE FLOODLIGHT ONTO THE STAND (FIG. 1)

Type

POWLI2352

Power

2x20W

Voltage/frequency

220-240V~50Hz

Bulb type

LED

LED service life

50000 hours

Floodlight facade material

tempered glass

Waterproof protection grade

IP65

 First unscrew the black wing-nut (F).
 Put the lamp on the H-shaped base (E) in such a way so that the two slots align. Put

the wing screw through both slots and tighten the nut.

 By loosening the wing screws (D) on both sides of the lamp you can put the lamp into

the desired angle.

 Lock the lamp in place by tightening the wing screws.

POWLI2352 EN

6 USING THE FLOODLIGHT

 Simply plug in the cable (G) of the floodlight to the socket.

7 SPECIFICATION

8 ENVIRONMENT

Should your appliance need replacement after extended use, do not
discard it with the household rubbish but dispose of it in an
environmentally safe way.
Waste produced by electrical machine items should not be handled like
normal household rubbish. Please recycle where recycle facilities exist.
Check with your Local Authority or retailer for recycling advice.
