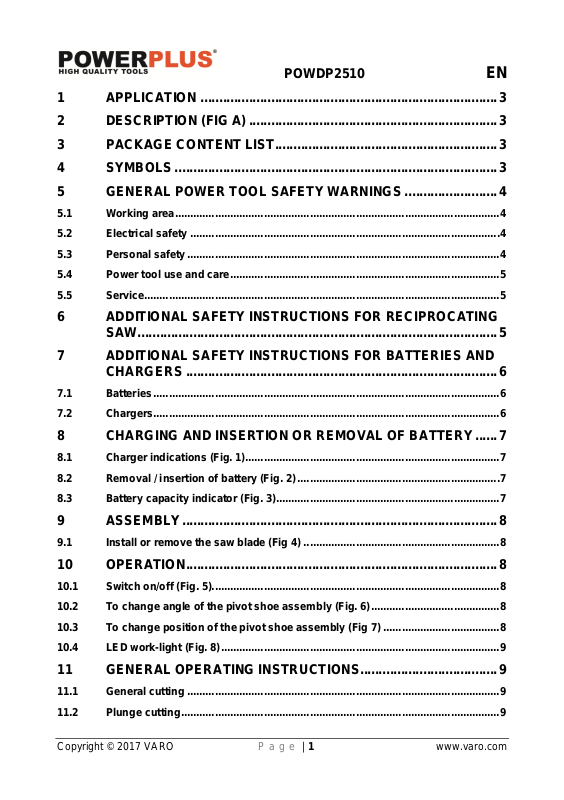

Powerplus POWDPSET13 User manual
POWDP2510 EN
1 APPLICATION ................................................................................ 3
2 DESCRIPTION (FIG A) ................................................................... 3
3 PACKAGE CONTENT LIST ............................................................ 3
4 SYMBOLS ....................................................................................... 3
5 GENERAL POWER TOOL SAFETY WARNINGS ......................... 4
5.1 Working area .......................................................................................................... 4
5.2 Electrical safety ................................................................ ..................................... 4
5.3 Personal safety ...................................................................................................... 4
5.4 Power tool use and care ........................................................................................ 5
5.5 Service .................................................................................................................... 5
6 ADDITIONAL SAFETY INSTRUCTIONS FOR RECIPROCATING
SAW ................................................................................................. 5
7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND
CHARGERS .................................................................................... 6
7.1 Batteries ................................................................................................................. 6
7.2 Chargers ................................................................................................................. 6
8 CHARGING AND INSERTION OR REMOVAL OF BATTERY ...... 7
8.1 Charger indications (Fig. 1) ................................................................................... 7
8.2 Removal / insertion of battery (Fig. 2) .................................................................. 7
8.3 Battery capacity indicator (Fig. 3) ......................................................................... 7
9 ASSEMBLY ..................................................................................... 8
9.1 Install or remove the saw blade (Fig 4) ................................................................ 8
10 OPERATION.................................................................................... 8
10.1 Switch on/off (Fig. 5).............................................................................................. 8
10.2 To change angle of the pivot shoe assembly (Fig. 6) .......................................... 8
10.3 To change position of the pivot shoe assembly (Fig 7) ...................................... 8
10.4 LED work-light (Fig. 8) ........................................................................................... 9
11 GENERAL OPERATING INSTRUCTIONS ..................................... 9
11.1 General cutting ...................................................................................................... 9
11.2 Plunge cutting ........................................................................................................ 9
Copyright © 2017 VARO P a g e | 1 www.varo.com
POWDP2510 EN
11.3 Metal cutting ........................................................................................................ 10
12 CLEANING AND MAINTENANCE ............................................... 10
12.1 Cleaning ............................................................................................................... 10
13 TECHNICAL DETAILS .................................................................. 10
14 NOISE ............................................................................................ 10
15 WARRANTY .................................................................................. 10
16 ENVIRONMENT ............................................................................ 11
17 DECLARATION OF CONFORMITY ............................................. 12
Copyright © 2017 VARO P a g e | 2 www.varo.com
POWDP2510 EN
Denotes risk of personal
injury or damage to the tool.
In accordance with essential
requirements of the
European directive(s)
Read manual before use
"Class II - The machine is
double insulated; Earthing
wire is therefore not
necessary (only for charger)
RECIPROCATING SAW 20V (NO ACCU)
POWDP2510
1 APPLICATION
The reciprocating saw is designed for cutting the wood, iron, nonferrous metals and plastics,
using a standard saw blade. Not suitable for professional use.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION (FIG A)
1. Pivot shoe
2. Quick release blade clamp
3. LED work light
4. Lock button for pivot shoe
5. Lock button
6. ON / Off switch trigger
7. Soft grip
3 PACKAGE CONTENT LIST
Remove all packaging materials.
Remove remaining packing and package inserts (if included).
Check that the package contents are complete.
Check the appliance, the power cord, the power plug and all accessories for transportation
damage.
Keep the packing materials as far as possible till the end of the warranty period. Dispose it
into your local waste disposal system afterwards.
8. Saw blade (NOT included)
9. Charger (NOT included)
10. Battery pack with battery capacity
indicator (NOT included)
11. Battery pack release button
12. Button for battery capacity indicator
WARNING: Packaging materials are not toys! Children must not play with
plastic bags! Danger of suffocation!
1 x Machine 1 x Manual
If any parts are missing or damaged, please contact your dealer.
4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Copyright © 2017 VARO P a g e | 3 www.varo.com
Wear noise protection
Ambient temperature 40°C
max. (only for battery)
Wear eye protection
Use battery and charger only
in closed rooms
Wear a mask In dusty
conditions
Do not expose charger and
battery pack to water
Wear gloves
Do not incinerate battery
pack or charger
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow instructions
may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions
for future reference. The term "power tool" in the safety warnings refers to your mainsoperated (corded) power tool or battery- operated (cordless) power tool.
5.1 Working area
Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
Do not operate power tools in potentially explosive surroundings, for example, in the
presence of inflammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders at a distance when operating a power tool. Distractions can
cause you to lose control of it.
5.2 Electrical safety
Always check that the power supply corresponds to the voltage on the rating plate.
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce
the risk of an electric shock.
Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and
refrigerators. There is an increased risk of an electric shock if your body is earthed.
Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will
increase the risk of an electric shock.
Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of an electric shock.
When operating a power tool outdoors, use an extension cable suitable for outdoor use.
Using a cord suitable for outdoor use reduces the risk of an electric shock.
If operating a power tool in a damp location is unavoidable, use a power supply protected
by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.
5.3 Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or
Copyright © 2017 VARO P a g e | 4 www.varo.com
POWDP2510 EN
