Powerplus POW553 User Manual

Download

Page 1

POW553 EN

1 DESCRIPTION (FIG A) .................................................................... 3

2 PACKAGE CONTENT LIST ............................................................. 3

3 SYMBOLS ........................................................................................ 3

4 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4

4.1 Working area ........................................................................................................... 4

4.2 Electrical safety ....................................................................................................... 4

4.3 Personal safety ....................................................................................................... 4

4.4 Power tool use and care ......................................................................................... 5

4.5 Service ..................................................................................................................... 5

5 ADDITIONAL SAFETY INSTRUCTIONS FOR COMPRESSORS .. 5

6 OPERATING INSTRUCTIONS ........................................................ 6

6.1 Instructions before use. .......................................................................................... 6

6.2 Connecting and removing the air hose ................................................................. 6

6.3 Setting the operating pressure .............................................................................. 6

6.4 Instructions for use ................................................................................................. 6

6.5 Switching on and off ............................................................................................... 7

7 CLEANING AND MAINTENANCE ................................................... 7

7.1 Venting and bleeding the tank ............................................................................... 7

7.2 Changing the oil ...................................................................................................... 7

7.3 Checking the oil-level ............................................................................................. 8

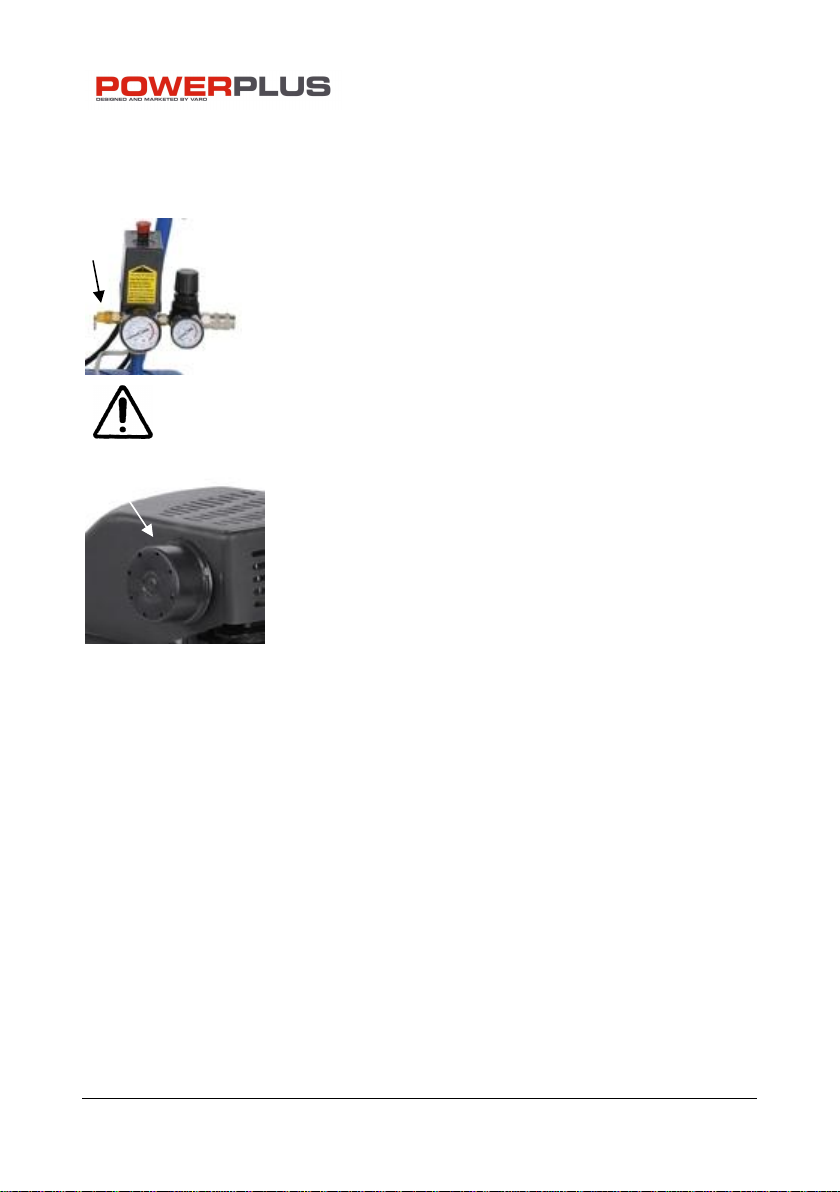

7.4 Checking the safety valve ................................................................ ...................... 8

7.5 Checking and cleaning the air filter ....................................................................... 8

8 TROUBLE-SHOOTING .................................................................... 8

8.1 Engine does not start ............................................................................................. 8

8.2 Compressor does not supply air............................................................................ 8

8.3 Pressure is too high ................................................................................................ 8

8.4 Thermal shutdown switch: ..................................................................................... 8

9 TECHNICAL DATA .......................................................................... 9

10 NOISE EMISSION VALUES ............................................................ 9

11 WARRANTY ..................................................................................... 9

Page 2

POW553 EN

12 ENVIRONMENT ............................................................................... 9

13 DECLARATION OF CONFORMITY .............................................. 10

Page 3

POW553 EN

AIR COMPRESSOR POW553

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

1 DESCRIPTION (FIG A)

1. Handle with soft grip

2. Air hose connection

3. Wheel

4. Tank

5. Pressure control

6. On/off switch

7. Safety valve

2 PACKAGE CONTENT LIST

§ Remove all packaging materials.

§ Remove remaining packaging and packing inserts (if included).

§ Check that the package contents are complete.

§ Check the appliance, the power cord, the power plug and all accessories for transportation

damage.

§ Keep the packaging materials as far as possible until the end of the warranty period. Then

take it to your local waste disposal system.

WARNING Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

air compressor 1pc wheel and axle 2sets operation manual 1pc air filter1pcs oil cap 1pcs

8. Pressure gauge (tank)

9. Pressure gauge (outlet)

10. Air filter

11. Oil cap

12. Gauge glass

13. Water outlet valve

If any parts are missing or damaged, please contact your dealer.

3 SYMBOLS

The following symbols are used in this manual and/or on the machine:

Denotes risk of personal injury or damage to the tool.

In accordance with essential safety standards of applicable European directives

Read manual before use

Page 4

POW553 EN 4 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

4.1 Working area

§ Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

§ Do not operate power tools in potentially explosive surroundings, for example, in the

presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

§ Keep children and bystanders at a distance when operating a power tool. Distractions can

cause you to lose control of it.

4.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

§ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.

§ Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and

refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.

§ Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will

increase the risk of a lethal electric shock.

§ Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.

§ When operating a power tool outdoors, use an extension cable suitable for outdoor use.

Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.

§ If operating a power tool in a damp location is unavoidable, use a power supply protected

by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

4.3 Personal safety

§ Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

§ Use safety equipment. Always wear eye protection. Using safety equipment such as a

dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

§ Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.

Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

§ Remove any adjusting keys or spanners before turning on the power tool. A spanner or

key left attached to a rotating part of the power tool may result in personal injury.

§ Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable

you retain control over the power tool in unexpected situations.

§ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

Page 5

§ If there are devices for connecting dust extraction and collection facilities, please ensure

that they are attached and used correctly. Using such devices can reduce dust-related hazards.

4.4 Power tool use and care

§ Do not expect the power tool to do more than it can. Use the correct power tool for what

you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

§ Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken

switch is dangerous and must be repaired.

§ Disconnect the plug from the power source before making adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

§ Store power tools, when not in use, out of the reach of children and do not allow people

who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

§ Maintenance. Check for misalignment or jammed moving parts, breakages or any other

feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

§ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to jam and are easier to control.

§ Use the power tool, accessories and cutting tools, etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

4.5 Service

§ Your power tool should be serviced by a qualified specialist using only standard spare

parts. This will ensure that it meets the required safety standards.

5 ADDITIONAL SAFETY INSTRUCTIONS FOR COMPRESSORS

§ Be cautious when using compressed air. Never aim the air flow at people or animate,

preferably wear safety glasses. Do not use compressed air to dean clothing.

§ Compressed air is not suitable to inhale.

§ Do not exceed the maximum operating pressure.

§ Do not perform any adjustments to the machine because of which the maximum operating

pressure may be exceeded.

§ Never exceed the maximum allowed pressure of the equipment to be connected or the

items to be inflated with this machine.

§ Do not use the machine in an ambient temperature below 5 °C.

§ Only use the machine outside in dry, well-ventilated surroundings. If the machine is used

for the spraying of inflammable substances, place the machine upwind and at a safe distance.

§ Only move the machine by lifting the handle. Never pull an attached air hose to move the

machine.

§ The working parts of the machine can become hot during operation. Let the machine cool

down after use.

§ Never use gasoline or other flammable liquids to dean the too). Vapours in the tool can be

ignited by a spark and cause the tool to explode.

§ If the tank leaks, switch off the machine immediately. Have the machine repaired by an

authorized technician.

§ Make sure that the machine is switched off and unplugged and that the tank is pressure

free before troubleshooting or servicing, or when the machine is not used.

POW553 EN

Page 6

§ After each use the tank must be vented and the moisture collected in the tank must be

bled. Not bleeding the tank can lead to leakage and may cause a dangerous situation.

§ Keep this manual with your compressor.

6 OPERATING INSTRUCTIONS

6.1 Instructions before use.

After removing the compressor from its packaging and if you are certain that it is in perfect condition, then you can carry out the following operations:

§ Assemble the supplied wheels.

§ Plastic cap at the side of the pump, must be replaced by the supplied air filter

§ You have to remove the oil cap and add oil before starting

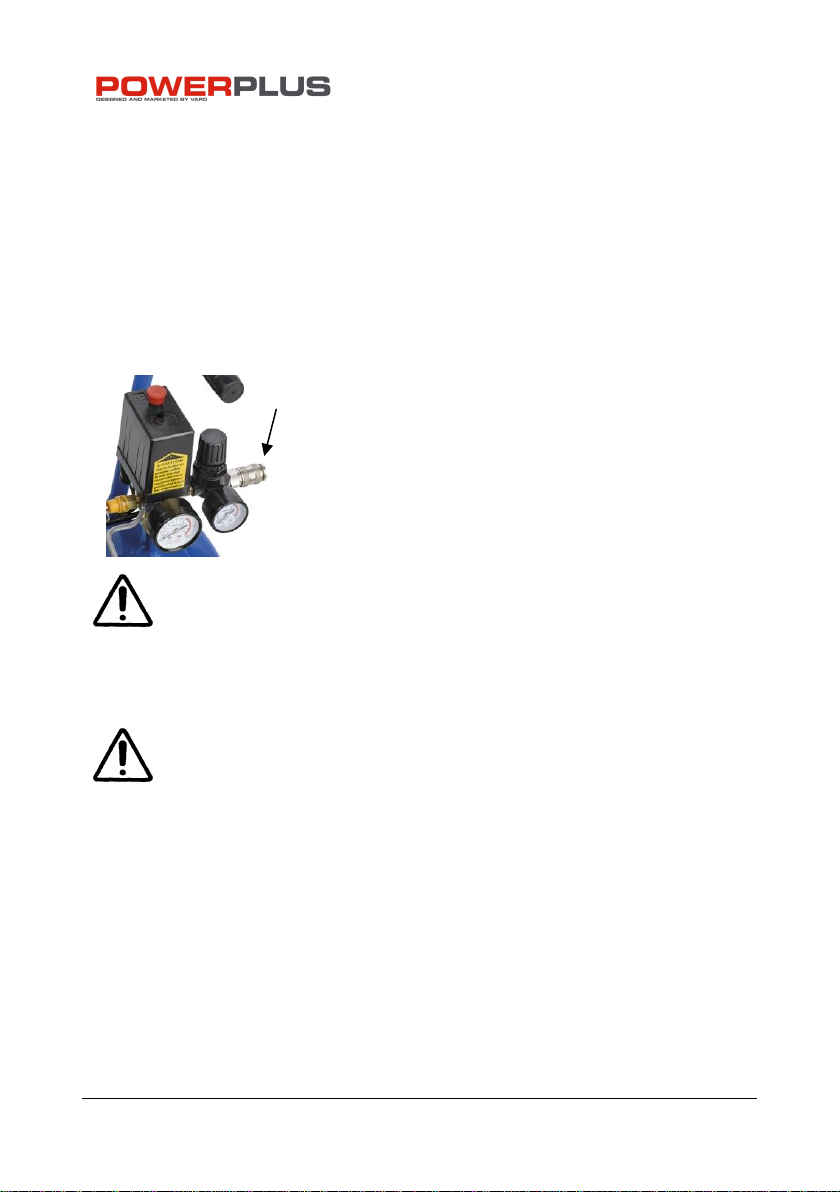

6.2 Connecting and removing the air hose

POW553 EN

The machine has been provided with a quick coupling for the attachment of a air hose.

Before connecting or removing an air hose, always pull the plug from the power supply.

6.3 Setting the operating pressure

The set operating pressure can be read from the gauge.

§ Turn the adjusting knob to the right to increase the operating pressure.

§ Turn the adjusting knob to the left to reduce the operating pressure.

§ Press the connecting piece of the air hose into the

connection.

§ Check whether the air hose is connected properly. To remove an air hose, proceed as follows:

§ Press the connecting piece of the air hose further into the connection.

§ Pull the collar on the connection backward.

§ Pull out the connecting piece from the connection.

§ Release the collar

Never exceed the maximum operating pressure of the equipment connected.

6.4 Instructions for use

§ Check if the tank is vented and bled.

§ Check the oil-level.

§ Check the operation of the safety valve.

§ Check whether the air hose is connected properly.

§ Switch on the machine and allow the pressure in the tank to build up.

§ As soon as the tank pressure is built up, the motor switches off automatically.

§ The motor switches automatically on as soon as the tank pressure becomes too low.

§ After use, switch off the machine. Vent the tank and bleed the moisture collected in the

tank.

Page 7

POW553 EN

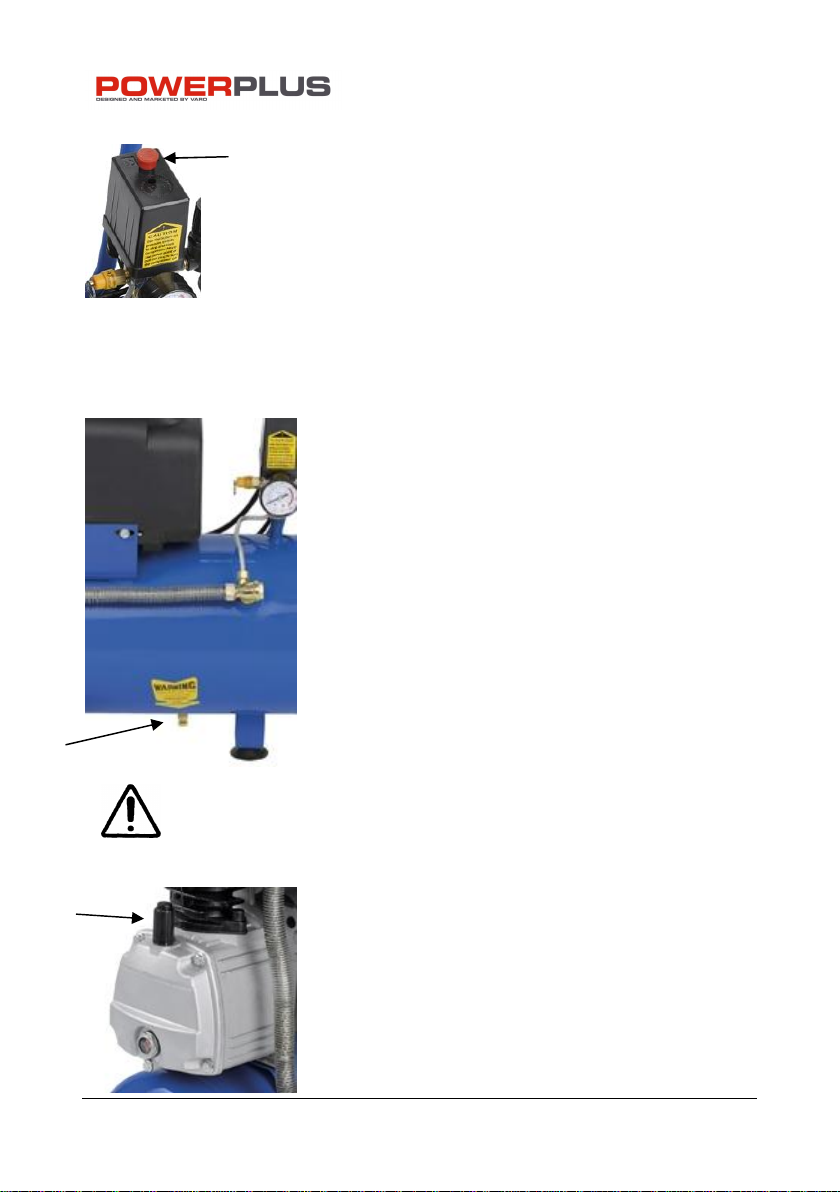

6.5 Switching on and off

§ To switch on the machine, pull the on/off switch.

§ To switch off the machine, press the on/ off switch.

7 CLEANING AND MAINTENANCE

§ Clean the outside of the machine with a moist cloth.

§ Regularly check the machine for possible damages and leakage.

7.1 Venting and bleeding the tank

After each use the tank must be vented and the moist collected in the tank must be drained.

§ Turn the adjusting knob to the left until the manometer indicates 0 bar.

§ Tilt the machine backwards to gain access to the bleeding point.

§ Loosen the screw carefully in such a way that the tank is vented fluently.

§ Check the manometer. When the tank pressure has dropped below 0.7 bar, you can remove the screw completely.

§ Tilt the machine forward and let the moist flow from the tank. Move the tank a few times so that all moist can flow from the tank.

§ Re-insert the screw and tighten it securely..

Always make sure that all the moist has been drained from the tank. Never fully close the water outlet valve if you leave the machine in an area colder than 0 °C.

7.2 Changing the oil

The oil in the pump must be changed after the first 50 operating hours, and then after every 200 hours or 3 months,

§ Place a receiving bin under the gauge glass.

§ Remove the plug from the filling-point.

§ Remove the screw from the gauge glass.

§ Turn the machine slightly backwards to remove all oil.

§ Re-insert the screw and tighten it securely.

§ Fill the pump housing with standard compressor oil until

the level is equal to the dot on the gauge glass

§ Replace the plug

Page 8

7.3 Checking the oil-level

POW553 EN

§ Check the oil-level prior to each use

§ The level has to coincide with the red dot on the gauge glass.

§ If the level is below the mark, refill the oil.

7.4 Checking the safety valve

Check the operation of the safety valve prior to each use.

§ Make sure that the tank is pressure free. The pressure gauge must indicate 0 bar.

§ Pull the ring a number of times. The pin should move freely.

Do not use the machine if the pin in the safety valve cannot move freely. Do not perform any adjustments to the safety valve.

7.5 Checking and cleaning the air filter

Check the air filter every 3 months.

§ Let the machine cool down.

§ Pull the air filter from the cylinder head.

§ Clean the filter with dry air. If necessary replace the filter.

§ Pull the air filter back into the cylinder head.

8 TROUBLE-SHOOTING

If the machine does not work correctly, follow the directions below to solve the problem. If you can’t solve the problem yourself, contact your dealer.

8.1 Engine does not start

§ Check that the on/off switch is in the "ON" position.

§ Check that the power supply corresponds to the voltage on the rating plate of the

machine.

§ Check that the fuses in the meter cupboard are intact.

§ Check that no extension cords are used that do not comply with the applicable regulations.

§ Check that the work environment is not too cold.

8.2 Compressor does not supply air

§ Check that the pressure regulator is adjusted correctly.

8.3 Pressure is too high

§ Check if the hose is connected to the correct valve.

§ Re-adjust the pressure.

8.4 Thermal shutdown switch:

The electric motor is equipped with an automatic thermal overload protector. If the unit is overheating, the motor will automatically shut down. Turn the unit off and wait 5-10 minutes before turning the unit back to the “I”(ON) position. If the unit shuts down again, please contact the manufacturer for assistance.

Page 9

POW553 EN

9 TECHNICAL DATA

Mains voltage 220V-240V Mains frequency 50Hz Power input 2.0HP Speed 2850min Operating pressure 8 bar(116PSI) 198l/min Tank capacity 24L Oil Standard lubricating oil for compressor (POWOIL012)

10 NOISE EMISSION VALUES

LpA (sound pressure) 75 dB(K=3dB) LwA (Sound power level ) 97 dB(K=3dB) Vibration (aw) <2.5 m/s²

11 WARRANTY

§ This product is warranted as provided by law for a 24 -month period effective from the date of purchase by the first user.

§ This warranty covers all material or production flaws. It does not include defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

§ We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

§ Your purchase receipt must be kept as proof of date of purchase.

§ Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

12 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Please dispose of used motor oil in a manner that protects the environment. We suggest you take it in a sealed container to your local service station for recycling. Do not throw it into the refuse or pour it on the ground

Page 10

POW553 EN

13 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: AiR COMPRESSOR trade mark: POWERplus model: POW553

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives as they relate to European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amending directives):

2006/95/EC The Low Voltage Directive 2004/108/EC The Electromagnetic Compatibility Directive 98/37/EC The Machinery Directive 2000/14/EC The Outdoor Noise Directive LwA = 97dB Testing Authority Intertek London 87/404/EC The Singe Vessel Pressure Directive Testing Authority DNV Hovik

European harmonized standards, and their amendments:

EN1012-1 : 1996 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006

EN61000-3-3 : 1995 The undersigned acts on behalf of and under the power of attorney granted by the company management,

Philippe Vankerkhove Certification Manager 15/05/09
