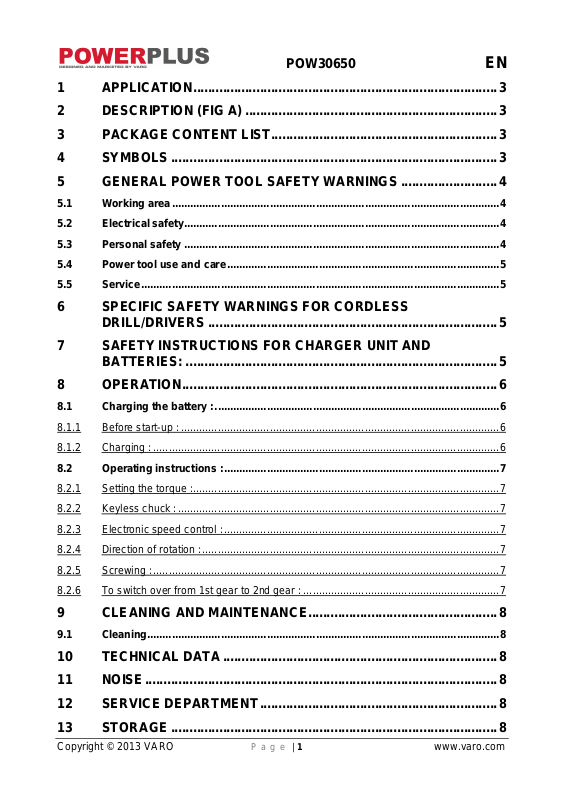

Powerplus POW30650 User Manual
POW30650 EN
1 APPLICATION .................................................................................. 3
2 DESCRIPTION (FIG A) .................................................................... 3
3 PACKAGE CONTENT LIST ............................................................. 3
4 SYMBOLS ........................................................................................ 3
5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1 Working area ........................................................................................................... 4
5.2 Electrical safety ....................................................................................................... 4
5.3 Personal safety ....................................................................................................... 4
5.4 Power tool use and care ......................................................................................... 5
5.5 Service ..................................................................................................................... 5
6 SPECIFIC SAFETY WARNINGS FOR CORDLESS
DRILL/DRIVERS .............................................................................. 5
7 SAFETY INSTRUCTIONS FOR CHARGER UNIT AND
BATTERIES: .................................................................................... 5
8 OPERATION ..................................................................................... 6
8.1 Charging the battery : ............................................................................................. 6
8.1.1 Before start-up : ........................................................................................................ 6
8.1.2 Charging : ................................................................................................................. 6
8.2 Operating instructions : .......................................................................................... 7
8.2.1 Setting the torque : .................................................................................................... 7
8.2.2 Keyless chuck : ......................................................................................................... 7
8.2.3 Electronic speed control : .......................................................................................... 7
8.2.4 Direction of rotation : ................................................................ ................................. 7
8.2.5 Screwing : ................................................................................................................. 7
8.2.6 To switch over from 1st gear to 2nd gear : ................................................................ 7
9 CLEANING AND MAINTENANCE ................................................... 8
9.1 Cleaning................................................................................................................... 8
10 TECHNICAL DATA .......................................................................... 8
11 NOISE ............................................................................................... 8
12 SERVICE DEPARTMENT ................................................................ 8
13 STORAGE ........................................................................................ 8
Copyright © 2013 VARO Page | 1 www.varo.com
POW30650 EN
14 WARRANTY ..................................................................................... 9
15 ENVIRONMENT ............................................................................... 9
16 BATTERY PACK ............................................................................ 10
17 DECLARATION OF CONFORMITY .............................................. 10
Copyright © 2013 VARO Page | 2 www.varo.com
POW30650 EN
CORDLESS DRILL / SCREWDRIVER
POW30650
1 APPLICATION
The power tool is intended for driving and drilling through wood, metal, plastics and masonry.
It is not designed for commercial use.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION (FIG A)
1. ON / OFF switch
2. Clockwise/anticlockwise action
switch
3. High/low speed setting
4. Torque setting ring
5. Chuck (for drilling/driving)
3 PACKAGE CONTENT LIST
§ Remove all packing materials
§ Remove remaining packaging and transit supports (if existing)
§ Check the completeness of the packing content
§ Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
§ Keep the packaging materials as far as possible till the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
6. Battery pack
7. Battery snapper
8. Charger
9. Power supply
10. LCD knob
11. LCD
1pc machine
1pc battery
1pc charger
6pcs drills
When parts are missing or damaged, please contact your dealer.
6pcs bits
1pc bit holder
1pc manual
4 SYMBOLS
The following symbols are used in this manual and/or on the machine:
Denotes risk of personal injury
or damage to the tool.
In accordance with essential
safety standards of applicable
European directives
Read manual before use
Class II - The machine is
double insulated; Earthing wire
is therefore not necessary.
Copyright © 2013 VARO Page | 3 www.varo.com
