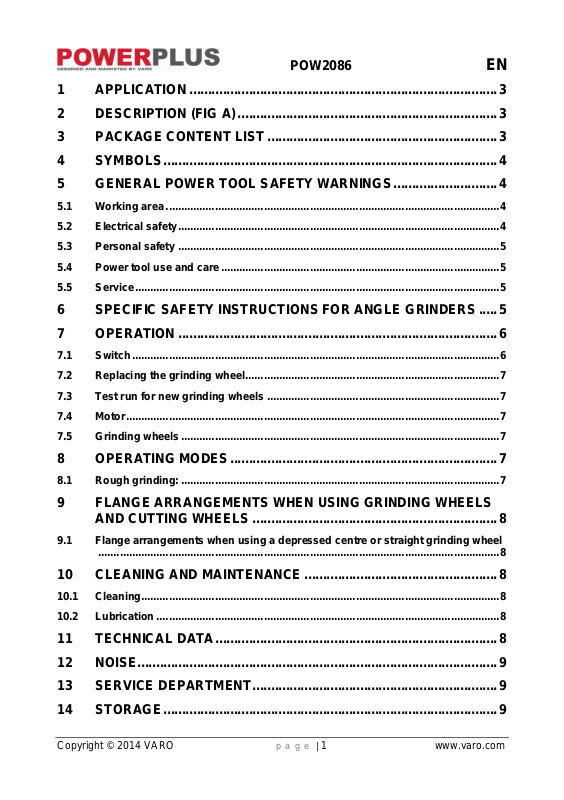

POW2086 EN

1 APPLICATION ................................................................................... 3

2 DESCRIPTION (FIG A) ...................................................................... 3

3 PACKAGE CONTENT LIST .............................................................. 3

4 SYMBOLS .......................................................................................... 4

5 GENERAL POWER TOOL SAFETY WARNINGS ............................ 4

5.1 Working area ............................................................................................................. 4

5.2 Electrical safety ......................................................................................................... 4

5.3 Personal safety ......................................................................................................... 5

5.4 Power tool use and care ........................................................................................... 5

5.5 Service ....................................................................................................................... 5

6 SPECIFIC SAFETY INSTRUCTIONS FOR ANGLE GRINDERS ..... 5

7 OPERATION ...................................................................................... 6

7.1 Switch ........................................................................................................................ 6

7.2 Replacing the grinding wheel ................................................................................... 7

7.3 Test run for new grinding wheels ............................................................................ 7

7.4 Motor .......................................................................................................................... 7

7.5 Grinding wheels ........................................................................................................ 7

8 OPERATING MODES ........................................................................ 7

8.1 Rough grinding: ........................................................................................................ 7

9 FLANGE ARRANGEMENTS WHEN USING GRINDING WHEELS

AND CUTTING WHEELS .................................................................. 8

9.1 Flange arrangements when using a depressed centre or straight grinding wheel

................................................................................................................................... 8

10 CLEANING AND MAINTENANCE .................................................... 8

10.1 Cleaning ..................................................................................................................... 8

10.2 Lubrication ................................................................................................................ 8

11 TECHNICAL DATA ............................................................................ 8

12 NOISE ................................................................................................. 9

13 SERVICE DEPARTMENT .................................................................. 9

14 STORAGE .......................................................................................... 9

Page 2

POW2086 EN

15 WARRANTY ....................................................................................... 9

16 ENVIRONMENT ............................................................................... 10

17 DECLARATION OF CONFORMITY ................................................ 11

Page 3

POW2086 EN

ANGLE GRINDER 900W POW2086

1 APPLICATION

This machine is developed for grinding and roughing of metal and stone. With help of the correct accessories the machine can also be used for brushing and sanding. It is not designed for commercial use.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

2 DESCRIPTION (FIG A)

1. On/off switch

2. Lock-off button

3. Lock knob

4. Spindle

5. Guard

6. Side handle

3 PACKAGE CONTENT LIST

 Remove all packaging materials.  Remove remaining packaging and packing inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug and all accessories for transportation

damage.

 Keep the packaging materials as far as possible until the end of the warranty period. Then

take it to your local waste disposal system.

WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1 angle grinder 1 side handle 1 spanner 1 instruction manual

If any parts are missing or damaged, please contact your dealer.

Page 4

POW2086 EN

In accordance with essential requirements of the European directive(s).

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

Read manual before use.

Mandatory use of eye protection.

4 SYMBOLS

The following symbols are used in this manual and/or on the machine:

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

 Keep working area clean and well lit. Untidy and dark areas can lead to accidents.  Do not operate power tools in potentially explosive surroundings, for example, in the

presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders at a distance when operating a power tool. Distractions can

cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.

 Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and

refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.

 Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will

increase the risk of a lethal electric shock.

 Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.

 When operating a power tool outdoors, use an extension cable suitable for outdoor use.

Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.

 If operating a power tool in a damp location is unavoidable, use a power supply protected

by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

Page 5

POW2086 EN

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Using safety equipment such as a

dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

 Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.

Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

 Remove any adjusting keys or spanners before turning on the power tool. A spanner or

key left attached to a rotating part of the power tool may result in personal injury.

 Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable

you retain control over the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

 If there are devices for connecting dust extraction and collection facilities, please ensure

that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

 Do not expect the power tool to do more than it can. Use the correct power tool for what

you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

 Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken

switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store power tools, when not in use, out of the reach of children and do not allow people

who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

 Maintenance. Check for misalignment or jammed moving parts, breakages or any other

feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to jam and are easier to control.

 Use the power tool, accessories and cutting tools, etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

 Your power tool should be serviced by a qualified specialist using only standard spare

parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY INSTRUCTIONS FOR ANGLE GRINDERS

 Check that the maximum speed indicated on the grinding disc corresponds to the

maximum speed of the machine. The speed of the machine must not exceed the value on the grinding disc.

Page 6

POW2086 EN

 Make sure that the dimensions of the grinding disc correspond to the specifications of the

machine.

 Make sure that the grinding disc has been mounted and fastened properly. Do not use

reducing rings or adapters to make the grinding disc fit properly.

 Treat and store grinding discs in conformance with the supplier’s instructions.  Do not use the machine for grinding workpieces with a maximum thickness exceeding the

maximum grinding depth of the grinding disc.

 Do not use grinding discs for deburring.  When grinding discs have to be mounted on the thread of the spindle, make sure that the

spindle has sufficient thread. Make sure that the spindle is sufficiently protected and does not touch the grinding surface.

 Before use, inspect the grinding disc for any damage. Do not use grinding discs which are

cracked, ripped or otherwise damaged.

 Before use, let the machine run idle for 30 seconds.  Immediately switch off the machine in case of abnormal vibrations or occurrence of

another defect. Carefully inspect the machine and grinding disc before switching the machine on again.

 Make sure that sparks do not put people into danger or that they contact highly flammable

substances.

 Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away

from the surface to be cut.

 Always wear safety goggles and hearing protection. If desired or required also use another

kind of protection like for example an apron or helmet.

 Ensure that mounted wheels and points are fitted in accordance with the manufacturer’s

instructions.

 Ensure that blotters are used when they are provided with the bonded abrasive product

and when they are required.

 If a guard is supplied with the tool never use the tool without such a guard.  For tools intended to be fitted with threaded hole wheel, ensure that the thread in the

wheel is long enough to accept the spindle length.

 Ensure that ventilation openings are kept clear when working in dusty conditions. If it

should become necessary to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts.

 Though poor conditions of the electrical mains, shortly voltage drops can appear when

starting the equipment. This can influence other equipment (eq. blinking of a lamp). If the mains-impedance Zmax <0.348 Ohm, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.

7 OPERATION

The machine is light, handy, totally insulated and designed in compliance with the international specifications CEE 20. Provided it is serviced as described in these instructions, the machine will serve you for a long time.

7.1 Switch

To prevent switching on by accident, the right-angle grinder is equipped with a safety switch(2). To turn the machine on, push the safety switch (2) on the side of the angle grinder en hold it pressed, then push the main switch (1). To turn the right-angle grinder off, release the main switch (1)

Page 7

POW2086 EN

Simple wheel change by spindle lock: Press the spindle lock and allow the grinding wheel to latch in place. Open the flange nut with the face spanner. Change the grinding or cutting wheel and tighten the flange nut with the face spanner.

1. Spindle catch

2. Guard

3. Clamping flange

4. Grinding wheel

5. Flange nut

7.2 Replacing the grinding wheel

Before performing any work on the equipment, pull the power plug.

Important! Only ever press the spindle lock when the motor and grinding spindle are at a standstill!

You must keep the spindle lock pressed while you change the wheel ! For grinding or cutting wheels up to approx. 3 mm thick, screw on the flange nut with the flat side facing the grinding or cutting wheel.

7.3 Test run for new grinding wheels

Allow the right-angle grinder to run in idle for at least 1 minute with the grinding or cutting wheel fitted in place. Vibrating wheels are to be replaced immediately. Flange arrangement

7.4 Motor

It is vital for the motor to be well ventilated during operation. Be sure, therefore, to keep the ventilation holes clean at all times.

7.5 Grinding wheels

Never use a grinding or cutting wheel bigger than specified diameter. Before using a grinding or cutting wheel, check its rated speed. The wheels rated speed must be higher than the idle speed of the right-angle grinder. Use only grinding and cutting wheels that are approved for a maximum speed of 12000 min-1 and a peripheral speed of 80 m/sec.

8 OPERATING MODES

8.1 Rough grinding:

For the best rough grinding results, hold the grinding wheel at an angle of between 30° and 40° to the workpiece surface and guide back and forth over the workpiece in steady movements.

Page 8

POW2086 EN

Voltage / frequency

220-240V / 50Hz

Power input

900W

No-load speed

13000/min

Disc diameter

125 mm

Spindle dimension

M14

9 FLANGE ARRANGEMENTS WHEN USING GRINDING WHEELS AND

CUTTING WHEELS

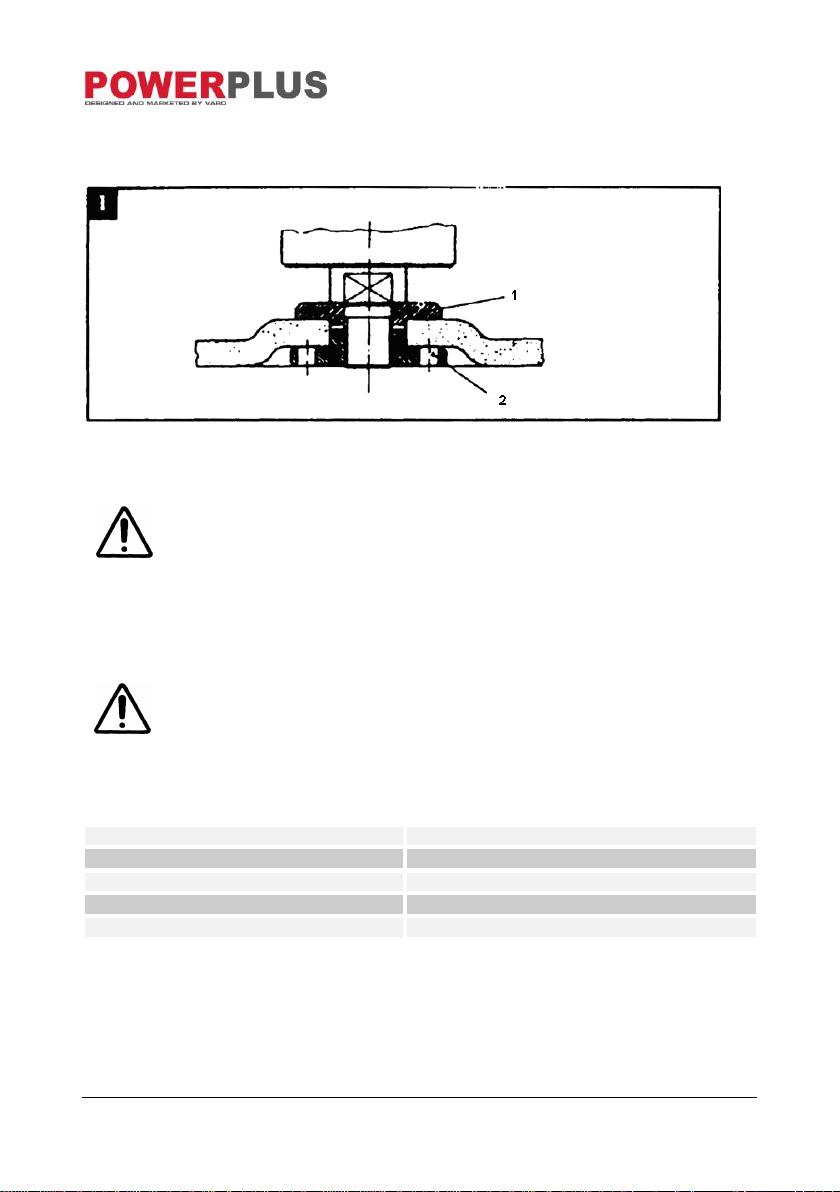

9.1 Flange arrangements when using a depressed centre or straight grinding wheel

1 Clamping flange 2 Flange nut

10 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

10.1 Cleaning

 Keep the ventilation slots of the machine clean to prevent overheating of the engine.  Regularly clean the machine housing with a soft cloth, preferably after each use.  Keep the ventilation slots free from dust and dirt.  If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

10.2 Lubrication

The machine does not require any specific lubrication.

11 TECHNICAL DATA

Page 9

POW2086 EN

Acoustic pressure level LpA

93 dB(A)

Acoustic power level LwA

104 dB(A)

aw (Vibration):

Max 25 m/s²

K = 1.5 m/s²

12 NOISE

Noise emission values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

13 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a special

connecting cable which is available from our service department. Replacement of the connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).

14 STORAGE

 Thoroughly clean the whole machine and its accessories.  Store it out of the reach of children, in a stable and secure position, in a cool and dry

place, avoid too high and too low temperatures.

 Protect it from exposure to direct sunlight. Keep it in the dark, if possible.  Don’t keep it in plastic bags to avoid humidity build-up.

15 WARRANTY

 This product is warranted for a 24-month period effective from the date of purchase by the

first user.

 This warranty covers all material or production flaws excluding: batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

Page 10

POW2086 EN

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 11

POW2086 EN

17 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: Angle grinder Trade mark: POWERplus Model: POW2086

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU 2006/42/EC 2004/108/EC

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1 : 2009 EN60745-2-3 : 2011 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-3 : 2008

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Hugo Cuypers Regulatory Affairs – Compliance Manager 26/08/13
