Powerplus POW1044 User Manual
POW1044 EN

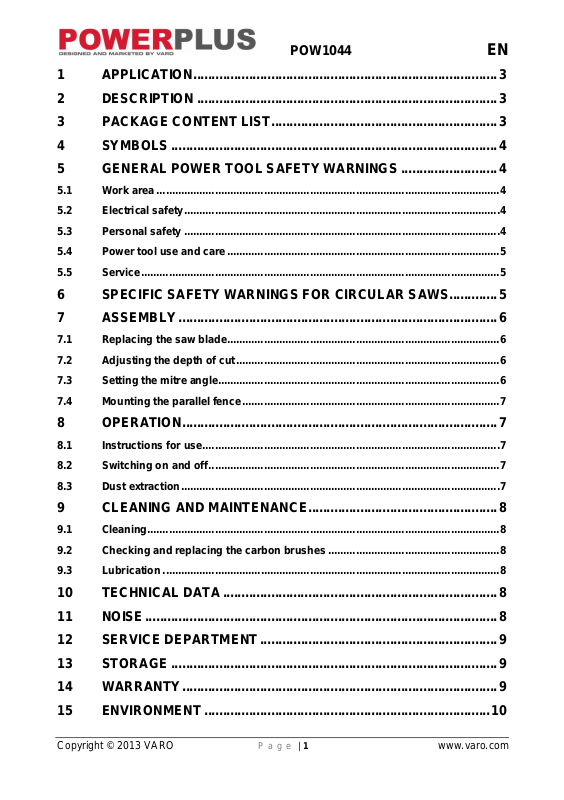

1 APPLICATION .................................................................................. 3
2 DESCRIPTION ................................................................................. 3
3 PACKAGE CONTENT LIST ............................................................. 3
4 SYMBOLS ........................................................................................ 4
5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1 Work area ................................................................................................................ 4
5.2 Electrical safety ....................................................................................................... 4
5.3 Personal safety ....................................................................................................... 4
5.4 Power tool use and care ......................................................................................... 5
5.5 Service ..................................................................................................................... 5
6 SPECIFIC SAFETY WARNINGS FOR CIRCULAR SAWS............. 5
7 ASSEMBLY ...................................................................................... 6
7.1 Replacing the saw blade ......................................................................................... 6
7.2 Adjusting the depth of cut ...................................................................................... 6
7.3 Setting the mitre angle............................................................................................ 6
7.4 Mounting the parallel fence .................................................................................... 7
8 OPERATION ..................................................................................... 7
8.1 Instructions for use ................................................................................................. 7
8.2 Switching on and off ............................................................................................... 7
8.3 Dust extraction ........................................................................................................ 7
9 CLEANING AND MAINTENANCE ................................................... 8
9.1 Cleaning................................................................................................................... 8
9.2 Checking and replacing the carbon brushes ........................................................ 8
9.3 Lubrication .............................................................................................................. 8
10 TECHNICAL DATA .......................................................................... 8
11 NOISE ............................................................................................... 8
12 SERVICE DEPARTMENT ................................................................ 9
13 STORAGE ........................................................................................ 9
14 WARRANTY ..................................................................................... 9
15 ENVIRONMENT ............................................................................. 10
Copyright © 2013 VARO P a g e | 1 www.varo.com
POW1044 EN
16 DECLARATION OF CONFORMITY .............................................. 10
Copyright © 2013 VARO P a g e | 2 www.varo.com
POW1044 EN
CIRCULAR SAW 1200W
POW1044
1 APPLICATION
Your circular saw has been designed for sawing wooden workpieces. The machine is only
suitable for right-hand use. The machine is not suitable for stationary use. It is not designed
for commercial use.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION
1. Dust extraction connector
2. Carbon brush cover
3. Spindle lock button
4. Lock button for angle adjustment
5. Lock button for edge guide
6. Shoe
7. Guard
8. Lever for guard
3 PACKAGE CONTENT LIST
Remove all packing materials
Remove remaining packaging and transit supports (if existing)
Check the completeness of the packing content
Check the appliance, the power cord, the power plug and all accessories for transportation
damages.
Keep the packaging materials as far as possible till the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
9. Saw blade
10. Angle gauge
11. Depth gauge
12. On/off switch
13. Lock button
14. Handle
15. Lock lever for depth adjustment
WARNING Packing materials are no toys! Children must not play with
plastic bags! Danger of suffocation!
1 x circular saw
1 x guide bar
1 x hex key
1 x saw blade
1 x manual
When parts are missing or damaged, please contact your dealer.
Copyright © 2013 VARO P a g e | 3 www.varo.com
