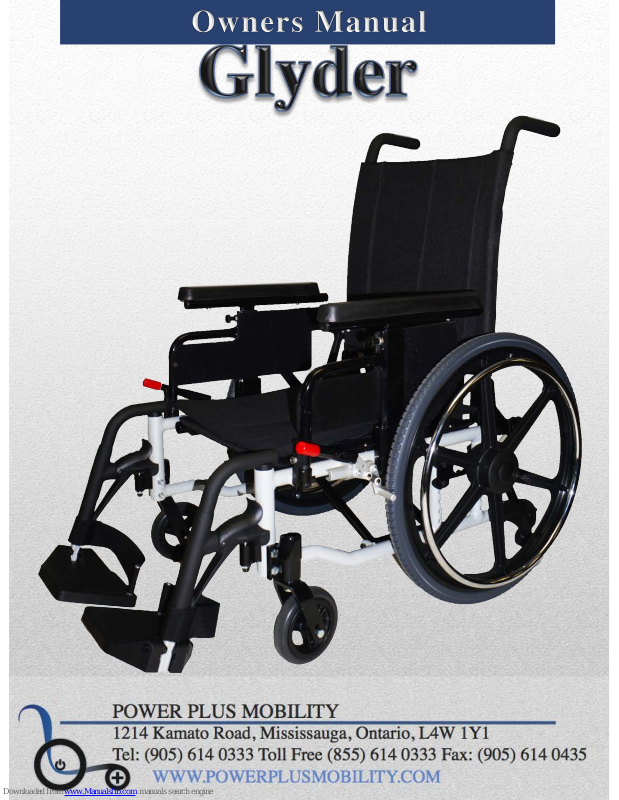

Page 1
Page 2
Valued Customer,!
!
Thank you for purchasing a Power Plus Mobility product.
At Power Plus Mobility we manufacture top quality
“Canadian Made” products. Your wheelchair should
provide you with many years of service, but like any piece
of equipment, it will require proper care and service for it
to perform efficiently.!
!
However we suggest you regularly inspect your chair,
checking for loose fasteners, excess play and damage. We
also strongly recommend that regular maintenance be done
by your servicing dealer.!
!
Please complete your “Warranty Registration Card” and
return it to us at Power Plus Mobility.!
!
Also please read this manual to help you understand the
proper operation, safety and maintenance of your new
chair. If you have any difficulties or require additional
information contact your dealer or our customer service
department at Power Plus Mobility.!
Page 3
LIMITED WARRANTY!
!
Power Plus Mobility guarantees all parts of our wheelchair to be
free of defects in workmanship and materials for a period of two
years from the date of purchase. “Wear” items such as tires,
tubes, armpads and upholsteries are excluded from this warranty.!
In addition the frame and crossbraces are guaranteed to be free
of defects in workmanship and material (to the original
purchaser) for a period of 5 years.!
!
This warranty is invalid if the chair has been damaged by
accident, misuse, neglect, improper application, unauthorized
service repair or the addition of non-factory approved
accessories.!
!
Power Plus Mobility will repair or replace defective parts as
required. A return authorization must be obtained and the parts
returned to us freight prepaid, within the warranty period.
Labour and freight charges incurred for replacements or repairs
are not covered.!
!
Page 4
MAINTENANCE GUIDE!
Your wheelchair is designed to give you many years of trouble-free
use with proper care. Some servicing can be done at home, but we
recommend that periodic maintenance be performed at your dealer.!
Service frequency depends strongly on the type of use and your
dealer can best advise you on the time interval.!
CLEANING!
All chrome and painted parts can be cleaned with a mild !
non-abrasive cleaner such as window cleaner. Stubborn spots or
rust can be removed with automotive chrome cleaner.!
The arms and nylon upholstery should be cleaned with a mild soap
and water solution. Both should be rinsed well with clean water to
remove all soap residues. The molded wheels and casters should
also be cleaned with a mild soap and water solution.!
LUBRICATION!
Your wheelchair has been made with low friction plastic, steel,
aluminum and polished chrome to reduce friction and wear.
However a light use of thin lubricant, such as WD40 or silicone
spray will reduce friction and wear, making your chair easier to
use.!
SAFETY AND HANDLING!
The safe handling of your chair depends on understanding the
purpose and function of your particular wheelchair model. !
Recognizing the chairs’ limitations will increase your confidence
level. !
LEANING!
Leaning should be avoided when possible, as this weight transfer
will reduce your chair’s stability. When leaning forward or
sideways make sure the casters are turned in the direction you are
leaning as this will lengthen the wheel base, increasing stability.!
Also make sure the wheel locks are engaged, to prevent your chair
from rolling.!
!
Page 5
MANOUVERING RAMPS, CURBS, STAIRS!
Lean forward in chair, putting weight over front casters when
going up inclines. When going on descending inclines do so slowly
by controlling your speed using the handrims and not the wheel.!
To mount a curb use the tipping method, pull the chair backwards
and over the curb. To descend a curb do your tipping and either
pull yourself down backwards or roll yourself forward and down
very slowly.!
It is a definite no-no to use your chair on an escalator, find the
nearest elevator instead. Going up or down stairs should be done
with at least two attendants at all times.!
!
!
TRANSFERRING IN A WHEELCHAIR!
Attendant assistance is recommended to stabilize the chair and
help in lifting you, if necessary. Transfers are best accomplished by
following these guidelines:!
Use a chair with detachable or flip back arm.!
Position your chair as close as possible to the transfer object and
engage your wheel locks to prevent movement.!
Try to transfer to objects of the same height or close to.!
!
!
!
!
Page 6
OPENING AND CLOSING YOUR CHAIR!
!
To Open: !
Make sure the wheel locks are disengaged. Then push down on
one or both seat rails until they are completely open to the
chair’s maximum width. Your chair is now fully opened and
ready for use. !
!
To Close: !
Disengage wheel locks and fold both footplates up, then
remove footrest from chair if it is going to be transported.
Facing your chair, with the footrest removed, take hold of the
seat upholstery at both the front and rear centre. Then lift
straight up to fold the chair.!
!
Page 7
!
Transporting: !
For larger vehicles, chair does not have to be closed, but
inside the vehicle wheel locks should be engaged to
prevent chair from rolling around. !
!
For the inside or trunk of a car, it is necessary to close
chair by following the instructions on previous page. Then
lift the chair by holding on to the seat rail, the push
handles and place in vehicle. To make chair easier to lift
or store, remove the footrest, the arms, the wheels
(optional quick release axles). To remove chair from
vehicle, lift out again holding on the the seat rail and the
push handles. !
!
!
!
To Lift:!
Fold both footplates up, then close chair following
instructions on the previous page. Engage wheel locks to
prevent wheels from rotating, and lift chair by holding on
to the seat rail and push handle. Do not lift chair by holding
on to any detachable or moving parts. !
Page 8
ANTI-TIPPERS!
!
Your Anti-Tippers are used to prevent your chair from tipping over !
while in tilt. These can be removed. However, they must never be removed
when using chair.!
To remove Anti-Tippers: !
Loosen the bolt (1) and remove it from the frame!
!
To adjust the Anti-Tipper height: !
Pull on (4) while moving (2) to your desired position release (4) to !
lock into place!
!
*Please adjust your Anti-Tippers to a safe height (maximum 2” from the
ground). Whenever the seat height is adjusted by wheels the Anti-Tipper
height must be adjusted as well. !
#! Description! Quantity !
1! Bolt ! 1!
2! Height Extension
Tube!
1!
3! Housing! 1!
4! Locking Pin! 1!
5! Anti-Tipper Wheel ! 1!
4!
1!
2!
3!
5!
Page 9
FOOTREST!
The footrest on your chair is designed to swing away and removes
easily. To swing away, remove feet from the footplate (1) and fold
footplates up. Then push the release handle (2) on the footrest
locking mechanism. It will swing to the side of your chair, and
could then be removed by lifting it straight up and off the locating
pins (3). To replace hold footrest at the side of your chair, locate
onto mounting pins, allowing it to drop all the way in, and then
push forward until it locks into place.!
!
Number ! Description! Quantity !
1! Foot Plate! 2!
2! Release Handle ! 2!
3! Mounting Pins ! 4!
4! Footrest Extension Tube! 2!
1!
4
2!
3!
Page 10
LEGREST!
Your legrest is designed to be removed and replaced the same as
your footrest. However, it is advisable to remove and replace your
legrest while it is in a down position. Lifting on the footplate
raises the legrest and it will automatically lock at the raised
position. !
1!
2!
3!
4!
5!
6!
7!
8!
9!
1 – Locator Pin !
2 – Front Post!
3 – Locking Pin!
4 – Locking Bushing!
5 – Release Handle!
6 – Elevating Trigger!
7 – Calf Pad Height Adjustment!
8 - Leg Length Adjustment Screw!
9 – Leg Rest Height Extension Tube!
Operating Your Legrest!
!
Locate 1 into 2 and swing into place. This should allow 3 to lock
into place with 4. (Make sure your legrest is locked into place
before using. To remove footrest, press 5 swing away and lift
legrest upwards. To raise legrest lift 9 to desired height. To lower
legrest, pull 6 upwards. Use 7 to raise or lower calf pad height. To
adjust leg length height, remove 8, slide 9 to desired height and
lock 8 back into place. !
* For low floor to seat height on chair, shorter leg rest height
extension tube is required. !
Page 11
ARMS!
Your chair has standard fixed height or adjustable height arms.
Either style may be easily removed from the chair.!
To remove the arms, push down on the arm removal latch (3). It
will catch and remain in the open position. Then lift arm top (1)
straight up evenly near the back of the arm. When the arm is
returned to the closed position and pushed down the locking pin
will relock.!
Number ! Description! Quantity !
1! Arm Top! 2!
2! Arm Base ! 2!
3! Arm Removal Latch! 4 !
1!
2!
3!
Adjustable height arms
provide 5 adjustment
positions. To adjust, pull
out and hold the height
adjustment release knob.
Then lift up or push down
the arm top to achieve the
preferred height.!
Page 12
!
Angle Adjustable Back !
!
Your wheelchair offers an Angle Adjustable Back feature. This feature is
only available with T-Arms and allows 5°, 10° or 15° of adjustment. !
!
To Adjust Back Angle: !
X – Angle Adjustable Bracket !
Y- ¼” x 20 x 1¾” Hex Bolt!
!
Y through A on X equals to 90°.!
Y through B on X equals to 95° !
Y through C on X equals to 100° !
Y through D on X equals to 105° !
!
!
$
%!
D
C
B!
A
X!
Y!
Page 13
CASTERS!
Your casters are made of injection molded nylon and will not rust.
They are also fitted with sealed precision bearings (10) which
require no lubrication.!
!
Axle Adjustment on the caster
bearings, although not critical, may
also improve the performance. The
axle nut should be adjusted to
produce a smooth free running
caster without side play. Again do
not over tighten as this will damage
the bearings.!
If fluttering or pulling is
experienced, your stem bearings
(9) may need adjustment or
replacements. To adjust flip chair
back onto its push handle and
remove the dust caps (1) on the
caster sockets. Tighten the fork
stem nut (2) clockwise while
holding the caster assembly.
Check for smooth easy turning
without side or end plays while
adjusting, do not over tighten as
this may damage the bearings.!
Number ! Description! Quantity !
1! Dust Cap! 2!
2! ½” Lock Nut ! 4!
3! Fork Stem ! 2 !
4! Caster Fork ! 2!
5! 5/16” x 2 ¾” Bolt ! 2!
6! 5/16” x 1/8” Plastic
Washer !
4!
7! 5/16” Lock Nut Thin! 2!
8! Caster! 2!
9! Stem Bearing ! 4!
10! Sealed Bearing ! 4!
2!
9!
7!
3!
4!
1!
2!
5!
8!
10!
6!
Page 14
REAR WHEELS!
Your wheels are made of injection molded nylon and will not rust. They are also fitted
with sealed precision bearings (7) which require no lubrication. However they may
need occasional adjustments, due to wear under normal use. Too much side play or
looseness or squeaking from your wheel means it needs to be checked. In most cases,
tightening of the axle bolt (2) will rectify this condition. Should squeaking of
looseness continue to exist after adjustment, the bearings might have to be changed.
See your servicing dealer for assistance.!
!
#! Description! Quantity !
1! Wheel! 2!
2! Axle Bolt ! 2!
3! Axle Receiver ! 2 !
4! Axle Plate ! 2!
5! Axle Receiver
Nut!
2!
6! Hub Cap! 2!
7! Precision
Bearing!
4!
3!
4!
5!
7!
2!
6!
1!
7!
To Adjust: !
Remove hub cap (6) to access the axle bolt (2), then simply loosen and remove the
axle bolt (2). This allows you to remove the rear wheel. To adjust your seat height, the
axle receiver (3) and the axle receiver nut (5) needs to be loosen and removed. Once
you select your desired seat height, place the axle receiver (3) and the receiver nut (5)
in the corresponding position on the axle plate (4). Tighten the axle receiver (3) and
axle receiver nut (5) securely back on the axle plate (4). Place the axle bolt (2)
through the rear wheel and tighten back to the axle receiver (3). Then place the hub
cap (6) on to protect the axle bolt (2). !
Rear wheel !
Page 15
WHEEL COMBINATIONS !
!
Your wheelchair allows for many different seat heights.
Following the chart below will allow you to properly
achieve your desired Seat Height. When adjusting your seat
height, always remember to square your front casters back
to 90°. !
HEMI! REAR WHEEL! CASTER! FORK!
XXL 12.50" ! 20” ! 5”! SHORT!
XL 13.25" ! 20”! 6”! SHORT!
SSL 14.00" ! 22”! 6”! SHORT/LONG!
SL 14.75" ! 22”! 6”! SHORT/LONG!
SL 14.75” ! 22”! 8”! LONG!
LH 15.25” ! 22”! 6”! LONG!
LH 15.25” ! 22”! 8”! LONG!
SH 16.00" ! 22”! 6”! LONG!
SH 16.00" ! 22”! 8”! LONG!
MH 16.75" ! 24”! 8”! LONG!
H 17.50”! 24” ! 8” ! LONG!
*TH 18.25 ! 24”! 8”! LONG!
*CUSTOM CASTER SOCKET!
Page 16
TIRES!
The standard tires on your chair are solid, maintenance free urethane. These tires
are reliable, long lasting and provide a very comfortable ride. However, if your
chair is equipped with pneumatic tires, they must be regularly checked for wear
and proper inflation. Air pressure should not exceed 40psi. Remember heated air
expands, and a wheel with 40psi in cold weather will greatly increase outdoors or
in the trunk of a car in the hot sun.!
!
WHEEL LOCKS!
The position of the wheel lock is pre-set at the factory to provide you with the
safest performance. However, with tire and brake shoe (3) wear, they may have
to be occasionally adjusted to ensure safety.!
To adjust, loosen the bracket bolt (5) and slide brake assembly (2) towards
wheel. Ensure that the brake holds securely but does not require too much effort
to be applied. Then tighten the bracket bolt, securing assembly at the appropriate
position. Although lubrication is not necessary, a light application can enhance
performance.!
Number ! Description! Quantity !
1! Tires ! 2!
2! Bracket Bolt ! 2!
3! Brake Shoe ! 2 !
4! Brake Handle ! 2!
5! Bracket Bolt ! 4!
6! Bracket Bolt Key ! 2!
5!
6!
2!
4!
3!
1!
Loading...
