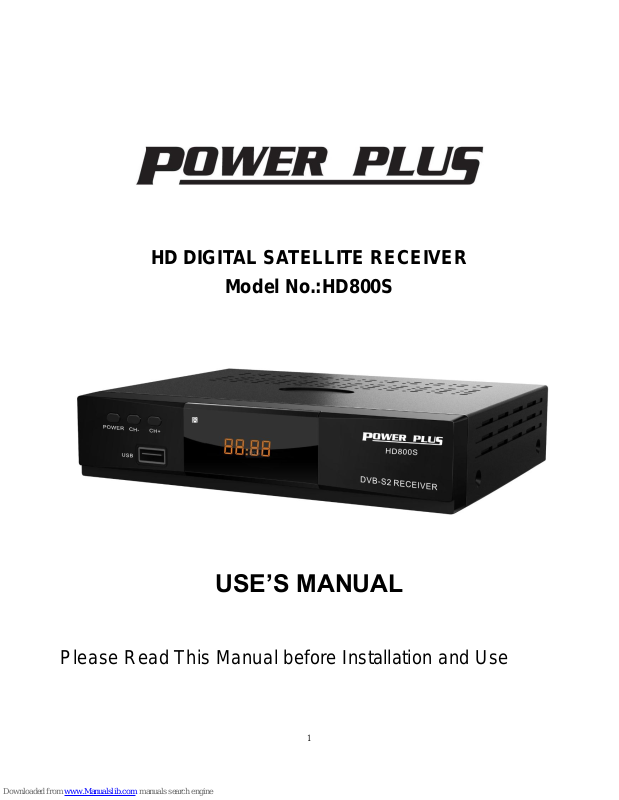

Power Plus HD800S User Manual

HD DIGITAL SATELLITE RECEIVER

Model No.:HD800S

USE’S MANUAL

Please Read This Manual before Installation and Use

CONTENT

General information ........................................................................................................................................ 3

Front and Rear Panel ...................................................................................................................................... 4

Front Panel ........................................................................................................................................................................ 4

Rear Panel .......................................................................................................................................................................... 4

Remote Control unit (RCU) ............................................................................................................................ 5

Menu Operation ............................................................................................................................................... 6

First Steps .......................................................................................................................................................................... 6

Installation ......................................................................................................................................................................... 8

Channel Edit .................................................................................................................................................................... 10

System setting ................................................................................................................................................................... 11

Utility............................................................................................................................................................................... 13

Media Center ................................................................................................................................................................... 14

Technical Specification .................................................................................................................................. 16

Trouble shooting ............................................................................................................................................. 17

General Information

This product is a high performance MPEG4 satellite HD receiver. It fully complies with DVB-S2 MPEG4 receiver requirement. It provides users with all digital satellite TV and radio channels over the air, also provides powerful media player function by USB disk.

Main Functions:

 Fully compliant with DVB-S2 QPSK/8PSK standard  Full Support for MPEG2, MPEG4 ASP and H.264 AVC high definition video decoding  Full Support for MPEG, AAC and HE-AAC audio decoding  Powerful USB media player for video, music and photo playing. Files of : .AVI, .MKV,

MP3, .MP4, .VOB, .TS, .MPG, .FLV and etc, are supported

 USB PVR and time shift supported  Software upgrade by USB, RS232, OTA and STB.  Plug and Play installation with an ease to use Menu System  Auto blind search and Manual search supported  Fully support for Electronic Program Guide(EPG)  5000 channels can be reserved  Subtitle and TELETEXT supported  4:3 and 16:9 Aspect Ratio supported  Zoom and 9 picture preview functions supported  Parental control for channels  Multi-bilingual OSD language, audio language and subtitle language supported  Various channel editing function(Favorites, Move, Lock, Delete)  DiSEqC1.2 supported  User programmable various satellite & transponder information  Provides various switch types, LNB types and NTSC/PAL monitor type  Multi-LNB controlled by DiSEqC1.2 and 22KHz  Automatic PAL/NTSC conversion

General Operation of STB

Throughout this manual you will notice that the everyday operation of your STB is based on a series of user friendly on screen display and menus. These menus will help you get the most from your STB, guiding you through installation, channel organizing, viewing and many other functions. All functions can be carried out using the buttons on the RCU, and some of the functions can also be carried out using the buttons on the front panel. Please be aware that new software may change the functionality of the receiver. Should you experience any difficulties with the operation of your unit, please consult the relevant section of this manual, including the problem shooting or alternatively call your dealer or a customer service adviser.

NOTE:

Please be aware that new software may change the functionality of the receiver. The photo and the function explanation involved in this specification is for reference only. If there is any mistake, please refer to the entity.

Front and rear Panel

1.Front panel

1. Power:

Select to do the unit as Standby mode or on

2. CH-:

Select the previous Channel

3. CH+:

Select the next Channel

4. USB:

Data input from USB storage devices

5. IR Sensor:

Receive the signal from the remote control

6. LED Display:

Display the channel number

7. LED Light:

The LED will be show the working mode

2.Rear Panel

1. RS-232:

Connect to RS-232 terminal

2. LNB IN:

Connect to satellite antenna (IF input from LNB to digital tuner)

3. USB:

Data input from USB storage devices

4. HD PORT:

Connect to TV set HDMI input terminal

5. COAXIAL:

Connect to Amplifier Coaxial input terminal

6. Video:

Connect to TV set Video input terminal

7. L-Audio

Connect to TV set L audio input terminal

8. R-Audio:

Connect to TV set R audio input terminal

9. Power Swtich:

Turn on/off the main power supplier

Remote control Unit （RCU）

Button Name

Function

Power

Turn the receiver on/standby

Mute

Red key

Adjust the audio mode in full screen; Operate different functions in screen TEXT

Green key

Zoom in and out in full screen; Operate different functions in screen TEXT

Yellow key

Operate different functions in screen TEXT

Blue key

Pause the current image in full screen; Operate different functions in screen TEXT

REV:

Search backward during media play,

FWD:

Search forward during media play

Skip to previous stage when play media file

Skip to next stage when play media file

TTX:

Display Teletext contents

Play/Pause

starts or resume media play

STOP

Stop media play

REC

Record TV program (Personal video record)

SUB-T

Select Subtitles Language

V-FORMAT:

Switch the HDMI 720P and 1080I,1080P

ASPECT

Switch 4:3/16:9

TIMER

Use to access ON/OFF timer directly

Call the main menu

EXIT

Exit the current operation

UP CH +

Navigate through the Menus Select the next Channel

DOWN CH-

Navigate through the Menus Select the previous Channel

LEFT VOL-

Navigate through the Menus Decrease sound volume

RIGHT VOL+

Navigate through the Menus Increase sound volume

Confirm key

EPG

Call up the EPG (Electronic Program Guide)

INFO

Display the current program’s information

VOL+

Volume up

VOL-

Volume down

FAV

Put the current program into FAV list

AUDIO

Select an Audio Language or Audio Mode

PAG+

Page up

PAG-

Page down

Numeric keys

Control the numeric operation

RECALL

Return to the previous program

Menu Operations

FIRST STEPS

1. Turn on STB

Turn on the unit. If the STB is opened for the 1st time, it maybe will show “Program not exist” or“No signal” on menu. If the STB open after used, STB will play the same channel as last time before turning off.

2. STANDBY

1. Press [STANDBY] key, you can enter the Standby state;

2. In Standby state, press [STANDBY] key again, you can call back the unit and go on playing the channel;

3. User can also switch off the STB to end the Standby state by press the [Device’s Main Power];

3. Channel Up / Channel Down

In full screen, press[▲ ▼] to change channel. You can change channels in channel list too.

4. Volume Up/Volume Down

In full screen, press [ ] to adjust volume.

5. OK

1. In full screen, press [ok] key, you can enter “Channel list”.

2. Press [▲ ▼] key to move highlight and press [ok] key to play the highlighted channel.

3. Press [ ] key to select channels from a particular satellite.

6. MEDIA

Press [MEDIA] key to enter “media player” in full screen. There you can play MP3/video/book/picture.

7. FAST SCAN

Press [USB] key to search satellite by auto scan.

8. INFO

Press [INFO] key once, you can see basic information of the channel you watch.

Press [INFO] key twice, you will enter the signal indicator window. There you can check the strength/quality/video format / audio format etc.
