Power Plus HD2000 User Manual
1
Digital Terrestrial
Receiver
High Definition
Power Plus HD2000
User’s Manual
2
Table of contents
1 INTRODUCTION .............................................................................................................................4
2 MAIN FUNCTIONS AND FEATURES .............................................................................................4
3 THE REMOTE CONTROL...............................................................................................................5

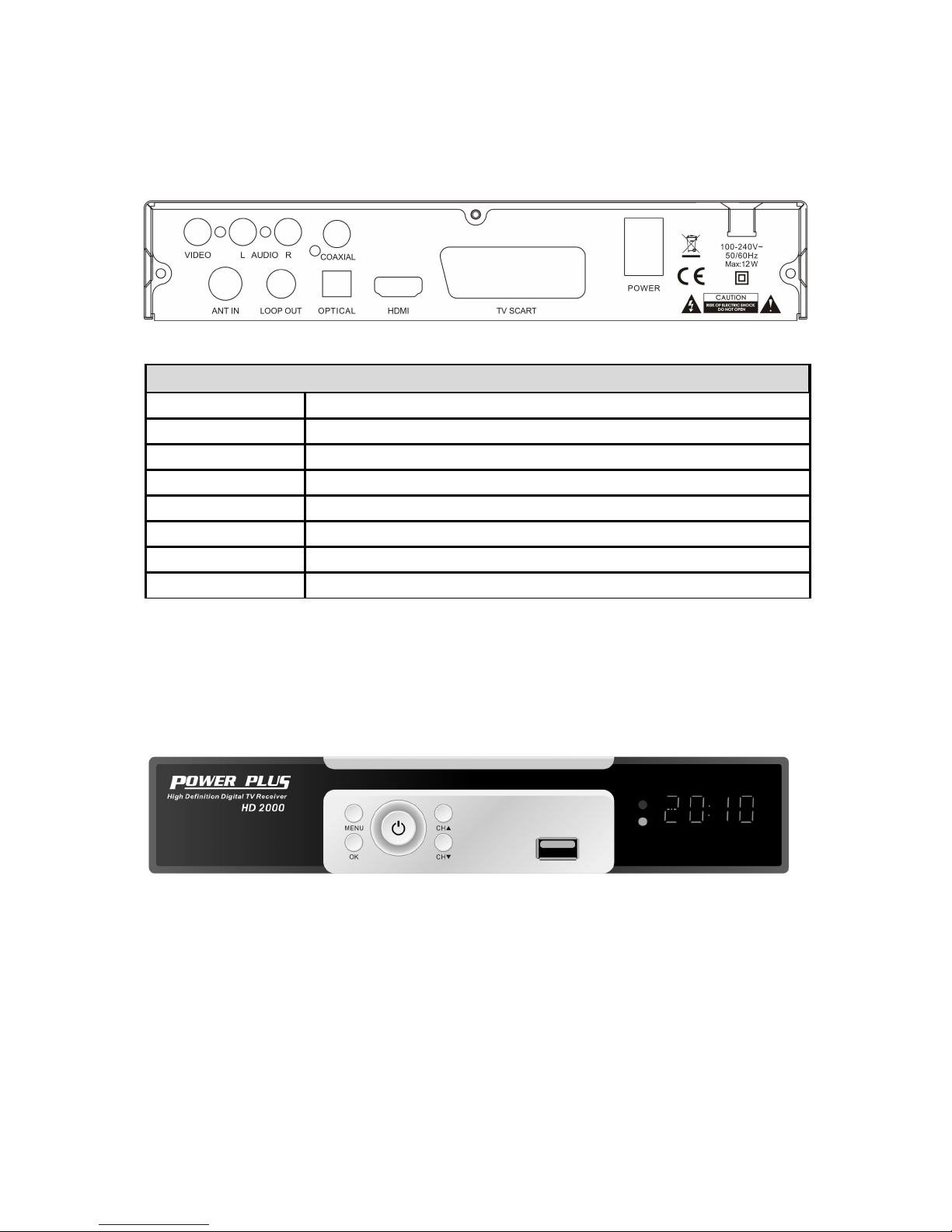

4 FRONT AND REAR PANEL.............................................................................................................7
4.1 REAR PANEL.............................................................................................................................7
4.2 FRONT PANEL .......................................................................................................................... 7
5 INSTALLATION ...............................................................................................................................8

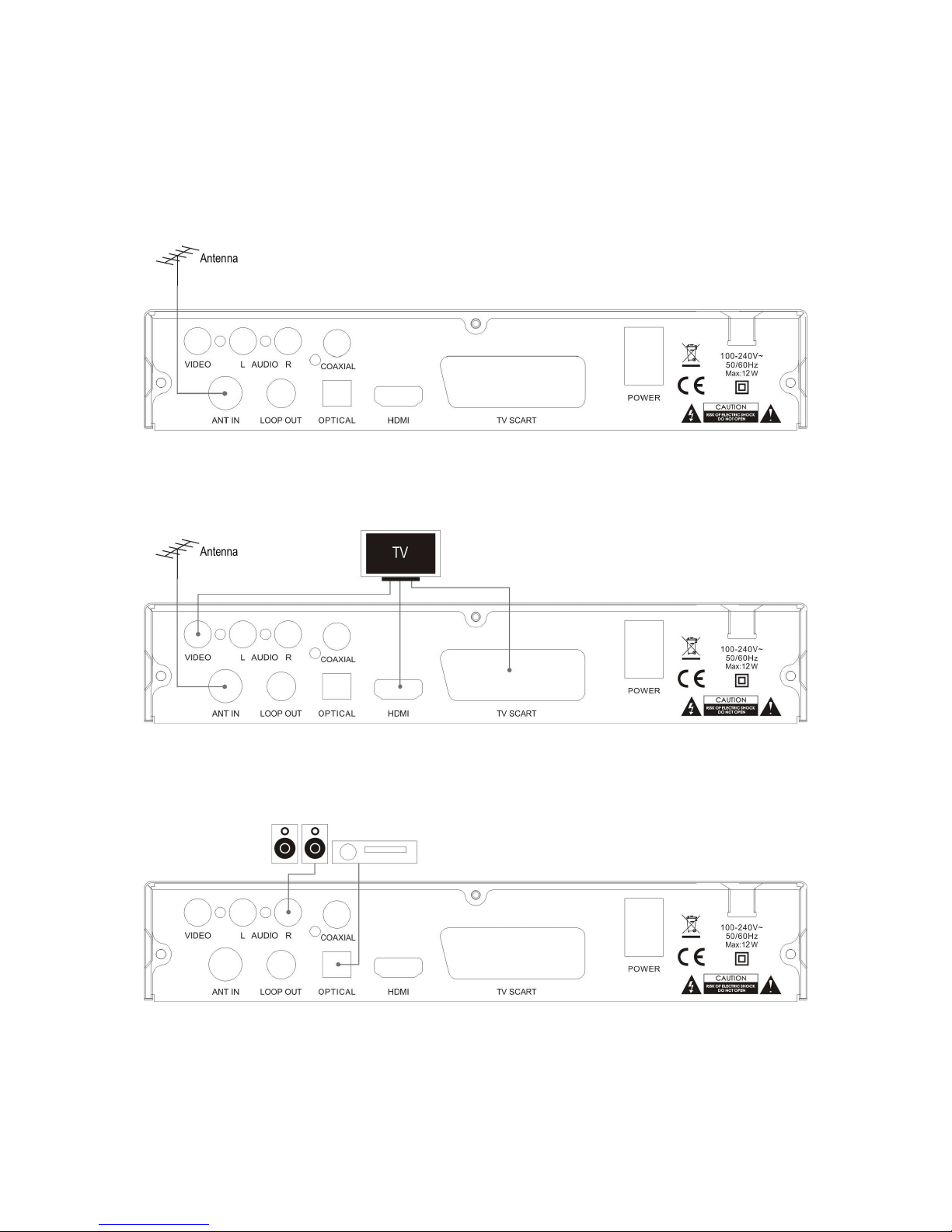

5.1 CONNECTING THE RECEIVER................................................................................................8

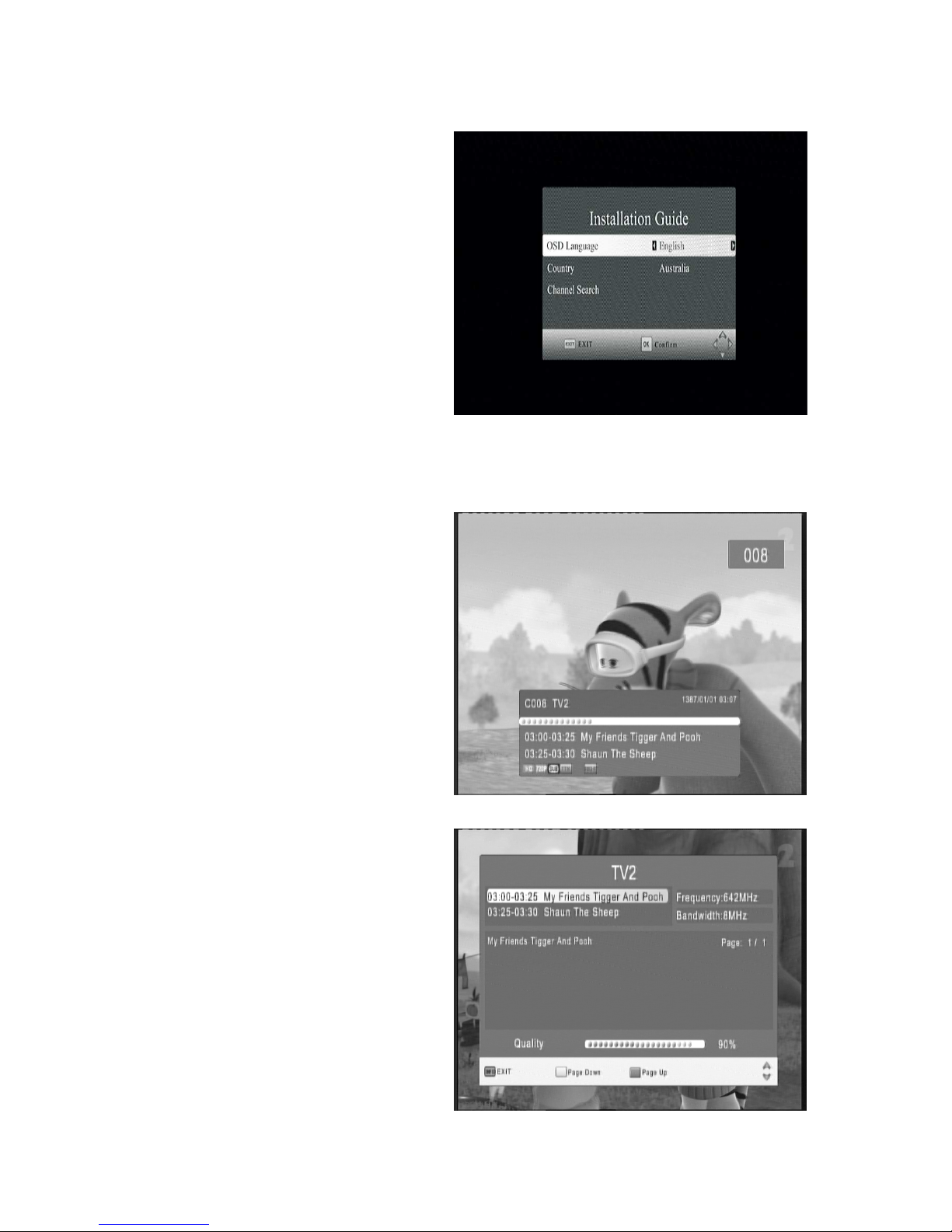

5.2 INSTALLATION GUIDE..............................................................................................................9
6 DAILY USE ......................................................................................................................................9
6.1 INFO. KEY..................................................................................................................................9

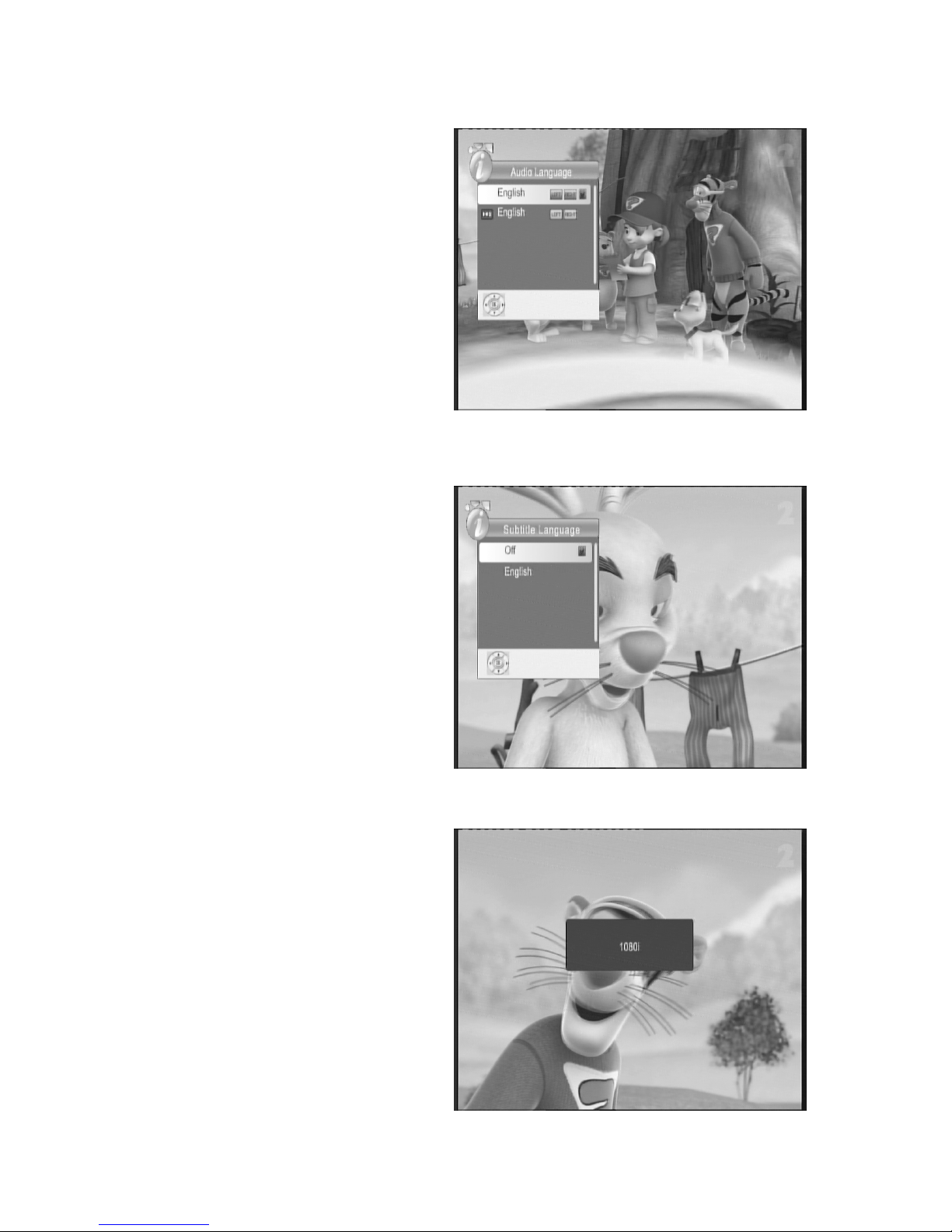

6.2 AUDIO KEY..............................................................................................................................10
6.3 SUB KEY..................................................................................................................................10
6.4 RES. KEY.................................................................................................................................10

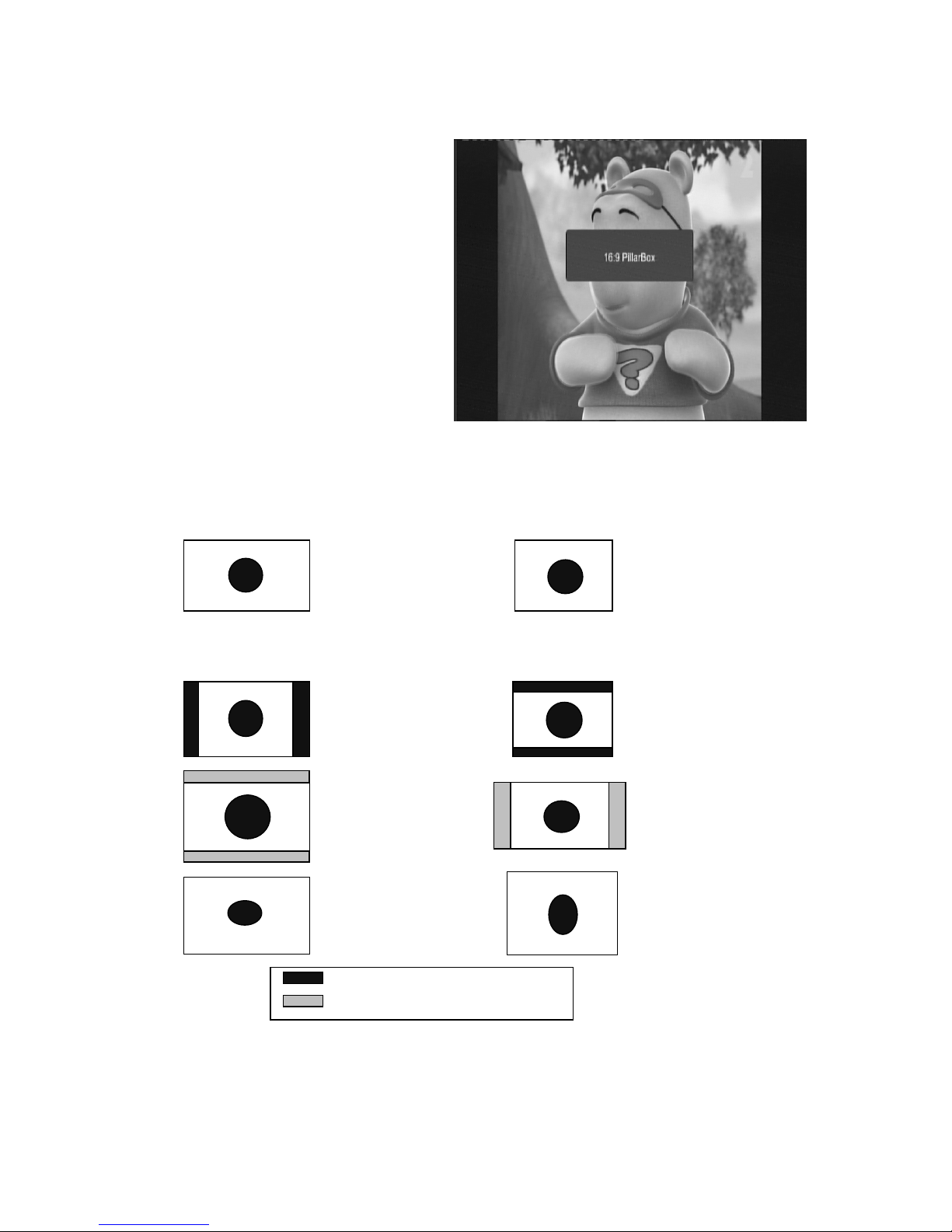

6.5 ASPECT RATIO.......................................................................................................................11

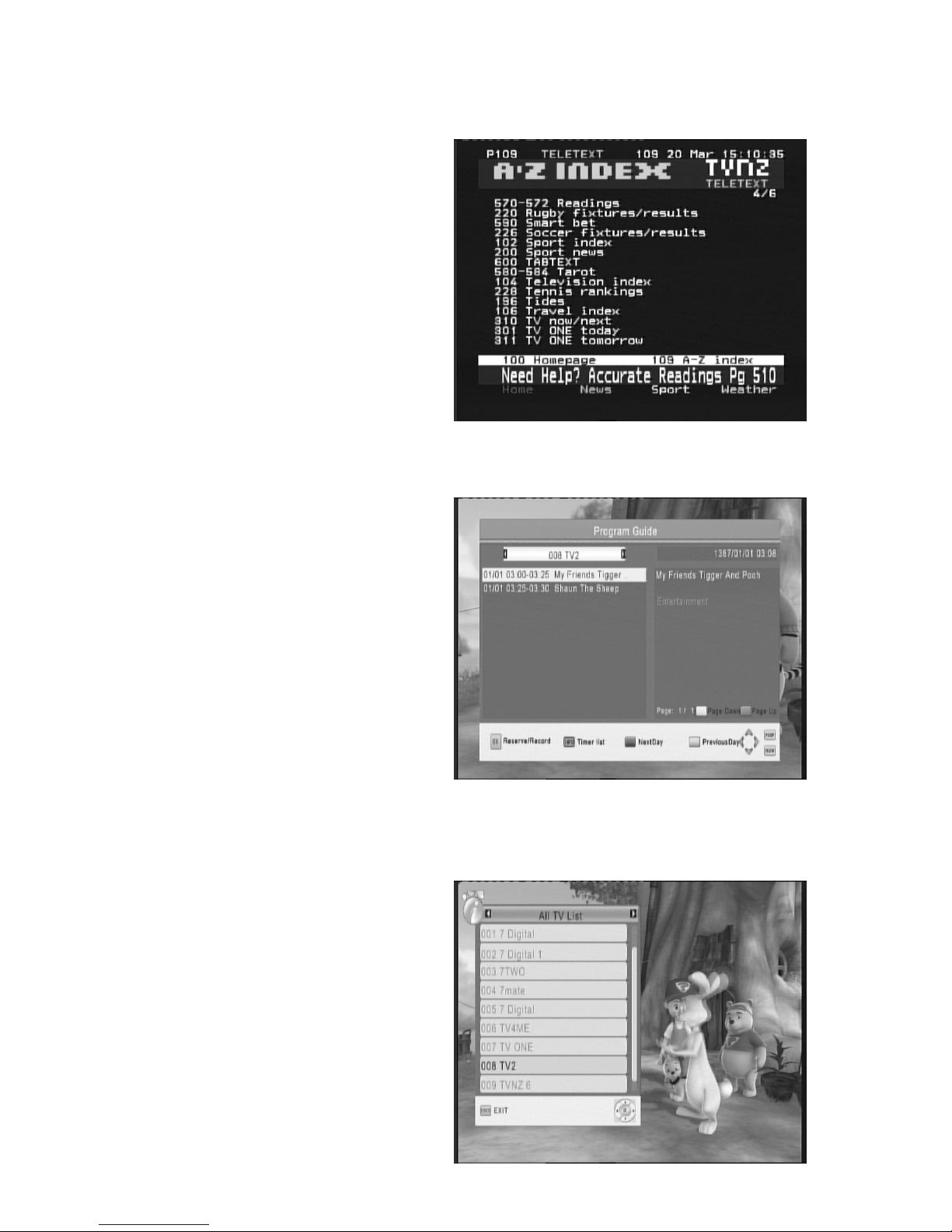

6.6 TELETEXT ...............................................................................................................................12
6.7 EPG..........................................................................................................................................12
6.8 TV CHANNEL AND RADIO CHANNEL LIST............................................................................12
6.9 FAVOURITE CHANNEL...........................................................................................................13
6.10 DVR FUNCTION ....................................................................................................................13

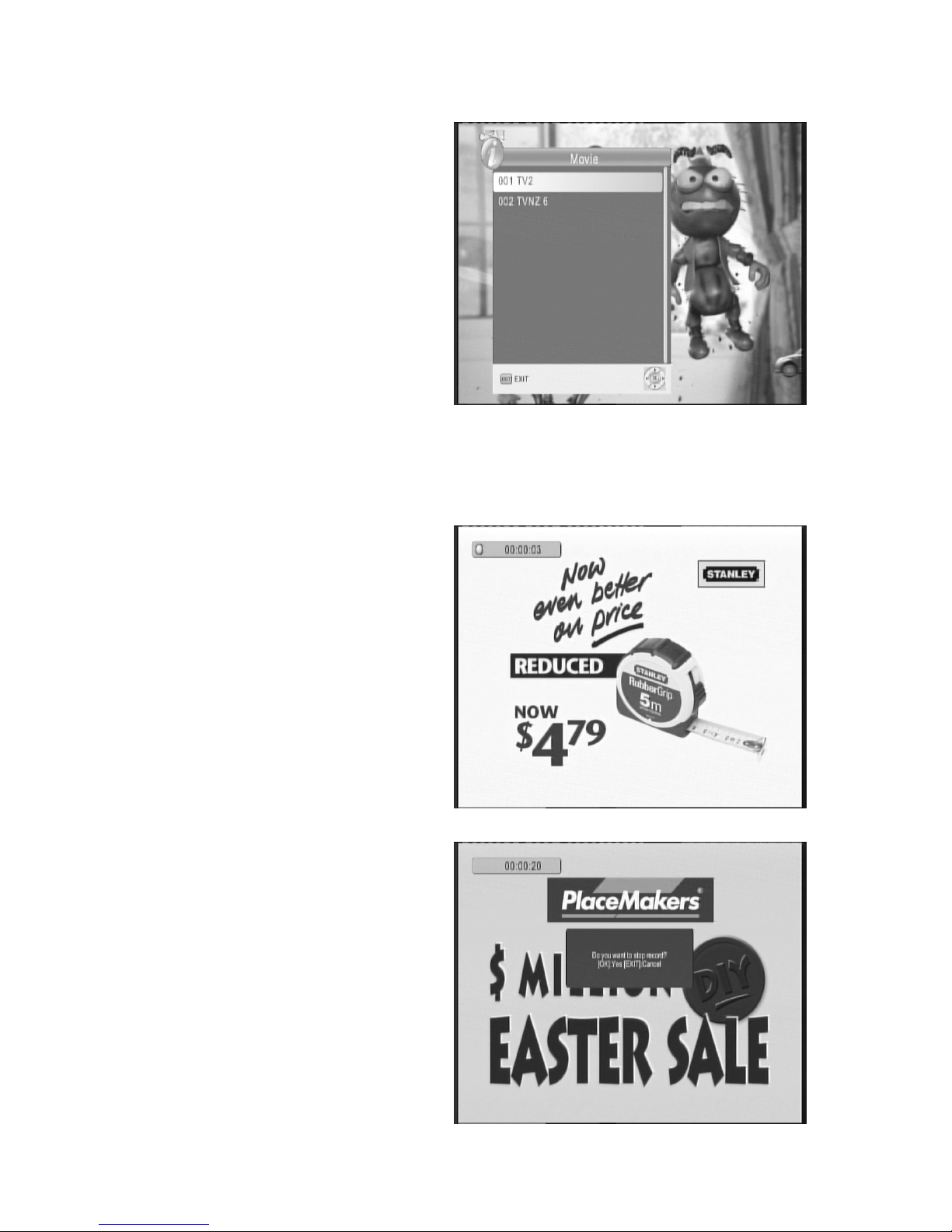

6.10.1 INSTANT RECORDING..................................................................................................13
6.10.2 EPG RECORDING.......................................................................................................... 14

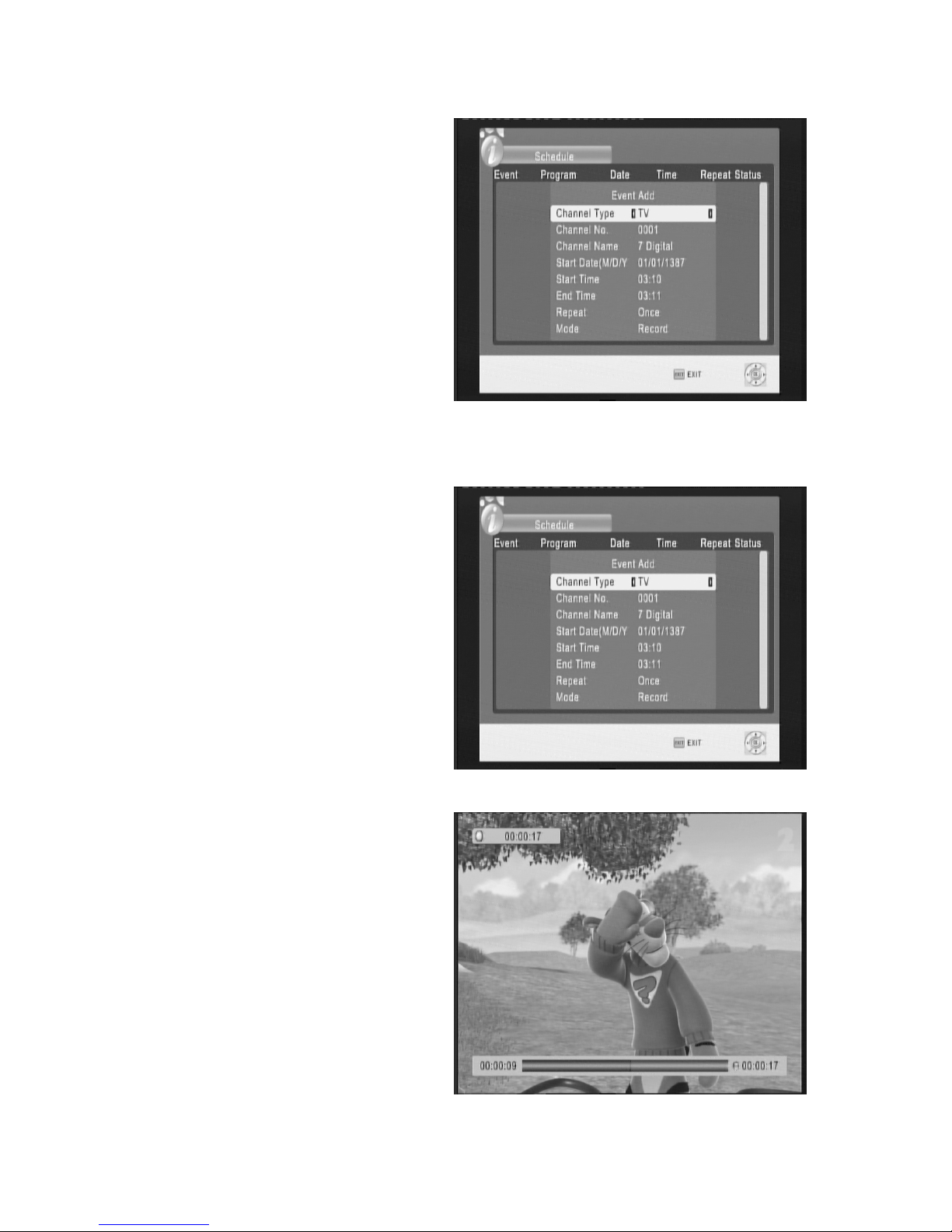

6.10.3 TIMER RECORDING......................................................................................................14
6.10.4 TIMESHIFT.....................................................................................................................14
6.10.5 PLAYBACK RECORDED PROGRAM............................................................................15

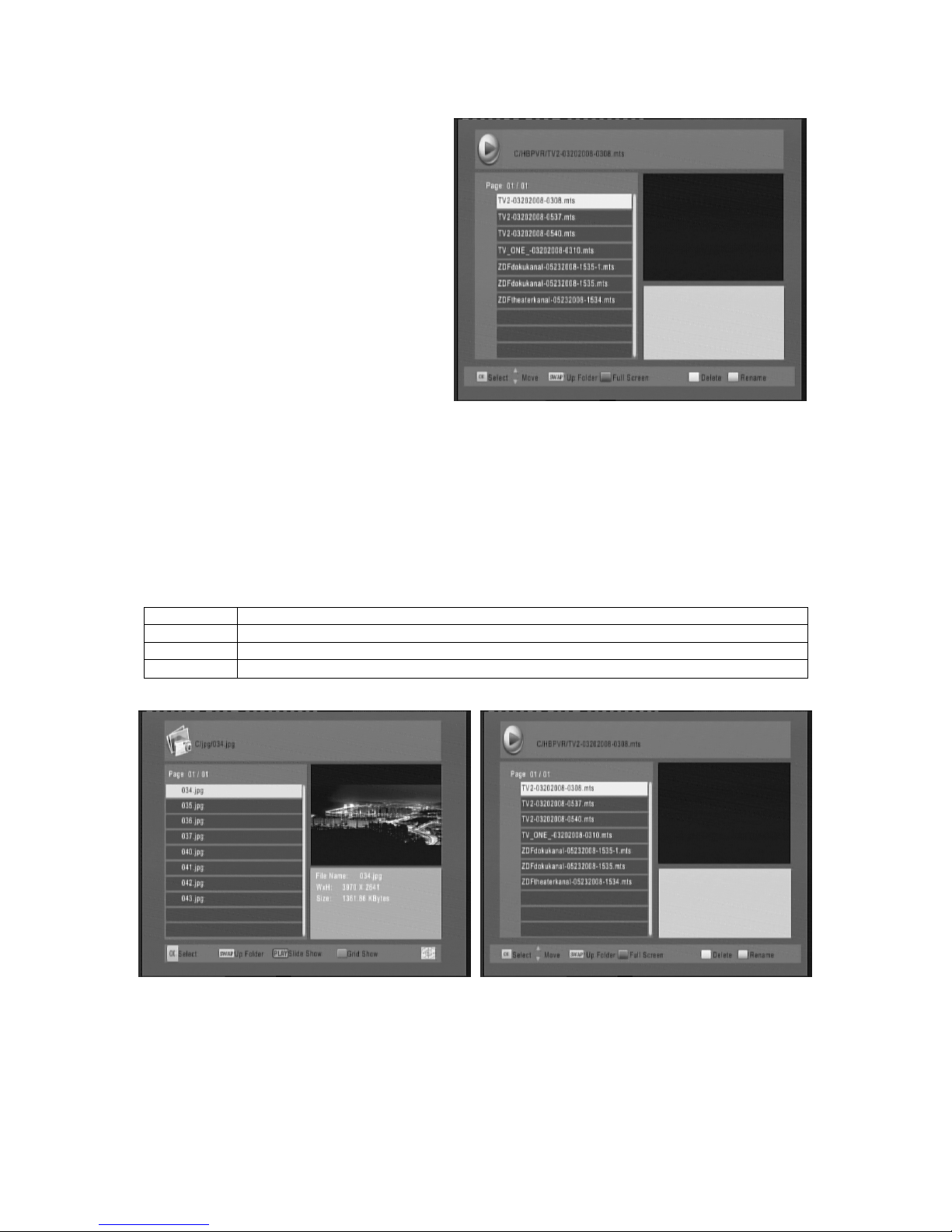

6.10.6 MULTIMEDIA PLAYER...................................................................................................15
6.10.7

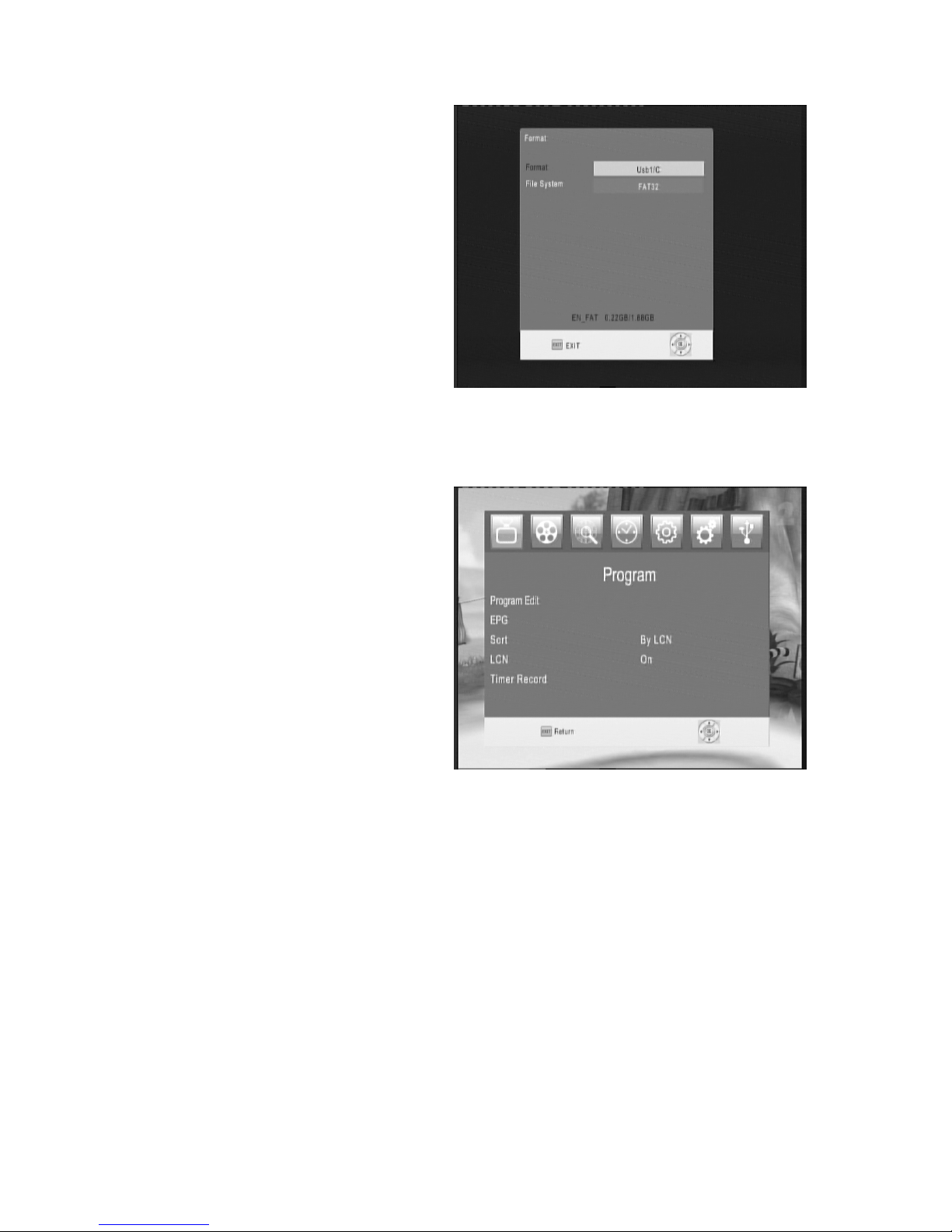

FORMAT PORTABLE HARD DISK................................................................................ 16
7 MENU ............................................................................................................................................16
7.1 MAIN MENU.............................................................................................................................16
8 UPDATE THE RECEIVER BY USB2.0 INTERFACE.....................................................................17
8.1 COPY THE UPDATE FILE TO THE USB DRIVE FROM PC....................................................17

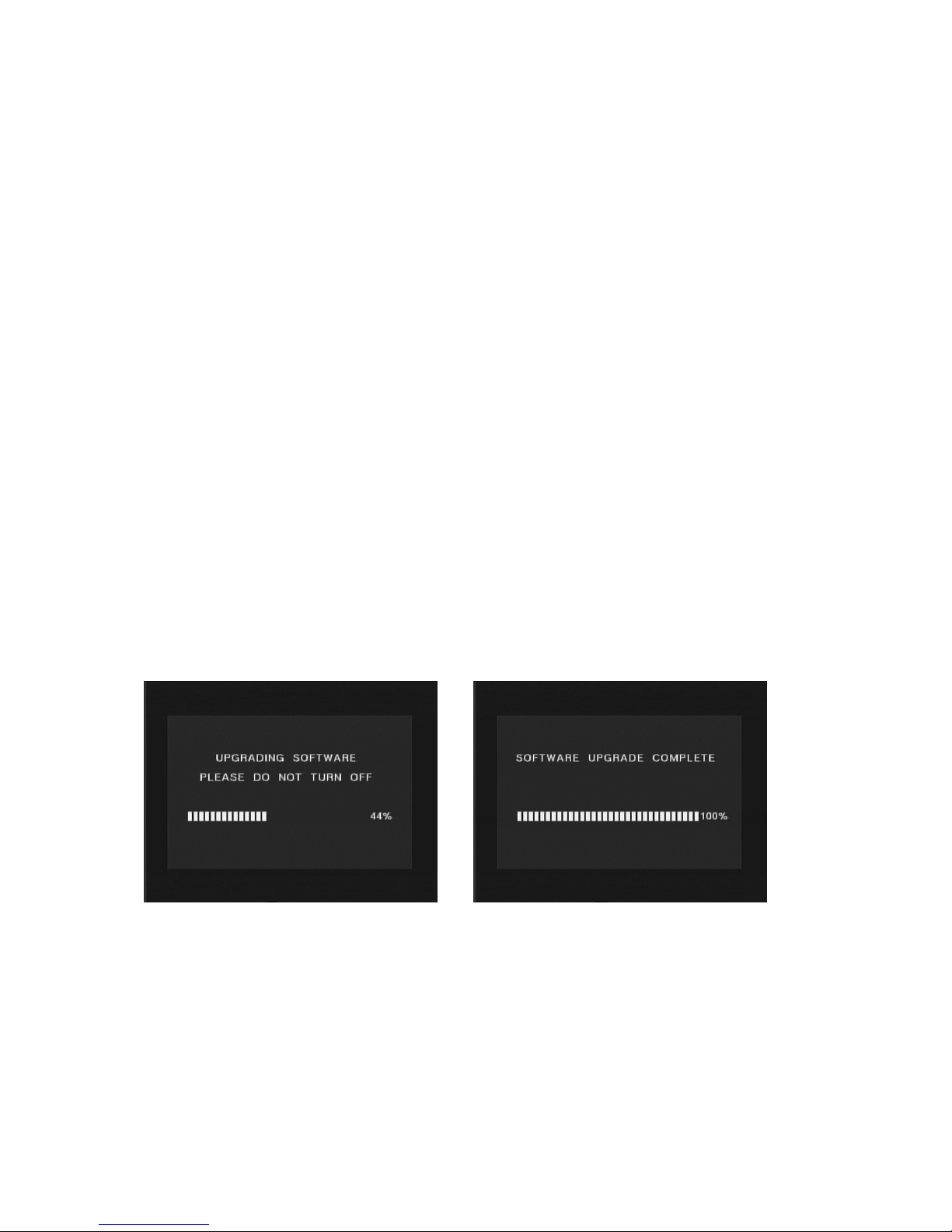

8.2 UPDATE THE RECEIVER BY USB INTERFACE ....................................................................17
9 SPECIFICATION ...........................................................................................................................18
3
4
1 INTRODUCTION
This user manual is intended to guide you through the operation for the HD DVB-T FTA High
Definition Digital Terrestrial Receiver.
The password may be required to make changes in the advanced option. Default password
is “000000”.
2 MAIN
FUNCTIONS AND FEATURES
This product is a high performance and cost-effective HDTV
Terrestrial
receiver. It fully complies with DVB-T
FTA receiver requirement specifications. It provides users with all
digital terrestrial TV and radio signals
being
broadcast in Standard Definition or High Definition.
Functions
1. Fully compatible with DVB-T FTA digital standard
2. Fully compatible with MPEG-4 H.264/AVC High Definition Digital TV
3. Fully compatible with MPEG-2 High Definition and Standard Definition Output
4. Fully compatible with MPEG-1 Layer I & II, Dolby Digital Audio
5. VHF & UHF input and LOOP OUT
6. 1000 Channels capacity
7.
Multi-bilingual OSD language , audio language and subtitle language supported
8. Fully support to Electronic Program Guide(EPG)
9. Support Auto search and Manual search
10. Parental control for channels
11. Plug and Play installation with an ease to use Menu System
12. S/PDIF Digital audio output interface.
13. Support 576i, 576P, 720P, 1080I ，1080P(50HZ)Video Resolution supported
14. Support 4:3 and 16:9 Aspect Ratio
15.
DVB or EBU subtitle selected by the system based on availability on the network
16. Various channel editing function(Favorites, Move, Lock, Delete)
17. Support HDMI High Definition Multimedia Interface
18. Software upgrade via USB2.0 interface
19.
High sensitivity, low Eb/No for receive Digital Television
20.
USB 2.0 interface PVR and media player
21.
Record digital television FTA program to a USB Flash Drive or an external USB portable hard
disk and playback via USB2.0
5
3 THE
REMOTE CONTROL
Photograph Key Function
MUTE
Disable Audio output
STANDBY Standby/on
0…..9
0-9 numeral buttons, for input of numbers or for
selecting a TV channel
S
WAP
Recall last channel while watching digital TV or listening
to radio.
TV/ R
Press TV/R key to switch between TV program and
Radio program.
RED Function key in different page.
GREEN
Function key in different page.
YELLOW
Function key in different page.
BLUE
Function key in different page.
MENU
Display menu, press again to exit current menu
EXIT
Back to previous menu
INFO.
Press INFO. Key to display the information bar during
watch program.
EPG
Press EPG key to display 7 days EPG information.
UP / DOWN
Move selection up/down within menus and lists,
Select
next/previous channel
LEFT / RIGHT
While watching a channel, the LEFT/RIGHT buttons
decreases or increases the audio output volume.
Within a menu, press the LEFT button to return to
previous menu and the RIGHT button to next menu
OK
Call up a program list for the current channel while
watching digital/TV or listening to the radio. In a menu,
this button serves to confirm a selection.
PGUP/ PGDW
Page up/down in lists
FAV
Display favorites channel
PVR
Display DVR manager page
REC
Press REC key to record the current program during
watch TV program
STOP
Press STOP key to stop recording program or stop
program during watch PVR program.
PLAY/
PAUSE
Playing or pause the program during watch PVR
program
PIC.
Press PIC. key to select the picture settings
ASPECT
Press ASPECT key to select suitable aspect ratio of the
video output
TELETEXT
TELETEXT function key
SUBTITLE
Switch between different subtitles
AUDIO
Press AUDIO key to set the audio track and audio
mode
RES.
Switch resolutions of video output
6
Battery Installation
Insert the batteries while observing the correct (+) and (-) polarities as illustrated below:
About the batteries
If the remote control unit fails to work even when it is operated near the set top box, please
replace the batteries.
Use size UM-4 (AAA) batteries.
Do not use rechargeable (Ni-Cd) batteries.
Do not attempt to recharge, short circuit, disassemble heat or throw the batteries into the fire.
Do not drop, step on or cause any impact to the remote control unit. This may damage it,
resulting in malfunction.
Do not mix old and new batteries.
If the remote control unit is not going to be used for a long time, remove the batteries.
Caution
Keep batteries out of children’s reach. If batteries are swallowed, contact a physician immediately.
