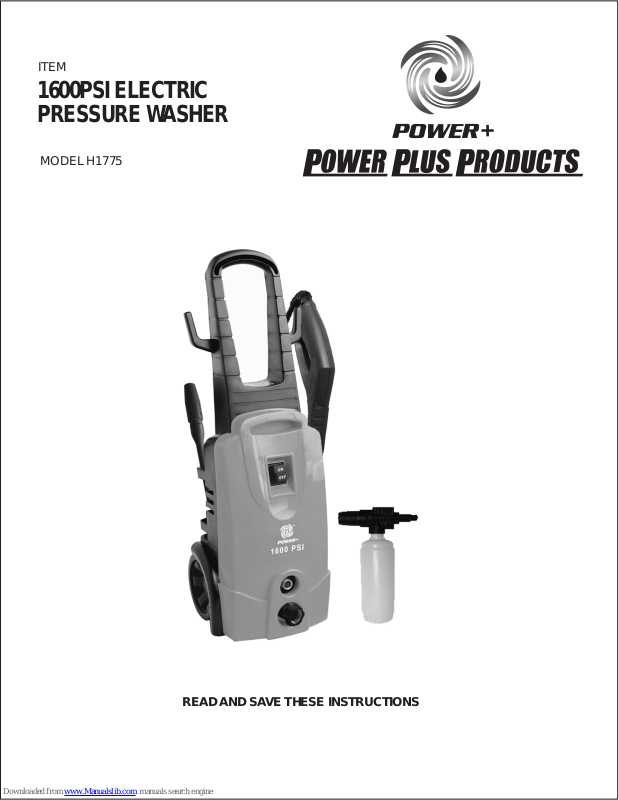

Power Plus H1775 User Instructions

ITEM

MODEL H1775

1600PSI ELECTRIC
PRESSURE WASHER

READ AND SAVE THESE INSTRUCTIONS

WARNING: Carefully read this operator’s manual before starting up the washer for the

first time.

CAUTION: Always store your pressure washer in a location where the temperature will

not fall below 40°F. Freeze damage is not covered by the warranty.

* Ratings determined in accordance with PWMA. Standard PW101.

2

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Safety Information ....................................................................................................................

Safety Features ....................................................................................................................

Power Supply and Electrical Info .............................................................................................

Package Contents .................................................................................................................

Operation Instructions ........................................................................................................

End of Use / Storage Instructions ............................................................................................

Care and Maintenance ...........................................................................................................

Troubleshooting ...................................................................................................................

3
5
6
7
8

12
13
14

Max pressure
Max flow rate
Electrical requirement
Electrical cord
High pressure hose
Minimum amp source
Pressure of inlet water
Inlet water

1600 PSI *

1.5 GPM *
120V, 60HZ,15A
23 ft
19 ft
15A
20 - 100 PSI
Cold tap water

WARNING: This warning symbol identifies specific instructions or procedures which if

not correctly followed could result in personal injury or death.

CAUTION: This caution symbol identifies specific instructions or procedures which, if
not strictly observed, could result in damage to, or destruction of equipment
and/or property.

WARNING: When using this product basic precautions should always be followed,
including the following:

SAFETY INFORMATION

3

Please read and understand this entire manual before attempting to assemble, operate or install
the product. If you have any questions regarding the product, please contact our customer
service.

Safety precautions are essential when any mechanical equipment is involved. These
precautions are necessary when using, storing, and servicing mechanical equipment. Using this
equipment with the respect and caution demanded will considerably lessen the possibilities of
personal injury. If safety precautions are overlooked or ignored, personal injury or property
damage may occur. The following symbols shown below are used extensively throughout this
manual. Always heed these precautions, as they are essential when using any mechanical
equipment.

1. Read all the instructions before using the product.

2. To reduce the risk of injury, do not operate near children or animals.

3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the
controls.

4. Stay alert - watch what you are doing.

5. Do not operate the product when fatigued or under the influence of alcohol or drugs.

6. Keep operating area clear of all persons.

7. Do not overreach or stand on an unstable surface. Keep good footing and balance at all times.

8. Follow the maintenance instructions specified in the manual.

9. If replacement of the plug or cord is needed, use only identical replacement parts.

10. Do not touch plug or outlet with wet hands.

11. Avoid accidental starts. Move switch on unit to “OFF” position before connecting or
disconnecting cord to electrical outlets.

12. Water spray must never be directed towards any electric wiring or directly towards the
pressure washer machine itself or fatal electric shock may occur.

13. Never carry your pressure washer by the cord. Do not pull on the cord to disconnect from
the outlet.

14. To prevent damage, the cord should not be crushed, placed next to sharp objects or near a
heat source.

This unit was designed for specific applications. It should not be modified and/or used for any
application other than that which it was designed.

WARNING: Risk of injection or injury - Do not direct discharge stream at persons.

SAFETY INFORMATION

4

15. Check power cords before using. Damaged cords can reduce performance of pressure
washer or cause a fatal electric shock.

16. The narrow pin point stream is very powerful. It is not recommended for use on painted
surfaces, wood surfaces or items attached with an adhesive backing.

17. Keep operating area clear of all persons and animals.

18. Always use both hands when operating pressure washer to maintain complete control of the
wand.

19. Do not touch nozzle or water spray while operating.

20. Wear safety goggles while operating.

21. Disconnect power plug from the outlet when not in use and prior to the detaching of the
high pressure hose.

22. Never tie knots or kink the high pressure hose as damage could result.

23. Do not operate or store this product in temperatures below 40°F. Freeze damage is not
covered by the warranty.

24. Carefully observe all chemical instructions and warnings before using. Use only approved
pressure washer cleaners. Do not use bleach, chlorine, or any cleaners containing acids.

25. The pressure washer should not be used in areas where gas vapors may be present. An
electric spark could cause an explosion or fire.

26. To minimize the amount of water getting into the pressure washer, the unit should be placed
as far as possible from the cleaning site during operation.

27. To prevent accidental discharge, the spray gun should be secured by locking the trigger
when not in use.

28. To allow free air circulation, the pressure washer should NOT be covered during operation.

“SAVE THESE INSTRUCTIONS”

WARNING: If Automatic Stop fails to operate, DO NOT USE THE MACHINE.
Contact our Customer Service department. Further use will damage the
machine and/or cause personal injury.

WARNING: The pressure washer is also equipped with a main power ON/OFF switch
located on the unit. It should always be moved to the OFF position when the
pressure washer is not being used to prevent possible injury or damage.

SAFETY FEATURES

5

AUTOMATIC STOP

The pressure washer is equipped with a stop device which will sense when the trigger on the gun
is released. It will open the power circuit to the motor and cause the pressure washer to stop.

In a double-insulated product, two systems of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated product, nor should
a means for grounding be added to the product. Servicing a double-insulated product
requires extreme care and knowledge of the system, and should be done only by
qualified service personnel. Replacement parts for a double-insulated product must be
identical to the parts they replace. A double-insulated product is marked with the words
“DOUBLE-INSULATION” or “DOUBLE-INSULATED”. The symbol above may also be
marked on the product.

SERVICING A DOUBLE-INSULATED APPLIANCE
