MAP30/40/42 SERIES
Power-One’s MAP30/40/42 series of power supplies combines low cost
and universal input in a board-only power solution to meet
commercial and industrial requirements. Full international safety,
EMI, and ESD compliance ensure world-wide acceptance. All units
bear the CE Mark.
Fixed frequency operation simplifies system level operation. The
MAP30/40/42 series is configured to the international standard 3.00"
x 5.00" footprint. Input and output connections are made via popular
single row Molex connectors.
Single output models feature wide-range output adjustability to meet a
wide variety of standard and user specific output voltage requirements.
FEATURES
• Universal Input 85-264 VAC
• CE Marked to Low Voltage Directive
• Input Transient & ESD Compliance to EN61000-4-2/-3/-4
• Meets EN55022 Conducted and Radiated Limits
• Greater than 311,000 Hours MTBF
• Remote Sense (MAP30, MAP42)
SINGLE OUTPUT MODEL SELECTION CHART
MODEL
OUTPUT ADJUSTMENT MAXIMUM OUTPUT PEAK OUTPUT LINE LOAD RIPPLE & NOISE INITIAL SETTING
VOLTAGE RANGE CURRENT CURRENT (NOTE 2) REGULATION REGULATION %p-p (NOTE 1) ACCURACY
MAP30-1005 5V 4.7V to 5.8V 6A 8A 0.2% ±1% 1% 4.9V to 5.1V
MAP42-1005 5V 4.7V to 5.8V 8A 11A 0.2% ±1% 1% 4.9V to 5.1V
MAP42-1012 12V/15V 11.0V to 18.0V 3.4/2.7A (Note 3) 4.6/3.7A (Note 3) 0.2% 1% 1% 11.9V to 12.1V
MAP42-1024 24V/28V 23.0V to 29.0V 1.7/1.4A (Note 3) 2.3/1.9A (Note 3) 0.2% 1% 1% 23.8V to 24.2V
NOTES: 1) Maximum peak to peak noise expressed as a percentage of output voltage, 20MHz bandwidth.
2) Peak ratings may be used as maximum output current with 100 Linear Feet per Minute (LFM) forced air cooling.
3) MAP42-1012 output currents are expressed as 12V/15V operation. MAP42-1024 output currents are expressed as 24V/28V operation.
MULTIPLE OUTPUT MODEL SELECTION CHART – 40W CONTINUOUS OUTPUT POWER
MODEL
OUTPUT ADJUSTMENT OUTPUT PEAK OUTPUT LINE LOAD RIPPLE & NOISE INITIAL SETTING
VOLTAGE RANGE CURRENT CURRENT (NOTE 1) REGULATION REGULATION %p-p (NOTE 2) ACCURACY
+5V 4.75V to 5.50V 3A 5A 0.2% 2% 1% 4.9V to 5.1V
MAP40-3000 +12V Fixed 2A 3.5A 1% 3.5% (Note 3) 1% 11.5V to 12.5V
-12V Fixed 0.3A 0.5A 1% 2% (Note 4) 1% -11.4V to -12.6V
+5V 4.75V to 5.25V 3A 5A 0.2% 2% 1% 4.9V to 5.1V
MAP40-3100 +12V Fixed 2A 3.5A 1% 3.5% (Note 3) 1% 11.5V to 12.5V
-12V Fixed 0.3A 0.5A 1% 2% 1% -11.4V to -12.6V
+5V 4.75V to 5.25V 3A 5A 0.2% 2% 1% 4.9V to 5.1V
MAP40-3101 +24V Fixed 1A 1.5A 1% 3.5% (Note 3) 1% 23.0V to 25.0V
-12V Fixed 0.3A 0.5A 1% 2% 1% -11.5V to -12.5V
+5V 4.7V to 5.8V 3A 5A 0.2% 2% 1% 4.9V to 5.1V
MAP40-3105 +12 Fixed 2A 3.5A 1% 3.5% (Note 3) 1% 11.5V to 12.5V
-5V Fixed 0.5A 1.0A 1% 2% 1% -4.75V to -5.25V
+5V 4.7V to 5.8V 5A 6A 0.2% 2% 1% 4.9V to 5.1V
MAP40-3500 +12V Fixed 1A 3.5A 1% 3.5% (Note 3) 1% 11.5V to 12.5V
-12V Fixed 0.3A 0.5A 1% 2% 1% -11.4V to -12.6V
+5V 4.7V to 5.8V 3A 5A 0.2% 2% 1% 4.9V to 5.1V
MAP40-3003 +15V Fixed 1.5A 3A 1% 3.5% (Note 3) 1% 14.7V to 15.3V
-15V Fixed 0.2A 0.5A 1% 2% (Note 4) 1% -14.3V to -15.7V
NOTES : 1) Peak loads for 30 seconds or less are acceptable, (10% duty cycle max.).
2) Maximum peak to peak noise expressed as a percentage of output voltage, 20MHz bandwidth.
3) Quasi regulated output. See Regulation Curves for more information.
4) Requires a minimum load of 0.5A on V1 or 0.3A on V2.
Rev. 10/2000
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous environments,
or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the date manufactured. Specifications are
subject to change without notice.
2
INPUT SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Input Voltage - AC Continuous input range. MAP42 85 264 VAC
MAP30, MAP40 90 264
Input Frequency AC input. 47 63 Hz
Brown Out Protection Lowest AC input voltage that regulation is maintained with full rated loads. 85 VAC
Hold-up Time Nominal AC Input Voltage (115VAC), full rated load. 15 mS
Input Current 90 VAC (40W load). 1.2 ARMS
Input Protection Non-user serviceable internally located AC input line fuse.
Inrush Surge Current Internally limited by thermistor. Vin = 264VAC (one cycle). 25° C. 38 APK
Operating Frequency Switching frequency of power supply (fixed frequency). 23 25 30 kHz
OUTPUT SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Efficiency Full load, 120VAC. 70 %
Minimum Loads Single output models; MAP30, MAP42. 0.0 Amps
All multiple output models, see regulation graphs.
Ripple and Noise Full load, 20MHz bandwidth. See Model Selection Chart.
Output Power Multiple output models with convection cooling. 40 Watts
Overshoot / Undershoot Output voltage overshoot/undershoot at turn-on, V1. 1 %
Regulation Varies by output, total regulation includes: Line changes from 90-132
VAC or 175-264, changes in load starting at 20% load and changing See regulation graphs.
to 100% load.
Transient Response Recovery time, to within 1% of initial set point due to a 50-100% 500 µS
load change, 4% max. deviation. (Main output only of multiple output units).
Turn-on Delay Time required for initial output voltage stabilization. 1 2 Sec
Turn-on Rise Time Time required for output voltage to rise from 10% to 90%. 20 mS
INTERFACE SIGNALS AND INTERNAL PROTECTION
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
MAP30-1005, MAP42-1005 5.8 6.8
Overvoltage MAP42-1012 20.0 22.0
V
Protection MAP42-1024 32.0 37.0
Main output only of multiple output units. 5.8 6.8
Overload Fully protected against output overload and short circuit. Automatic 130 %
Protection recovery upon removal of overload condition.
Remote Sense Total cable drop, single output models only. 250 mV
SAFETY, REGULATORY, AND EMI SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Agency Approvals UL1950.
CSA 22.2 No. 234/950. Approved.
EN60950 (TUV).
Dielectric Withstand Input to output. 2600 VDC
Voltage
Electromagnetic FCC CFR title 47 part 15 sub-part B - conducted. B
Interference EN55022 / CISPR 22 conducted (Note 1). B Class
EN55022 / CISPR 22 radiated (Note 2). B
Input Transient EN61000-4-5 Level 3 Line to Line 1 kV
Protection Line to Ground 2
Insulation Resistance Input to output. 7 MΩ
Leakage Current Per EN60950, 264VAC MAP42, MAP40-3100, 3001, 3105, 3500 500
µA
MAP30-1005, MAP40-3000, MAP40-3003 750
NOTES: 1) MAP30-1005, MAP40-3000, MAP40-3003 meet Class A.
2) MAP40-3000, MAP40-3003, MAP3500 meet Class A.
MAP30/40/42 SERIES
3
ENVIRONMENTAL SPECIFICATIONS
PARAMETER CONDITIONS/DESCRIPTION MIN NOM MAX UNITS
Altitude Operating. 10k ASL Ft.
Non-operating. 40k ASL Ft.
Operating Temperature Derate linearly above 50°C by 2.5% At 100% load: 0 50 °C
per °C to a maximum temperature of 70°C. At 50% load: 0 70 °C
Storage Temperature -40 85 °C
Temperature Coefficient 0°C to 70°C (after 15 minute warm-up). ±0.02 ±0.03 %/°C
Relative Humidity Non-condensing. 5 95 %RH
Shock Operating, peak acceleration. 20 G
Vibration Random vibration, 10Hz to 2kHz, 3 axis. 6 GRMS
14.25
13.75
13.25
12.75
12.25
11.75
11.25
13.5
13.0
12.5
12.0
11.5
11.0
17.0
16.5
16.0
15.5
15.0
14.5
14.0
13.5
12V OUTPUT VOLTAGE
12V OUTPUT VOLTAGE15V OUTPUT VOLTAGE
MAP40-3500 TYPICAL QUASI REGULATION
PERFORMANCE FOR +12V OUTPUT
MAP40-3000/3100/3105 TYPICAL QUASI REGULATION
PERFORMANCE FOR +12V OUTPUT
MAP40-3003 TYPICAL QUASI REGULATION
PERFORMANCE FOR +15V OUTPUT
+5V @ 5.0 Amps
+5V @ 3.0 Amps
+5V @ 1.0 Amps
+5V @ 0 Amps
+5V @ 3.0 Amps
+5V @ 1.8 Amps
+5V @ 0.6 Amps
+5V @ 0 Amps
+5V @ 3.0 Amps
+5V @ 1.8 Amps
+5V @ 0.6 Amps
+5V @ 0 Amps
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
12V OUTPUT CURRENT
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
12V OUTPUT CURRENT
0 0.15 0.3 0.45 0.6 0.75 0.9 1.05 1.2 1.35 1.5
15V OUTPUT CURRENT
MAP30/40/42 SERIES
4

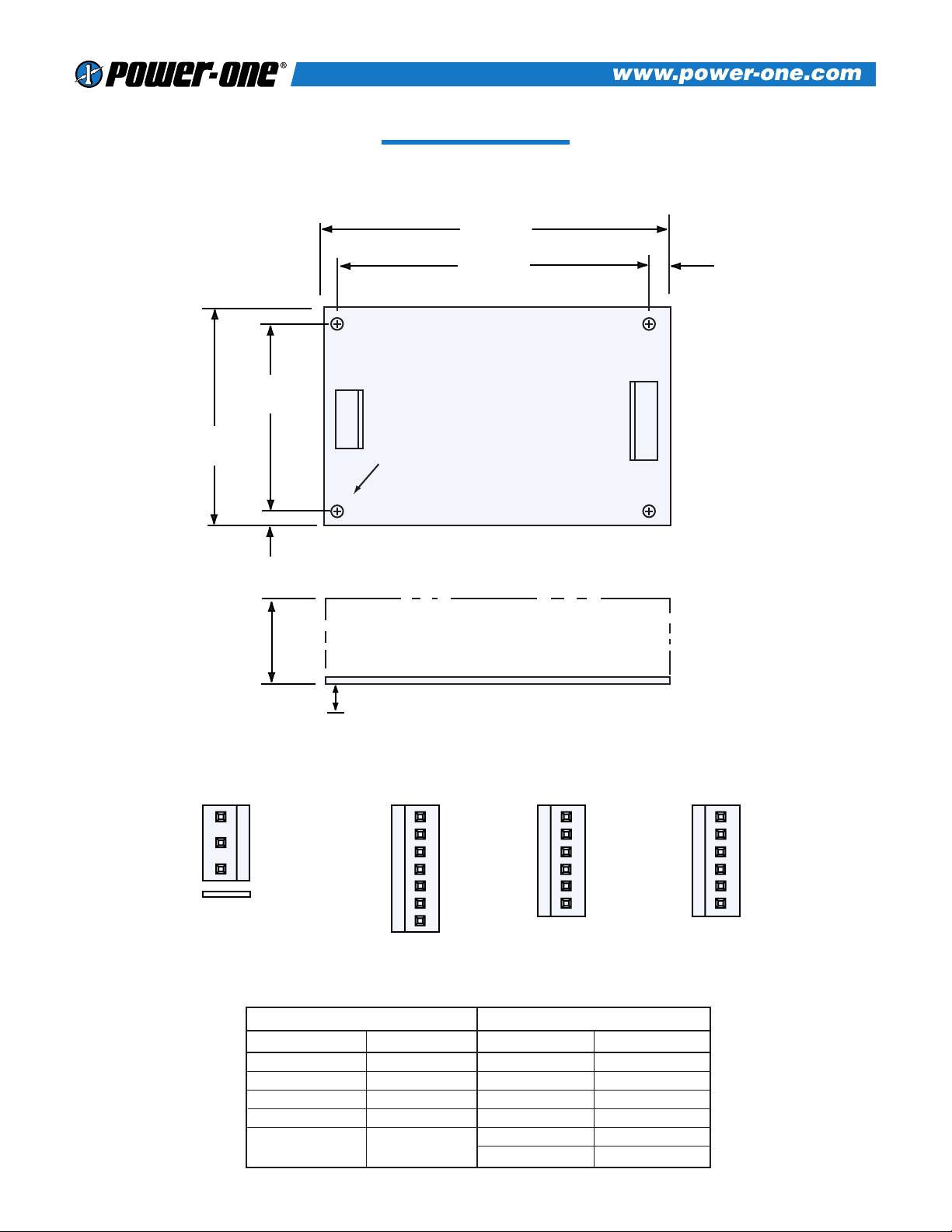

ELECTRICAL CONNECTORS
5.00"
(127.0mm)
0.23"
(5.7mm)
4.55"
(115.6mm)
2.55"
(64.8mm)
3.00"
(76.2mm)
0.25"
(6.4mm)
see table
J1
0.16" (4.0mm) Diameter
Diameter Mounting Holes (4 Places)
J2
COMPONENT LEAD LENGTH 0.10" (2.5mm) MAX
Multiple Output Models
Model Height
MAP40-3000 1.16" (29.5)
MAP40-3003 1.16" (29.5)
MAP40-3100 1.25" (31.8)
MAP40-3101 1.25" (31.8)
MAP40-3105 1.25" (31.8)
MAP40-3500 1.60" (40.6)
V1
V1
GND
GND
+Sense
-Sense
PIN 6
PIN 1
N/C
V1
V1
GND
GND
+Sense
-Sense
PIN 7
PIN 1
MAP30 J2
J1/J2 MATES WITH MOLEX (SERIES 2139 or SERIES 41695) .156" (4mm)
CENTER CRIMP TERMINAL HOUSING OR EQUIVALENT
Single Output Models
Model Height
MAP30-1005 1.16" (29.5)
MAP42-1005 1.25" (31.8)
MAP42-1012 1.25" (31.8)
MAP42-1024 1.25" (31.8)
V2
V1
V1
GND
GND
V3
PIN 6
PIN 1
J1
NEUTRAL PIN 1
PIN 2 (REMOVED)
LINE PIN 3
SAFETY EARTH GROUND
(0.250" x 0.032" FASTON)
MAP40 J2 MAP42 J2
OVERALL SIZE: 5.00" x 3.00" x (see table) (127.0mm x 76.2mm x see table)
WEIGHT: 0.6 LBS (0.26 kg)
MAP30/40/42 SERIES HEIGHT
MAP30/40/42 SERIES
