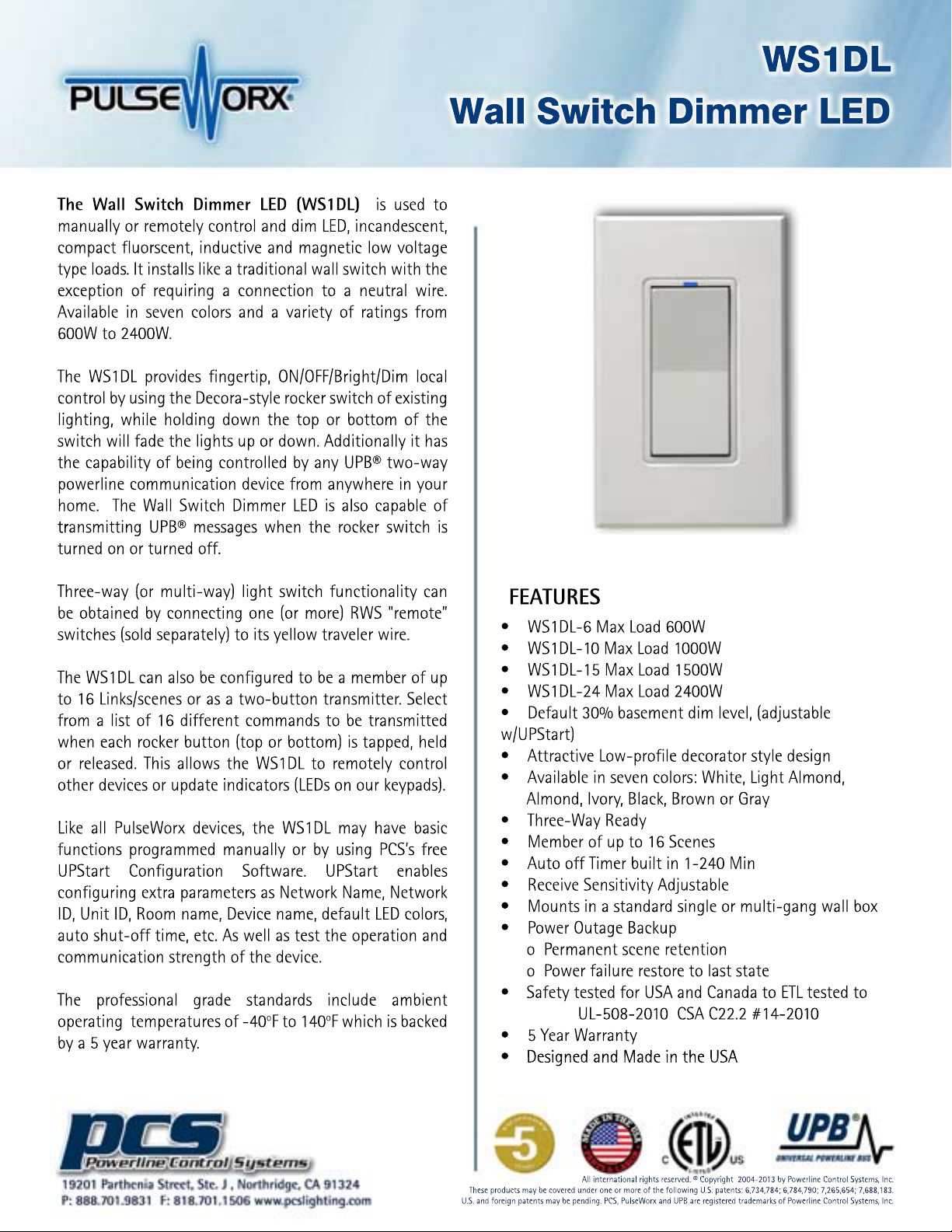

Wall Switch Dimmer LED
The Wall Switch Dimmer LED (WS1DL) is used to
manually or remotely control and dim LED, incandescent,
compact fluorscent, inductive and magnetic low voltage
type loads. It installs like a traditional wall switch with the
exception of requiring a connection to a neutral wire.
Available in seven colors and a variety of ratings from
600W to 2400W.
The WS1DL provides fingertip, ON/OFF/Bright/Dim local
The
control by using the Decora-style rocker switch of existing
lighting, while holding down the top or bottom of the
switch will fade the lights up or down. Additionally it has
the capability of being controlled by any UPB® two-way
powerline communication device from anywhere in your
home. The Wall Switch Dimmer LED is also capable of
transmitting UPB® messages when the rocker switch is
tr
turned on or turned off.
WS1DL
Three-way (or multi-way) light switch functionality can
be obtained by connecting one (or more) RWS "remote”
switches (sold separately) to its yellow traveler wire.
The WS1DL can also be configured to be a member of up
to 16 Links/scenes or as a two-button transmitter. Select
from a list of 16 different commands to be transmitted
when each rocker button (top or bottom) is tapped, held
or released. This allows the WS1DL to remotely control
other devices or update indicators (LEDs on our keypads).
Like
Like all PulseWorx devices, the WS1DL may have basic
functions programmed manually or by using PCS’s free
UPStart Configuration Software. UPStart enables
configuring extra parameters as Network Name, Network
ID, Unit ID, Room name, Device name, default LED colors,
auto shut-off time, etc. As well as test the operation and
communication strength of the device.
The professional grade standards include ambient
The
operating temperatures of -40
by a 5 year warranty.
o
F to 140oF which is backed
FEATURES
• WS1DL-6 Max Load 600W
• WS1DL-10 Max Load 1000W
• WS1DL-15 Max Load 1500W
• WS1DL-24 Max Load 2400W
• Default 30% basement dim level, (adjustable
w/UPStart)
•
• Attractive Low-profile decorator style design
• Available in seven colors: White, Light Almond,
Almond, Ivory, Black, Brown or Gray
• Three-Way Ready
• Member of up to 16 Scenes
• Auto off Timer built in 1-240 Min
• Receive Sensitivity Adjustable
• Mounts in a standard single or multi-gang wall box
•
• Power Outage Backup
o Permanent scene retention
o Power failure restore to last state
• Safety tested for USA and Canada to ETL tested to
UL-508-2010 CSA C22.2 #14-2010
• 5 Year Warranty
• Designed and Made in the USA
• Designed and Made in the USA
These products may be covered under one or more of the following U.S. patents: 6,734,784; 6,784,790; 7,265,654; 7,688,183.
U.S. and foreign patents may be pending. PCS, PulseWorx and UPB are registered trademarks of Powerline Control Systems, Inc.
All international rights reserved. © Copyright 2004-2013 by Powerline Control Systems, Inc.
WS1R
Wall Switch Relay
MODELS
WS1DL-6-X* 600 W Dimmer
WS1DL-10-X* 1000 W Dimmer
WS1DL-15-X* 1500 W Dimmer
WS1DL-24-X* 2400 W Dimmer
RWS-X* Remote Wall Switch
* X = Color White (W), Almond (A),
* X = Color
Light Almond (LA), Ivory (I),
SPECIFICATIONS
Power Requirements Primary: 120 Volts AC, 50/60Hz Single Phase
Neutral Wire Required
Connections 16 AWG gauge 105 C insulation
Black – Hot/Line
White – Neutral
Red – Load
Ground – 18 AWG stranded copper
Standby Power < .8 Watts
Load Type LED, Compact Fluorscent, Fluorscent,
I Incandescent, Inductive, Magnetic low voltage
Maximum load WSDL-6 - 600W
WSDL-10 - 1000W
WSDL-15 - 1500W
WSDL-15 - 1500W
WSDL-24 - 2400W
Environmental Indoor Use Only
Temperature: -40° to 140°F (-40° to 60°C)
Humidity: 10% to 90% RH (non-condensing)
Certifications Safety tested for USA and Canada
ETL tested to UL508 UL-508-2010
CSA C22.2 #14-2010
MECHANICAL
Paddle Type Decorator Style True Rocker
Set Button Paddle
Wire Nuts 4 included
Mounting Single Gang or multiple-ganged junction box
W
Weight 4.55 oz.
Warranty 5 years
US Patent No. 6,734,784; 6,784,790; 7,265,654; 7,688,183.
U.S. and foreign patents may be pending.
DIMENSIONS
WIRING DIAGRAM
19201 Parthenia Street, Ste. J , Northridge, CA 91324
P: 888.701.9831 F: 818.701.1506 www.pcslighting.com
