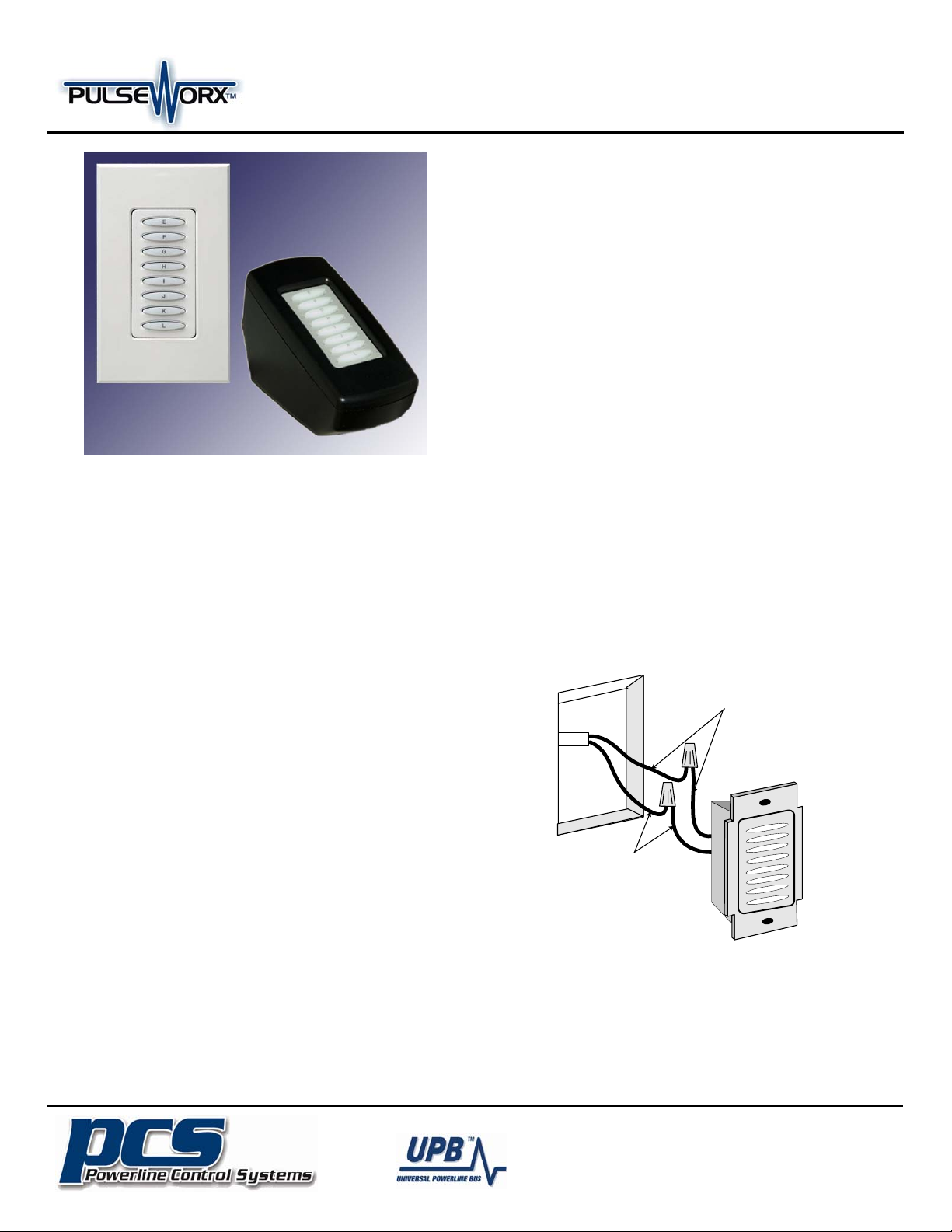

Models: KPCW8 & KPCD8
Installation Guide and
Keypad Controllers
FUNCTION
The 8-Button Keypad Controller (KPCx8) is a high quality
home automation controller that is capable of transmitting
UPB (Universal Powerline Bus) digital commands over the
existing power wiring to remotely turn on, off, and dim other
UPB load control devices. No additional wiring is required
and no radio frequency signals are used for communication.
Wall-Mount and Desktop Styles
The KPCx8 is available in two different styles: wall-mount and
desktop. The KPCW8 is the wall-mount version and can be
mounted in any wall box that contains both line and neutral
wires. The KPCD8 comes in an elegant desktop enclosure
that can be freely located near any wall outlet that exists
throughout the home.
Engraved Pushbuttons
The KPCx8 has eight backlit pushbuttons engraved with the
designations of: E, F, G, H, I, J, K, and L. A Custom Engraved
Membrane kit (model CEM8) is available enabling you to
tailor each button for its particular use. Consult your dealer
or our website (www.PulseWorx.com) for CEM8 ordering
information.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions
should always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
unplug the product immediately.
3. Never use products that have been dropped or
damaged.
Owner’s Manual
4. Do not use this product outdoors.
5. Do not use this product for other than its intended purpose.
6. Do not cover this product with any material when in use.
7. This product uses polarized plugs and sockets (one blade is
larger than the other) to reduce the risk of electric shock.
These plugs and sockets fit only one way. If they do not fit,
consult an electrician.
8. SAVE THESE INSTRUCTIONS.
INSTALLATION
The Keypad Controllers are designed for indoor use. Simply plug
the KPCD8 into any 120V power outlet. To install the KPCW8
module in a wall box follow these instructions:
1. Before installing the KPCW8 into a wall box, ensure that
power to the wall box has been disconnected by removing
the fuse or turning the circuit breaker off. Installing
products while the power is on may expose you to
dangerous voltage and may damage the product as well!
2. Remove any existing wall plate and device from the wall
box.
3. Use wire nuts to securely connect the KPCW8’s white wire
to the “Neutral” wire and the KPCW8’s black wire to the
“Line” wire (see illustration below).
4. Fit the KPCW8 into the wall box and secure with mounting
screws. Install the wall plate.
5. Restore power at the circuit breaker.
Wall
Box
Line
(Black)
Neutral
(White)
The Inventors Of:
19201 Parthenia St. Suite J
Northridge, CA 91324
(Phone) 818-701-9831 (Fax) 818-701-1506
sales@pcslighting.com www.pcslighting.com
Models: KPCW8 & KPCD8
Installation Guide and
Keypad Controllers
CONFIGURATION
Once your KPCx8 is installed it can be configured either
manually or with the UPStart Setup Software.
Manual configuration can be used without UPStart to add
your KPCx8 device into a UPB network and link it to various
load control devices. Refer to the Keypad Controller’s Manual
Configuration Guide available on the PulseWorx website
(www.PulseWorx.com) for further details.
Although the factory default operation of the KPCx8 is very
useful in many situations, it is highly recommended that you
configure your KPC with the UPStart Setup Software to take
advantage of its many configurable features.
PCS has developed a Powerline Interface Module (PIM) and
free UPB Setup Software (UPStart) to help you configure all of
your PulseWorx Lighting System devices. User’s Guides are
available on the PulseWorx web site: www.PulseWorx.com to
explain how to configure your system.
SETUP Mode
When configuring a UPB system, it will be necessary to place
the KPCx8 into SETUP mode. To do this, simultaneously press
and hold the E and L buttons for 3 seconds. All of the LED
indicators will blink once the device is in SETUP mode. To exit
SETUP mode, again simultaneously press and hold the E and
L buttons for 3 seconds or wait five minutes for it to time out.
Changing a Scene’s Preset Light Levels
The 8-Button Controllers are specially designed to work with
other PulseWorx™ Lighting System devices. Each pushbutton
on these controllers is configured to activate a Preset Light
Level and Fade Rate stored within the PulseWorx devices.
The Preset Light Levels can be easily adjusted by following
this simple procedure:
1. Press the pushbutton on the 8-Button Controller to
activate the currently stored Preset Light Levels (scene)
in the Wall Switch Dimmer(s).
2. Use the local rocker switch on the WS1D to set the new
desired Preset Light Level.
3. Rapidly tap the pushbutton on the 8-Button Controller
five times quickly.
4. The WS1D’s lighting load will flash one time to indicate
that it has stored the new Preset Light Level.
Owner’s Manual
OPERATION
Once installed and configured the KPCx8 will operate with the
stored configuration settings. Single-tap, double-tap, hold, or
release the pushbuttons to transmit preset commands onto the
powerline. Refer to the 8-Button Specification Document
(available for download at www.PulseWorx.com) for more details
about the keypad operation.
Backlit Pushbuttons
Each of the eight pushbuttons has a blue LED behind it to
provide back-lighting and to indicate when loads or scenes are
activated. By default, the back-lighting is enabled and pressing a
pushbutton will cause it to illuminate brighter than the others.
Keypad Lockout Feature
A lockout feature is available to temporarily lock the keypad
pushbuttons when throwing parties or guarding against young
children playing with the lighting. To activate the keypad
lockout: simultaneously press and hold the G, H, I, and J buttons
for 3 seconds. All LED indicators will extinguish and future
presses of the buttons will have no effect. To disable the keypad
lockout: simultaneously press and hold the G, H, I, and J buttons
again for 3 seconds. The KPCx8 will reset and again respond to
button presses.
Factory Default Settings
To restore the following default settings place the KPCx8 into
SETUP mode and then simultaneously press and hold the F and
K buttons for 3 seconds. The E and L indicators will light up to
indicate that factory defaults have been restored.
Network ID:
Unit ID:
Network Password:
Receive Sensitivity:
Transmit Count:
LED Options:
E Button Mode:
F Button Mode:
G Button Mode:
H Button Mode:
I Button Mode:
J Button Mode:
K Button Mode:
L Button Mode:
LED Presets:
255
66
1234
High
Twice
Backlight enabled/ High
Link 1: Super Toggler
Link 2: Super Toggler
Link 3: Super Toggler
Link 4: Super Toggler
Link 5: Super Toggler
Link 6: Super Toggler
Link 7: Super Toggler
Link 8: Super Toggler
Standard 8-Button
LIMITED WARRANTY
Seller warrants this product, if used in accordance with all
applicable instructions, to be free from original defects in
materials and workmanship for a period of five years from the
date of purchase. Refer to the warranty information on the
PulseWorx website (www.PulseWorx.com) for exact details.
The Inventors Of:
19201 Parthenia St. Suite J
Northridge, CA 91324
(Phone) 818-701-9831 (Fax) 818-701-1506
sales@pcslighting.com www.pcslighting.com
