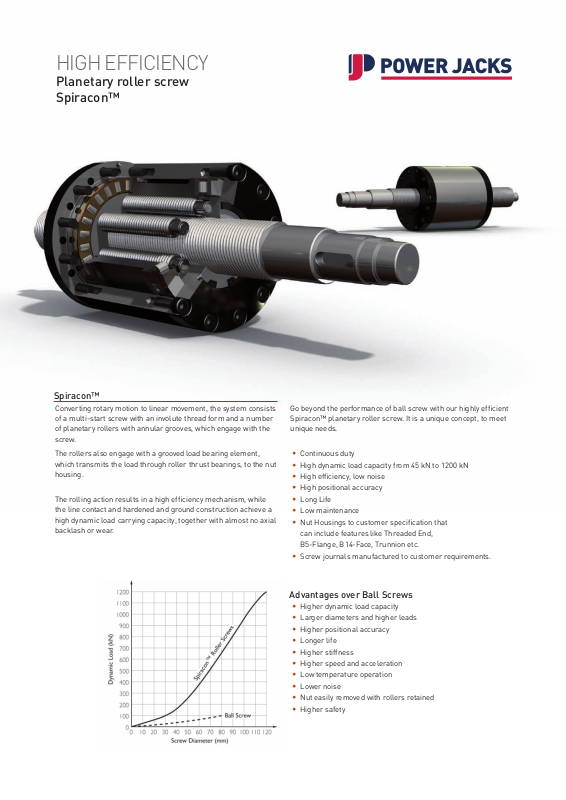

high efficiency

Planetary roller screw Spiracon™

Spiracon™

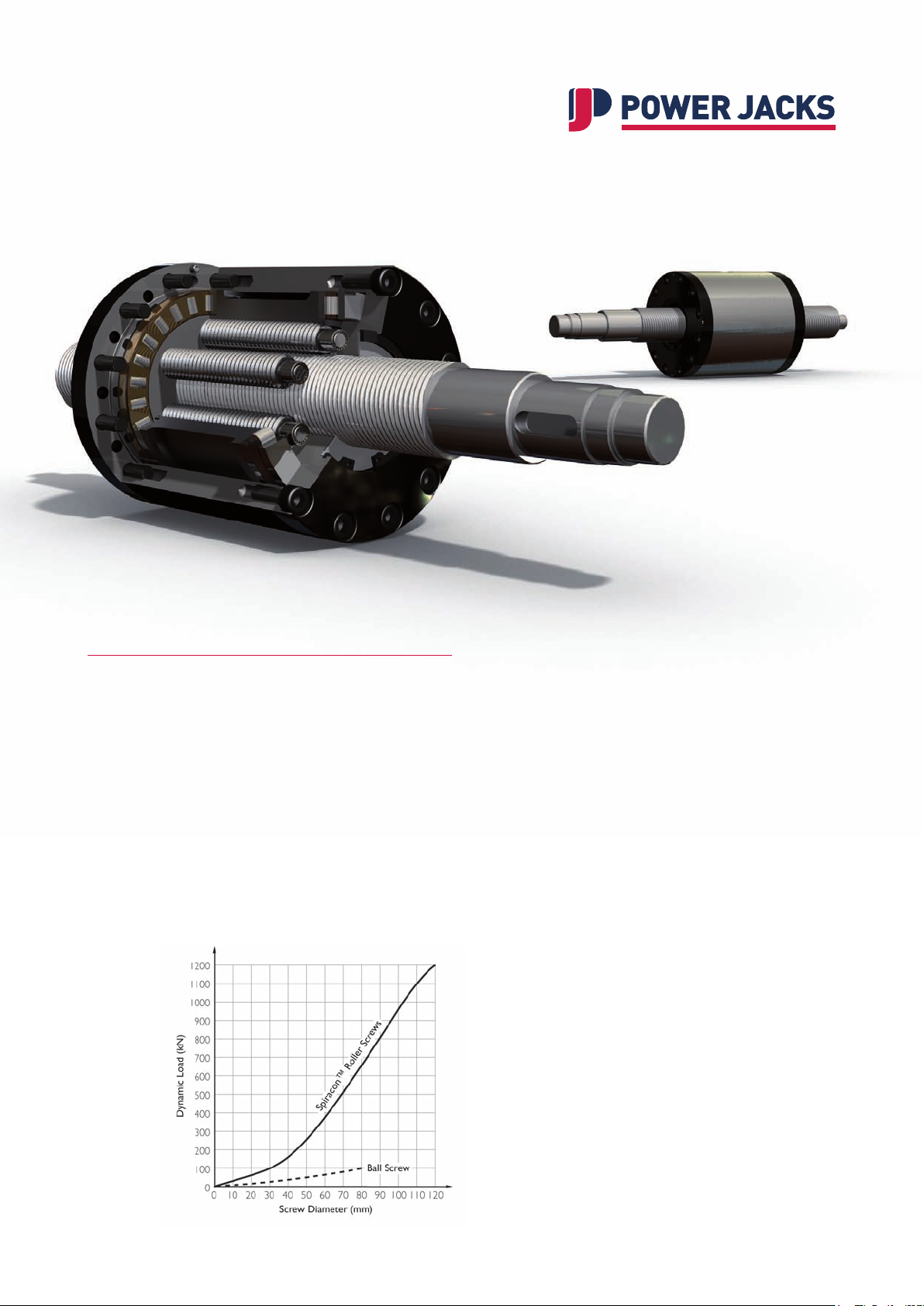

Converting rotary motion to linear movement, the system consists of a multi-start screw with an involute thread form and a number of planetary rollers with annular grooves, which engage with the screw.

The rollers also engage with a grooved load bearing element, which transmits the load through roller thrust bearings, to the nut housing.

The rolling action results in a high efciency mechanism, while the line contact and hardened and ground construction achieve a high dynamic load carrying capacity, together with almost no axial backlash or wear.

Go beyond the performance of ball screw with our highly efcient Spiracon™ planetary roller screw. It is a unique concept, to meet unique needs.

• Continuous duty

• High dynamic load capacity from 45 kN to 1200 kN

• High efciency, low noise

• High positional accuracy

• Long Life

• Low maintenance

• Nut Housings to customer specication that

can include features like Threaded End, B5-Flange, B14-Face, Trunnion etc.

• Screw journals manufactured to customer requirements.

Advantages over Ball Screws

• Higher dynamic load capacity

• Larger diameters and higher leads

• Higher positional accuracy

• Longer life

• Higher stiffness

• Higher speed and acceleration

• Low temperature operation

• Lower noise

• Nut easily removed with rollers retained

• Higher safety

Page 2

Technical Dimensions Chart

Model Lead (mm) Pitch (mm)

15 12 2 35 52

120

12 2 58 87 18 3 50 74 18 3 90 120 24 3 105 150 12 2 120 180 24 3 128 192 32 4 115 172 12 2 190 285 24 4 170 255 48 6 120 180 12 2 290 435 24 4 270 405 48 6 275 410 24 4 340 500 36 6 310 465 54 6 310 455 24 4 380 570 36 6 340 510 54 6 340 510 24 4 530 795 36 6 520 780 54 6 615 920 24 4 950 425 40 5 1200 1800 54 6 1200 1800

Dynamic C (kN)

Load Capacity

www.powerjacks.com

Static Co (kN) Load Capacity
