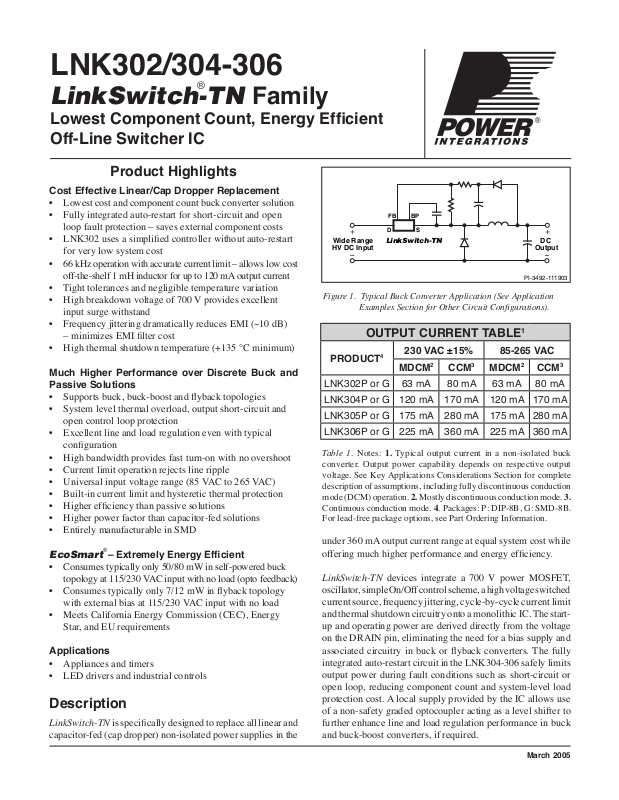

POWER INTEGRATIONS LNK 304GN Datasheet

DC

Output

Wide Range
HV DC Input

PI-3492-111903

+

+

FB

BP

S

D

LinkSwitch-TN

LNK302/304-306

®

LinkSwitch-TN Family

Lowest Component Count, Energy Efficient
Off-Line Switcher IC

Product Highlights

Cost Effective Linear/Cap Dropper Replacement

• Lowest cost and component count buck converter solution

• Fully integrated auto-restart for short-circuit and open
loop fault protection – saves external component costs

• LNK302 uses a simplified controller without auto-restart
for very low system cost

• 66 kHz operation with accurate current limit – allows low cost
off-the-shelf 1 mH inductor for up to 120 mA output current

• Tight tolerances and negligible temperature variation

• High breakdown voltage of 700 V provides excellent
input surge withstand

• Frequency jittering dramatically reduces EMI (~10 dB)

– minimizes EMI filter cost

• High thermal shutdown temperature (+135 °C minimum)

Much Higher Performance over Discrete Buck and
Passive Solutions

• Supports buck, buck-boost and flyback topologies

• System level thermal overload, output short-circuit and
open control loop protection

• Excellent line and load regulation even with typical
configuration

• High bandwidth provides fast turn-on with no overshoot

• Current limit operation rejects line ripple

• Universal input voltage range (85 VAC to 265 VAC)

• Built-in current limit and hysteretic thermal protection

• Higher efficiency than passive solutions

• Higher power factor than capacitor-fed solutions

• Entirely manufacturable in SMD

EcoSmart®– Extremely Energy Efficient

• Consumes typically only 50/80 mW in self-powered buck
topology at 115/230 VAC input with no load (opto feedback)

• Consumes typically only 7/12 mW in flyback topology
with external bias at 115/230 VAC input with no load

• Meets California Energy Commission (CEC), Energy
Star, and EU requirements

Applications

• Appliances and timers

• LED drivers and industrial controls

Description

LinkSwitch-TN is specifically designed to replace all linear and
capacitor-fed (cap dropper) non-isolated power supplies in the

March 2005

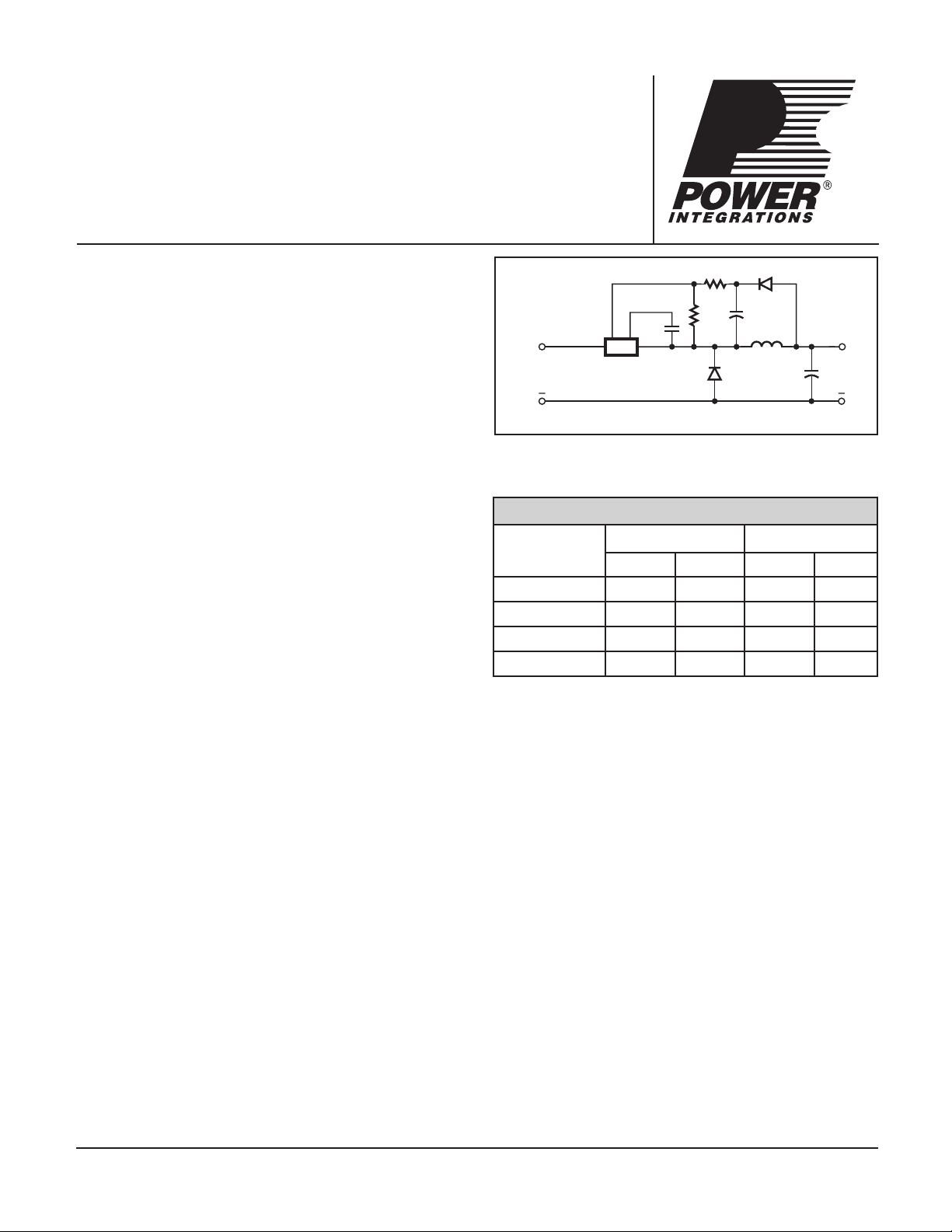

Figure 1. Typical Buck Converter Application (See Application
Examples Section for Other Circuit Configurations).

OUTPUT CURRENT TABLE

PRODUCT

230 VAC ±15% 85-265 VAC

4

MDCM2CCM3MDCM2CCM

1

3

LNK302P or G 63 mA 80 mA 63 mA 80 mA

LNK304P or G

LNK305P or G

LNK306P or G

Table 1. Notes: 1. Typical output current in a non-isolated buck
converter. Output power capability depends on respective output
voltage. See Key Applications Considerations Section for complete
description of assumptions, including fully discontinuous conduction
mode (DCM) operation. 2. Mostly discontinuous conduction mode. 3.
Continuous conduction mode.
For lead-free package options, see Part Ordering Information.

120 mA 170 mA 120 mA 170 mA

175 mA 280 mA 175 mA 280 mA

225 mA 360 mA 225 mA 360 mA

4. Packages: P: DIP-8B, G: SMD-8B.

under 360 mA output current range at equal system cost while
offering much higher performance and energy efficiency.

LinkSwitch-TN devices integrate a 700 V power MOSFET,
oscillator, simple On/Off control scheme, a high voltage switched
current source, frequency jittering, cycle-by-cycle current limit
and thermal shutdown circuitry onto a monolithic IC. The start­up and operating power are derived directly from the voltage
on the DRAIN pin, eliminating the need for a bias supply and
associated circuitry in buck or flyback converters. The fully
integrated auto-restart circuit in the LNK304-306 safely limits
output power during fault conditions such as short-circuit or
open loop, reducing component count and system-level load
protection cost. A local supply provided by the IC allows use
of a non-safety graded optocoupler acting as a level shifter to
further enhance line and load regulation performance in buck
and buck-boost converters, if required.

LNK302/304-306

PI-2367-021105

CLOCK

JITTER

OSCILLATOR

5.8 V

4.85 V

SOURCE

(S)

SRQ

DC

MAX

BYPASS

(BP)

FA

ULT

PRESENT

+

-

V

I

LIMIT

LEADING

EDGE

BLANKING

THERMAL

SHUTDOWN

+

-

DRAIN

(D)

REGULATOR

5.8

V

BYPASS PIN
UNDER-VOL

TAGE

CURRENT LIMIT
COMP

ARATOR

FEEDBACK

(FB)

Q

6.3 V

RESET

AUTO-

RESTART

COUNTER

1.65 V -V

T

CLOCK

PI-3904-020805

CLOCK

JITTER

OSCILLATOR

5.8 V

4.85 V

SOURCE

(S)

SRQ

DC

MAX

BYPASS

(BP)

+

-

V

I

LIMIT

LEADING

EDGE

BLANKING

THERMAL

SHUTDOWN

+

-

DRAIN

(D)

REGULATOR

5.8 V

BYPASS PIN
UNDER-VOLTAGE

CURRENT LIMIT
COMP

ARATOR

FEEDBACK

(FB)

Q

6.3 V

1.65 V -V

T

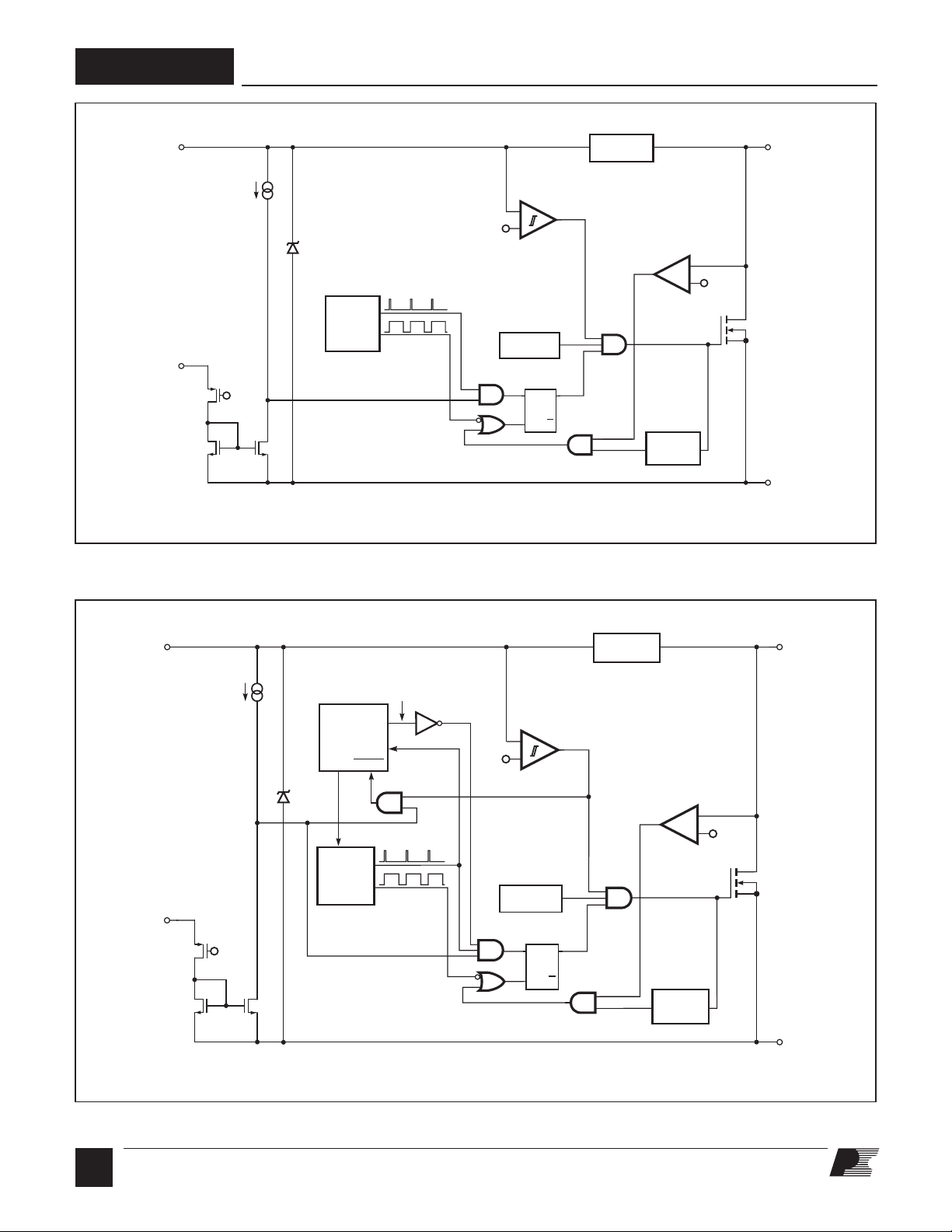

Figure 2a. Functional Block Diagram (LNK302).

Figure 2b. Functional Block Diagram (LNK304-306).

G

2

3/05

LNK302/304-306

PI-3491-111903

FB

D

S

BP

S

S

S

P Package (DIP-8B)

G Package (SMD-8B)

8

5

7

1

4

2

3

Pin Functional Description

DRAIN (D) Pin:

Power MOSFET drain connection. Provides internal operating
current for both start-up and steady-state operation.

BYPASS (BP) Pin:

Connection point for a 0.1
internally generated 5.8 V supply.

FEEDBACK (FB) Pin:

During normal operation, switching of the power MOSFET is
controlled by this pin. MOSFET switching is terminated when
a current greater than 49 µA is delivered into this pin.

SOURCE (S) Pin:

This pin is the power MOSFET source connection. It is also the
ground reference for the BYPASS and FEEDBACK pins.

µF external bypass capacitor for the

The LinkSwitch-TN oscillator incorporates circuitry that
introduces a small amount of frequency jitter, typically 4 kHz
peak-to-peak, to minimize EMI emission. The modulation rate
of the frequency jitter is set to 1 kHz to optimize EMI reduction
for both average and quasi-peak emissions. The frequency
jitter should be measured with the oscilloscope triggered at
the falling edge of the DRAIN waveform. The waveform in
Figure 4 illustrates the frequency jitter of the LinkSwitch-TN.

Feedback Input Circuit

The feedback input circuit at the FB pin consists of a low
impedance source follower output set at 1.65 V. When the current
delivered into this pin exceeds 49

µA, a low logic level (disable)

is generated at the output of the feedback circuit. This output
is sampled at the beginning of each cycle on the rising edge of
the clock signal. If high, the power MOSFET is turned on for
that cycle (enabled), otherwise the power MOSFET remains off
(disabled). Since the sampling is done only at the beginning of
each cycle, subsequent changes in the FB pin voltage or current
during the remainder of the cycle are ignored.

5.8 V Regulator and 6.3 V Shunt Voltage Clamp

The 5.8 V regulator charges the bypass capacitor connected to
the BYPASS pin to 5.8 V by drawing a current from the voltage
on the DRAIN, whenever the MOSFET is off. The BYPASS
pin is the internal supply voltage node for the

LinkSwitch-TN.
When the MOSFET is on, the LinkSwitch-TN runs off of the
energy stored in the bypass capacitor. Extremely low power
consumption of the internal circuitry allows the LinkSwitch-TN
to operate continuously from the current drawn from the DRAIN
pin. A bypass capacitor value of 0.1 µF is sufficient for both
high frequency decoupling and energy storage.

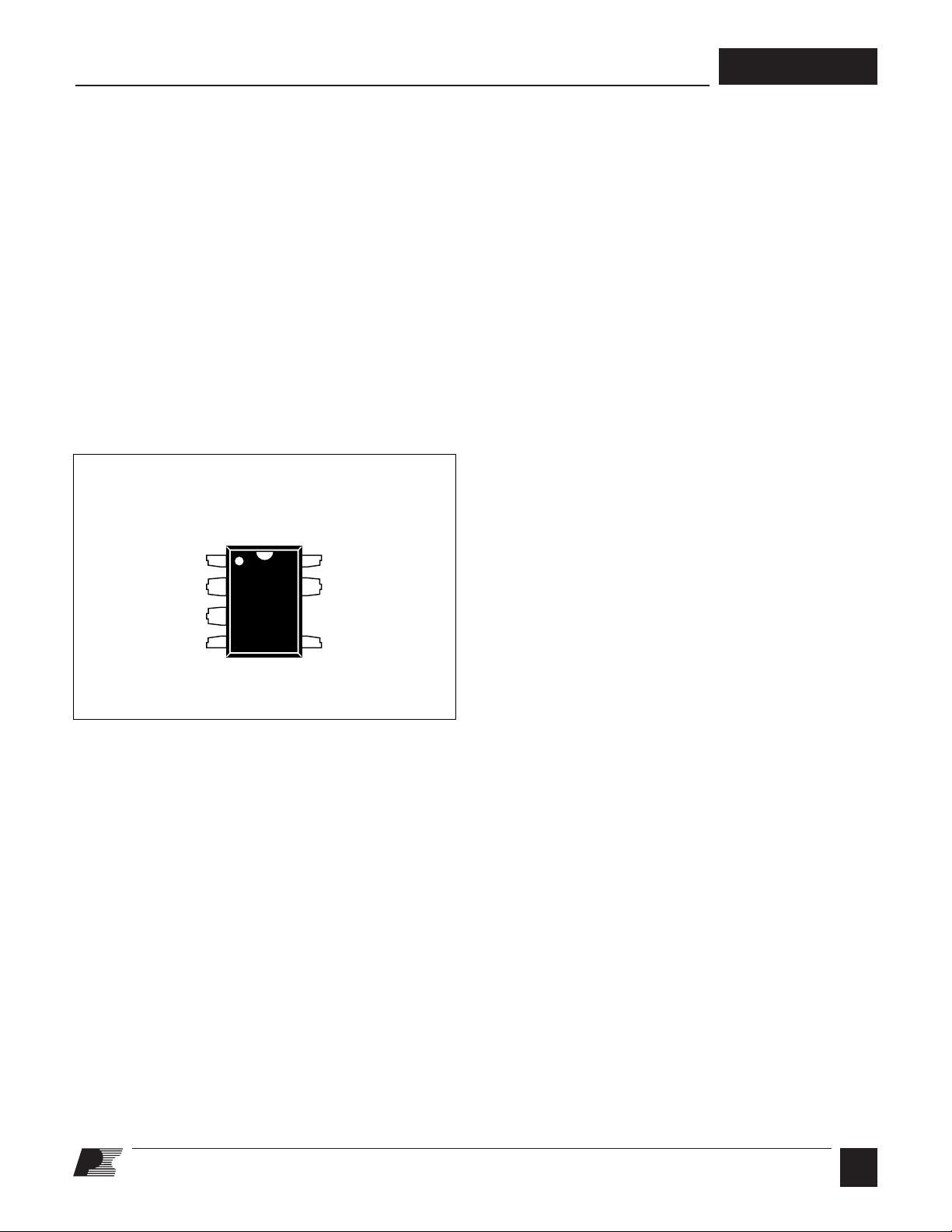

Figure 3. Pin Configuration.

LinkSwitch-TN Functional
Description

LinkSwitch-TN combines a high voltage power MOSFET switch
with a power supply controller in one device. Unlike conventional
PWM (pulse width modulator) controllers, LinkSwitch-TN uses
a simple ON/OFF control to regulate the output voltage. The
LinkSwitch-TN controller consists of an oscillator, feedback
(sense and logic) circuit, 5.8 V regulator, BYPASS pin under­voltage circuit, over-temperature protection, frequency jittering,
current limit circuit, leading edge blanking and a 700 V power
MOSFET. The LinkSwitch-TN incorporates additional circuitry
for auto-restart.

Oscillator

The typical oscillator frequency is internally set to an average
of 66 kHz. Two signals are generated from the oscillator: the
maximum duty cycle signal (DC
indicates the beginning of each cycle.

) and the clock signal that

MAX

In addition, there is a 6.3 V shunt regulator clamping the
BYPASS pin at 6.3 V when current is provided to the BYPASS
pin through an external resistor. This facilitates powering of
LinkSwitch-TN externally through a bias winding to decrease
the no-load consumption to about 50 mW.

BYPASS Pin Under-Voltage

The BYPASS pin under-voltage circuitry disables the power
MOSFET when the BYPASS pin voltage drops below 4.85 V.
Once the BYPASS pin voltage drops below 4.85 V, it must rise
back to 5.8 V to enable (turn-on) the power MOSFET.

Over-Temperature Protection

The thermal shutdown circuitry senses the die temperature.
The threshold is set at 142

°C typical with a 75 °C hysteresis.

When the die temperature rises above this threshold (142 °C) the
power MOSFET is disabled and remains disabled until the die
temperature falls by 75 °C, at which point it is re-enabled.

Current Limit

The current limit circuit senses the current in the power MOSFET.
When this current exceeds the internal threshold (I

LIMIT

3/05

G

), the

3

LNK302/304-306

RTN

12 V,
120 mA

85-265

VAC

PI-3757-112103

FB

BP

S

D

LinkSwitch-TN

C4

4.7 µF
400 V

C1

100 nF

D4

1N4007

D3

1N4007

D1

UF4005

LNK304

D2

1N4005GP

C2

100 µF

16 V

RF1

8.2 Ω
2 W

R1

13.0

kΩ

1%

R3

2.05 kΩ
1%

L2

1 mH

L1

1 mH

280 mA

C5

4.7 µF
400 V

C3

10 µF

35 V

R4

3.3 kΩ

600

0 2

0

68 kHz

64 kHz

V

DRAIN

Time (µs)

PI-3660-081303

500

400

300

200

100

0

12 V, 120 mA non-isolated power supply used in appliance
control such as rice cookers, dishwashers or other white goods.
This circuit may also be applicable to other applications such
as night-lights, LED drivers, electricity meters, and residential
heating controllers, where a non-isolated supply is acceptable.

The input stage comprises fusible resistor RF1, diodes D3 and
D4, capacitors C4 and C5, and inductor L2. Resistor RF1 is
a flame proof, fusible, wire wound resistor. It accomplishes
several functions: a) Inrush current limitation to safe levels for
rectifiers D3 and D4; b) Differential mode noise attenuation;
c) Input fuse should any other component fail short-circuit
(component fails safely open-circuit without emitting smoke,
fire or incandescent material).

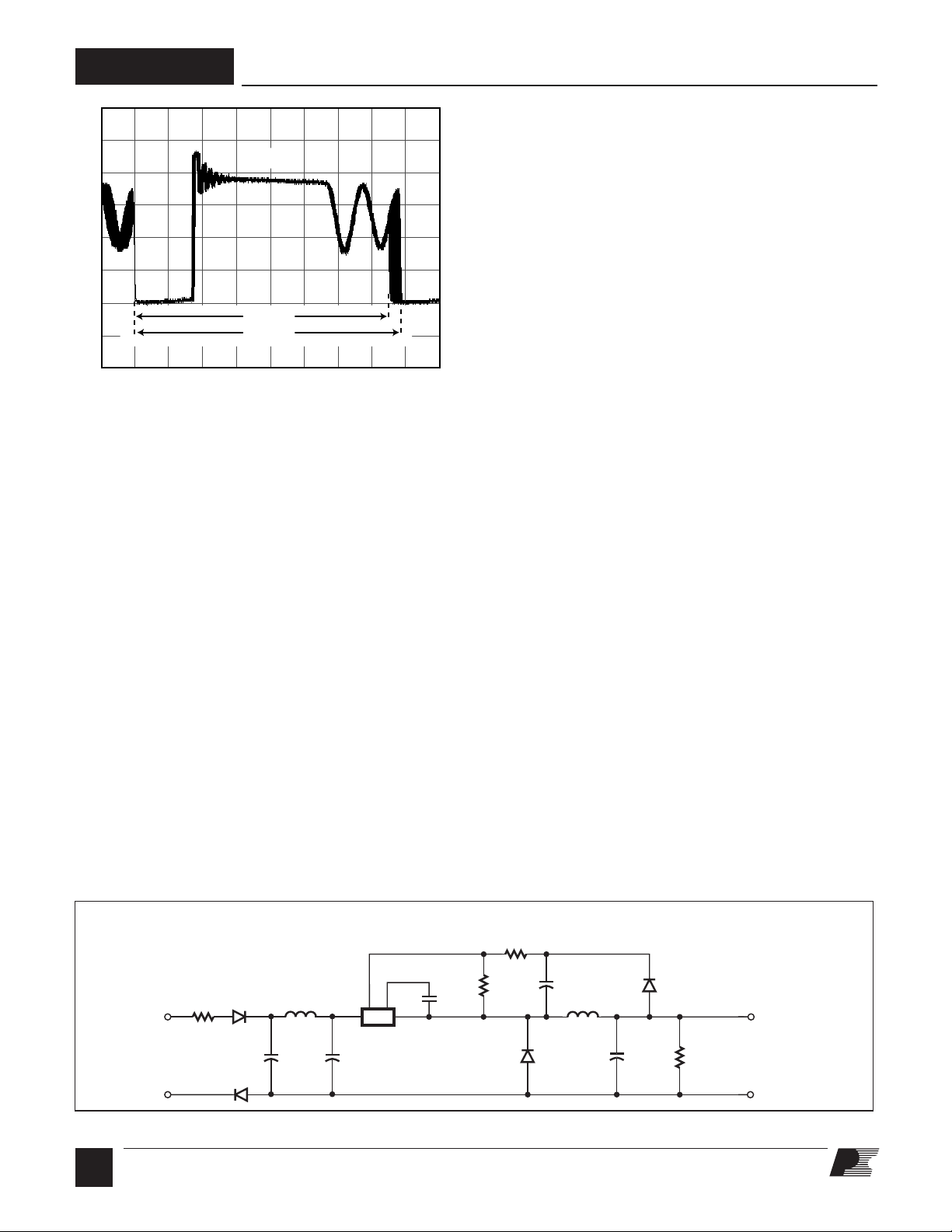

Figure 4. Frequency Jitter.

power MOSFET is turned off for the remainder of that cycle.
The leading edge blanking circuit inhibits the current limit
comparator for a short time (t

) after the power MOSFET

LEB

is turned on. This leading edge blanking time has been set so
that current spikes caused by capacitance and rectifier reverse
recovery time will not cause premature termination of the
switching pulse.

Auto-Restart (LNK304-306 only)

In the event of a fault condition such as output overload, output
short, or an open loop condition, LinkSwitch-TN enters into auto-
restart operation. An internal counter clocked by the oscillator
gets reset every time the FB pin is pulled high. If the FB pin
is not pulled high for 50 ms, the power MOSFET switching is
disabled for 800 ms. The auto-restart alternately enables and
disables the switching of the power MOSFET until the fault
condition is removed.

Applications Example

A 1.44 W Universal Input Buck Converter

The circuit shown in Figure 5 is a typical implementation of a

The power processing stage is formed by the LinkSwitch-TN
freewheeling diode D1, output choke L1, and the output
capacitor C2. The LNK304 was selected such that the power
supply operates in the mostly discontinuous-mode (MDCM).
Diode D1 is an ultra-fast diode with a reverse recovery time (trr)
of approximately 75 ns, acceptable for MDCM operation. For
continuous conduction mode (CCM) designs, a diode with a trr of
≤35 ns is recommended. Inductor L1 is a standard off-the- shelf
inductor with appropriate RMS current rating (and acceptable
temperature rise). Capacitor C2 is the output filter capacitor;
its primary function is to limit the output voltage ripple. The
output voltage ripple is a stronger function of the ESR of the
output capacitor than the value of the capacitor itself.

To a first order, the forward voltage drops of D1 and D2 are
identical. Therefore, the voltage across C3 tracks the output
voltage. The voltage developed across C3 is sensed and regulated
via the resistor divider R1 and R3 connected to U1ʼs FB pin.
The values of R1 and R3 are selected such that, at the desired
output voltage, the voltage at the FB pin is 1.65 V.

Regulation is maintained by skipping switching cycles. As the
output voltage rises, the current into the FB pin will rise. If
this exceeds I

then subsequent cycles will be skipped until the

FB

current reduces below IFB. Thus, as the output load is reduced,
more cycles will be skipped and if the load increases, fewer

,

Figure 5. Universal Input, 12 V, 120 mA Constant Voltage Power Supply Using LinkSwitch-TN.

4

G
3/05

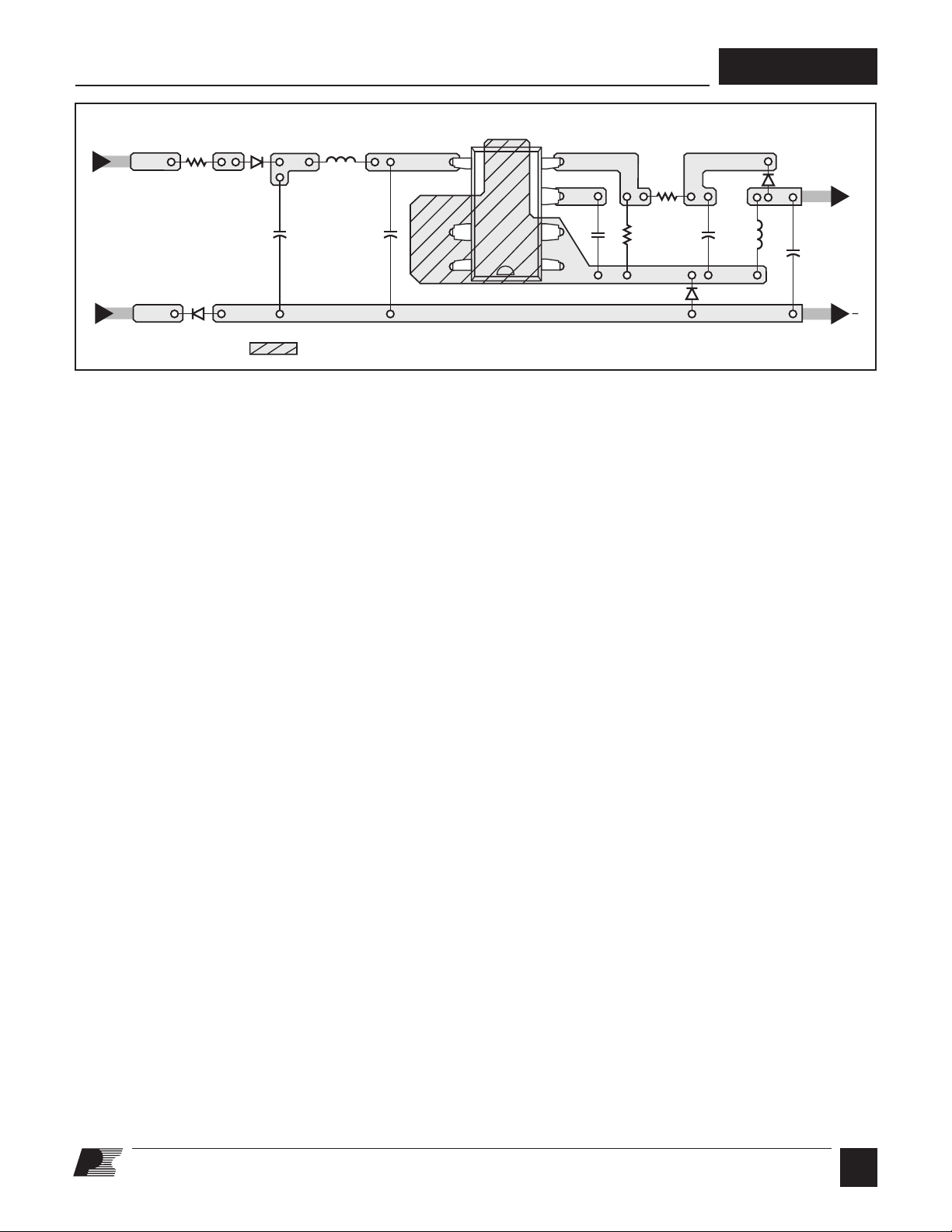

Figure 6. Recommended Printed Circuit Layout for LinkSwitch-TN in a Buck Converter Configuration.

+

PI-3750-083004

C2

L1

L2

R1

R3

RF1 D1

D4

D2

D1

C1

C3

C5C4

Optimize hatched copper areas ( ) for heatsinking and EMI.

D

S

S

FB

BP

S

S

LinkSwitch-TN

AC

INPUT

DC

OUTPUT

LNK302/304-306

cycles are skipped. To provide overload protection if no cycles
are skipped during a 50 ms period, LinkSwitch-TN will enter
auto-restart (LNK304-306), limiting the average output power
to approximately 6% of the maximum overload power. Due to
tracking errors between the output voltage and the voltage across
C3 at light load or no load, a small pre-load may be required
(R4). For the design in Figure 5, if regulation to zero load is
required, then this value should be reduced to 2.4 kΩ.

Key Application Considerations

LinkSwitch-TN Design Considerations

Output Current Table

Data sheet maximum output current table (Table 1) represents
the maximum practical continuous output current for both
mostly discontinuous conduction mode (MDCM) and continuous
conduction mode (CCM) of operation that can be delivered from
a given
conditions:

1) Buck converter topology.

2) The minimum DC input voltage is ≥70 V. The value of

3) For CCM operation a KRP* of 0.4.

4) Output voltage of 12 VDC.

5) Efficiency of 75%.

6) A catch/freewheeling diode with trr ≤75 ns is used for

7) The part is board mounted with SOURCE pins soldered

*KRP is the ratio of ripple to peak inductor current.

LinkSwitch-TN device under the following assumed

input capacitance should be large enough to meet this
criterion.

MDCM operation and for CCM operation, a diode with
trr ≤35 ns is used.

to a sufficient area of copper to keep the SOURCE pin
temperature at or below 100 °C.

LinkSwitch-TN Selection and Selection Between
MDCM and CCM Operation

Select the LinkSwitch-TN device, freewheeling diode and output
inductor that gives the lowest overall cost. In general, MDCM
provides the lowest cost and highest efficiency converter. CCM
designs require a larger inductor and ultra-fast (t

≤35 ns)

rr

freewheeling diode in all cases. It is lower cost to use a larger
LinkSwitch-TN in MDCM than a smaller LinkSwitch-TN in CCM
because of the additional external component costs of a CCM
design. However, if the highest output current is required, CCM
should be employed following the guidelines below.

Topology Options

LinkSwitch-TN can be used in all common topologies, with or
without an optocoupler and reference to improve output voltage
tolerance and regulation. Table 2 provide a summary of these
configurations. For more information see the Application
Note – LinkSwitch-TN Design Guide.

Component Selection

Referring to Figure 5, the following considerations may be
helpful in selecting components for a LinkSwitch-TN design.

Freewheeling Diode D1

Diode D1 should be an ultra-fast type. For MDCM, reverse
recovery time t

≤75 ns should be used at a temperature of

rr

70 °C or below. Slower diodes are not acceptable, as continuous
mode operation will always occur during startup, causing high
leading edge current spikes, terminating the switching cycle
prematurely, and preventing the output from reaching regulation.
If the ambient temperature is above 70 °C then a diode with
trr ≤35 ns should be used.

For CCM an ultra-fast diode with reverse recovery time
trr ≤35 ns should be used. A slower diode may cause excessive

3/05

G

5

LNK302/304-306

V

O

V

IN

PI-3751-121003

+

+

FB

BP

S

D

LinkSwitch-TN

LinkSwitch-TN

PI-3752-121003

+

+

BP

FB

D

S

V

O

V

IN

LinkSwitch-TN

PI-3753-111903

+ +

BP

FB

D

S

V

O

V

IN

LinkSwitch-TN

PI-3754-112103

+

+

BP

FB

D

S

V

IN

I

O

R =

V

F

V

F

I

O

V

O

V

IN

PI-3755-121003

+

+

FB

BP

S

D

LinkSwitch-TN

R

SENSE

=

R

SENSE

300 Ω

2 kΩ

2 V

I

O

I

O

100 nF

10 µF

50 V

V

IN

PI-3779-120803

+

FB

BP

S

D

LinkSwitch-TN

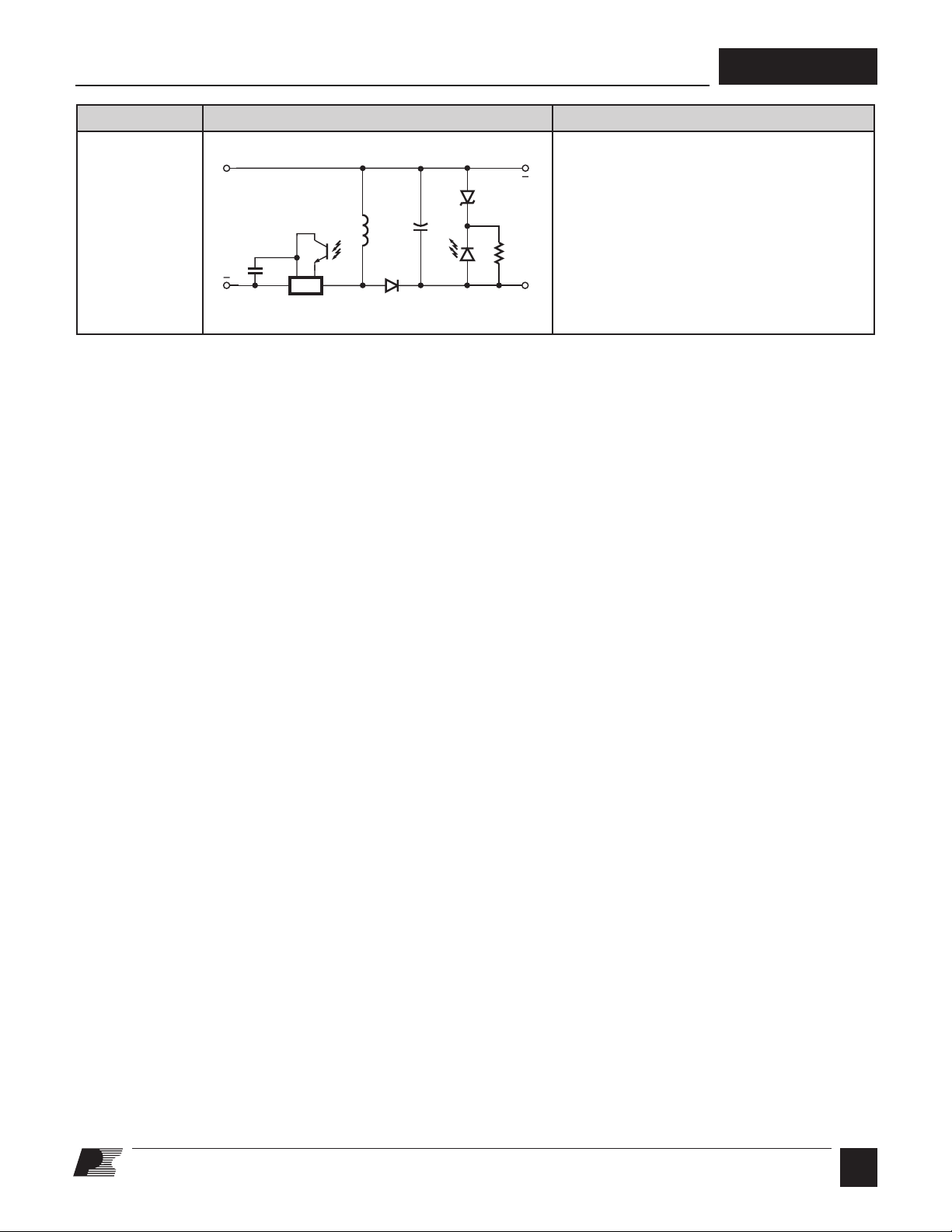

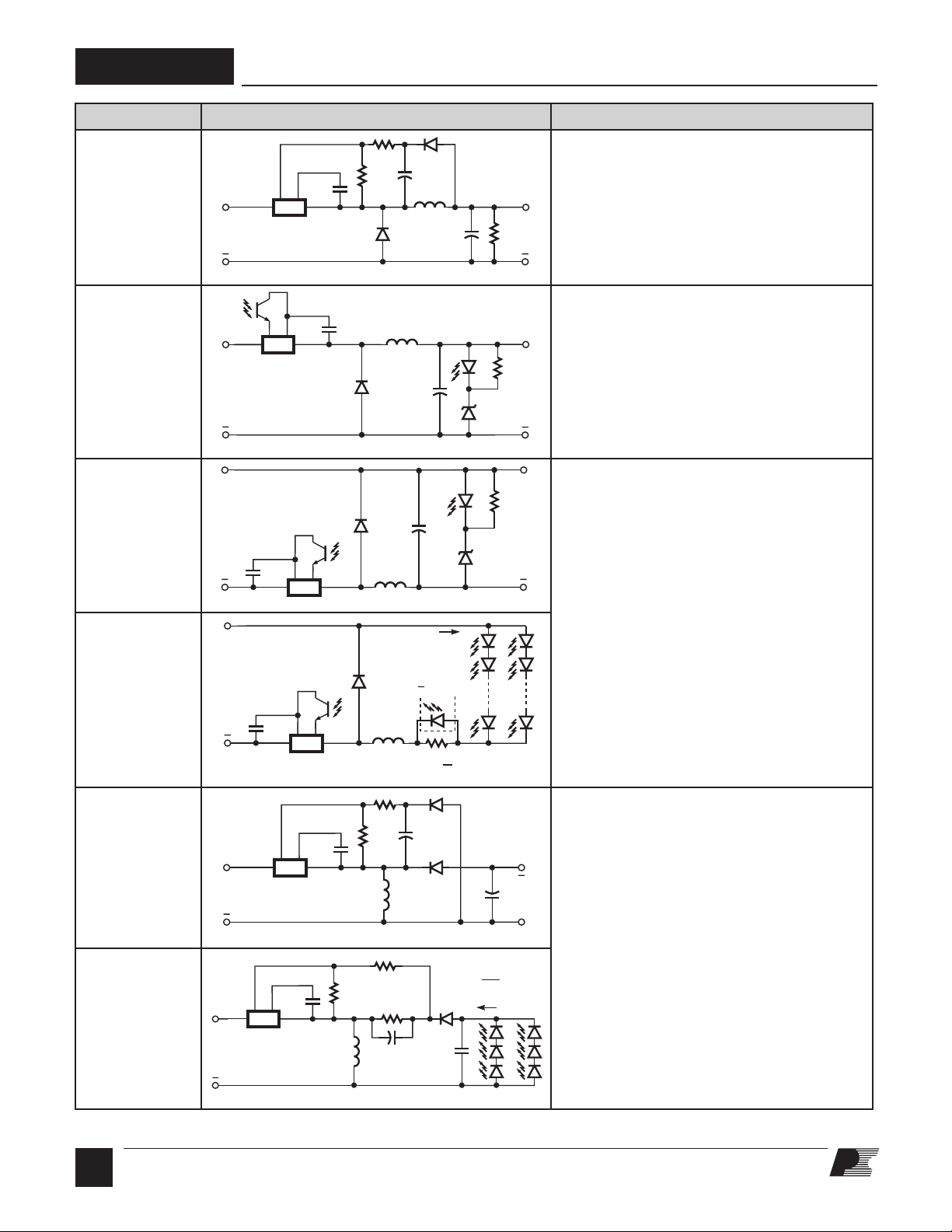

TOPOLOGY BASIC CIRCUIT SCHEMATIC KEY FEATURES

High-Side
Buck –
Direct
Feedback

1. Output referenced to input

2. Positive output (VO) with respect to -VIN

3. Step down – VO < VIN

4. Low cost direct feedback (±10% typ.)

High-Side
Buck –
Optocoupler
Feedback

Low-Side
Buck –
Optocoupler
Feedback

Low-Side
Buck –
Constant
Current LED
Driver

1. Output referenced to input

2. Positive output (VO) with respect to -VIN

3. Step down – VO < VIN

4. Optocoupler feedback

- Accuracy only limited by reference
choice

- Low cost non-safety rated opto

- No pre-load required

5. Minimum no-load consumption

1. Output referenced to input

2. Negative output (VO) with respect to +VIN

3. Step down – VO < VIN

4. Optocoupler feedback

- Accuracy only limited by reference
choice

- Low cost non-safety rated opto

- No pre-load required

- Ideal for driving LEDs

High-Side
Buck Boost –
Direct
Feedback

High-Side
Buck Boost –
Constant
Current LED
Driver

G
3/05

Table 2. Common Circuit Configurations Using LinkSwitch-TN. (continued on next page)

6

1. Output referenced to input

2. Negative output (VO) with respect to +VIN

3. Step up/down – VO > V

IN or VO

< VIN

4. Low cost direct feedback (±10% typ.)

5. Fail-safe – output is not subjected to input
voltage if the internal MOSFET fails

6. Ideal for driving LEDs – better accuracy
and temperature stability than Low-side
Buck constant current LED driver

LNK302/304-306

LinkSwitch-TN

PI-3756-111903

+

BP

FB

D

S

V

O

V

IN

+

TOPOLOGY BASIC CIRCUIT SCHEMATIC KEY FEATURES

Low-Side
Buck Boost –
Optocoupler
Feedback

Table 2 (cont). Common Circuit Configurations Using LinkSwitch-TN.

1. Output referenced to input

2. Positive output (VO) with respect to +VIN

3. Step up/down – VO > VIN or VO < VIN

4. Optocoupler feedback

- Accuracy only limited by reference
choice

- Low cost non-safety rated opto

- No pre-load required

5. Fail-safe – output is not subjected to input
voltage if the internal MOSFET fails

leading edge current spikes, terminating the switching cycle
prematurely and preventing full power delivery.

Fast and slow diodes should never be used as the large reverse
recovery currents can cause excessive power dissipation in the
diode and/or exceed the maximum drain current specification
of LinkSwitch-TN.

Feedback Diode D2

Diode D2 can be a low-cost slow diode such as the 1N400X
series, however it should be specified as a glass passivated type
to guarantee a specified reverse recovery time. To a first order,
the forward drops of D1 and D2 should match.

Inductor L1

Choose any standard off-the-shelf inductor that meets the
design requirements. A “drum” or “dog bone” “I” core inductor
is recommended with a single ferrite element due to to its
low cost and very low audible noise properties. The typical
inductance value and RMS current rating can be obtained from
the LinkSwitch-TN design spreadsheet available within the
PI Expert design suite from Power Integrations. Choose L1
greater than or equal to the typical calculated inductance with
RMS current rating greater than or equal to calculated RMS
inductor current.

Feedback Capacitor C3

Capacitor C3 can be a low cost general purpose capacitor. It
provides a “sample and hold” function, charging to the output
voltage during the off time of

LinkSwitch-TN. Its value should

be 10 µF to 22 µF; smaller values cause poorer regulation at
light load conditions.

Pre-load Resistor R4

In high-side, direct feedback designs where the minimum load
is <3 mA, a pre-load resistor is required to maintain output
regulation. This ensures sufficient inductor energy to pull the
inductor side of the feedback capacitor C3 to input return via
D2. The value of R4 should be selected to give a minimum
output load of 3 mA.

In designs with an optocoupler the Zener or reference bias
current provides a 1 mA to 2 mA minimum load, preventing
“pulse bunching” and increased output ripple at zero load.

LinkSwitch-TN Layout Considerations

In the buck or buck-boost converter configuration, since the
SOURCE pins in LinkSwitch-TN are switching nodes, the copper
area connected to SOURCE should be minimized to minimize
EMI within the thermal constraints of the design.

Capacitor C2

The primary function of capacitor C2 is to smooth the inductor
current. The actual output ripple voltage is a function of this
capacitorʼs ESR. To a first order, the ESR of this capacitor
should not exceed the rated ripple voltage divided by the typical
current limit of the chosen LinkSwitch-TN.

Feedback Resistors R1 and R3

The values of the resistors in the resistor divider formed by
R1 and R3 are selected to maintain 1.65 V at the FB pin. It is
recommended that R3 be chosen as a standard 1% resistor of
2 kΩ. This ensures good noise immunity by biasing the feedback
network with a current of approximately 0.8 mA.

In the boost configuration, since the SOURCE pins are tied
to DC return, the copper area connected to SOURCE can be
maximized to improve heatsinking.

The loop formed between the

LinkSwitch-TN, inductor (L1),
freewheeling diode (D1), and output capacitor (C2) should
be kept as small as possible. The BYPASS pin capacitor
C1 (Figure 6) should be located physically close to the
SOURCE (S) and BYPASS (BP) pins. To minimize direct
coupling from switching nodes, the LinkSwitch-TN should be
placed away from AC input lines. It may be advantageous to
place capacitors C4 and C5 in-between LinkSwitch-TN and the
AC input. The second rectifier diode D4 is optional, but may

G

7

3/05

LNK302/304-306

be included for better EMI performance and higher line surge
withstand capability.

Quick Design Checklist

As with any power supply design, all

LinkSwitch-TN designs
should be verified for proper functionality on the bench. The
following minimum tests are recommended:

1) Adequate DC rail voltage – check that the minimum DC

input voltage does not fall below 70 VDC at maximum load,
minimum input voltage.

2) Correct Diode Selection – UF400x series diodes are

recommended only for designs that operate in MDCM at
an ambient of 70 °C or below. For designs operating in
continuous conduction mode (CCM) and/or higher ambients,
then a diode with a reverse recovery time of 35 ns or better,
such as the BYV26C, is recommended.

3) Maximum drain current – verify that the peak drain current

is below the data sheet peak drain specification under

worst-case conditions of highest line voltage, maximum
overload (just prior to auto-restart) and highest ambient
temperature.

4) Thermal check – at maximum output power, minimum
input voltage and maximum ambient temperature, verify
that the LinkSwitch-TN SOURCE pin temperature is
100 °C or below. This figure ensures adequate margin due
to variations in R

from part to part. A battery powered

DS(ON)

thermocouple meter is recommended to make measurements
when the SOURCE pins are a switching node. Alternatively,
the ambient temperature may be raised to indicate margin
to thermal shutdown.

In a LinkSwitch-TN design using a buck or buck boost converter
topology, the SOURCE pin is a switching node. Oscilloscope
measurements should therefore be made with probe grounded
to a DC voltage, such as primary return or DC input rail, and
not to the SOURCE pins. The power supply input must always
be supplied from an isolated source (e.g. via an isolation
transformer).

G

8

3/05

LNK302/304-306

ABSOLUTE MAXIMUM RATINGS

DRAIN Voltage .................................. ................ -0.3 V to 700 V

Peak DRAIN Current (LNK302).................200 mA (375 mA)

Peak DRAIN Current (LNK304).................400 mA (750 mA)

Peak DRAIN Current (LNK305).................800 mA (1500 mA)

Peak DRAIN Current (LNK306).................1400 mA (2600 mA)

FEEDBACK Voltage .........................................-0.3 V to 9 V

FEEDBACK Current.............................................100 mA

BYPASS Voltage ..........................................-0.3 V to 9 V

Storage Temperature .......................................... -65 °C to 150 °C

Operating Junction Temperature
Lead Temperature

(4)

........................................................260 °C

(3)

..................... -40 °C to 150 °C

(2)

(2)

(2)

(2)

THERMAL IMPEDANCE

Thermal Impedance: P or G Package:

(θJA) ........................... 70 °C/W

(1)

(θJC)

............................................... 11 °C/W

(2)

; 60 °C/W

(3)

Conditions

Parameter Symbol

SOURCE = 0 V; TJ = -40 to 125 °C

See Figure 7

(Unless Otherwise Specified)

(1,5)

Notes:

1. All voltages referenced to SOURCE, TA = 25 °C.

2. The higher peak DRAIN current is allowed if the DRAIN
to SOURCE voltage does not exceed 400 V.

3. Normally limited by internal circuitry.

4. 1/16 in. from case for 5 seconds.

5. Maximum ratings specified may be applied, one at a time,
without causing permanent damage to the product.
Exposure to Absolute Maximum Rating conditions for
extended periods of time may affect product reliability.

Notes:

1. Measured on pin 2 (SOURCE) close to plastic interface.

2. Soldered to 0.36 sq. in. (232 mm2), 2 oz. (610 g/m2) copper clad.

3. Soldered to 1 sq. in. (645 mm2), 2 oz. (610 g/m2) copper clad.

Min Typ Max Units

CONTROL FUNCTIONS

Output
Frequency

Maximum Duty
Cycle

f

DC

OSC

FEEDBACK Pin
Turnoff Threshold

I

Current
FEEDBACK Pin

Voltage at Turnoff

V

Threshold

I

DRAIN Supply
Current

I

FB

S1

S2

MAX

FB

TJ = 25 °C

Peak-Peak Jitter 4

S2 Open 66 69 72 %

TJ = 25 °C 30 49 68 µA

VFB ≥2 V

(MOSFET Not Switching)

See Note A

FEEDBACK

Open
(MOSFET
Switching)

See Notes A, B

Average

LNK302/304

LNK305

LNK306

62 66 70

kHz

1.54 1.65 1.76 V

160 220 µA

200 260

220 280

µA

250 310

3/05

G

9

LNK302/304-306

Parameter Symbol

SOURCE = 0 V; TJ = -40 to 125 °C

CONTROL FUNCTIONS (cont.)

I

CH1

BYPASS Pin
Charge Current

I

CH2

Conditions

See Figure 7

(Unless Otherwise Specified)

VBP = 0 V

TJ = 25 °C

VBP = 4 V

TJ = 25 °C

LNK302/304 -5.5 -3.3 -1.8

LNK305/306 -7.5 -4.6 -2.5

LNK302/304 -3.8 -2.3 -1.0

LNK305/306 -4.5 -3.3 -1.5

Min Typ Max Units

mA

BYPASS Pin
Voltage

BYPASS Pin
Voltage Hysteresis

BYPASS Pin
Supply Current

V

I

CIRCUIT PROTECTION

I

Current Limit

LIMIT

Note E)

V

BP

BPH

BPSC

(See

See Note D 68 µA

di/dt = 55 mA/µs

TJ = 25 °C

di/dt = 250 mA/µs

TJ = 25 °C

di/dt = 65 mA/µs

TJ = 25 °C

di/dt = 415 mA/µs

TJ = 25 °C

di/dt = 75 mA/µs

TJ = 25 °C

di/dt = 500 mA/µs

TJ = 25 °C

5.55 5.8 6.10 V

0.8 0.95 1.2 V

126 136 146

LNK302

145 165 185

240 257 275

LNK304

271 308 345

mA

350 375 401

LNK305

396 450 504

Minimum On Time

G

10

3/05

t

ON(MIN)

di/dt = 95 mA/µs

TJ = 25 °C

di/dt = 610 mA/µs

TJ = 25 °C

450 482 515

LNK306

508 578 647

LNK302/304 280 360 475

LNK305 360 460 610

LNK306 400 500 675

ns

Parameter Symbol

CIRCUIT PROTECTION (cont.)

Conditions

SOURCE = 0 V; TJ = -40 to 125 °C

See Figure 7

(Unless Otherwise Specified)

LNK302/304-306

Min Typ Max Units

Leading Edge
Blanking Time

Thermal Shutdown
Temperature

Thermal Shutdown
Hysteresis

OUTPUT

ON-State
Resistance

OFF-State Drain
Leakage Current

T

R

I

t

LEB

T

SD

SHD

DS(ON)

DSS

TJ = 25 °C

See Note F

See Note G 75 °C

LNK302

ID = 13 mA

LNK304

ID = 25 mA

LNK305

ID = 35 mA

LNK306

ID = 45 mA

VBP = 6.2 V, VFB ≥2 V,

VDS = 560 V,

TJ = 25 °C

170 215 ns

135 142 150 °C

TJ = 25 °C

TJ = 100 °C

TJ = 25 °C

TJ = 100 °C

TJ = 25 °C

TJ = 100 °C

TJ = 25 °C

TJ = 100 °C

LNK302/304 50

LNK305 70

LNK306 90

48 55.2

76 88.4

24 27.6

38 44.2

12 13.8

19 22.1

7 8.1

11 12.9

Ω

µA

Breakdown Voltage

Rise Time

Fall Time

DRAIN Supply
Voltage

Output Enable
Delay

Output Disable
Setup Time

Auto-Restart
ON-Time

Auto-Restart
Duty Cycle

BV

DC

t

t

DST

t

DSS

t

R

t

F

EN

AR

AR

VBP = 6.2 V, VFB ≥2 V,

TJ = 25 °C

Measured in a Typical Buck

Converter Application

See Figure 9 10 µs

TJ = 25 °C

See Note H

LNK302

LNK304-306 50

LNK302

LNK304-306 6

700 V

50 ns

50 ns

50 V

0.5 µs

Not Applicable

ms

Not Applicable

G

3/05

%

11

LNK302/304-306

PI-3490-060204

50 V50 V

D

FB

SS

S

S

BP

S1

470

kΩ

S2

0.1

µF

470 Ω

5 W

PI-3707-112503

FB

t

P

t

EN

DC

MAX

tP =

1

f

OSC

V

DRAIN

(internal signal)

NOTES:

A. Total current consumption is the sum of IS1 and I

switching) and the sum of IS2 and I

when FEEDBACK pin is shorted to SOURCE (MOSFET switching).

DSS

B Since the output MOSFET is switching, it is difficult to isolate the switching current from the supply current at the
DRAIN. An alternative is to measure the BYPASS pin current at 6 V.

C. See Typical Performance Characteristics section Figure 14 for BYPASS pin start-up charging waveform.

D. This current is only intended to supply an optional optocoupler connected between the BYPASS and FEEDBACK

pins and not any other external circuitry.

E. For current limit at other di/dt values, refer to Figure 13.

F. This parameter is guaranteed by design.

G. This parameter is derived from characterization.

H. Auto-restart on time has the same temperature characteristics as the oscillator (inversely proportional to

frequency).

when FEEDBACK pin voltage is ≥2 V (MOSFET not

DSS

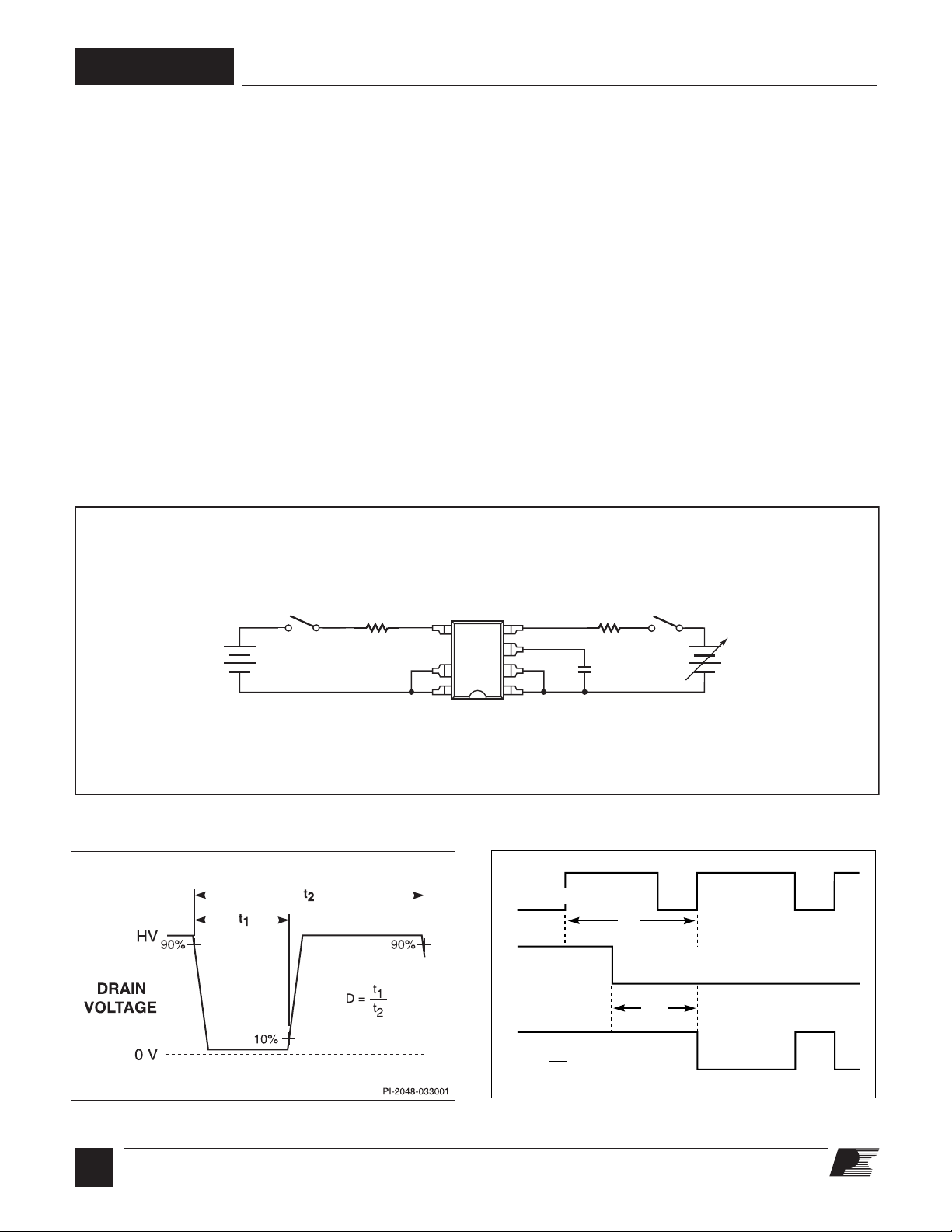

Figure 7. LinkSwitch-TN General Test Circuit.

Figure 8. LinkSwitch-TN Duty Cycle Measurement.

12

G
3/05

Figure 9. LinkSwitch-TN Output Enable Timing.

200

300

350

400

250

0

0 42 86 10 12 14 16 18 20

DRAIN Voltage (V)

DRAIN Current (mA)

PI-3661-071404

50

150

100

Scaling Factors:
LNK302

0.5

LNK304

1.0

LNK305

2.0

LNK306

3.4

25 °C

100 °C

Typical Performance Characteristics

1.1

1.0

0.9

-50 -25 0 25 50 7

5 100 125 150

Junction Temperature (°C)

Breakdown Voltage

(Normalized to 25

°C)

PI-2213-012301

6

5

4

3

2

1

0

0 0.2 0.4 0.6 0.8 1.0

Time (ms)

PI-2240-012301

BYPASS Pin Voltage (V)

7

1.2

1.0

0.8

0.6

0.4

0.2

0

-50 -25 0 25 50 75 100 125

Junction Temperature (°C)

PI-2680-012301

Output Frequency

(Normalized to 25

°C)

Normalized di/dt

PI-3710-071204

Normalized Current Limit

1.0

1.2

1.4

0.8

0.6

0.4

0.2

0

1 2 3 4 5 6

LNK302
LNK304
LNK305
LNK306

Normalized
di/dt = 1

55 mA/µs
65 mA/µs
75 mA/µs
95 mA/µs

Normalized
Current
Limit = 1

136 mA
257 mA
375 mA
482 mA

Temperature (°C)

PI-3709-111203

Current Limit

(Normalized to 25

°C)

1.0

1.2

1.4

0.8

0.6

0.4

0.2

0

-50 0 50 100 150

di/dt = 1
di/dt =

6

Normalized di/dt

LNK302/304-306

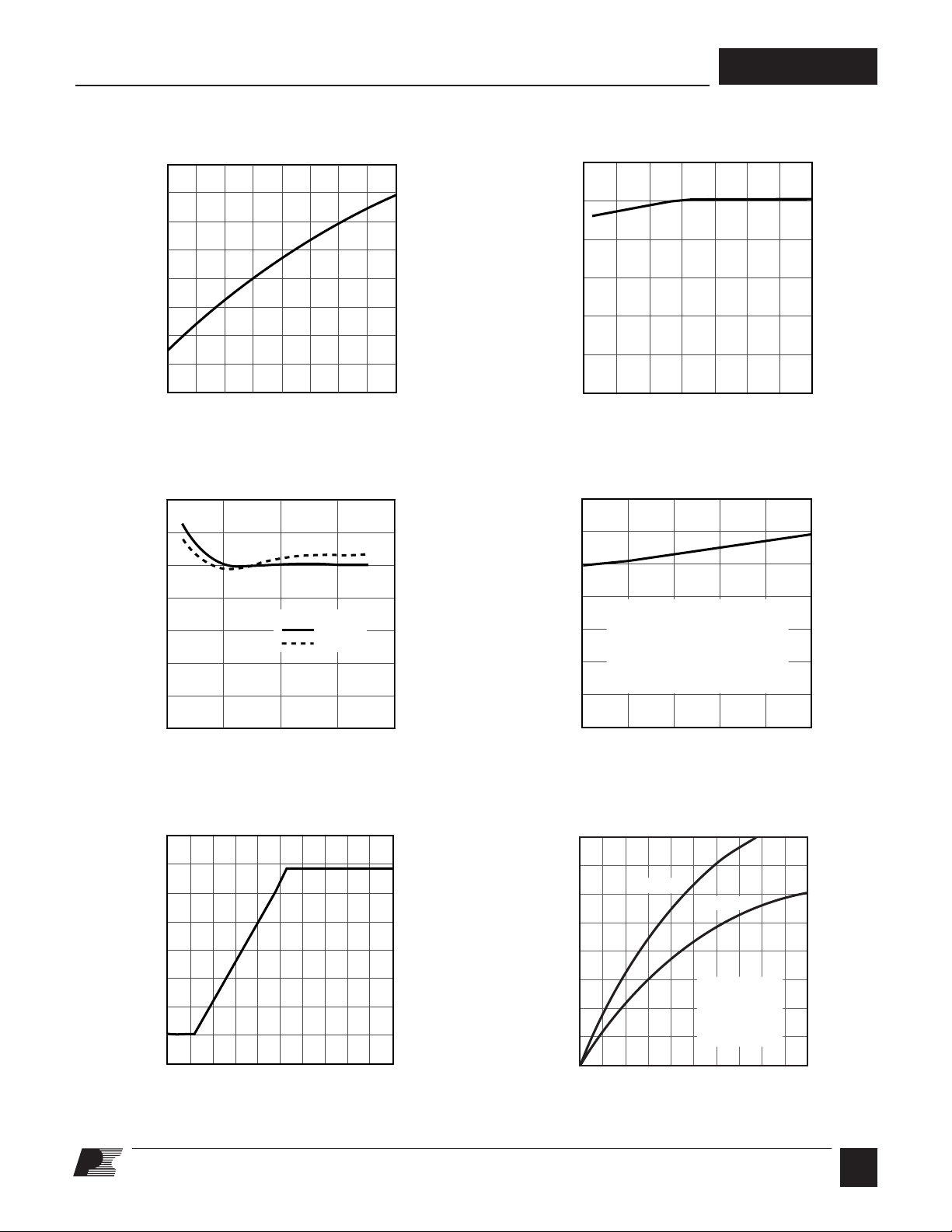

Figure 10. Breakdown vs. Temperature.

Figure 12. Current Limit vs. Temperature at
Normalized di/dt.

Figure 11. Frequency vs. Temperature.

Figure 13. Current Limit vs. di/dt.

Figure 14. BYPASS Pin Start-up Waveform.

Figure 15. Output Characteristics.

G

13

3/05

LNK302/304-306

Drain Voltage (V)

Drain Capacitance (pF)

PI-3711-071404

0 100 200 300 400 500 600

1

10

100

1000

LNK302 0.5
LNK304 1.0
LNK305 2.0
LNK306 3.4

Scaling Factors:

Typical Performance Characteristics (cont.)

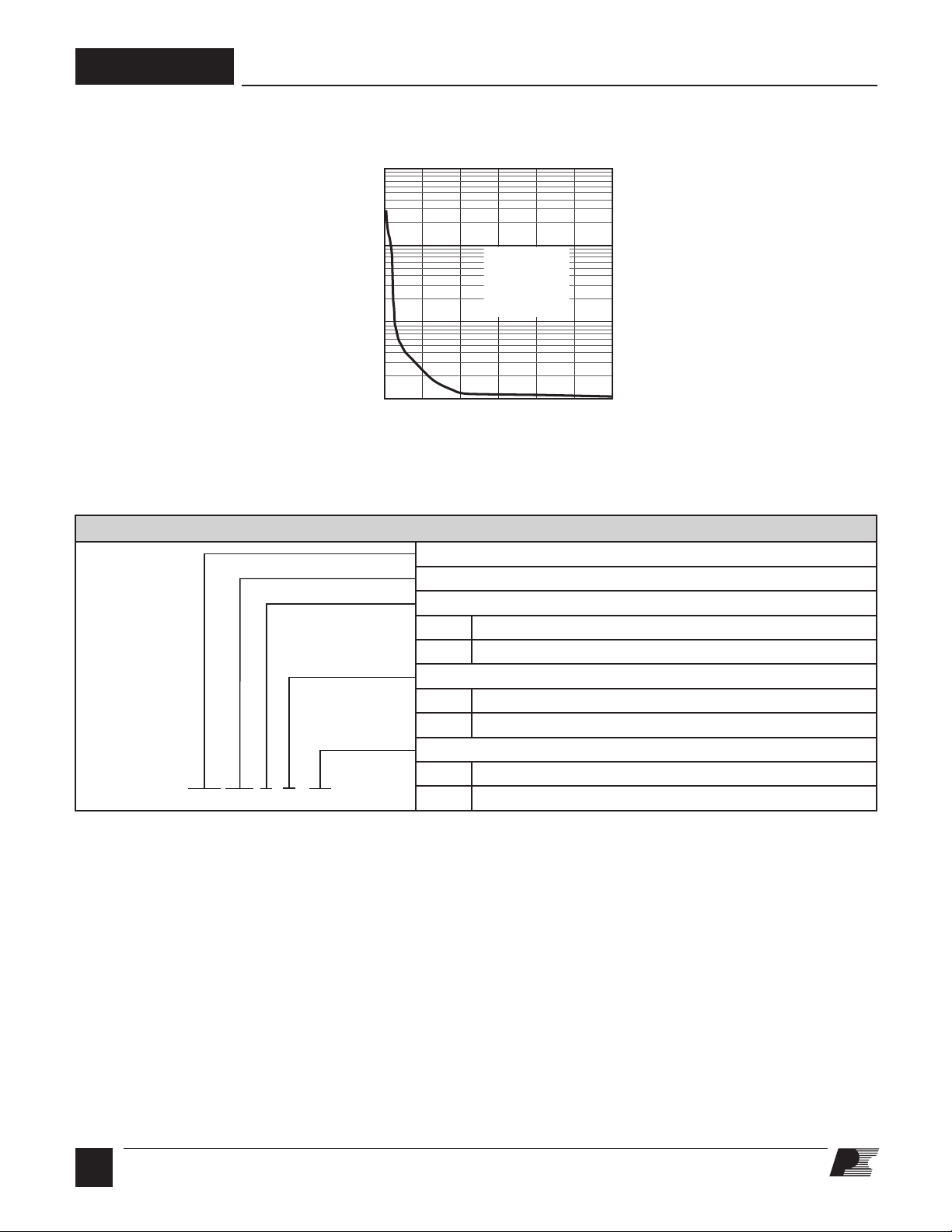

Figure 16. C

PART ORDERING INFORMATION

LNK 304 G N - TL

vs. Drain Voltage.

OSS

LinkSwitch Product Family

TN Series Number

Package Identifier

G Plastic Surface Mount DIP

P Plastic DIP

Lead Finish

Blank Standard (Sn Pb)

N Pure Matte Tin (Pb-Free)

Tape & Reel and Other Options

Blank Standard Configurations

TL Tape & Reel, 1 k pcs minimum, G Package only

G

14

3/05

LNK302/304-306

Notes:

1. Package dimensions conform to JEDEC specification
MS-001-AB (Issue B 7/85) for standard dual-in-line (DIP)
package with .300 inch row spacing.

2. Controlling dimensions are inches. Millimeter sizes are
shown in parentheses.

3. Dimensions shown do not include mold flash or other
protrusions. Mold flash or protrusions shall not exceed
.006 (.15) on any side.

4. Pin locations start with Pin 1, and continue counter-clock­ wise to Pin 8 when viewed from the top. The notch and/or
dimple are aids in locating Pin 1. Pin 6 is omitted.

5. Minimum metal to metal spacing at the package body for
the omitted lead location is .137 inch (3.48 mm).

6. Lead width measured at package body.

7. Lead spacing measured with the leads constrained to be
perpendicular to plane T.

.008 (.20)
.015 (.38)

.300 (7.62) BSC

(NOTE 7)

.300 (7.62)
.390 (9.91)

.367 (9.32)
.387 (9.83)

.240 (6.10)
.260 (6.60)

.125 (3.18)
.145 (3.68)

.057 (1.45)
.068 (1.73)

.120 (3.05)
.140 (3.56)

.015 (.38)
MINIMUM

.048 (1.22)
.053 (1.35)

.100 (2.54) BSC

.014 (.36)
.022 (.56)

-E-

Pin 1

SEATING
PLANE

-D-

-T-

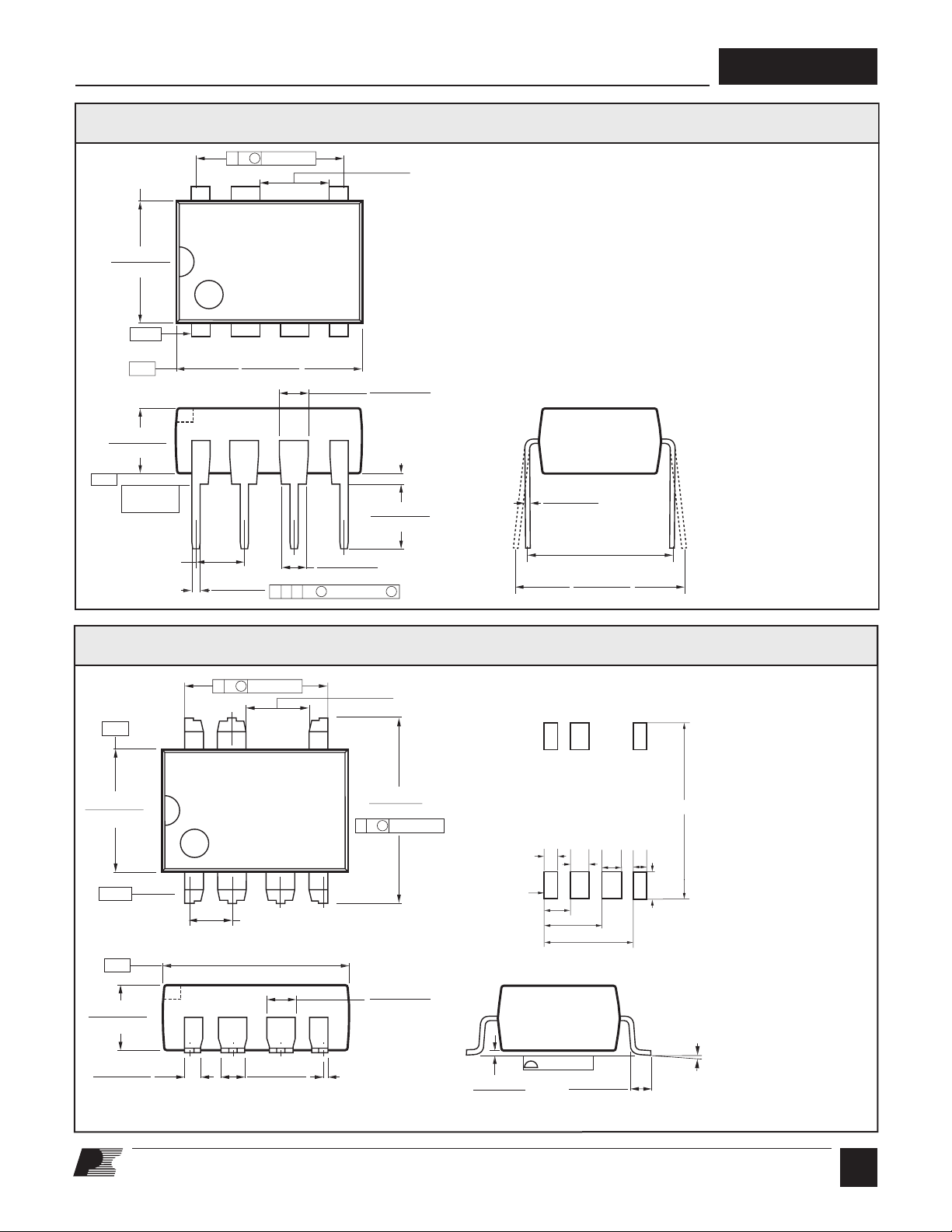

P08B

DIP-8B

PI-2551-121504

D S

.004 (.10)

⊕

T E D S

.010 (.25) M

⊕

(NOTE 6)

.137 (3.48)
MINIMUM

SMD-8B

PI-2546-121504

.004 (.10)
.012 (.30)

.036 (0.91)
.044 (1.12)

.004 (.10)

0 -

°

8

°

.367 (9.32)
.387 (9.83)

.048 (1.22)

.009 (.23)

.053 (1.35)

.032 (.81)
.037 (.94)

.125 (3.18)
.145 (3.68)

-D-

Notes:

1. Controlling dimensions are
inches. Millimeter sizes are
shown in parentheses.

2. Dimensions shown do not
include mold flash or other
protrusions. Mold flash or
protrusions shall not exceed
.006 (.15) on any side.

3. Pin locations start with Pin 1,
and continue counter-clock­ wise to Pin 8 when viewed
from the top. Pin 6 is omitted.

4. Minimum metal to metal
spacing at the package body
for the omitted lead location
is .137 inch (3.48 mm).

5. Lead width measured at
package body.

6. D and E are referenced
datums on the package
body

.

.057 (1.45)
.068 (1.73)

(NOTE 5)

E S

.100 (2.54) (BSC)

.372 (9.45)

.240 (6.10)

.388 (9.86)

.137 (3.48)
MINIMUM

.260 (6.60)

.010 (.25)

-E-

Pin 1

D S

.004 (.10)

⊕

⊕

G08B

.420

.046

.060

.060

.046

.080

Pin

1

.086

.186

.286

Solder Pad Dimensions

3/05

G

15

LNK302/304-306

Revision Notes Date

C 1) Released Final Data Sheet. 3/03

D 1) Corrected Minimum On Time. 1/04

E 1) Added LNK302. 8/04

F 1) Added lead-free ordering information. 12/04

G 1) Minor error corrections.

3/05

2) Renamed Feedback Pin Voltage parameter to Feedback Pin Voltage at Turnoff Threshold and
removed condition.

For the latest updates, visit our website: www.powerint.com

Power Integrations reserves the right to make changes to its products at any time to improve reliability or manufacturability. Power Integrations does not assume
any liability arising from the use of any device or circuit described herein. POWER INTEGRATIONS MAKES NO WARRANTY HEREIN AND SPECIFICALLY
DISCLAIMS ALL WARRANTIES INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS.

PATENT INFORMATION

The products and applications illustrated herein (including transformer construction and circuits external to the products) may be covered by one or more U.S.
and foreign patents, or potentially by pending U.S. and foreign patent applications assigned to Power Integrations. A complete list of Power Integrationsʼ patents
may be found at www.powerint.com. Power Integrations grants its customers a license under certain patent rights as set forth at http://www.powerint.com/ip.htm.

LIFE SUPPORT POLICY

POWER INTEGRATIONSʼ PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS
WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF POWER INTEGRATIONS. As used herein:

1. A Life support device or system is one which, (i) is intended for surgical implant into the body, or (ii) supports or sustains life, and (iii) whose failure to perform,
when properly used in accordance with instructions for use, can be reasonably expected to result in significant injury or death to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.

The PI logo, TOPSwitch, TinySwitch, LinkSwitch, DPA-Switch, EcoSmart, PI Expert and PI FACTS are trademarks of
Power Integrations, Inc. Other trademarks are property of their respective companies. ©Copyright 2005, Power Integrations, Inc.

Power Integrations Worldwide Sales Support Locations

WORLD HEADQUARTERS

5245 Hellyer Avenue
San Jose, CA 95138, USA.
Main: [phone]
Customer Service:
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

CHINA (SHANGHAI)

Rm 807-808A,
Pacheer Commercial Centre,
555 Nanjing Rd. West
Shanghai, P.R.C. 200041
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

CHINA (SHENZHEN)

Rm 2206-2207, Block A,
Electronics Science & Technology Bldg.
2070 Shennan Zhong Rd.
Shenzhen, Guangdong,
China, 518031
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

GERMANY

Rueckertstrasse 3
D-80336, Munich
Germany
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

INDIA

261/A, Ground Floor
7th Main, 17th Cross,
Sadashivanagar
Bangalore, India 560080
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

ITALY

Via Vittorio Veneto 12
20091 Bresso MI
Italy

Phone: [phone]
Fax: [phone]

e-mail: [email protected]

JAPAN

Keihin Tatemono 1st Bldg 2-12-20
Shin-Yokohama, Kohoku-ku,
Yokohama-shi, Kanagawa ken,
Japan 222-0033
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

KOREA

RM 602, 6FL
Korea City Air Terminal B/D, 159-6
Samsung-Dong, Kangnam-Gu,
Seoul, 135-728, Korea
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

SINGAPORE

51 Newton Road,
#15-08/10 Goldhill Plaza,
Singapore, 308900

Phone: [phone]
Fax: [phone]

e-mail: [email protected]

TAIWAN

5F, No. 318, Nei Hu Rd., Sec. 1
Nei Hu Dist.
Taipei, Taiwan 114, R.O.C.
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

EUROPE HQ

1st Floor, St. Jamesʼs House
East Street, Farnham
Surrey, GU9 7TJ
United Kingdom
Phone: [phone]
Fax: [phone]

e-mail: [email protected]

APPLICATIONS HOTLINE

World Wide [phone]

APPLICATIONS FAX
World Wide [phone]

16

G
3/05
