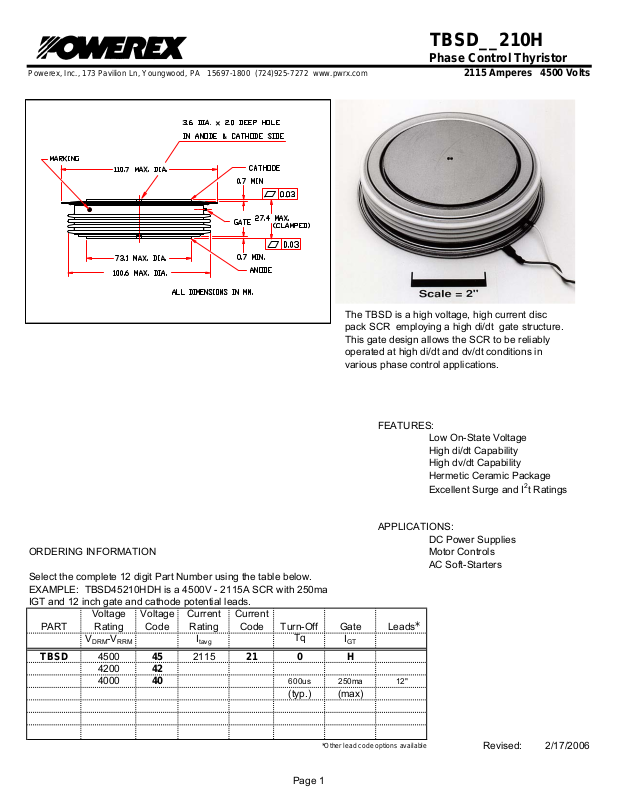

TBSD__210H
*Other lead code options available
Phase Control Thyristo
Powerex, Inc., 173 Pavilion Ln, Youngwood, PA 15697-1800 (724)925-7272 www.pwrx.com 2115 Amperes 4500 Volts
The TBSD is a high voltage, high current disc
pack SCR employing a high di/dt gate structure.
This gate design allows the SCR to be reliably
operated at high di/dt and dv/dt conditions in
various phase control applications.
FEATURES:
Low On-State Voltage
High di/dt Capability
High dv/dt Capability
Hermetic Ceramic Package
Excellent Surge and I
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Motor Controls
AC Soft-Starters
Select the complete 12 digit Part Number using the table below.
EXAMPLE: TBSD45210HDH is a 4500V - 2115A SCR with 250ma
IGT and 12 inch gate and cathode potential leads.
PART
Voltage
Rating
V
DRM-VRRM
Voltage
Code
Current
Rating
I
tavg
Current
Code Turn-Off Gate Leads
Tq
I
GT
TBSD 4500 45 2115 21 0 H
4200 42
4000 40
600us 250ma 12"
(typ.) (max)
2
t Ratings
Revised: 2/17/2006
Page 1
TBSD__210H
Phase Control Thyristo
Powerex, Inc., 173 Pavilion Ln, Youngwood, PA 15697-1800 (724)925-7272 www.pwrx.com 2115 Amperes 4500 Volts
Absolute Maximum Ratings
Characteristic Symbol Rating Units
Repetitive Peak Voltage
=70°C
C
=55°C
C
=70°C
C
=55°C
C
Average On-State Current, T
RMS On-State Current, T
Average On-State Current, T
RMS On-State Current, T
Peak One Cycle Surge Current, 60Hz, V
Peak One Cycle Surge Current, 50Hz, V
Fuse Coordination I
Fuse Coordination I
2
t, 60Hz I2t
2
t, 50Hz I2t
=0V I
R
=0V I
R
V
DRM-VRRM
I
T(Avg.)
I
T(RMS)
I
T(Avg.)
I
T(RMS)
TSM
TSM
4000 - 4500 Volts
2115 A
3322 A
2410 A
3786 A
33,600 A
31,678 A
4.70E+06
5.02E+06
A2s
A2s
Critical Rate-of-Rise of On-State Current di/dt 100 A/us
Repetitive .67•VDRM
Critical Rate-of-Rise of On-State Current di/dt 200 A/us
Non-Repetitive .67•VDRM
Peak Gate Power, 100us
Average Gate Power
P
P
GM
G(avg)
16 Watts
5 Watts
Operating Temperature Tj -40 to+125 °C
Storage Temperature
T
Stg.
-50 to+150 °C
Approximate Weight 2.5 lb
Mounting Force 9000-10000 lbs
Information presented is based upon manufacturers testing and projected
capabilities. This information is subject to change without notice. The
manufacturer makes no claim as to suitability for use, reliability, capability or
future availability of this product.
1.13 Kg
40 - 44.5 KNewtons
Page 2
