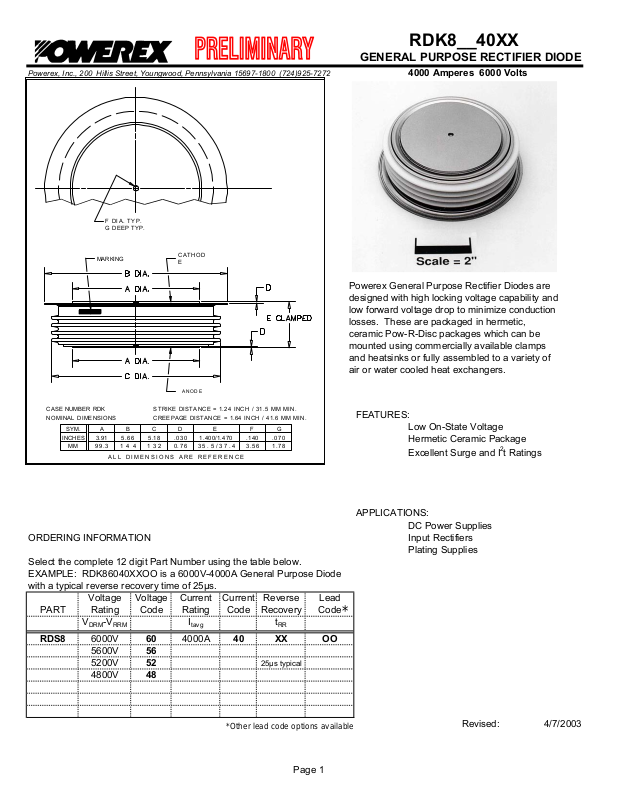

Powerex RDK8__40XX Data Sheet

RDK8__40XX
*
*Other lead code options available
GENERAL PURPOSE RECTIFIER DIODE
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724)925-7272 4000 Amperes 6000 Volts
F DIA. TYP. G DEEP TYP.
MARKING
CATHOD E
Powerex General Purpose Rectifier Diodes are designed with high locking voltage capability and low forward voltage drop to minimize conduction losses. These are packaged in hermetic, ceramic Pow-R-Disc packages which can be mounted using commercially available clamps and heatsinks or fully assembled to a variety of air or water cooled heat exchangers.
D
E
O
A
N
CASE NUMBER RDK
NOMINAL DIMENSIONS
INCHES
MM
ABCD E FGSYM.
3.91
99.3
5.66
144
ALL DIMENSIONS ARE REFERENCE
STRIKE DISTANCE = 1.24 INCH / 31.5 MM MIN.
CREEPAGE DISTANCE = 1.64 INCH / 41.6 MM MIN.
5.18
132
.030
0.76
1.400/1.470
35.5/37.4
.140
3.56
.070
1.78
FEATURES:
Low On-State Voltage Hermetic Ceramic Package
Excellent Surge and I2t Ratings
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Input Rectifiers
Plating Supplies Select the complete 12 digit Part Number using the table below. EXAMPLE: RDK86040XXOO is a 6000V-4000A General Purpose Diode with a typical reverse recovery time of 25µs.
PART
Voltage
Rating
V
DRM-VRRM
Voltage
Code
Current
Rating
I
tavg
Current
Code
Reverse
Recovery
t
RR
Lead
Code
RDS8 6000V 60 4000A 40 XX OO
5600V 56 5200V 52 25µs typical 4800V 48
Revised: 4/7/2003
Page 1
RDK8__40XX
c
C
GENERAL PURPOSE RECTIFIER DIODE
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724)925-7272 4000 Amperes 6000 Volts
Absolute Maximum Ratings
Characteristi
Repetitive Peak Reverse Voltage
Non-repetitive Transient Peak Reverse Voltage
Average On-State Current, T
RMS On - State Current,
Peak One Cycle Surge Current, 60Hz, VR=V
T
C
68°C
68°C
RRM
Fuse Coordination I2t, 60Hz I2t
Peak One Cycle Surge Current, 50Hz, V
=0V I
R
Fuse Coordination I2t, 50Hz I2t
Symbol Rating Units
V
RRM
V
RSM
I
F(Avg.)
I
F(RMS)
I
FSM
FSM
6000 Volts
V
+ 100
RRM
4000 A
6283 A
60,000 A
1.50E+07
55,500 A
1.28E+07
Volts
A2s
A2s
Operating Temperature Tj -40 to+150 °C
Storage Temperature
T
Stg.
-50 to+190 °C
Approximate Weight 6.5 lb
2.95 Kg
Mounting Force 16,000 - 20,000 lbs
71.2 - 89.0 Knewtons
Page 2
