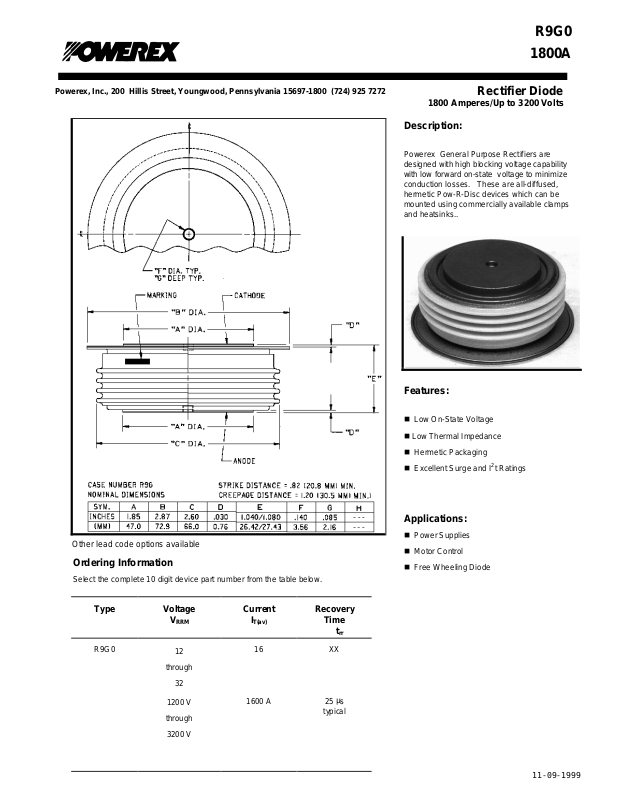

Powerex R9G0 1800A Data Sheet
1800A
Other lead code options available
R9G0
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925 7272
Rectifier Diode
1800 Amperes/Up to 3200 Volts
Description:
Powerex General Purpose Rectifiers are
designed with high blocking voltage capability
with low forward on-state voltage to minimize
conduction losses. These are all-diffused,
hermetic Pow-R-Disc devices which can be
mounted using commercially available clamps
and heatsinks..
Ordering Information
Select the complete 10 digit device part number from the table below.
Type Voltage
R9G0
V
RRM
12
through
32
1200 V
through
3200 V
Features:
n
Low On-State Voltage
n
Low Thermal Impedance
n
Hermetic Packaging
n
Excellent Surge and I2t Ratings
Applications:
n
Power Supplies
n
Motor Control
n
Free Wheeling Diode
Current
I
T(av)
Recovery
Time
trr
16 XX
1600 A 25 µs
typical
11-09-1999
R9G0
Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925 7272
R9G0
1800A
Rectifier Diode
1800 Amperes / Up to 3200 Volts
Absolute Maximum Ratings
Conditions Symbol Units
Repetitive Peak Reverse Blocking Voltage V
Non-Repetitive Peak Reverse Blocking Voltage V
RMS Forward Current I
Average Forward Current 180° Conduction, TC=110°C I
Peak Half Cycle Non-Repetitive Surge Current t = 8.3mS, 100%V
Peak Half Cycle Non-Repetitive Surge Current t = 10mS, 100%V
reapplied I
RRM
reapplied I
RRM
I2t for Fusing for One Cycle I2t 1.925x106 A2-sec
I2t of Package t = 8.3mS I2t 90x106 A2-sec
Operating Junction Temperature TJ -40 to +175
Storage Temperature T
Mounting Force - - - - 5000 to 6000
up to 3200 V
RRM
V
RSM
2825 A
F(RMS)
1800 A
F(AV)
21,500 A
FSM
19,600 A
FSM
-40 to +190
stg
+ 100 V
RRM
2270 to 2700
°
°
lb.
kg
C
C
Module Weight, Typical - - - - 454
1.0
g
lbs
11-09-1999
