Powerex PS21267-P, PS21267-AP Data Sheet

PS21267-P

6 VP1

5 VP

26 N

UN

19

24

V

23

U

22

P

21

WN

25 W

20

VN

7 VVFB

9 WP

11 VPC

10 VP1

12 VWFB

3 VUFB

2 VP1

1 UP

4 VUFS

8 VVFS

16 CIN

15 VNC

17 CFO
18 FO

13 VWFS
14 VN1

TERMINAL CODE

A

H

E

GGG F

J

C

B K

M

L

N

Q

P

R

W

D

S

Y

AC

Z

Y

Z

AF
AG

AF

AF

AH

AH

AH

AA

AA

AB

AD

AE

AD

AE

AB

X

T

U

V

HEATSINK SIDE

HEATSINK SIDE

2625242322

212019181716151413121110987654321

DETAIL "C"

DETAIL "C" DETAIL "D"

All outer lead terminals are with Pb-free solder plating.

DETAIL "D"

DETAIL "B"

DETAIL "B"

DETAIL "A"

DETAIL

"A"

PS21267-AP

Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 [phone]

Intellimod™ Module

Dual-In-Line Intelligent
Power Module
30 Amperes/600 Volts

Description:

DIP-IPMs are intelligent power
modules that integrate power
devices, drivers, and protection
circuitry in an ultra compact
dual-in-line transfer-mold package
for use in driving small three
phase motors. Use of 5th gen­eration CSTBT Chip Technology,
DIP packaging, and application

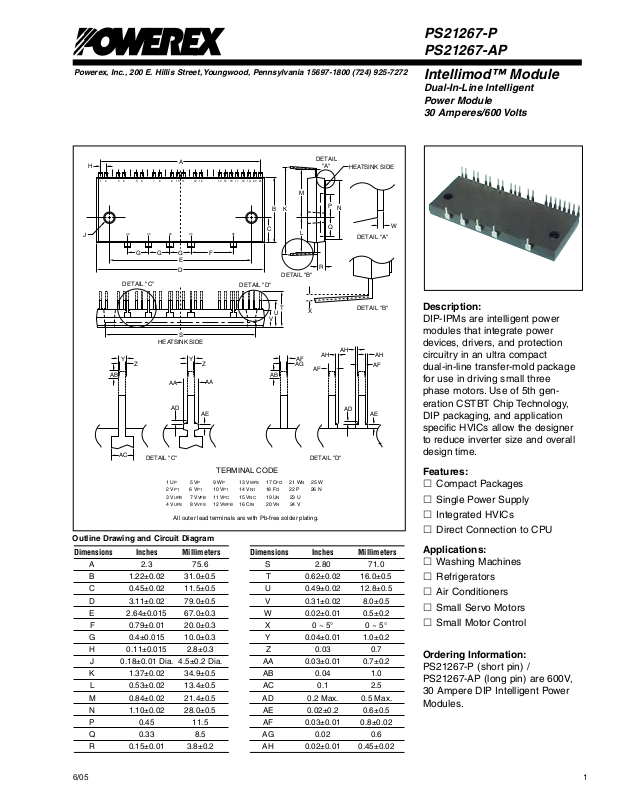

Outline Drawing and Circuit Diagram

Dimensions Inches Millimeters

A 2.3 75.6

B 1.22±0.02 31.0±0.5

C 0.45±0.02 11.5±0.5

D 3.11±0.02 79.0±0.5

E 2.64±0.015 67.0±0.3

F 0.79±0.01 20.0±0.3

G 0.4±0.015 10.0±0.3

H 0.11±0.015 2.8±0.3

J 0.18±0.01 Dia. 4.5±0.2 Dia.

K 1.37±0.02 34.9±0.5

L 0.53±0.02 13.4±0.5

M 0.84±0.02 21.4±0.5

N 1.10±0.02 28.0±0.5

P 0.45 11.5

Q 0.33 8.5

R 0.15±0.01 3.8±0.2

Dimensions Inches Millimeters

S 2.80 71.0

T 0.62±0.02 16.0±0.5

U 0.49±0.02 12.8±0.5

V 0.31±0.02 8.0±0.5

W 0.02±0.01 0.5±0.2

X 0 ~ 5° 0 ~ 5°

Y 0.04±0.01 1.0±0.2

Z 0.03 0.7

AA 0.03±0.01 0.7±0.2

AB 0.04 1.0

AC 0.1 2.5

AD 0.2 Max. 0.5 Max.

AE 0.02±0.2 0.6±0.5

AF 0.03±0.01 0.8±0.02

AG 0.02 0.6

AH 0.02±0.01 0.45±0.02

specific HVICs allow the designer
to reduce inverter size and overall
design time.

Features:

£ Compact Packages

£ Single Power Supply

£ Integrated HVICs

£ Direct Connection to CPU

Applications:

£ Washing Machines

£ Refrigerators

£ Air Conditioners

£ Small Servo Motors

£ Small Motor Control

Ordering Information:

PS21267-P (short pin) /
PS21267-AP (long pin) are 600V,
30 Ampere DIP Intelligent Power
Modules.

16/05

Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 [phone]

PS21267-P / PS21267-AP
Intellimod™ Module
Dual-In-Line Intelligent Power Module

30 Amperes/600 Volts

Absolute Maximum Ratings, Tj = 25°C unless otherwise specified

Characteristics Symbol PS21267-P / PS21267-AP Units

Power Device Junction Temperature* Tj -20 to 125 °C

Module Case Operation Temperature (See TC Measurement Point Illustration) TC -20 to 100 °C

Storage Temperature T

-40 to 125 °C

stg

Mounting Torque, M4 Mounting Screws — 13 in-lb

Module Weight (Typical) — 54 Grams

Self-protection Supply Voltage Limit (Short Circuit Protection Capability)** V

Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate V

*The maximum junction temperature rating of the power chips integrated within the DIP-IPM is 150°C (@TC ≤ 100°C). However, to ensure safe operation of the DIP-IPM,
the average junction temperature should be limited to T
**VD = 13.5 ~ 16.5V, Inverter Part, Tj = 125°C, Non-repetitive, Less than 2µs

≤ 125°C (@TC ≤ 100°C).

j(avg)

400 Volts

CC(prot.)

2500 Volts

ISO

IGBT Inverter Sector

Collector-Emitter Voltage (TC = 25°C) V

Collector Current (TC = 25°C) ±IC 30 Amperes

Peak Collector Current (TC = 25°C, <1ms) ±ICP 60 Amperes

Supply Voltage (Applied between P - N) VCC 450 Volts

Supply Voltage, Surge (Applied between P - N) V

Collector Dissipation (TC = 25°C, per 1 Chip) PC 55.5 Watts

600 Volts

CES

CC(surge)

500 Volts

Control Sector

Supply Voltage (Applied between VP1-VPC, VN1-VNC) VD 20 Volts

Supply Voltage (Applied between V

UFB-VUFS, VVFB-VVFS

Input Voltage (Applied between UP, VP, WP-VPC, UN, VN, WN-VNC) VIN -0.5 ~ VD+0.5 Volts

Fault Output Supply Voltage (Applied between FO-VNC) VFO -0.5 ~ VD+0.5 Volts

Fault Output Current (Sink Current at FO Terminal) IFO 1 mA

Current Sensing Input Voltage (Applied between CIN-VNC) VSC -0.5 ~ VD+0.5 Volts

, V

WFB-VWFS

) VDB 20 Volts

2

6/05

Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 [phone]

T

T

C

T

C

HEATSINK BOUNDARY

POWER TERMINALS

CONTROL TERMINALS

PS21267-P / PS21267-AP
Intellimod™ Module
Dual-In-Line Intelligent Power Module

30 Amperes/600 Volts

Electrical and Mechanical Characteristics, Tj = 25°C unless otherwise specified

Characteristics Symbol Test Conditions Min. Typ. Max. Units

IGBT Inverter Sector

Collector-Emitter Cutoff Current I

VCE = V

Diode Forward Voltage VEC Tj = 25°C, -IC = 30A, VIN = 0V — 1.5 2.0 Volts

Collector-Emitter Saturation Voltage V

IC = 30A, Tj = 125°C, VD = VDB = 15V, VIN = 5V — 1.40 1.90 Volts

Inductive Load Switching Times ton 0.70 1.30 1.90 µs

trr VCC = 300V, VD = VDB = 15V, — 0.30 — µs

t

t

t

VCE = V

CES

IC = 30A, Tj = 25°C, VD = VDB = 15V, VIN = 5V — 1.40 1.90 Volts

CE(sat)

IC = 30A, Tj = 125°C, VIN = 5 ⇔ 0V, — 0.40 0.60 µs

C(on)

Inductive Load (Upper-Lower Arm) — 2.00 2.60 µs

off

C(off)

, Tj = 25°C — — 1.0 mA

CES

, Tj = 125°C — — 10 mA

CES

— 0.65 0.90 µs

TC Measurement Point

6/05

3
