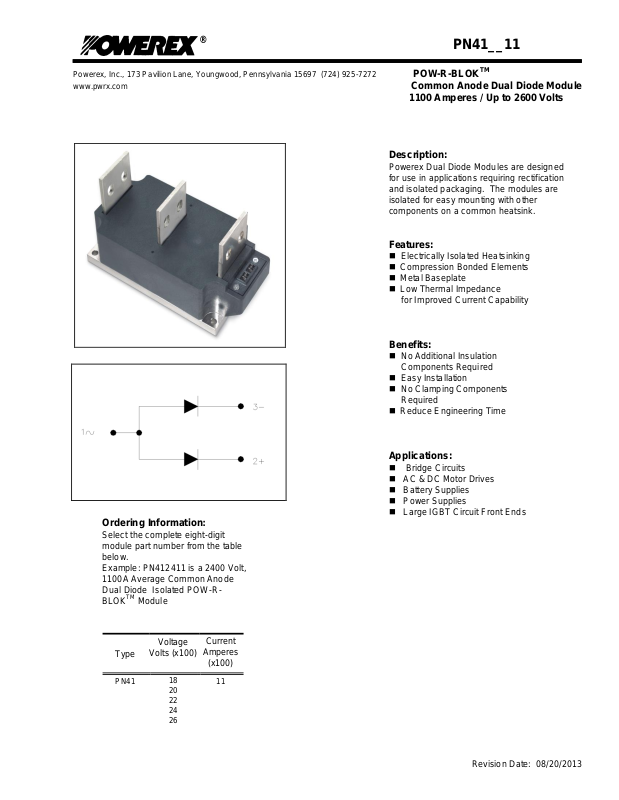

PN41__11
®
Ordering Information:
Select the complete eight-digit
module part number from the table
below.
Example: PN412411 is a 2400 Volt,
1100A Average Common Anode
Dual Diode Isolated POW-R-
BLOKTM Module
Type
Voltage
Volts (x100)
Current
Amperes
(x100)
PN41
18
20
22
24
26
11
Description:
Powerex Dual Diode Modules are designed
for use in applications requiring rectification
and isolated packaging. The modules are
isolated for easy mounting with other
components on a common heatsink.
Features:
Electrically Isolated Heatsinking
Compression Bonded Elements
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Applications:
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
www.pwrx.com Common Anode Dual Diode Module
1100 Amperes / Up to 2600 Volts
TM
Revision Date: 08/20/2013
PN41__11
®
Absolute Maximum Ratings
Characteristics
Conditions
Symbol
Units
Repetitive Peak Reverse Blocking Voltage
V
RRM
Up to 2600
V
Non-Repetitive Peak Blocking Voltage
(t < 5 msec)
V
RSM
V
RRM
+ 100V
V
RMS Current Per Diode
(180° Conduction)
180° Conduction, TC=80°C
180° Conduction, TC=87°C
180° Conduction, TC=95°C
180° Conduction, TC=98°C
I
F(RMS)
I
F(RMS)
I
F(RMS)
I
F(RMS)
1885
1725
1570
1415
A
A
A
A
Average Forward Current Per Diode
(180° Conduction)
180° Conduction, TC=80°C
180° Conduction, TC=87°C
180° Conduction, TC=95°C
180° Conduction, TC=98°C
I
F(AV)
I
F(AV)
I
F(AV)
I
F(AV)
1200
1100
1000
900
A
A
A
A
Peak One Cycle Surge Current, Non-Repetitive
Tj = 25°C, Vr = 0
60 Hz
50 Hz
I
FSM
I
FSM
50,890
46,400
A
A
Peak One Cycle Surge Current, Non-Repetitive
Tj = 25°C, Vr = Vrrm
60 Hz
50 Hz
I
FSM
I
FSM
33,925
30,935
A
A
Peak One Cycle Surge Current, Non-Repetitive
Tj = 125°C, Vr = 0
60 Hz
50 Hz
I
FSM
I
FSM
44,250
40,350
A
A
Peak One Cycle Surge Current, Non-Repetitive
Tj = 125°C, Vr = Vrrm
60 Hz
50 Hz
I
FSM
I
FSM
29,500
26,900
A
A
Peak Three Cycle Surge Current, Non-Repetitive
60 Hz, Tj = 125°C, Vr = Vrrm
I
FSM
23,690
A
Peak Ten Cycle Surge Current, Non-Repetitive
60 Hz, Tj = 125°C, Vr = Vrrm
I
FSM
18,615
A
I2t for Fusing for One Cycle
Tj = 125°C, Vr = Vrrm
8.3 milliseconds
10 milliseconds
I2t
I2t
3.63 x 10 6
3.62 x 10 6
A2 sec
A2 sec
Operating Temperature
TJ
-40 to +150
°C
Storage Temperature
T
stg
-40 to +150
°C
Max. Mounting Torque, M6 Mounting Screw
132
15
in. – Lb.
Nm
Max. Mounting Torque, M10 Terminal Screw
106
12
in. – Lb.
Nm
Module Weight, Typical
5.33
kg
11.75
lb
V Isolation @ 25°C
V
rms
4000
V
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
www.pwrx.com Common Anode Dual Diode Module
1100 Amperes / Up to 2600 Volts
TM
Information is based upon manufacturers testing and projected capabilities.
This information is subject to change without notice.
The manufacturer makes no claim as to suitability for use, reliability, capability,
or future availability of this product.
Revision Date: 08/20/2013
PN41__11
®
Electrical Characteristics, TJ=25C unless otherwise specified
Characteristics
Symbol
Test Conditions
Min.
Max.
Units
Repetitive Peak Reverse Leakage Current
I
RRM
VR= V
RRM
, TJ=150°C
200
mA
Peak On-State Voltage
VFM
IFM=3000A, TJ=25°C
1.25
V
Threshold Voltage, Low-level
Slope Resistance, Low-level
V
(TO)1
rT1
TJ = 150°C, I = 15%I
T(AV)
to πI
T(AV)
0.663
0.113
V
mΩ
Threshold Voltage, High-level
Slope Resistance, High-level
V
(TO)2
rT2
TJ = 150°C, I = πI
T(AV)
to I
TSM
.642
0.116
V
mΩ
VFM Coefficients, Full Range
TJ = 150°C, I = 50A to 6kA
VFM = A+ B Ln I +C I + D Sqrt I
A =
B =
C =
D =
0.6418
1.08 E-02
1.18 E-04
-1.57 E-03
Typical Reverse Recovery Time
trr
TJ = 25°C, Ifm = 1500A.
dIr/dt = 25 A/us, tp = 190 us
22
µs
Thermal Characteristics
Characteristics
Symbol
Max.
Units
Thermal Resistance, Junction to Case
R
ΘJ-C
Per Module, both conducting
Per Junction, both conducting
0.029
0.058
°C/W
°C/W
Thermal Impedance Coefficients
Z
ΘJ-C
Z
ΘJ-C
= K1 (1-exp(-t/t1))
+ K2 (1-exp(-t/t2))
+ K3 (1-exp(-t/t3))
+ K4 (1-exp(-t/t4))
K1 = 5.04 E-04
K2 = 2.31 E-03
K3 = 2.83 E-03
K4 =5.24 E-02
t
1
= 2.47 E-03
t
2
= 4.42 E-02
t
3
= 1.370
t
4
= 9.668
Thermal Resistance, Case to Sink Lubricated
R
ΘC-S
Per Module
0.009
°C/W
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
www.pwrx.com Common Anode Dual Diode Module
1100 Amperes / Up to 2600 Volts
TM
Revision Date: 08/20/2013
PN41__11
®
Typical On-State Forward Voltage Drop
0
0.5
1
1.5
2
10 100 1000 10000
Instantaneous On-State Current - If - Amperes
On-State Voltage - Vf - Volts
(Tj = 150C)
Maximum Transient Thermal Impedance
0.00
0.01
0.02
0.03
0.04
0.05
0.06
0.001 0.01 0.1 1 10 100
Time - t - Seconds
Thermal Impedance - Rjc - °C/W
(Junction To Case)
0
180
360
CON DUCTION ANGLE
Maximum On-State Power Dissipation
30°
90°
180°
0
200
400
600
800
1000
1200
0 200 400 600 800 1000 1200
Average On-State Current - If(av) - Amperes
Max. Power Dissipation Per Diode - Watts_
(Sinusoidal Waveform)
0
180
360
CON DUCTION A NGLE
Maximum Allowable Case Temperature
90°
30°
180°
80
90
100
110
120
130
140
150
0 200 400 600 800 1000 1200
Average On-State Current - If(av) - Amperes
Max. Case Temperature - Tcase -°C_
(Sinusoidal Waveform)
0
180
360
CON DUC TION A NGLE
Maximum On-State Power Dissipation
360°
180°
120°
60°
0
200
400
600
800
1000
1200
1400
1600
1800
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Average On-State Current - If(av) - Amperes
Max. Power Dissipation Per Diode - Watts_
(Rectangular Waveform)
0
180
360
CON DUC TION A NGLE
Maximum Allowable Case Temperature
180°
120°
60°
360°
50
60
70
80
90
100
110
120
130
140
150
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Average On-State Current - If(av) - Amperes
Max. Case Temperature - Tcase -°C_
(Rectangular Waveform)
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
www.pwrx.com Common Anode Dual Diode Module
1100 Amperes / Up to 2600 Volts
TM
Revision Date: 08/20/2013
PN41__11
®
