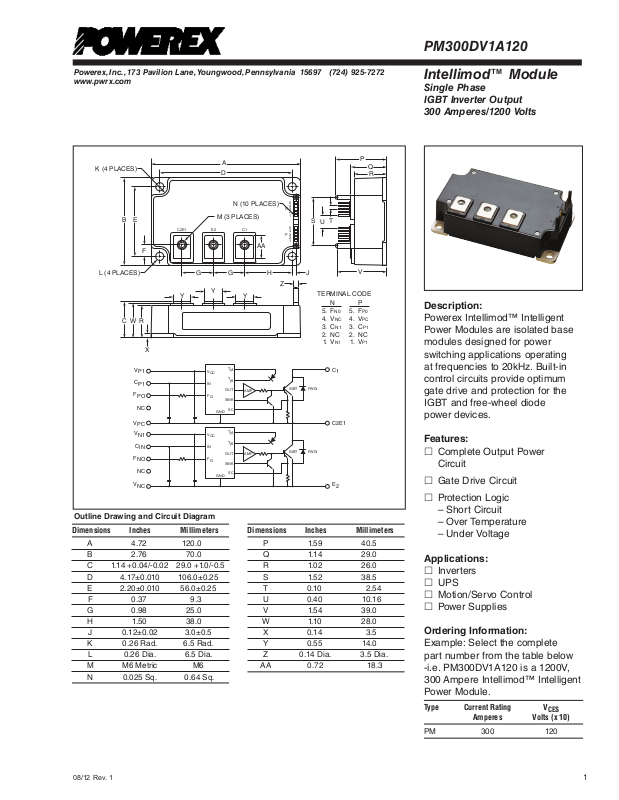

Powerex PM300DV1A120 Data Sheet
PM300DV1A120
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
N0
N1
C
1
C2E1
E
2
P
V
P
5. F
4. V PC
3. C P1
2. NC
1. V
Q
R
P0
P1
K (4 PLACES)
B
L (4 PLACES)
C W R
A
D
N (10 PLACES)
E
F
Y
X
V
P1
C
P1
F
PO
NC
V
PC
V
N1
C
IN
F
NO
NC
V
NC
M (3 PLACES)
C1E2C2E1
AA
G G H
Y
V
CC
IN
F
O
V
CC
IN
F
O
GND
GND
SINK
SINK
Y
T
jA
T
jK
OUT
AMP
SC
T
jA
T
jK
OUT
AMP
SC
5
4
N
3
2
1
5
4
3
P
2
1
Z
IGBT FWDi
IGBT FWDi
T
S
U
J
TERMINAL CODE
N
5. F
4. V NC
3. C N1
2. NC
1. V
Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 4.72 120.0
B 2.76 70.0
C 1.14 +0.04/-0.02 29.0 +1.0/-0.5
D 4.17±0.010 106.0±0.25
E 2.20±0.010 56.0±0.25
F 0.37 9.3
G 0.98 25.0
H 1.50 38.0
J 0.12±0.02 3.0±0.5
K 0.26 Rad. 6.5 Rad.
L 0.26 Dia. 6.5 Dia.
M M6 Metric M6
Dimensions Inches Millimeters
P 1.59 40.5
Q 1.14 29.0
R 1.02 26.0
S 1.52 38.5
T 0.10 2.54
U 0.40 10.16
V 1.54 39.0
W 1.10 28.0
X 0.14 3.5
Y 0.55 14.0
Z 0.14 Dia. 3.5 Dia.
AA 0.72 18.3
N 0.025 Sq. 0.64 Sq.
Intellimod™ Module
Single Phase
IGBT Inverter Output
300 Amperes/1200 Volts
Description:
Powerex Intellimod™ Intelligent
Power Modules are isolated base
modules designed for power
switching applications operating
at frequencies to 20kHz. Built-in
control circuits provide optimum
gate drive and protection for the
IGBT and free-wheel diode
power devices.
Features:
£ Complete Output Power
Circuit
£ Gate Drive Circuit
£ Protection Logic
– Short Circuit
– Over Temperature
– Under Voltage
Applications:
£ Inverters
£ UPS
£ Motion/Servo Control
£ Power Supplies
Ordering Information:
Example: Select the complete
part number from the table below
-i.e. PM300DV1A120 is a 1200V,
300 Ampere Intellimod™ Intelligent
Power Module.
Type Current Rating V
Amperes Volts (x 10)
PM 300 120
CES
08/12 Rev. 1
1
Powerex, Inc ., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 www.pwrx.com
PM300DV1A120
Intellimod™ Module
Single Phase IGBT Inverter Output
300 Amperes/1200 Volts
Absolute Maximum Ratings, Tj = 25°C unless otherwise specified
Characteristics Symbol PM300DV1A120 Units
Power Device Junction Temperature Tj -20 to 150 °C
Storage Temperature T
-40 to 125 °C
stg
Case Operating Temperature TC -20 to 100 °C
Mounting Torque, M6 Mounting Screws (Typical) — 43 in-lb
Mounting Torque, M6 Main Terminal Screws (Typical) — 43 in-lb
Module Weight (Typical) — 510 Grams
Supply Voltage Protected by SC (VD = 13.5 ~16.5V, Inverter Part, Tj = 125°C Start) V
Surge Supply Voltage (Applied between C1-E2, Surge Value) V
CC(surge)
Isolation Voltage, (60Hz, Sinusoidal, Charged Part to Base, AC 1 minute) V
800 Volts
CC(prot)
1000 Volts
2500 Volts
RMS
Inverter Sector
Collector-Emitter Voltage (VD = 15V, V
Collector Current (TC = 25°C) IC 300 Amperes
Peak Collector Current (Pulse) I
Emitter Current (TC = 25°C) IE 300 Amperes
Peak Emitter Current (Pulse) I
Total Power Dissipation (TC = 25°C)
= 15V) V
CIN
1
*
P
1200 Volts
CES
600 Amperes
CRM
600 Amperes
ERM
1785 Watts
tot
Control Sector
Supply Voltage (Applied Between VP1-VPC, VN1-VNC) VD 20 Volts
Input Voltage (Applied Between CP1-VPC, VN1-VNC) V
Fault Output Supply Voltage (Applied Between FPO-VPC, FNO-VNC) VFO 20 Volts
Fault Output Current (Sink Current at FPO, FNO Terminals) IFO 20 mA
*1 Case temperature (TC) measured point is just under the chips.
20 Volts
CIN
2
08/12 Rev. 1
