Powerex MPD0758, MPQ, MPD1508, MPD1008, MPD0508 User Manual

...

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

Powerex • 150 Production Drive • Harrison, OH 45030 • USA

Description

The Powerex medical system package is designed to provide medical breathing air for hospital and medical institutes. This system meets NFPA 99 requirements for Level 1 breathing air.

OILLESS OPT/OPS COMPRESSOR

The Powerex oilless reciprocating air compressor has advanced compressor technology through the development of a completely oilless compressor. The Powerex reciprocating compressor is provided in duplex, triplex or quadplex configurations with head unloaders to provide start, stop or continuous operation. Composite piston technology and continuously lubricating bearings provide oil-free air reliability for years to come.

RECEIVER TANK

The ASME, National Board registered air receiver is provided in sizes from 120 to 240 gallons. Each receiver is rated at 200 PSIG working pressure. Receivers are provided with sight glass and moisture drain (manual or automatic).

CONTROL PANEL

The NEMA 12 control panel is provided in duplex, triplex or quadplex configurations and meets NFPA 99 requirements for medical air. Primary voltage is protected by fusing or circuit breaker. Control transformer power is 110 volts and protected by secondary fusing. Pressure control switches signal the compressors on and off cycle and signal lag compressor(s) to come on if air demand increases. A lag, lag pressure switch or transducer signals a light and audible alarm warning of a low pressure condition which is factory set at 40 PSIG. An acknowledge button is provided for start condition and maintenance. The adjustable timer alternator cycles each compressor so equal run time is maintained. This alternator is factory set to alternate the compressors every 10 minutes. The exterior of the control panel is accessible through the door. The panel disconnects on/off/auto switches run lights, power on lights, run hourmeters, lag pressure light, high

GENERAL PRODUCT MANUAL

temperature light and overload reset. This control panel is UL listed.

DEW POINT MONITOR

The Powerex dew point monitor provides indication of dew point and temperature. It’s microprocessor controlled with user programmable output range, alarm and calibration. The NEMA enclosure is protected by a polymer viewing cover.

CARBON MONOXIDE MONITOR/ALARM

The carbon monoxide monitor provides warning to the user of air-supplied respirators alarming and metering the presence of carbon monoxide. The monitor is provided in a NEMA 12 enclosure. In addition to audio/visual alarm, the meter displays the concentration of CO in the compressed air. The meter operates from a 110 VAC supply. Alarm points are set a 10PPM (low) and 20 PPM (high).

AIR COOLED AFTERCOOLER

Four models of beltguard aftercoolers sized to provide an approach of 20°F. Constructed of copper tubing and metal headers for a rugged construction.

AIR DRYER (REFRIGERATED OR DESICCANT)

The Powerex air drying system provides air at 38°F at 100 PSIG for refrigerated units and -40°F dew point for desiccant dryer systems. Each system is connected with bypass capability.

The refrigerated compressed air dryer(s) are noncycling, direct expansion type, using R-22 refrigerant,

IN259200AV 11/00

PURE AIR TECHNOLOGY

CFC free. A hot gas bypass valve is provided to maintain 38°F evaporator temperature. The dryer is selfregulating for large load swings. Heat exchangers are made of copper tube construction and insulated.

The regenerative desiccant consists of two (dual) towers filled with desiccant. Each tower is switched on and off stream, alternating the air system stream and then being regenerated. Dry purge air pulls moisture from the desiccant and carries the moisture out of the air.

MEDICAL FILTER SYSTEM

The medical filter system consists of a duplex series of filters and pressure regulators. Air enters the system and is directed to either bank of filets controlled by ball valve. The first stage filter removes solids and liquid particles. The next stage of filters remove submicronic particles and aerosols. The third and final filter is carbon activated to remove unpleasant odors. Maximum operating temperature is 125°F and maximum pressure is 150 PSIG.

CONDENSATE DRAIN VALVE

A condensate drain valve must be installed on any tank. This valve removes liquid that collects during compressor operation.

Drain liquid from tank daily.

Safety Guidelines

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS.

Medical Package System

CAL. PORT

ZERO CAL.

ALARM

SET

ADJ.

PANADRY

DEW/FROST POINT

PPM

AUTO CAL

CAUTION

ALARM

SAFE

FLOW

ALARM

PANADRY

FLOW

PPM

CAUTION

DEW/FROST POINT

AUTO CAL

SAFE

ALARM

SET

ADJ.

ZERO CAL.

CAL. PORT

To help recognize this information, observe the following symbols.

Danger indicates

an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Warning indicates

a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution indicates a

potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury.

Notice indicates

important information that, if not followed, may cause damage to equipment.

Unpacking

RECEIVING THE UNIT

Immediately upon receipt of the oilless compressor, inspect for any damage which may have occurred during shipment.

The compressor nameplate should be checked to verify the correct model and voltage as ordered.

Do not operate

unit if damaged during shipping, handling or use. Damage may result in bursting and cause injury or property damage.

General Safety Information

The following safety precautions must be observed at all times:

Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of the equipment.

2. Follow all local electrical and safety codes, as well as in the United States, the National Electrical Codes (NEC) and Occupational Safety and Health Act (OSHA).

Only persons well acquainted with these rules of safe operation should be allowed to use the equipment.

4. Keep visitors away and NEVER allow

children in the work area.

Wear safety glasses and use hearing protection when operating the unit.

6. Do not stand on or use

the unit as a handhold.

7. Before each use, inspect compressed

air system and electrical components for signs of damage, deterioration, weakness or leakage. Repair or

Medical Package System

replace defective items before using.

8. Check all fasteners at frequent intervals for proper tightness.

Electrical equipment and controls can cause electrical arcs that will ignite a flammable gas or vapor. Never operate or repair in or near a flammable gas or vapor. Never store flammable liquids or gases in the vicinity of the compressor.

An ASME code

safety relief valve, with a setting no higher than the tank maximum allowable working pressure, MUST be installed in the air lines or in the tank. The ASME safety valve must have sufficient flow and pressure ratings to protect the pressurized components from bursting. The flow rating can be found in the parts manual.

Do not operate

with pressure switch or pilot valves set higher than the tank maximum allowable working pressure.

9. Never attempt to adjust ASME safety

valve. Keep safety valve free from paint and other accumulations.

Never attempt to repair or modify a tank! Welding, drilling or any other modification will weaken the tank resulting in damage from rupture or explosion. Always replace worn, cracked or damaged tanks.

Drain liquid from

tank daily.

10.Tanks rust from moisture build-up,

which weakens the tank. Make sure to drain tank regularly and inspect periodically for unsafe conditions such as rust formation and corrosion.

11.Fast moving air will stir up dust and

debris which may be harmful. Release air slowly when draining moisture or depressurizing.

Installation

Disconnect, tag and lock out power source then release all pressure from the system before attempting to install, service, relocate or perform any maintenance.

Do not lift or move

unit without appropriately rated equipment. Be sure the unit is securely attached to lifting device used. Do not lift unit by holding onto tubes or coolers. Do not use unit to lift other attached equipment.

Installation of

inlet/outlet air plumbing from the compressor flange and eletrical connection must be in accordance with National Fire Protection Association (NFPA99) Code Compliance for Medical Gas Breathing Air (Level 1).

INSTALLATION SITE

1. The oilless compressor must be

located in a clean, well lit and well ventilated area.

2. The area should be free of excessive

dust, toxic or flammable gases and moisture.

3. Never install the compressor where

the surrounding temperature is higher than 105

F or where humidity is high.

4. Clearance must allow for safe,

effective inspection and maintenance.

5. If necessary, use metal shims or

leveling pads to level the compressor. Never use wood to shim the compressor.

VENTILATION

1. If the oilless compressor is located in

a totally enclosed room, an exhaust fan with access to outside air must be installed.

2. Never restrict the cooling fan exhaust

air. Maintain a minimum of 3 feet of clearance around entire unit.

3. Never locate the compressor where hot

exhaust air from other heat generating units may be pulled into the unit.

WIRING

All electrical hook-ups must be performed by a qualified electrician. Installations must be in accordance with local and national electrical codes.

Use solderless terminals to connect the electric power source.

PIPING

Refer to the general product manual.

1. Make sure the piping is lined up

without being strained or twisted when assembling the piping for the compressor.

2. Appropriate expansion loops or

bends should be installed at the

Minimum Clearances

Above 24” Other sides 36”

DANGER

WARNING

CAUTION

NOTICE

WARNING

MANUAL

WARNING

CAUTION

DANGER

NOTICE

WARNING

CAUTION

WARNING

Medical Package System

compressor to avoid stresses caused by changes in hot and cold conditions.

3. Piping supports should be anchored separately from the compressor to reduce noise and vibration.

4. Never use any piping smaller than the compressor connection.

5. Use flexible hose to connect the outlet of the compressor to the piping so that the vibration of the compressor does not transfer to the piping.

SAFETY VALVES

Tank mounted compressors are shipped from the factory with safety valves installed in the tank manifold. The flow capacity of the safety valve is equal to or greater than the capacity of the compressor.

1. The pressure setting of the safety valve must be no higher than the maximum working pressure of the tank.

2. Safety valves should be placed ahead of any possible blockage point in the system, i.e. shutoff valve.

3. Avoid connecting the safety valve with any tubing or piping.

4. Manually operate the safety valve every six months to avoid sticking or freezing.

Assembling Modular Medical System

MODULAR PLACEMENT

1. Unpack each module and discard all wood shipping materials.

2. Locate frame assembly fasteners provided in parts pack [includes: fasteners, filter(s), isolation pads and inlet flex line].

3. Place modules at location designated (see picture below for proper arrangment of modules). Provide sufficient clearance around unit for servicing (see minimum clearance section).

4. Install frame assembly fasteners to each frame joining the frames together.

5. Lift corners of each frame assembly and install isolation pads provided.

NOTE: Remove shipping brackets painted orange located at the base plate of each compressor module. This will allow spring isolators to free up reducing noise and vibration of the unit.

CONNECTING PIPING

1. Locate connection for piping at rear of unit for compressors module to receiver tank module.

2. Remove plastic caps that protect piping against contamination.

3. Connect flex joint to frame securely making sure flex line is not pinched or chinked.

4. Follow steps 1 to 3 for flex line from dryer package to outlet of receiver tank.

NOTE: All piping is provided and sealed for this portion of installation.

5. Locate and attach intake inline air filter to outside source air or header. Flex line is provided when attaching intake of compressors to rigid piping.

6. Connect outlet souce from filter package located on dryer module to outlet source piping.

Attach all inlet and

outlet source piping in accordance with NFPA 99 for Medical Gas.

ELECTRICAL WIRING OF MODULES

Provide electrical

power in accordance to NEC and local codes. Connection of wiring should be performed by a qualified electrician.

1. Connect wiring and flex conduit

provided from each motor junction box to correct hole in bottom of control panel and starter.

2. Connect each temperature switch

from the compressors to contacts located in control panel as marked for each temperature switch. Temperature switches shutdown the

CAL. PORT

ZERO CAL.

ALARM

SET

ADJ.

PANADRY

DEW/FROST POINT

PPM

AUTO CAL

CAUTION

ALARM

SAFE

FLOW

compressor when temperature is above 400°F.

3. Connect wiring of unload solenoids to contacts located on control panel. The unload solenoid provides loadless starting of the compressors on off cycle.

4. Connect wiring from differential pressure switch at control panel. Differential switch wired to contacts in control panel provided for remote alarm.

5. Connect wiring from CO Monitor. A wire set is provided for power and the other for alarm. Wiring is marked for easy attachment.

6. Connect wiring from Dew Point Monitor. A wire set is provided for power and the other for alarm. Wiring is marked for easy attachment.

7. Dryer(s) need a separate properly protected power supply for each dryer. Standard voltage is 110 Volts. Other voltages are available. Check for voltage of dryer supplied and current rating provided on data plate of dryer.

NOTE: Units provided with desiccant drying systems are wired directly to the control panel provided.

For questions concerning assembling and start-up, contact Powerex at 1-800544-0350 for technical assistance.

Operation

Powerex package medical system operates at a maximum pressure of 100 PSIG. Compressor RPM’s are established by Powerex based on horsepower and operating pressure.

MPD Medical Package System

WARNING

CAUTION

DEW/FROST POINT

ALARM

SET

ADJ.

ALARM

PANADRY

FLOW

PPM

CAUTION

AUTO CAL

SAFE

ZERO CAL.

CAL. PORT

Medical Package System

Specifications

Medical

Air Schematic

BEFORE START UP

1. Make sure all safety warnings, labels and instructions have been read and understood before continuing.

2. Remove any shipping materials, brackets, etc.

3. Confirm that the electric power source and ground have been firmly connected.

4. Be sure all pressure connections are tight.

5. Check to be certain all safety relief valves, etc., are correctly installed.

6. Check that all fuses, circuit breakers, etc., are the proper size.

7. Make sure the inlet filter is properly installed.

8. Confirm that the drain valve is closed.

9. Visually check the rotation of the compressor pump. If the rotation is

incorrect, have a qualified electrician correct the motor wiring.

START-UP AND OPERATION

1. Follow all the procedures under “Before start-up” before attempting operation of the compressor.

2. Switch the electric source breaker on.

3. Both dryers should be plugged in and set at the on position.

4. Dewpoint & CO Monitors should be on and the sampling valves open. Calibrate Dewpoint and CO per enclosed manufacturer’s instructions.

5. Ensure water lines are properly installed to water-cooled aftercoolers. Turn on water.

IMPORTANT: This is not a standard option. Check to see if water-

cooled aftercoolers were provided.

6. Compressor unit isolation valves are preset at the factory in the open position except for tank by-pass which must remain closed during normal operation.

7. Dryer and filter isolation valves: Valves should be open to one dryer and one filter bank.

8. Close valve leading to the Medical Air System from receiver on the compressor unit.

a. Turn both fusible/breaker

disconnects to the on position. Low pressure alarm will sound. Silence the alarm by pushing alarm acknowledge button.

b.Jog each compressor in the manual

position on the selector switch to check for rotation. (Clockwise if

Medical Package Duplex – Model MPD

MODEL HP PHASE RPM VOLTAGE

SCFM

100 PSIG

MPD0508 5(2) 3 33.4 36.2 870 208/230/460 17.4/16.5/8.2 120 64 x 65 x 76 1288 MPD0758 7.5(2) 3 52.2 55.1 840 208/230/460 23.4/22/11 120 64 x 65 x 76 1340 MPD1008 10(2) 3 70 76.3 1070 208/230/460 29/ 33 / 16.5 200 64 x 65 x 80 1510 MPD1508 15(2) 3 108.4 114.1 1250 208/230/460 51/48/24 200 64 x 65 x 80 1630

50 PSIG

SCFM

FULL LOAD AMP/

MOTOR

GALLON

TANK

DIMENSION

LxWxH

SHIPPING

WT. (Lbs.)

Medical Package Triplex – Model MPT

MODEL HP PHASE RPM VOLTAGE

SCFM

100 PSIG

MPT0508 5(3) 3 50.1 54.7 870 208/230/460 17.4 / 16.5 / 8.2 200 96 x 65 x 80 1838 MPT0758 7.5(3) 3 78.8 83.9 840 208/230/460 23.4 / 22 / 11 200 96 x 65 x 80 1980 MPT1008 10(3) 3 105 111.5 1070 208/230/460 29 / 33 / 16.5 240 96 x 65 x 92 2160 MPT1508 15(3) 3 162.6 168 1250 208/230/460 51/48/24 240 96 x 65 x 92 2280

50 PSIG

SCFM

FULL LOAD AMP/

MOTOR

GALLON

TANK

DIMENSION

LxWxH

SHIPPING

WT. (Lbs.)

Medical Package Quadplex – Model MPQ

MODEL HP PHASE RPM VOLTAGE

SCFM

100 PSIG

MPQ0508 5(4) 3 66.8 74.9 870 208/230/460 17.4 / 16.5 / 8.2 240 128 x 65 x 92 2388 MPQ0758 7.5(4) 3 104.4 120.2 840 208/230/460 23.4 / 22 / 11 240 128 x 65 x 92 2490 MPQ1008 10(4) 3 140 153 1070 208/230/460 29/33/16.5 240 128 x 65 x 92 2640 MPQ1508 15(4) 3 216.8 221 1250 208/230/460 51/ 48 / 24 240 128 x 65 x 92 2735

50 PSIG

SCFM

FULL LOAD AMP/

MOTOR

GALLON

TANK

DIMENSION

LxWxH

SHIPPING

WT. (Lbs.)

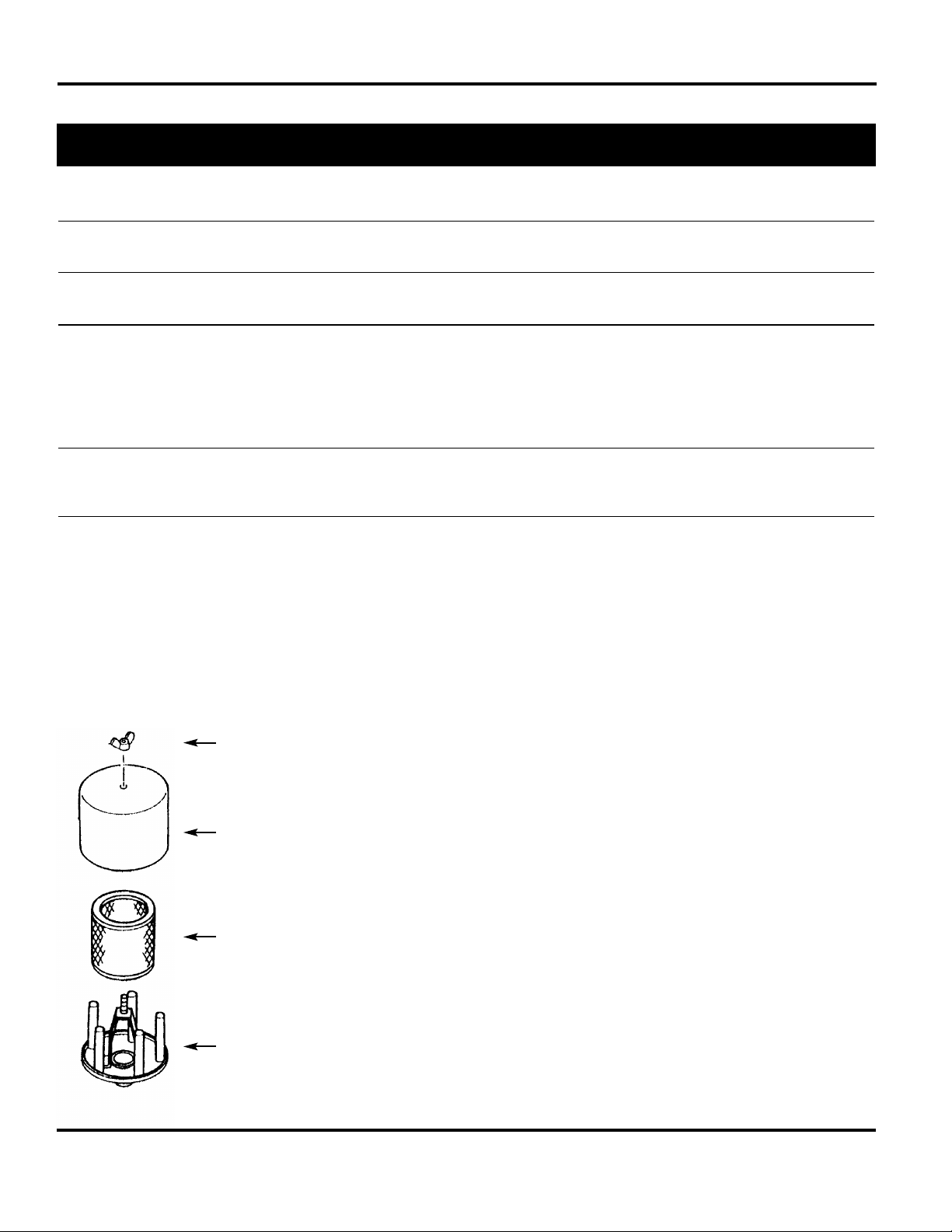

Tank Drain moisture Daily 2500 Inlet air filter Replace ●▲(Every 2,500 hrs or less) Blower fan Clean ●●●● Fan Duct Clean ●●●●

Compressor Fins Clean ● (Every 2,500 hrs or less) Bearings Replace ●●▲ Compression rings Replace ▲▲ Wrist pin bearing Regrease ▲▲

Piston set Replace ▲ V-belt Inspect, replace *Note 3 ●▲▲▲▲ Safety valve Confirm operation ● (Every 2,500 hrs or less) Pressure gauge Inspect ● (Every 2,500 hrs or less)

Air leaks Inspect ●●● Filters Replace ▲▲▲▲▲ (View delta pressure

indication)

Moisture drains Inspect ●●●

traps

Suction pressure ●●●●●

(refrigerated)

Heat exchanger ●●●●●

Medical Package System

COMPRESSOR MAINTENANCE SCHEDULE

Operating Hours

Item Action needed 500 2500 5000 10,000 15,000 20,000 Remarks

1. Inspect and perform maintenance periodically according to maintenance schedule.

2. The maintenance schedule relates to the normal operating conditions. If the circumstances and load condition are adverse, shorten the cycle time and do maintenance accordingly.

3. * The tension of the V-belt should be adjusted during the initial stage and inspected every 1,500 hours afterwards. Proper belt tension for 3/4 to 3 HP units is 12 lbs./.5” deflection; for 5 to 20 HP units, 16 lbs./1.5” deflection

● Inspect ▲ Replace

facing the black fan shroud and counterclockwise if facing the compressor flywheel.)

c. Set both selector switches to the

auto position. Compressors will both run until the lead pressure switch closes.

d.Open valve at the air receiver

leading to Medical Air System.

e. Check for air leaks at the

connections.

9. Check that the compressor operates without excessive vibration, unusual noises or leaks.

10. Check the discharge pressure. Also make sure the air pressure rises to the designated pressure setting by checking the discharge pressure gauge.

11.Check the operation of the pressure switch or the pilot valve for continuous run units by opening the stop valve and confirming the compressor starts or reloads as pressure drops.

QUADPLEX MPQ

TRIPLEX MPT

LEFT END

VIEW

DUPLEX MPD DRYER SYSTEM

MDR OR MDD

32" 32" 8"32"

Consult factory

for special voltages

or arrangements.

FILTER SYSTEM MFP

RIGHT END VIEW

Medical Package System

Ref. No. Description Part Number Qty.

1 Compressor Pump:

5 HP OPT050 1 7-1/2 HP OPT100 1 10 HP OPT100 1 15 HP OPT150 1

2 Corrosion Resistant Vertical Tank

120 Gal. Consult factory

for number 1

200 Gal. Consult factory

for number 1

240 Gal. Consult factory

for number 1

3 Dew Point Monitor/Probe

Refrigerated ACO500100 1 Dessicant ACO500200 1

4 Carbon Monoxide

Monitor/Sensor ACO600100 1

5 Safety Relief Valve Consult factory

for number 1

6 Control Panel Consult factory

for parts and availability. Call 1-888-769-7979.

7 Pressure Gauge Consult factory

for number 1

8 Auto Tank Drain

Electric ACO100100 1 Float ACO100200 1

9 Isolation Mounts Consult factory

for parts and availability. Call 1-888-769-7979.

10 Drive Belts

5 HP BT009900AV 2 7-1/2 HP BT011200AV 2 10 HP BT009200AV 2 15 HP BT010200AV 2

11 Pulley (Motor)

5 HP PU009743AV 1 7-1/2 HP PU009775AV 1 10 HP PU009716AV 1 15 HP PU009758AV 1

12 Motor

5 HP MC022307AV 1 7-1/2 HP MC022370AV 1 10 HP MC022372AV 1 15 HP MC022376AV 1

13 Belt Guard Back

5 HP BG019502AJ 1 7-1/2 HP BG218400AV 1 10 HP BG218400AV 1 15 HP BG218400AV 1 Belt Guard Front 7-1/2 HP BG218500AV 1 10 HP BG218500AV 1 15 HP BG218500AV 1

Compressor Parts List

Medical Package System

Ref. No. Description Part Number

1 Refrigerated Dryer:

20 CFM ACO200020 25 CFM ACO200025 35 CFM ACO300035 45 CFM ACO000045 55 CFM ACO200055 60 CFM ACO200060 70 CFM ACO200070 100 CFM ACO200100 150 CFM ACO200150 200 CFM ACO200200

2 Filter Packages:

1/2”-40 CFM MFP-040-342 1/2”-50 CFM MFP-050-342 3/4”-60 CFM MFP-060-362 1”-70 CFM MFP-070-382 1”-100 CFM MFP-110-382 1-1/4” -220 CFM MFP-220-3A2

See Filter System Manual for details and replacement elements.

Dryer/Filter Parts List

Ref. No. Description Part Number

1 Aftercooler:

5 HP ACO700015 7-1/2 -10 HP ACO700020 15 HP ACO700025

2 Drain Trap:

5 - 15 HP Consult factory

for number

3 Piping Braided Flex:

5 HP - 1/2 in. 7-1/2 HP - 1/2 in. 10 HP - 3/4 in. 15 HP - 3/4 in.

4 Temperature Switches

400°N/O Switch

Aftercooler/Drain

Left-End View

Consult factory for size and length.

Powerex • 150 Production Drive • Harrison, OH 45030 • USA

Descriptions

GENERAL

Powerex utilizes cutting-edge compressor technology to provide the most advanced oilless reciprocating air compressor in the industry. The Powerex reciprocating compressor is available in single and two stage models. Continuously lubricated, sealed bearings provide oilfree compressed air and long compressor life. The onboard fan, finned flywheel and temperature reducing composite piston create lower operating temperatures.

DRY TYPE INLET FILTER

The inlet filter on the oilless compressor assures 99% of particulate free air, down to 10 micron, is admitted to the unit. Change every 2500 hours or more often in dirty locations (See Figure 5).

PISTON AND PISTON RINGS

The Powerex oilless reciprocating compressor pistons are made of a highstrength, self-lubricating composite using the most advanced technology available. These heat reducing pistons eliminate the effect of excessive grease leakage at the wrist pin bearing.

Oilless Oilless Reciprocating Air Compressor Pumps

Breathable Air Warning

This compressor/pump is NOT equipped and should NOT be used “as is” to supply breathing quality air. For any application of air for human consumption, you must fit the compressor/pump with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas Association Commodity Specification G 7.1 - 1966, OSHA 29 CFR 1910. 134, and/or Canadian Standards Associations (CSA).

DISCLAIMER OF WARRANTIES In the event the compressor/pump is used for the purpose of breathing air application and proper in-line safety and alarm equipment is not simultaneously used, existing warranties are void, and Powerex disclaims any liability whatsoever for any loss, personal injury or damage.

Teflon® rings reduce wear and provide self lubrication. Piston rings should be replaced every 10,000 hours of operation (See Figure 12).

BEARING REGREASE

The wrist pin bearings of the OPS and OPT oilless compressors are needle bearings protected by two outer lip seals. This needle bearing becomes impacted and requires regreasing at 5,000 hours (See Figure 15).

BEARING SEALS

The wrist pin bearing lip seals prevent the lubricating grease from leaking from the bearing area. The two lip seals on each connecting rod require replacement every 10,000 hours (See Figure 1622 or page 9).

Installation

INSTALLATION SITE

1. The oilless compressor must be located in a clean, well lit and well ventilated area.

2. The area should be free of excessive dust, toxic or flammable gases and moisture.

3. Never install the compressor where the ambient temperature is higher than 105

F or where humidity is high.

IN258603AV 9/04

OPS 010

1 145 3.6 625 1 2.56 2.56 11.2 1 GR-A 28

1.5 5.3 885

OPS 030

145

6.6 845 2 2.56 2.36 13.8 1 GR-B 53

3 10.1 1115

OPT 050 5 145 17.2 860 2 4.31 x 2.95 3.35 16.9 2 GR-B 110

OPT 100

7.5 145

27.5 855 3 3.54 x 2.95 3.35 18.3 2 GR-B 165

10 35.0 1090

OPT 150 15 145 47.0 1140 3 4.13 x 2.95 3.35 19.6 2 GR-B 170

Max. SCFM @ No. of Flywheel Weight

Model HP PSIG 100 PSIG RPM Cyl. Bore Stroke O.D. Drive (lbs.)

Specifications

DANGER

Oilless Reciprocating Air Compressor Pumps

4. Clearance must allow for safe, effective inspection and maintenance.

5. If necessary, use metal shims or leveling pads to level the compressor. Never use wood to shim the compressor.

VENTILATION

1. If the oilless compressor is located in a totally enclosed room, an exhaust fan with access to outside air must be installed.

2. Never restrict the cooling fan exhaust air.

3. Never locate the compressor where hot exhaust air from other heat generating units may be pulled into the unit.

WIRING

Refer to the general safety guidelines manual. All electrical hook-ups must be performed by a qualified electrician. Installations must be in accordance with local and national electrical codes.

Use solderless terminals to connect the electric power source.

PIPING

Refer to the general safety guidelines manual.

1. Make sure the piping is lined up without being strained or twisted when assembling the piping for the compressor.

2. Appropriate expansion loops or bends should be installed at the compressor to avoid stresses caused by changes in hot and cold conditions.

3. Piping supports should be anchored separately from the compressor to reduce noise and vibration.

4. Never use any piping smaller than the compressor connection.

5. Use flexible hose to connect the outlet of the compressor to the piping so that the vibration of the compressor does not transfer to the piping. Make

sure the flexible hose is rated for proper pressure and temperature before installing.

SAFETY VALVES

1. The pressure setting of the safety valve must be no higher than the maximum working pressure of the tank.

2. Safety valves should be placed ahead of any possible blockage point in the system, i.e. shutoff valve.

3. Avoid connecting the safety valve with any tubing or piping.

4. Manually operate the safety valve every six months to avoid sticking or freezing.

HOURMETER

The hourmeter on the oilless compressor indicates the actual number of hours the unit has been in operation. The hourmeter is also used to determine maintenance and service timing.

An hourmeter must be installed with every oilless compressor.

CONDENSATE DRAIN VALVE

A condensate drain valve must be installed on any tank to allow removal of the liquid which will collect during compressor operation.

Drain liquid from tank daily.

Operation

Powerex oilless single stage compressors operate at a maximum pressure of 125 PSIG. Two stage compressors operate at a maximum of 145 PSIG and are equipped for continuous run operation. Compressor RPM’s are established by Powerex based on horsepower and operating pressure.

BEFORE START UP

1. Make sure all safety warnings, labels and instructions have been read and understood before continuing.

2. Remove any shipping materials, brackets, etc.

3. Confirm that the electric power source and ground have been firmly connected.

4. Be sure all pressure connections are tight.

5. Check to be certain all safety relief valves, etc., are correctly installed.

6. Check that all fuses, circuit breakers, etc., are the proper size.

7. Make sure the inlet filter is properly installed.

8. Confirm that the drain valve is closed.

9. Visually check the rotation of the compressor pump. If the rotation is incorrect, have a qualified electrician correct the motor wiring.

START-UP AND OPERATION

1. Follow all the procedures under “Before start-up” before attempting operation of the compressor.

2. Switch the electric source breaker on.

3. Open the tank discharge valve completely.

4. Check that the compressor operates without excessive vibration, unusual noises or leaks.

5. Close the discharge valve completely.

6. Check the discharge pressure. Also make sure the air pressure rises to the designated pressure setting by checking the discharge pressure gauge.

7. Check the operation of the pressure switch or the pilot valve for continuous run units by opening the stop valve and confirming the compressor starts or reloads as pressure drops.

Switch the breaker OFF if the compressor is not to be used for a long period of time.

These units are

equipped with head unloaders for continuous run operation.

Minimum Clearances

Above 24”

Drive belt side 12”

Other sides 20”

NOTICE

Oilless Reciprocating Air Compressor Pumps

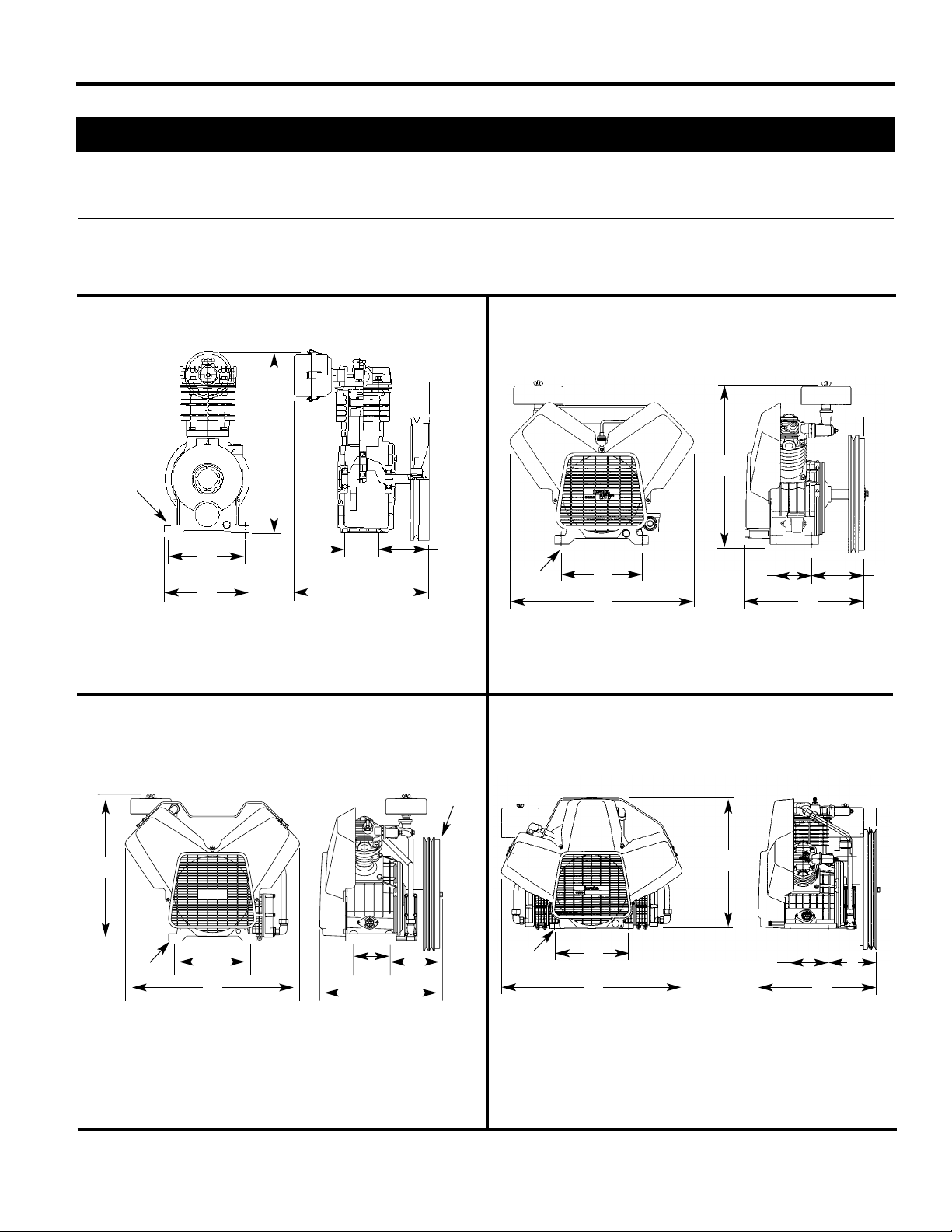

Model No. HP A B C D E F (Diameter) (O.D. Flywheel)

Dimensions (inches)

OPS 010 1 - 11/

6.7 3.2 11.7 16.2 7.5 4.2 .38 Ø11.2 Ax1

OPS 030 2 - 3 8.3 3.7 13.4 17.8 18.9 6.4 .43 Ø13.8 Bx1

OPT 050 5 11.4 5.3 18.3 21.9 25.9 7.9 .43 Ø16.9 Bx2

OPT 100 7

/2- 10 12.2 6.3 20.0 21.6 29.7 8.4 .55 Ø18.3 Bx2

OPT 150 15 12.2 6.3 20.0 21.6 29.7 8.4 .55 Ø19.6 Bx2

Figure 2 - Model OPS 030

Figure 4 - Models OPT 100 and OPT 150

Figure 1 - Model OPS 010

Figure 3 - Model OPT050

Oilless Reciprocating Air Compressor Pumps

Maintenance Schedule

Operating Hours

Item Action needed 500 2500 5000 10,000 15,000 20,000 Remarks

Tank Drain moisture Daily Drain tank daily Inlet Air Filter Replace (Every 2,500 hrs or less) Blower Fan Clean  Fan Duct Clean  Compressor Fins Clean  (Every 2,500 hrs or less) Bearings Replace  Compression Rings Replace  Wrist Pin Bearing Regrease *Note 4  Piston Set Replace 

Cylinder Inspect  Unloader Set Replace  Gasket Set Replace  Bearing Seal Wrist

Pin Replace  V-belt Inspect, replace *Note 3   Pressure Switch Confirm operation  Magnetic Starter Inspect Replace if contact

points deteriorated Safety Valve Confirm operation  (Every 2,500 hrs or less) Pressure Gauge Inspect  (Every 2,500 hrs or less)

 Inspect  Replace

NOTES:

1. Inspect and perform maintenance periodically according to maintenance schedule.

2. The maintenance schedule relates to the normal operating conditions. If the circumstances and load condition are adverse, shorten the cycle time and do maintenance accordingly.

3. The tension of the V-belt should be adjusted during the initial stage (500H) and inspected every 2,500 hours afterwards. Proper belt tension for 1 to 3 HP units is 2-3 lbs./.5” deflection; for 5 to 15 HP units, 4-6 lbs./.5” deflection.

4. See page 8.

Air Filter Replacement

1. Remove wing nut or spring clips

2. Remove canister and wipe inside clean with dry cloth.

3. Remove and discard filter cartridge.

4. Install new filter cartridge. Do not attempt to clean and reuse filter cartridge.

5. Wipe inside clean with dry cloth.

Figure 5 - Air Filter Replacement

Oilless Reciprocating Air Compressor Pumps

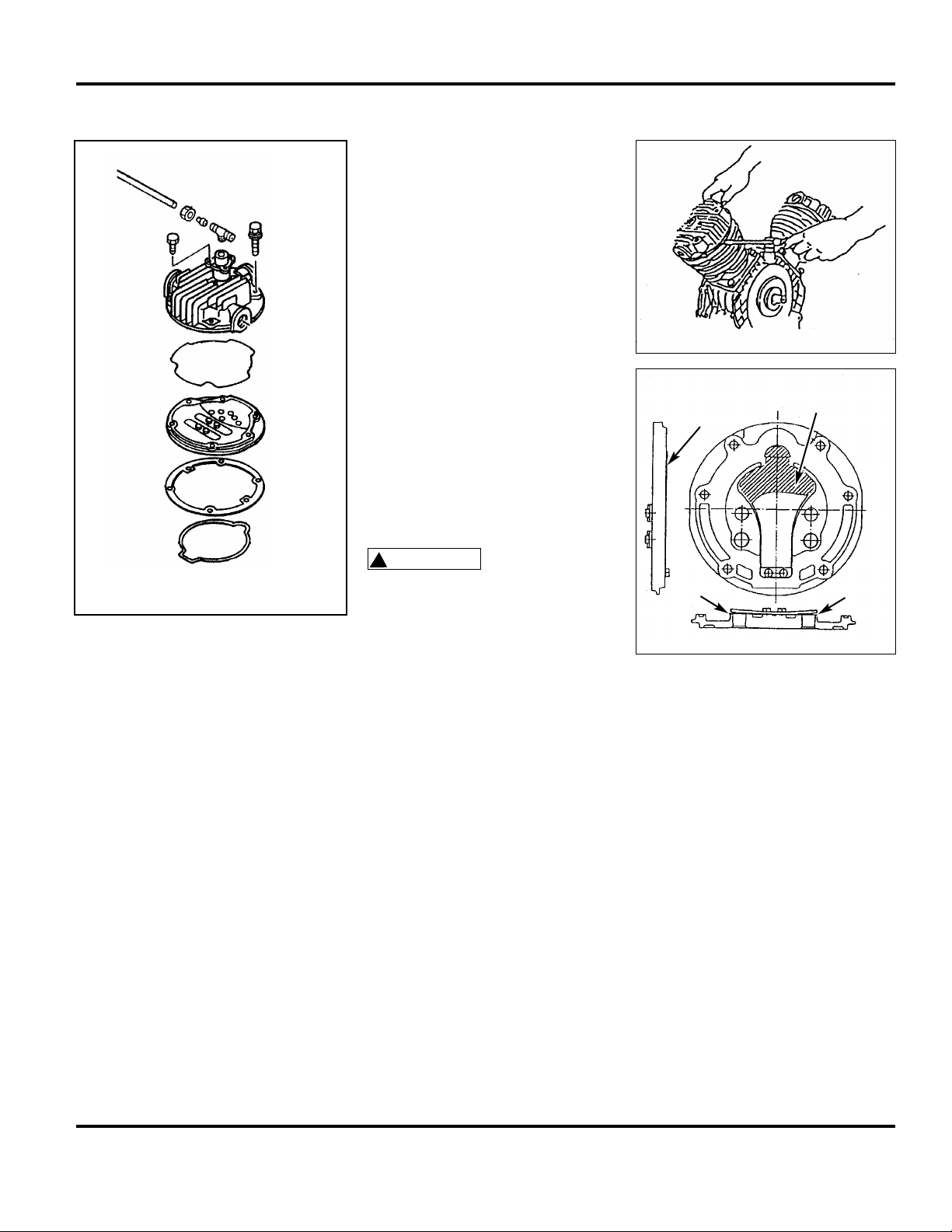

Valve Inspection/ Replacement (Inspect Every 5,000 Hours)

INSPECT VALVE SET

1. Remove head bolts from cylinder head. Head bolts for some models are used also as cylinder bolts, which penetrates crankcase (See Figure 7).

2. Remove cylinder head and valve set. If it is difficult to remove by hand, insert screwdriver between cylinder and valve set and remove.

INSPECTION AND MAINTENANCE

1. Check if exhaust valve (A) sticks to seat or is damaged (See Figure 8).

2. Check if there is breakage, gouge or damage to appearance of intake valve (B).

3. Lift intake valve by 10 mm and check if there is peeling and wear on coating surface of valve spacer (C).

Lifting intake valve too much can

cause damage to intake valve.

4. Replace with intake valve if valve plate and valve spacer are worn or wear is over 0.5 mm in depth. If exhaust valve rises upwards, clean seat surface if foreign matter sticks.

5. Clean the whole valve set taking care not to damage, seat surface and remove dust.

6. If viton seals (upper and lower) reach inspection time, replace them. Even if its not time to inspect, be sure to replace if they do not protrude from groove for seal or seal has hardened or been damaged.

7. Be sure to replace plastic seat in cylinder.

8. Fit valve set while paying attention to black plastic seat of intake valve fitted to cylinder (so that you do not drop seat or insert tip of valve under seat).

9. Fit cylinder cover and tighten fitting bolt with designated torque.

NOTES:

• When using valve set again, replace upper and lower viton seals.

• When replacing valve set, replace with upper and lower viton seals (valve set

with packing set). You cannot reuse disassembled valve set.

We are not responsible for any problems caused by reuse of disassembled valve

set.

REASSEMBLY

Assemble in reverse order of disassembling. Tighten each section with designated tightening torque (See Chart on page 6).

(B)

Check for peeling

or wear (C)

(A)

Figure 6

Figure 7

Figure 8

CAUTION

Figure 10

Oilless Reciprocating Air Compressor Pumps

OPS010 OPT050, OPT150 OPS030 OPT100

Cylinder Bolt Torque

156 in. lb. 295 in. lb.

OPS010, OPS030, OPT050,

OPT100, OPT150

Head Bolt Torque

156 in. lb.

Cylinder Inspection/Replacement

1. Remove cylinder head and valve set. Pay attention not to lose semicircular (black plastic) seat inserted at top surface of cylinder.

INSPECTION

1. Surface treated layer is worn and metal is exposed. Replace worn piston and piston ring.

2. Scuffing (damage) due to foreign matter. Replace if it is swollen by scuffing the aluminum cylinder.

3. Replace if several vertical scratches are side by side at a narrow distance.

NOTE: Blackish streaks you can feel with your nail or finger are not damage but sliding marks of piston and piston ring. You do not need to replace the piston set or cylinder even if there are several marks on the whole diameter of the cylinder.

REASSEMBLY

1. Assemble in reverse order of disassembling cylinder.

2. Direction of cylinder is set so that semicircular spot facing, to which seat (black plastic) is inserted, faces toward flywheel side.

3. Tighten cylinder bolt with designated torque (refer to chart below).

Figure 9

Seat

Cylinder

Replace if it is scratched

Oilless Reciprocating Air Compressor Pumps

1. Remove cylinder head and cylinder.

2. Do not use tool to remove the ring.

NOTE: Expanding ring too much and deforming can cause wear and leakage. (See Figure 12). Mark upper surface (not lower surface) of removed ring for easy distinction.

3. Inspect lower surface (A) and outer side surface (B) of ring (See Figure 13). Measure thickness (C) of ring with calipers. Replace if foreign matter enters (A, B) or deep damage is found or (C) dimension is less than 2.5 mm at any point around the rings circumference.

NOTE: Clean the whole ring and ring groove with soft clean cloth.

Ring and piston dust build up in the ring groove can cause knocking. This is sometimes mistaken for bad valve

or bearing.

REASSEMBLE: Pay attention to the fit of the piston and wrist pin fit. There should be no axial play or looseness in the wrist pin area.

NOTE: Do not separate piston from connecting rod when inspecting piston or ring. If you remove piston from connecting rod, you may damage oil seal of connecting rod and needle bearing.

PISTON REPLACEMENT

1. Inspect for appearance if there is deep damage or crack on top of piston or at pin boss.

2. Remove piston ring and inspect for breakage or droop of ring land.

3. Remove o-rings on both sides of piston pin.

4. Push piston pin to one side.

NOTE: Install bearing retention sleeve in grease kit/piston set. The retention sleeve is to prevent the needle bearing from falling out of the bearing area. On the HP cylinder only.

5. Remove piston pin.

INSPECT PISTON AND PISTON RING (INSPECT EVERY 5,000 HOURS)

(B)

(A)

Figure 11

Figure 12

Figure 13

(C)

Figure 14

O-ring

Piston pinPiston

Piston rings

CAUTION

Pump No. of Piston Mark on

Compressor No. Rings per Top of

Model Bore Cylinders Piston Piston

OPS010 65 mm 1 1

Flywheel side

Fan side

OPS030 65 mm 1 1

Flywheel side

Fan side

OPT050

LP 105 mm 1 1

Flywheel side

HP 75 mm 1 2

Fan side

OPT100

LP 90 mm 2 1

Flywheel side

HP 75 mm 1 2

Fan side

OPT150

LP105 2 1

Flywheel side

HP75 1 2

Fan side

Oilless Reciprocating Air Compressor Pumps

NOTE: The orientation in which the pistons are reinstalled is very impor-

tant. Improper placement will cause premature wear of the ring and piston.

NOTE: When removing HP piston on two-stage pumps, remove piston and then insert retention sleeve having the same diameter of piston pin or piston to small end of connecting rod. If not, you may drop or lose needles from the bearing, as HP needle bearing does not have support.

Fit piston by referring to ∆ marking on the top of the piston surface and list on above chart.

NOTE: Gradually insert piston pin while turning it. Inserting with force can damage oil seal of needle bearing.

* FOR LOW PRESSURE PISTON ONLY

PISTON ORIENTATION CHART FOR OILLESS OPS/OPT SERIES

Small end of connecting rod

Piston Pin

Jig (fixture) or collar

Figure 15

Powerex Oilless

Reciprocating

Grease

6 Grams

#IP634500AV

PURE AIR TECHNOLOGY

Oilless Reciprocating

Grease

6 Grams

#IP634500AV

CAUTION

Oilless Reciprocating Air Compressor Pumps

WRIST PIN BEARING SEAL REPLACEMENT (REPLACE EVERY 10,000 HOURS) Replacing Oil Seal

1. Insert the plastic retention sleeve which protects the needle bearing from dropping out.

2. Remove the two oil seals by using a screwdriver.

3. Clean both surfaces where oil seals are removed.

4. Push the oil seal into the small bearing end horizontally.

5. Press the oil seal with a C-clamp into the small bearing end.

6. Repeat on opposite side.

7. Apply a small volume of adhesive at several points.

8. Remove the retention sleeve inserted at the first step.

Pushing Board

Figure 16

Figure 21

Figure 20Figure 19

Figure 18Figure 17

Figure 22

NOTE: You may use a “C” clamp or two large washers and bolt with nut through the bearing. Then apply pressure to install

the seals. This makes it easy to replace the seals without removing the crankshaft.

Oilless Reciprocating Air Compressor Pumps

Inspect Connecting Rod, Wrist Pin and Crankshaft

REPLACE CONNECTING ROD SET AND CRANKSHAFT AS A SET

Pressing bearing into connecting rod and connecting rod set into crankshaft requires special fixtures. Without such fixtures, the squareness and parallelism of each part will be affected.

DISASSEMBLE AND REMOVE CYLINDER COVER, CYLINDER AND PISTON IN THIS ORDER

1. Bearing at large end of connecting rod: Replace if it does not move or feels stuck holding and moving small end of connecting rod.

2. Bearing of crankshaft: Replace if you feel some resistance when slowly turning shaft.

3. Bearing at wrist pin: Check for breakage of needle bearing and damage of cage.

DISASSEMBLING: CRANKSHAFT SET

1. Disassemble cylinder head, cylinder and piston.

2. Remove bolts from bearing cap and remove bearing cap.

3. Lightly tap shaft fan side with non-shock hammer (avoid metal hammer) and remove crankshaft. After bearing leaves the crankcase bore, pull connecting rod out as illustrated and remove it from crankcase (See Figure 23).

REASSEMBLY

1. Heat bearing housing of crankcase with industrial dryer or simple burner just the same as disassembling.

2. Insert crankshaft set into crankcase in reverse order of disassembling and insert bearing into housing.

3. Tap shaft from pulley side with non-shock hammer and insert it inwards.

4. Fit bearing case. Grease bearing housing of bearing case.

Shaft fan side

Figure 23

Oilless Reciprocating Air Compressor Pumps

Notes

Oilless Reciprocating Air Compressor Pumps

Figure 24 - Replacement Parts Illustration for OPS010

Oilless Reciprocating Air Compressor Pumps

Ref. Part Number for model No. Description OPS010 Qty

1 Cylinder 91000560 1

6 Cylinder head 91002630 1 16 Elbow (Unloader) 06800261 1 18 Unloader cap 01052041 1 24 Spring guide set 91932560 1 27 Bolt (cylinder head) 06137835 4 33 Bolt (cylinder) 06137825 8 34 Bolt (bearing cap) 06137620 8 35 Crankcase 91100630 1 36 Bearing cap 91101630 1 47 O-ring 01146550 1 50 Crank shaft  1 51 Flywheel pulley 91201551 1 52 Parallel pin 01271550 1 57 Ball bearing (bearing cap)  2 62 Hex blot (fan, flywheel) 06992857 1 65 Connecting rod w/bearings  1 67 Piston set 91903640 1

67-1 Piston ring 91237640 1

72 Intake filter set 91906630 1

72-1 Intake filter 91348550 1

84 Screw (dust cover) 06131508 2 99 Seat (intake valve) 01301560 1

121 Dust cover 91383630 1 197 Lip seals wrist pin 97191000 2 200 Unloader set 91931560 1 500 Gasket set 91936640 1 600 Valve set with gasket 91933640 1

 Crank shaft set (Includes 50, 57 and 65) 91918630 1

Oilless Reciprocating Air Compressor Pumps

Figure 25 - Replacement Parts Illustration for OPS030

Oilless Reciprocating Air Compressor Pumps

Ref. Part Number for model No. Description OPS030 Qty

1 Cylinder 91000560 2

6 Cylinder head 91002640 2

16 Elbow (unloader) 06800261 1 17 Tee union assembly 06803261 1 20 Intake joint (1) 91345561 1 21 Intake joint (2) 91346571 1 24 Spring guide set 91932560 2 27 Bolt (cylinder head) 06137835 8 30 Flange (breather) 91176660 1 31 Bolt 06995831 20 33 Bolt (cylinder) 06137825 8 34 Bolt (bearing cap) 06137620 8 35 Crank case 91100640 1 36 Bearing cap 91101560 1 38 Filter (crank case) 91348690 1 47 O-ring 01146560 1 50 Crank shaft  1 51 Flywheel pulley 91202560 1 52 Woodruff key 06600013 1 53 Hex nut 06994016 2 57 Ball bearing (bearing cap)  1 58 Ball bearing (crank case)  1 59 Fan 91220560 1 60 Cover (fan) 91134560 1 61 Hex bolt (fan, flywheel) 06992857 2 64 Liner (connecting rod) 01480640 1 65 Connecting rod w/bearing  2 67 Piston set 91903640 2

67-1 Piston ring 91237640 2

72 Intake filter set 91907570 1

72-1 Intake filter 91353660 1

78 O-ring 06630032 2 79 Intake pipe 91407560 1 82 Screw (filter) 06131508 2 87 Tube 01909400 1

99 Seat (intake valve) 01301560 2 109 O-ring (intake joint) 06639906 2 193 Fan guard 91135560 2 195 Bolt (intake joint 1) 01095570 1 196 Bolt (intake joint 2) 01095560 1 197 Lip seals wrist pin 97191000 4 200 Unloader set 91931560 2 500 Gasket set 91936640 2 600 Valve set with gasket 91933640 2

 Crankshaft set (includes part #’s 50, 57, 58 and 65) 91918640 1

Oilless Reciprocating Air Compressor Pumps

Figure 26 - Replacement Parts Illustration for OPT050

197

Oilless Reciprocating Air Compressor Pumps

Part Number Ref. for model No. Description OPT050 Qty

1 Cylinder (LP) 91000680 1 2 Cylinder (HP) 91947680 1 3 Liner 91177680 2 6 Cylinder Head (LP) 91002691 1 7 Cylinder Head (HP) 91002680 1 14 Elbow (Intercooler) 01415690 2 17 Tee Union Ass’y 06803261 2 18 Unloader Cap 01052451 2 20 Intake Joint 91345660 1 24 Spring Guide Set 91949694 2 27 Bolt (Cylinder Head) 06137850 10 30 Flange (Breather) 91176660 1 31 Bolt (Unloader Cap) 06995831 26 33 Bolt (Cylinder) 06137130 8 34 Bolt (Bearing Cap) 06137830 10 35 Crank Case 91100660 1 36 Bearing Cap 91101580 1 38 Filter (Crank Case) 91348690 1 47 O-ring 01146430 1 50 Crank Shaft  1 51 Flywheel Pulley 91201660 1 52 Woodruff Key 06600016 1 53 Hex Nut 06994016 4 54 Washer 06991512 1 57 Ball Bearing (Brg. Cap)  1 58 Ball Bearing (Crank Case)  1 59 Fan 91220690 1 60 Cover (Fan) 91134660 1 61 Hex Bolt (Fan, Flywheel) 06992817 2 64 Liner (Connecting Rod) 91472690 1 65 Connecting Rod Set  1 66 Connecting Rod Set  1 67 Piston Set (LP) 91903680 1 67-1 Piston Ring (LP) 91236681 1 68 Piston Set (HP) 91910670 1 68-1 Piston Ring (HP) 91930680 2 68-2 Wrist Pin (Prepacked) 91924680 1 72 Intake Filter Set 91907660 1 72-1 Intake Filter 91353660 1 82 Screw (Filter) 06235304 2 87 Unloader Tube 91420660 1 99 Seat (Intake Valve) 01301691 2 108 Intercooler Flange 91403690 1 109 O-ring (Intake joint) 06639906 2 110 Connecting Pipe 91400660 1 120 Bolt (Intercooler) 01435692 2 143 O-Ring (Connecting Pipe) 06632825 1

145 O-Ring (Connecting Pipe) 06632835 1 157 Hex. Bolt (Intercooler) 06996460 6 165 Nut (Intercooler) 06994015 6 171 Connecting Pipe Set 91914661 1 173 Intercooler 91404690 2 174 Intercooler Flange (1) 91405690 1 175 Intercooler Flange (2) 91406690 1 176 Gasket (Intercooler) 01432690 3 193 Fan Guard 91144660 2 196 Bolt (Intake Joint) 01344690 2 197 Lip seals wrist pin 97191000 4 200 Unloader Set 91932681 2 500 Gasket Set (LP) 91936680 1 550 Gasket Set (HP) 91937681 1 600 Valve Set with Gasket (LP) 91933681 1 650 Valve Set with Gasket (HP) 91934683 1

 Crank Shaft Set (50, 57, 58, 65, 66) 91918660 1

Part Number Ref. for model No. Description OPT050 Qty

Oilless Reciprocating Air Compressor Pumps

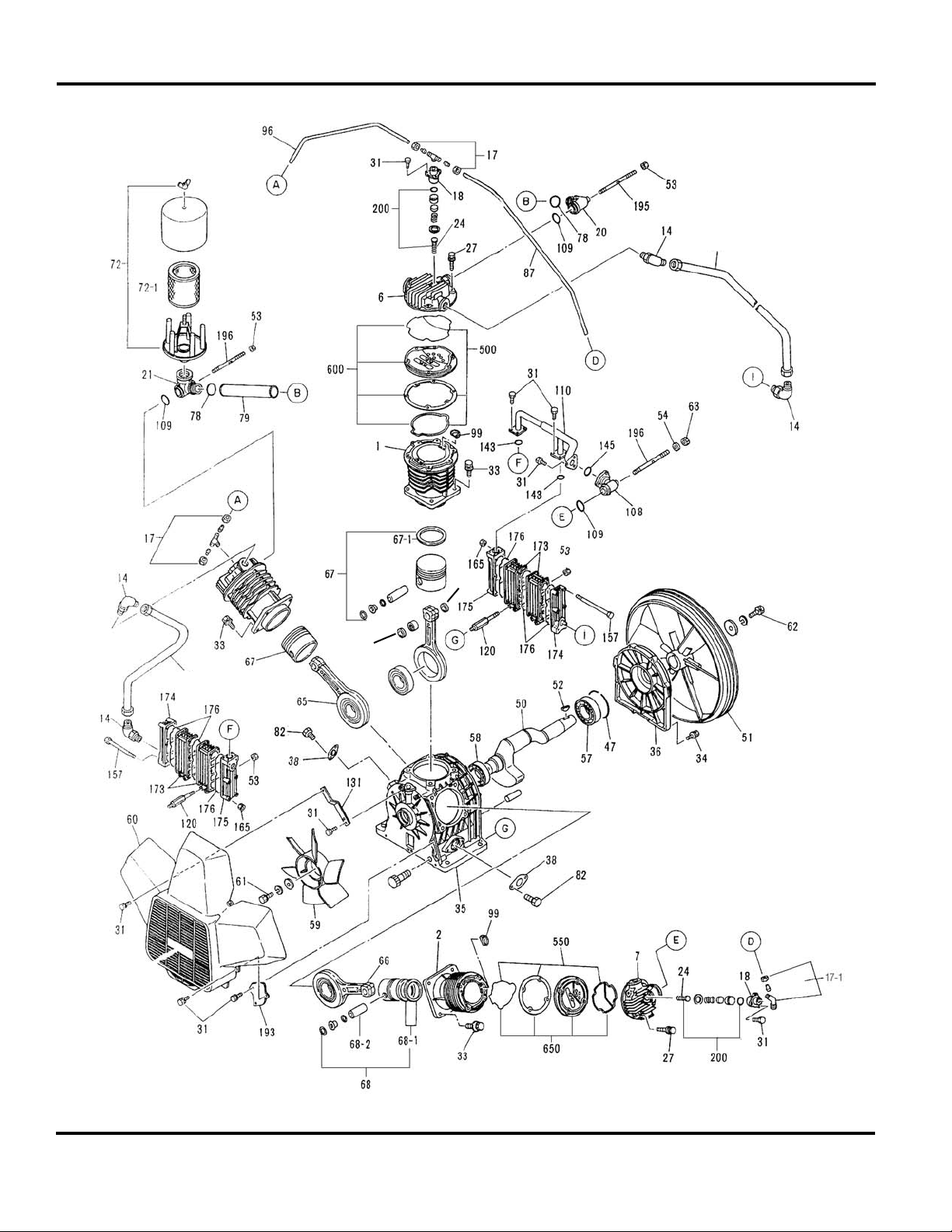

Figure 27 - Replacement Parts Illustration for OPT100 and OPT150

197

171

172

1 Cylinder (LP) 91000670 91000680 2 2 Cylinder (HP) 91947680 91947680 1 6 Cylinder head (LP) 91002691 91002691 2 7 Cylinder head (HP) 91002680 91002680 1 14 Elbow (Intercooler) 01415690 01415690 4 17 Tee union assembly IP010400AV IP010400AV 2 17-1 Elbow union assembly 96800261 96800261 1 18 Unloader cap 01052451 01052451 3 20 Intake joint (1) 01345691 01345691 1 21 Intake joint (2) 01346690 01346690 1 24 Spring guide set 91949694 91949694 3 27 Bolt (Cylinder head) 06137850 06137850 16 31 Bolt (Unloader cap) 06995831 06995831 30 33 Bolt (Cylinder) 06137130 06137130 12 34 Bolt (Bearing cap) 06137830 06137830 10 35 Crank case 91100680 91100680 1 36 Bearing cap 91101690 91101690 1 38 Filter (Crank case) 91348690 91348690 1 47 O-ring (Bearing cap) 01146690 01146690 1 50 Crank shaft 1 51 Flywheel pulley 01201590 91201690 1 52 Woodruff key 06600016 06600016 1 53 Hex nut 06994016 06994016 6 54 Washer (Intercooler) 06991512 06991512 1 57 Ball bearing (Bearing cap) 1 58 Ball bearing (Crank case)

1

59 Fan 91220690 91220690 1 60 Fan cover 91134690 91134690 1 61 Hexagon bolt (Fan) 06992817 06992817 1 62 Hexagon bolt (Flywheel) 06992833 06992833 1 63 Hexagon nut (Intake joint) 06382086 06382086 1 65 Connecting rod (LP) 2 66 Connecting rod (HP) 1 67 Piston set (LP) 91903670 91903680 2 67-1 Piston ring (LP) 91236671 91236681 2 68 Piston set (HP) 91910670 91910670 1 68-1 Piston ring (HP) 91930680 91930680 2 68-2 Wrist pin set (prepacked) 91924680 91924680 1 72 Intake filter set 91907590 91907690 1 72-1 Intake filter 91353690 91353690 1 78 O-ring (Intake pipe) 06630032 06630032 2 79 Inlet pipe 01407690 01407690 1 82 Bolt (Crankcase filter) 06131508 06131508 4 87 Unloader tube 01420690 01420690 1 96 Unloader tube 01419600 01419600 1 99 Wear pad, valve 01301691 01301691 3 108 Intercooler Joint 91403690 91403690 1 109 O-ring ( Intercooler Joint ) 06639906 06639906 3 110 Connecting Pipe 91402680 91402680 1 120 Bolt ( Intercooler) 01435692 01435692 4 131 Cover Bracket 01413690 01413690 2 143 O-ring ( Connecting Pipe ) 06632825 06632825 2 145 O-ring ( Connecting Pipe ) 06632835 06632835 1 157 Hex bolt ( Intercooler ) 06996460 06996460 6 165 Nut ( Intercooler ) 06994015 06994015 6 171 Connecting Pipe Set ( 1 ) 01914590 01914690 1 172 Connecting Pipe Set ( 2 ) 01915590 01915690 1 173 Intercooler 91404690 91404690 4 174 Intercooler Flange ( 1 ) 91405690 91405690 2 175 Intercooler Flange ( 2 ) 91406690 91406690 2 176 Gasket ( Intercooler ) 01432690 01432690 6 193 Fan Guard 01135690 01135690 2 195 Bolt ( Intake Joint 1 ) 01343690 01343690 1 196 Bolt ( Intake Joint 2 ) 01344690 01344690 2 197 Lip seals wrist pin 97191000 97191000 6 200 Unloader Set 91932681 91932681 3 500 Gasket Set ( LP ) 91936670 91936680 2 550 Gasket Set ( HP ) 91937681 91937681 1 600 Valve Set with Gasket ( LP ) 91934691 91933681 2 650 Valve Set with Gasket ( HP ) 91934683 91934683 1

 Crank shaft set (Includes 50, 57, 58, 65 & 66) 91917680 91917680 1

Oilless Reciprocating Air Compressor Pumps

Ref. Part Numbers For Models No. Description OPT100 OPT150 Qty

Oilless Reciprocating Air Compressor Pumps

Powerex Limited Warranty

POWEREX 3 YEAR / 10,000 HOUR EXTENDED PARTS LIMITED WARRANTY - Powerex warrants each Compressor Pump or Scroll Air-End against defects in material or workmanship from the date of purchase for a period of Three years or 10,000 hours, whichever may occur first. This warranty applies to the exchange of part(s) of the compressor pump or air-end found to be defective by an Authorized Powerex Service Center.

POWEREX 1 YEAR / 5,000 HOUR INLET TO OUTLET LIMITED WARRANTY - Powerex warrants each Compressor Unit, System, Pump, or Air-End against defects in material or workmanship from the date of purchase for a period of One Year or 5,000 Hours, whichever may occur first. This warranty applies to the exchange of defective component part(s) and labor performed by an Authorized Powerex Service Center.

Coverage

. The above mentioned warranty applies to Powerex manufactured units or systems only. Items listed in the operator’s manual under routine maintenance are not covered by this or any other warranty. Failure to complete maintenance as stated in the maintenance schedule will void this warranty.

THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF PURCHASE: AND TO THE EXTENT PERMITTED BY LAW, ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED. THIS IS THE EXCLUSIVE REMEDY AND LIABILITY FOR CONSEQUENTIAL DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW.

imitation of Liability. To the extent allowable under applicable law, Powerex’s liability for consequential

and incidental damages is expressly disclaimed. Powerex’s liability in all events is limited to, and shall not exceed, the purchase price paid.

Warranty Disclaimer

. Powerex has made a diligent effort to illustrate and describe the products in this literature accurately; however, such illustrations and descriptions are for the sole purpose of identification, and do not express or imply a warranty that the products are merchantable, or fit for a particular purpose, or that the products will necessarily conform to the illustrations or descriptions.

Product Suitability

. Many jurisdictions have codes and regulations governing sales, construction, installation, and/or use of products for certain purposes, which may vary from those in neighboring areas. While Powerex attempts to assure that its products comply with such codes, it cannot guarantee compliance, and cannot be responsible for how the product is installed or used. Before purchase and use of a product, please review the product applications,and national and local codes and regulations, and be sure that the product, installation, and use will comply with them.

Claims

. Claims pertaining to the merchandise in this schedule, with the exception of warranty claims, must

be filed with POWEREX within 6 months of the invoice date, or they will not be honored. Prices, discounts and terms are subject to change without notice or as stipulated in specific product quotations. All agreements are contingent upon strikes, accidents, or other causes beyond our control. All shipments are carefully inspected and counted before leaving the factory. Please inspect carefully any receipt of merchandise noting any discrepancy or damage on the carrier’s freight bill at the time of delivery. Discrepancies or damage which obviously occurred in transit are the carrier’s responsibility and related claims should be made promptly directly to the carrier. Returned merchandise will not be accepted without prior written authorization by POWEREX and deductions from invoices for shortage or damage claims will not be allowed.

UNLESS OTHERWISE AGREED TO IN WRITING, THESE TERMS AND CONDITIONS WILL CONTROL IN ANY TRANSACTION WITH POWEREX any different or conflicting terms as may appear on any order form

now or later submitted by the buyer. All orders are subject to acceptance by POWEREX.

Powerex MPD0758, MPQ, MPD1508, MPD1008, MPD0508 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

General Safety Information
