Page 1
1
Power-edge Pro User Manual
Power-edge
Pro
User manual
Page 2
2
Power-edge Pro User Manual
Congratulations on your purchase of a
Power-edge Pro
ski edge sharpening
machine!
Your
Power-edge Pro
will allow you to grind regular or hardened ski and/or
snowboard edges like a professional tuner to any angle from 86° to 90°.
With minimal effort, you can grind your skis and/or snowboards with very high
levels of precision.
The grinding wheel adjusts automatically to different radii on skis and
snowboards, has a long life and gives high repeatability and optimal thermal
reduction with no overheating of the edges, while the motor guarantees a
powerful drive and a long life.
Important information
Important notes in this User Manual are marked as follows:
DANGER
Immediate danger to life and limb.
This symbol indicates a potentially hazardous
situation which if not avoided can cause death
or serious injury.
WARNING
This indicates a situation where failure to
follow the instructions could cause damage to
equipment or injury to the operator.
CAUTION
This indicates a situation where failure to
follow the instructions could cause damage to
equipment.
NOTE: Indicates additional information, directions or
exceptions, etc..
The Power edge meets current CE-regulations
Page 3
3
Power-edge Pro User Manual
Contents
Important information .................................................................................. 2
General warnings and cautions ................................................................... 4
Operating parts ............................................................................................. 5
Setting up ..................................................................................................... 6
Connect the power supply to the socket ................................................... 6
Connect the power supply to the Power-edge ........................................... 6
Using the Power-edge .................................................................................. 7
Prepare Skis or Snowboard ....................................................................... 7
Set the grinding angle ................................................................................ 7
Position the Power-edge ........................................................................... 8
Power on and begin grinding ..................................................................... 9
Techniques and tips ................................................................................... 9
Maintenance operations ............................................................................ 10
Replacing or reversing the grinding disc .................................................. 12
Using different grinding wheels ................................................................ 13
Handling, transporting and storage ........................................................... 14
Technical Data ............................................................................................ 14
Troubleshooting .......................................................................................... 14
Warranty ...................................................................................................... 15
Warranty exclusions................................................................................. 15
Page 4
4
Power-edge Pro User Manual
General warnings and cautions
DANGER
Risk of electric shock with improper handling
of the power supply or using with a damaged
cable. Read this manual before use.
WARNINGS
• Use the Power-edge only if you acknowledge the risks, are fully aware and
are personally willing to assume responsibility for these risks.
• The operator is fully responsible for the use of Power-edge. Therefore, the
manufacturer disclaims any responsibility for the use of the Power-edge.
• Improper use of the Power-edge can cause damage to ski, snowboard
and edges.
• The Power-edge is designed to grind and sharpen the side edges only.
• Use the Power-edge only after fully reading and understanding this
operation manual.
• Keep this manual with you and always refer to it regularly before using the
Power-edge.
• Never touch the grinding wheel during operation of Power-edge.
• Never operate the Power-edge without the protective cover tted.
• Make sure that you cannot catch loose objects such as clothing in the
grinding wheel.
• Always wear protective goggles and a protective mask when operating the
Power-edge, during cleaning or during the dressing of the grinding wheel.
• Only use the Power-edge in dry conditions.
• Check before every use that the grinding wheel is tightened sufciently.
• Note that the Power-edge is semi-professional equipment, and as such is
calculated with a capacity of about 30 minutes grinding time per use. For
professional use, with longer operating times, the manufacturer offers no
warranty.
• Perform frequent inspections and maintenance of the Power-edge.
See ‘Maintenance’ section.
• After any prolonged use, ensure that any grinding residue under the wheel
cover is removed before storage.
Page 5
5
Power-edge Pro User Manual

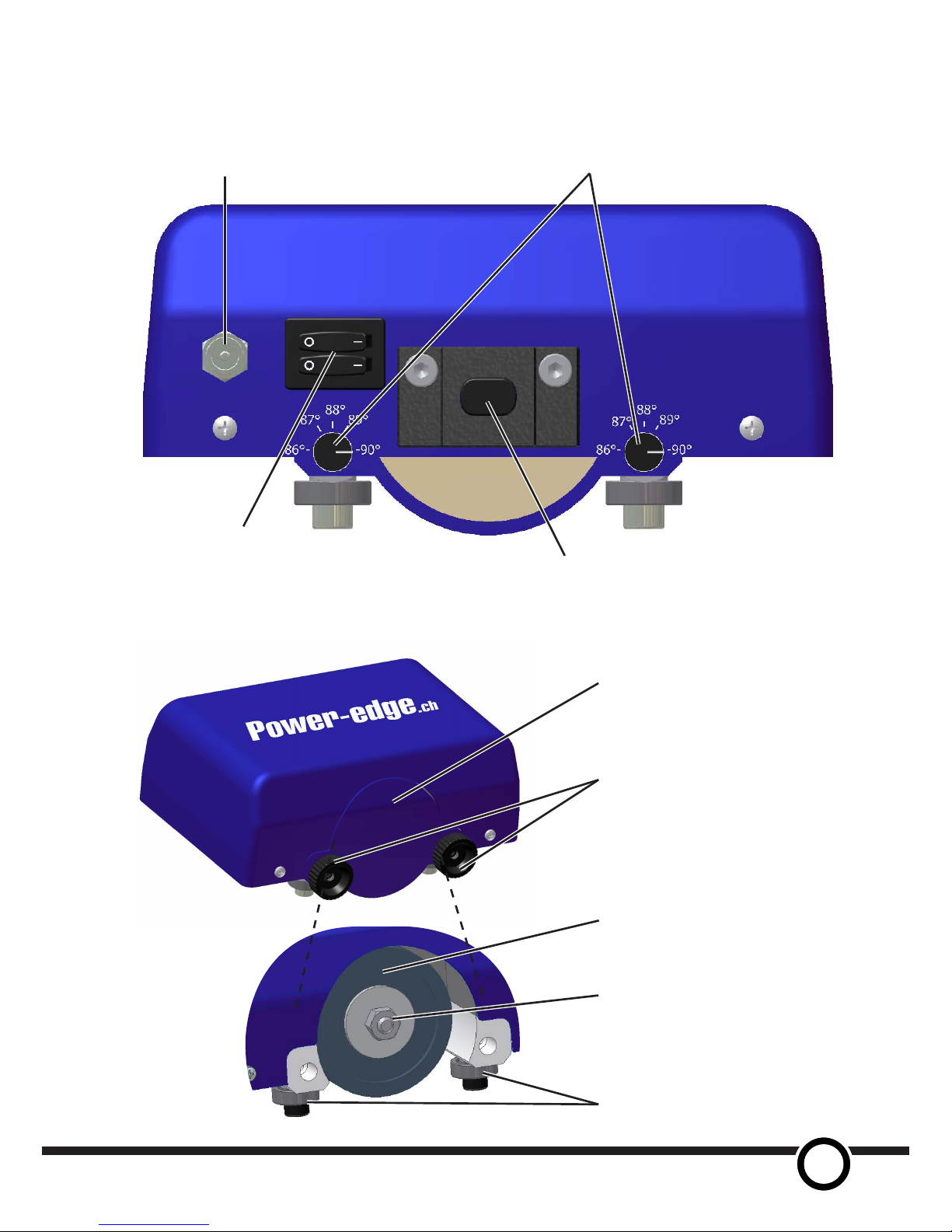

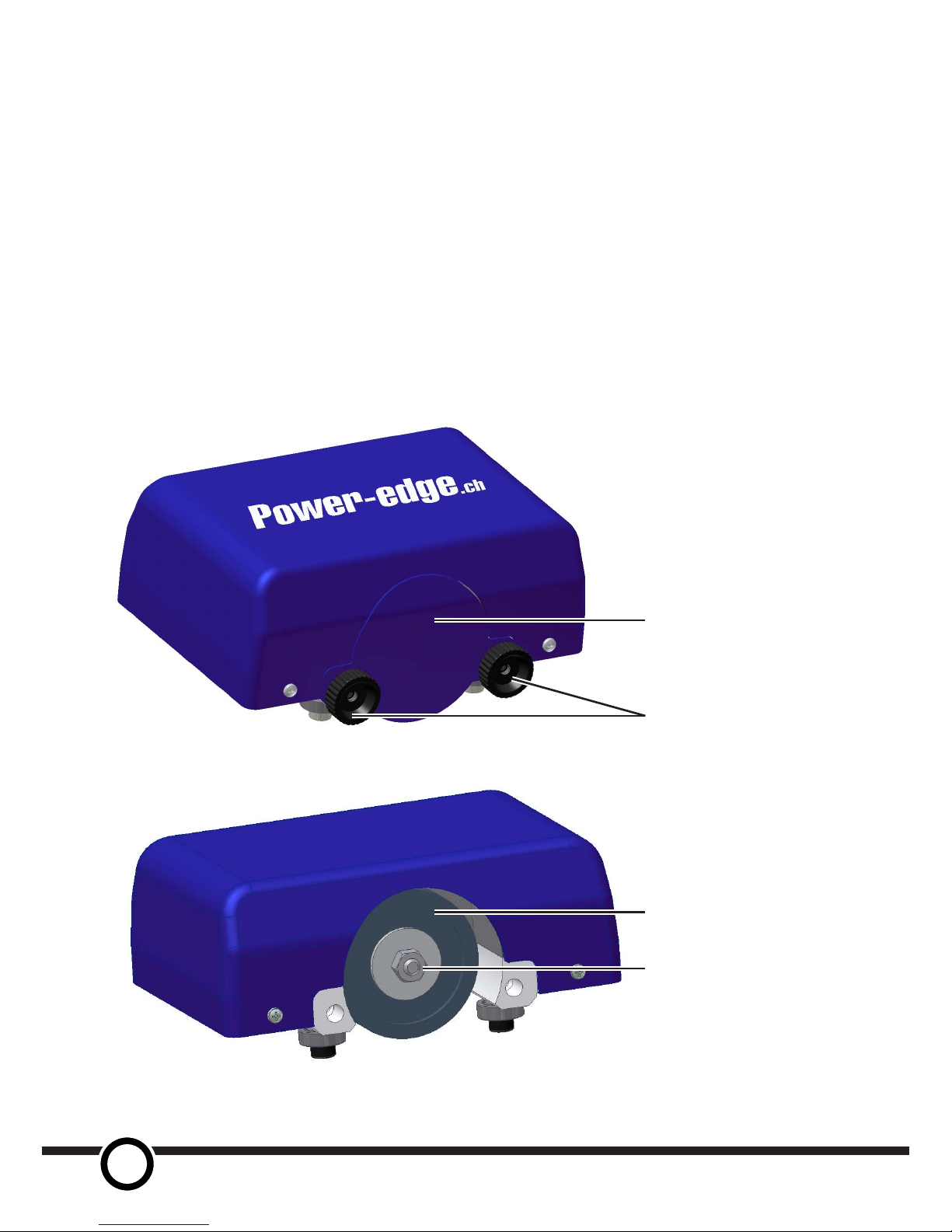

Operating parts
a
Power cable socket
c
ON / OFF rocker switch
Turns the Power-edge on
and off in two stages
b
The angle adjuster screws let you change the edge angle
from 86° to 90° in innite increments using a screwdriver
d
Engage/release button
e
Safety cover
f
Safety cover retaining
nuts
g
Grinding disc
h
Disc retaining nut
i
Edge guide wheels
Page 6
6
Power-edge Pro User Manual
Setting up
Connect the power supply to the socket
Insert the adaptor main power supply plug into a 230/110 Volt outlet.

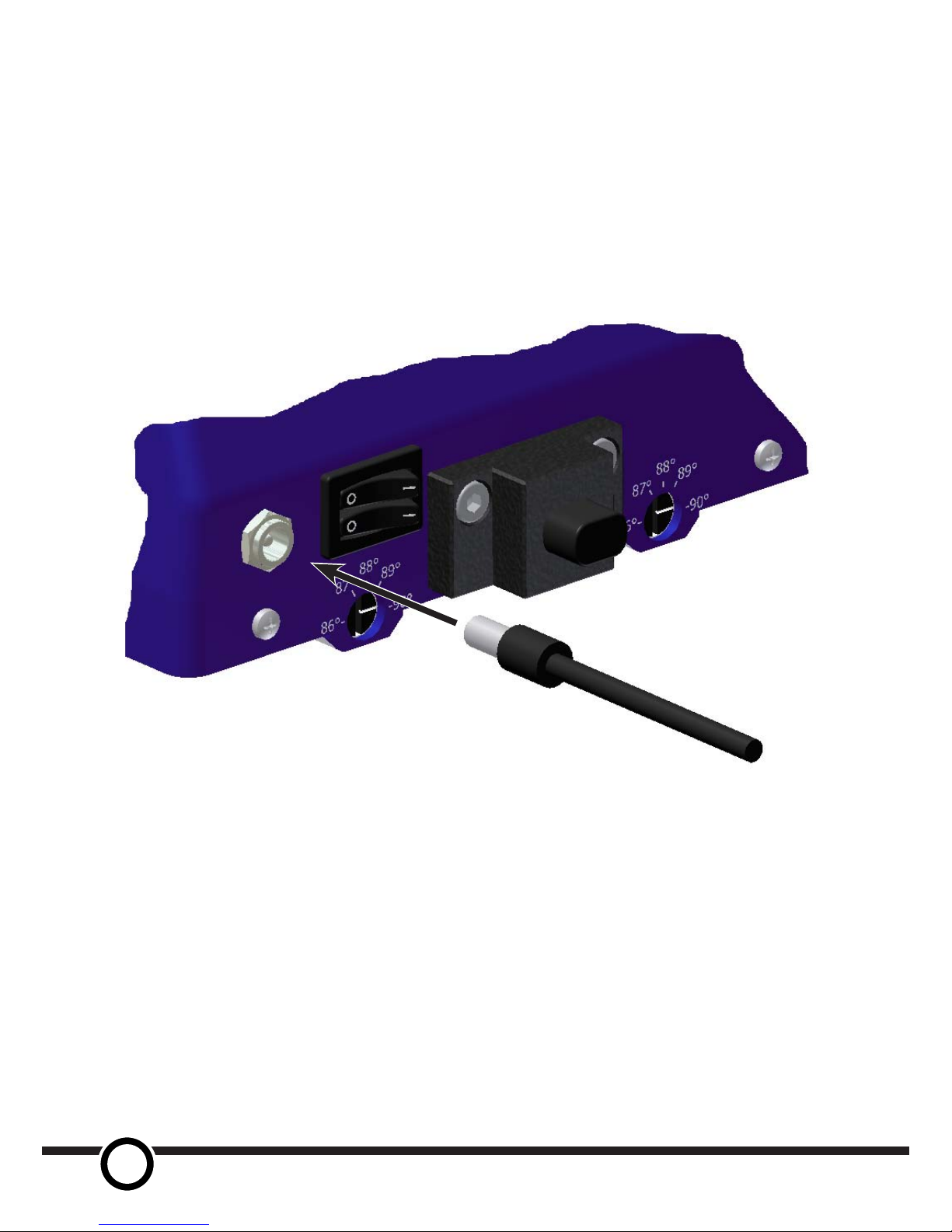

Connect the power supply to the Power-edge
Insert the adaptor’s secondary plug into the corresponding socket on the
Power-edge
Page 7
7
Power-edge Pro User Manual
Using the Power-edge
Prepare Skis or Snowboard
Use a brake retainer to lift ski-brakes up and out of the way.
Make sure that the sidewalls are recessed from the metal edge. If necessary,
cut the sidewalls away with a sidewall planer or a body le. If the sidewall is not
cut back, the grinding wheel may become clogged by sidewall plastic and will
not work effectively. Similarly, any wax residue and any other dirt on the edges
must also be removed to avoid clogging the wheel.
Secure the ski/board upside-down with the base to the top. Do not clamp the
ski/board, just rest it on non-slip supports.
NOTE: Grinding is much easier if you
use a suitable commercial ski or
snowboard vice.

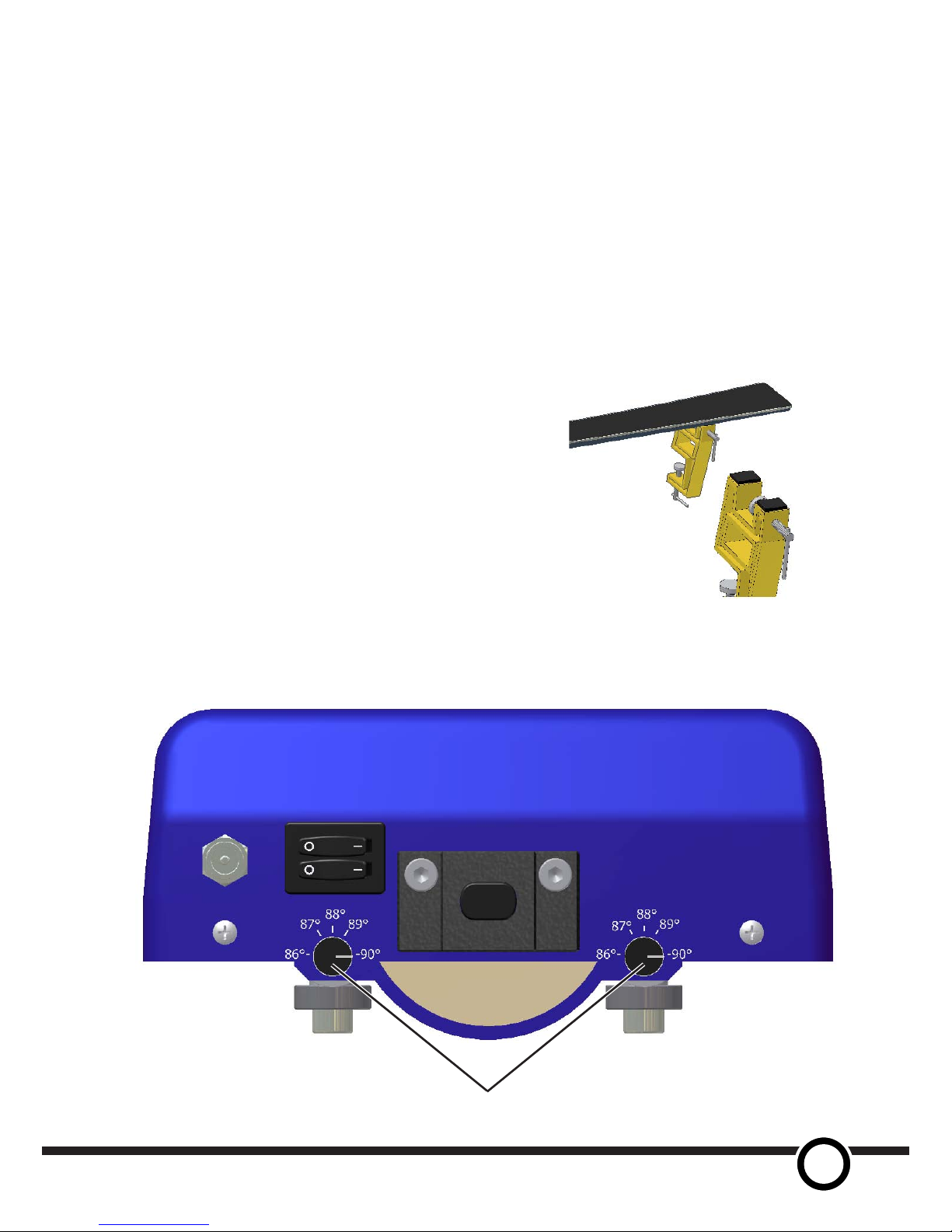

Set the grinding angle
Use a screwdriver to adjust both angle-adjustment screws to the desired angle
(commonly 88° but check the ski/board manufacturer rst).
Make sure both screws are set to the same angle.
Ensure both angle adjusters (b) are set to the same angle
Page 8
8
Power-edge Pro User Manual

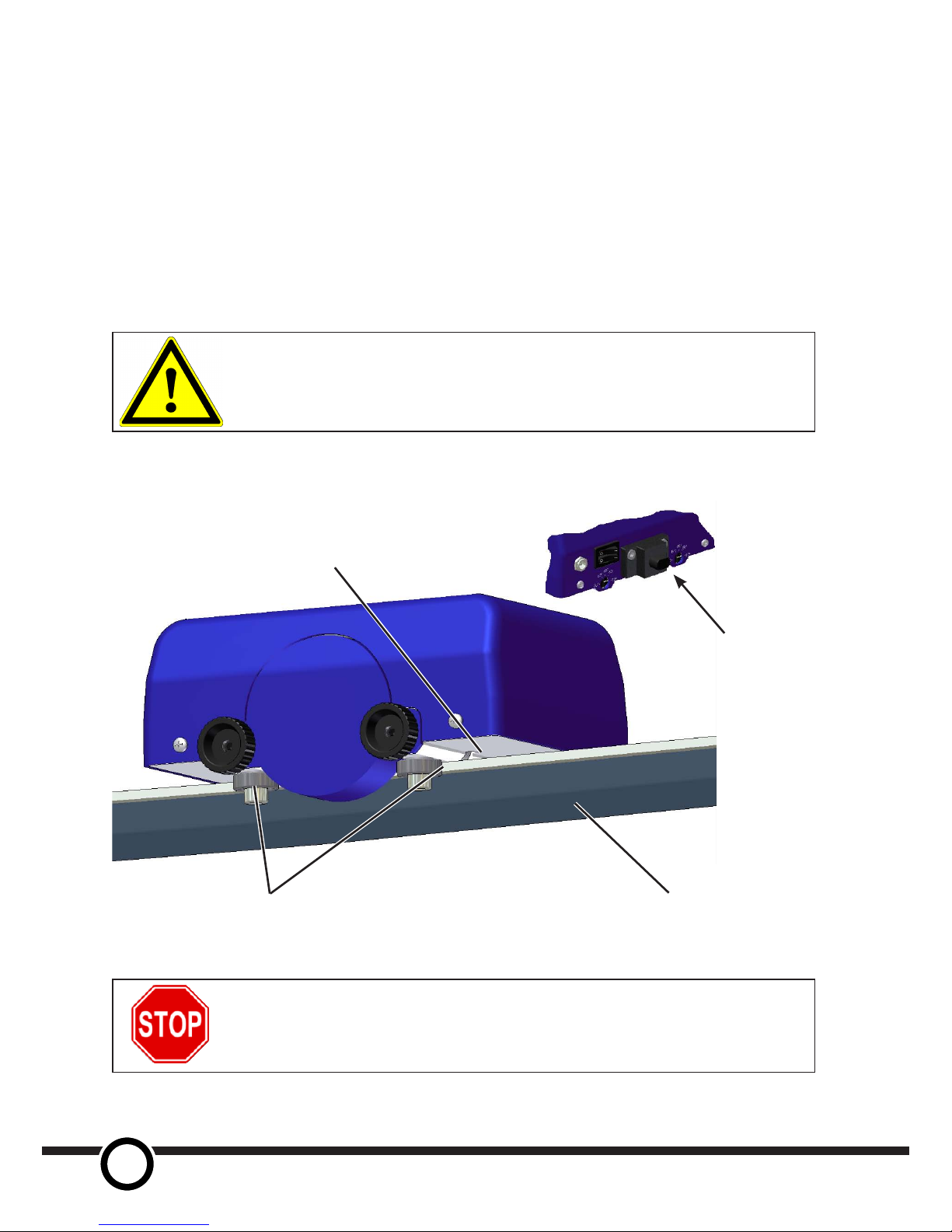

Position the Power-edge
With the Power-edge turned off, position it on the upturned ski/board with the
guide rollers resting on the base surface of the ski or snowboard. The Edge
guide wheels should overhang the edge of the ski/board.
At this point, keep the grinding wheel clear of the edge.
Check that the length of the ski/board is free of any obstructions that would
impede the continuous movement of the Power-edge.
Make sure the power cord has a sufciently large loop to allow free movement.
CAUTION
Ensure that there are no ammable materials
(e.g.wax) in the vicinity to avoid re risk from
sparks.
Press and hold the wheel engagement/release button to keep the
wheel away from the edge.
Rest the guide rollers on the
base of the upturned ski/board
Upside-down ski/board
Press and hold the
engage/release
button (
d
)
Edge guide wheels (
i
)
overhang the edge.
DANGER
Edge grinding creates hazardous dust!
Please wear protective goggles and a mask
when operating the Power-edge!
Page 9
9
Power-edge Pro User Manual
Power on and begin grinding
Please refer to illustrations on pages 5 and 8.
With the engage/release button (
d
) depressed, turn on the power using the
upper edge rocker switch (c). The grinding wheel will spin at a low speed.
Wait 2-5 seconds, then turn on the lower rocker switch. The speed will
increase to full power.
Adjust the Power-edge so that the edge guide wheels (
i
) press rmly against
the ski/board edge. The contact force must be greater than the axial force of
the grinding wheel (approximately 10N or 1kg of pressure).
Slowly release the engage/release button (
d
).
When the wheel makes contact with the metal edge, immediately start to run
the Power-edge lengthways along the ski/board from one end to the other and
back again. Make sure that you use a steady, uniform speed and do not move
too quickly (ideal speed is about one metre every 4-5 seconds).
When you have completed one pass back and forth, push the engage/release
button (
d
) to release the wheel from the edge and stop grinding.
Check the edge for sharpness.
Techniques and tips
Repeat the process as necessary to achieve the desired sharpness, checking
the edge regularly. 1-3 passes is usually enough.
You can achieve the best results by grinding initially with a coarse disc (120- or
320-grit), followed by polishing with ne polishing wheel (600 grit). For racing
applications, the edges can be polished with the diamond polishing disc (1800-grit).
The nal polishing of the edge could also be done manually with an appropriate
angle guide and diamond le.
For edges that are kept in good condition, the 320-grit wheel is the best
compromise between speed and quality.
Note that angle changes (e.g. altering a 90° edge to 88°) will require more
passes because more edge material needs to be removed. Also ensure that
the sidewall is cut back enough to allow for this.
It is recommended to always use the same angle on the same pair of skis/
snowboard to avoid unnecessary edge removal.
Allow the unit to cool periodically when sharpening for longer stints to avoid
overheating the unit.
Page 10
10
Power-edge Pro User Manual
WARNING
Edges sharpened with the Power-edge are
extremely sharp. Please take precautions to
avoid hurting yourself and others.
Maintenance operations
User inspection Check the Power-edge before each use. If you suspect
a malfunction of the Power-edge, return the product
to the manufacturer for review and/or repair. Repairs
may only be performed by the manufacturer. Damaged
components which could cause safety defects on the
Power-edge must be replaced only with original parts.
Cleaning the
Grinding disc
With the Power-edge switched on, clean the grinding
disc by briey touching the face of the wheel with a
wire brush (wear protective goggles and mask).
Wheel dressing If the face of the grinding wheel is no longer at or
becomes damaged, you can re-atten the grinding
area using a dressing stone (e.g. old grinding stone)
or dressing stones/diamonds (wear protective goggles
and mask.)
General cleaning Clean the exterior surfaces only with a cloth dampened
with soap and water. Do not soak the unit.
Never use harsh solvent cleaners, abrasives or
polishing agents. Using strong cleaning agents such as
alcohol can result in dulling or cracking of the nish.
Do not use compressed air to clean the unit.
CAUTIONS
• Never use a damaged or faulty Power-edge.
• Use only original grinding discs.
• Never use damaged grinding discs.
• Do not open the Power-edge. There are no user-serviceable
parts inside the unit.
• Never use a different power supply from the one supplied.
Page 11
11
Power-edge Pro User Manual

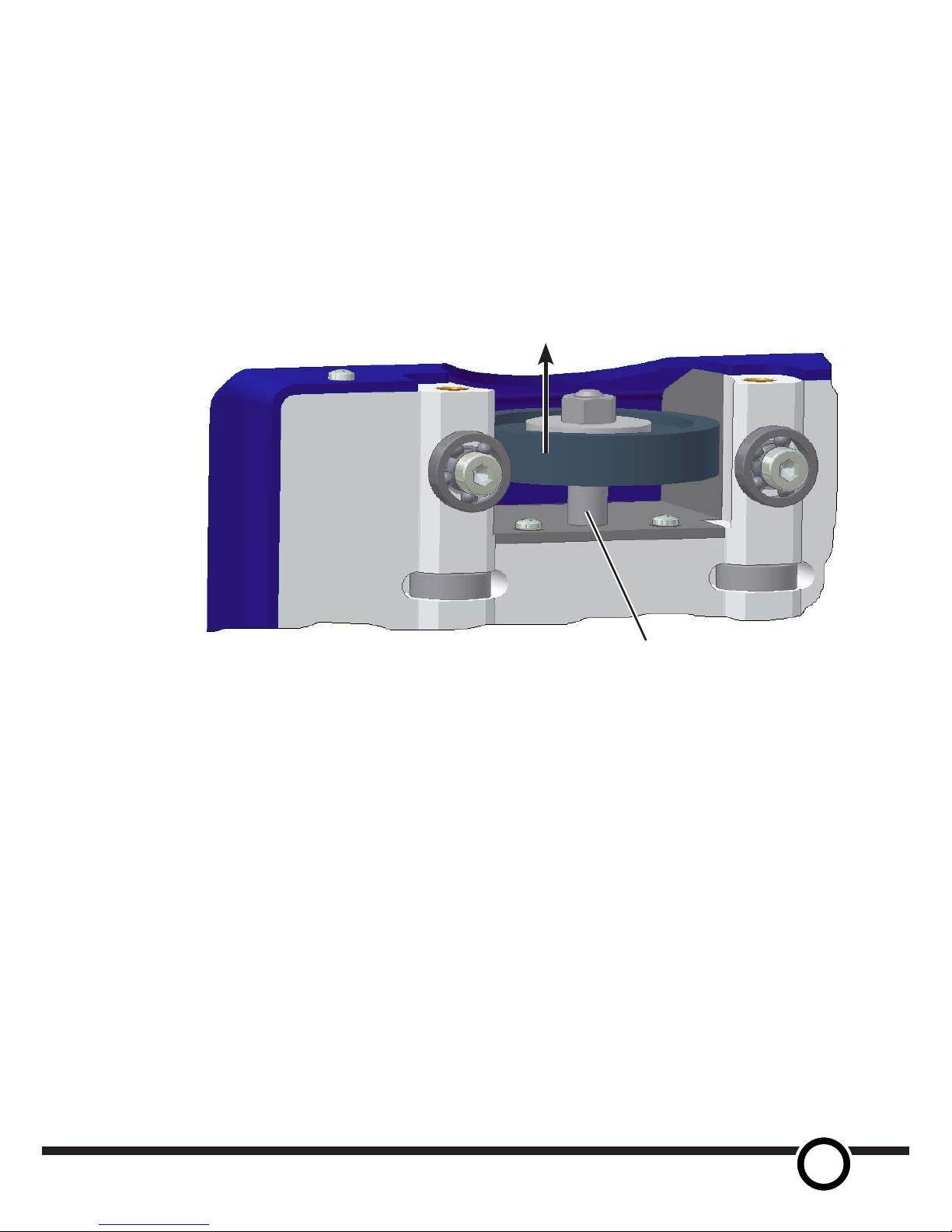

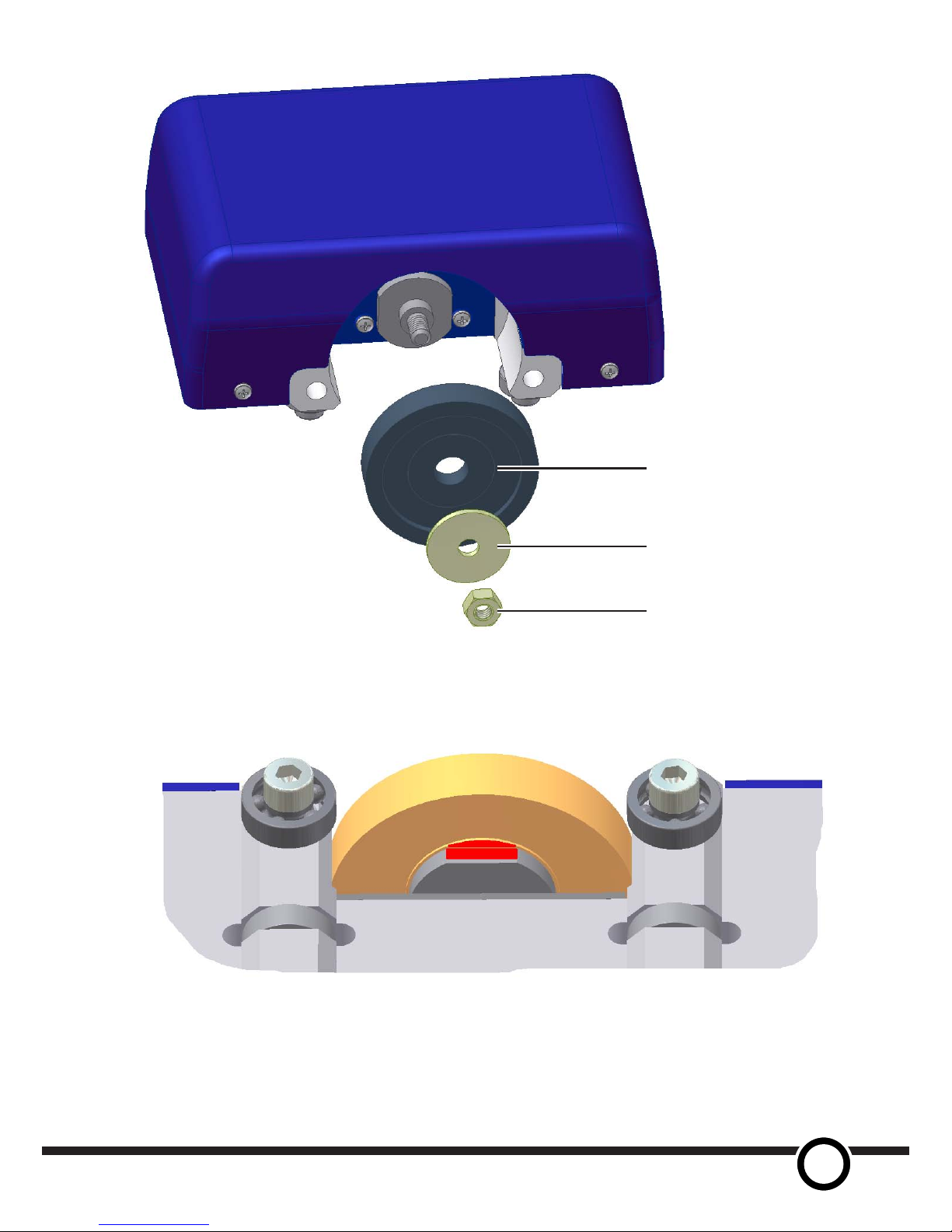

Cleaning and
lubricating the shaft
The shaft must be cleaned and lubricated periodically:
Ensure the unit is disconnected from the power supply.
Remove the grinding disc protective cover.
Pull the grinding disc away from the unit using light
pressure.
Holding the wheel, clean the shaft with a brush.
After cleaning the shaft must be oiled or greased lightly
with a brush.
Lightly oil the shaft
Pull the disc
Interval Operation
Before each use • Check for signs of abrasion and damage to the
grinding disc.
• Check all cables for damage.
• Make sure you operate the Power-edge in a safe
environment
After each use • Clean the grinding dust from the unit using a soft,
dry cloth or brush.
• Allow the unit to cool down after prolonged use,
before replacing it in the case.
• After prolonged use, check for possible build-up of
hot abrasive particles under the cover and remove if
necessary.
Page 12
12
Power-edge Pro User Manual
Replacing or reversing the grinding disc
The grinding disc can be ipped over or replaced when it is worn out.
Loosen the knurled retaining nuts (
f
) of the safety cover (e) and remove the
cover.
Hold the grinding disc (
g
) still with your thumb and forenger, then loosen the
retaining nut (h) with a 10 mm spanner.
Pull the grinding disc (
g
) off the shaft and ip it over or replace it.
When re-mounting the grinding wheel, simply reverse the removal procedure.
Please do not over-tighten the retaining nut – the direction of rotation while
operating stops the nut from loosening off.
e
Safety cover
f
Safety cover
retaining nuts
g
Grinding disc
h
Disc retaining
nut
Page 13
13
Power-edge Pro User Manual
g
Grinding disc
Washer
h
Disc retaining nut
Using different grinding wheels
Using different grit grinding wheels will optimise the efciency of the grinding
operation (e.g. a coarse grit will cut more quickly and aggressively than a ne
one). Different grits are colour-coded on the ange of the disc and can be
identied through the cut-out on the drive-wheel.
Page 14
14
Power-edge Pro User Manual
Handling, transporting and storage
• Protect the Power-edge from impact and intensive sun or heat exposure.
• Protect the Power-edge from damp.
• Do not drop the Power-edge. A hard crash can damage the electronic
components and the case.
• Do not put heavy articles on the Power-edge.
Technical Data
Dimensions: 144mm L x 102mm W x 70mm H
Power supply: 100 – 240 VAC / 50-60Hz
Power supply output: 9VDC / 8000 mA
Revolution speed: Approximately 9500 rpm
Operating temperature: –10°C to 50°C (14°F to 122°F)
Storage temperature: –20°C to 50°C (–4°F to 122°F)
Troubleshooting
Problem Solution
Edge grinding is not very
effective.
The grinding disc pores are blocked.
Clean pores with wire brush or dressing stone.
Ensure adequate sidewall removal before
grinding.
Use a coarser grinding wheel.
The grinding disc strikes
during grinding
Dress the grinding disc at again with a dressing
stone or dressing diamond.
Page 15
15
Power-edge Pro User Manual
Warranty
The manufacturer assumes liability for this product and assures faultless
condition for the period of one year after the purchase date of the product.
This warranty is for free repair of the Power-edge within this period and is only
valid when a faulty Power edge is returned together with the original proof of
purchase.
This guarantee applies only to machines and parts sold by the manufacturer or
appointed dealers.
Warranty exclusions
1. Regular inspection, maintenance and repair or replacement of normal wear
and tear parts.
2. Transportation/shipping costs that are directly or indirectly in connection
with this guarantee.
3. Any damage to the power-edge caused by:
• Abuse or misuse of the Power-edge, especially in a country other than
described in this manual use.
• Non-compliance with the usage and/or maintenance instructions.
• Professional use (see page 4).
• Any repairs not carried out by the manufacturer.
• Accidents or environmental damage beyond the control of the
manufacturer, e.g. damage from ooding, re, noise, interference and
acidic solutions.
This guarantee does not restrict the national law for the customer. Unless the
national law says otherwise, the customer has the right to this guarantee, but
the manufacturer takes no guarantee or responsibility for direct or indirect
damage or loss connected to the use of the Power-edge.
Page 16
16
Power-edge Pro User Manual
Address & contact information
Manufacturing Power Edge
Tannliweg 415
5112 Thalheim
Switzerland
Email: [email protected]
Web www.power-edge.ch
Loading...
