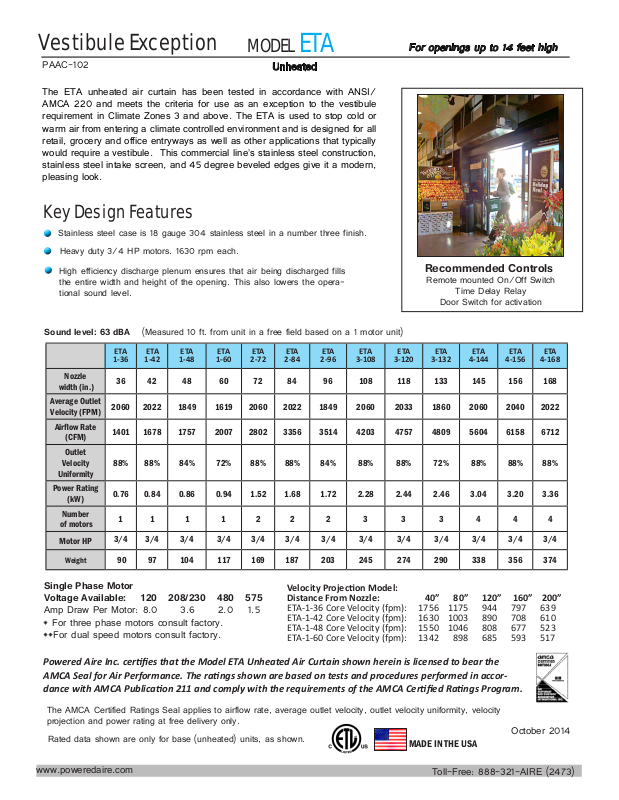

Vestibule Exception

PAAC-102

MODEL ETA

Unheated

The ETA unheated air curtain has been tested in accordance with ANSI/
AMCA 220 and meets the criteria for use as an exception to the vestibule
requirement in Climate Zones 3 and above. The ETA is used to stop cold or
warm air from entering a climate controlled environment and is designed for all
retail, grocery and office entryways as well as other applications that typically
would require a vestibule. This commercial line’s stainless steel construction,
stainless steel intake screen, and 45 degree beveled edges give it a modern,
pleasing look.

Key Design Features

Stainless steel case is 18 gauge 304 stainless steel in a number three finish.

Heavy duty 3/4 HP motors. 1630 rpm each.

For openings up to 14 feet high

High efficiency discharge plenum ensures that air being discharged fills
the entire width and height of the opening. This also lowers the opera­tional sound level.

Sound level: 63 dBA (Measured 10 ft. from unit in a free field based on a 1 motor unit)

ETA

Nozzle

width (in.)

Average Outlet
Velocity (FPM)

Airow Rate

(CFM)

Outlet

Velocity

Uniformity

Power Rating

(kW)

Number

of motors

Motor HP

Weight

ETA

1-36

1-42

36 42 48 60 72 84 96 108 118 133 145 156 168

2060 2022 1849 1619 2060 2022 1849 2060 2033 1860 2060 2040 2022

1401 1678 1757 2007 2802 3356 3514 4203 4757 4809 5604 6158 6712

88% 88% 84% 72% 88% 88% 84% 88% 88% 72% 88% 88% 88%

0.76 0.84 0.86 0.94 1.52 1.68 1.72 2.28 2.44 2.46 3.04 3.20 3.36

1 1 1 1 2 2 2 3 3 3 4 4 4

3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

90 97 104 1 17 169 187 203 245 2 74 290 338 356 374

ETA

1-48

ETA

1-60

ETA

2-72

ETA

2-84

ETA

2-96

ETA

3-108

3-120

Recommended Controls

Remote mounted On/Off Switch

Time Delay Relay

Door Switch for activation

ETA

ETA

3-132

ETA

4-144

ETA

4-156

ETA

4-168

Single Phase Motor

Voltage Available: 120 208/230 480 575

Amp Draw Per Motor: 8.0 3.6 2.0 1.5
* For three phase motors consult factory.
**For dual speed motors consult factory.

Velocity Projecon Model:
Distance From Nozzle: 40” 80” 120” 160” 200”

ETA-1-36 Core Velocity (fpm): 1756 1175 944 797 639
ETA-1-42 Core Velocity (fpm): 1630 1003 890 708 610
ETA-1-48 Core Velocity (fpm): 1550 1046 808 677 523
ETA-1-60 Core Velocity (fpm): 1342 898 685 593 517

Powered Aire Inc. ceres that the Model ETA Unheated Air Curtain shown herein is licensed to bear the
AMCA Seal for Air Performance. The rangs shown are based on tests and procedures performed in accor­dance with AMCA Publicaon 211 and comply with the requirements of the AMCA Cered Rangs Program.

The AMCA Certified Ratings Seal applies to airflow rate, average outlet velocity, outlet velocity uniformity, velocity
projection and power rating at free delivery only.

Rated data shown are only for base (unheated) units, as shown.

www.poweredaire.com

MADE IN THE USA

Toll-Free: 888-321-AIRE (2473)

October 2014
