3.6/7.2V Li-ion & NiMH Battery Charger
C-735

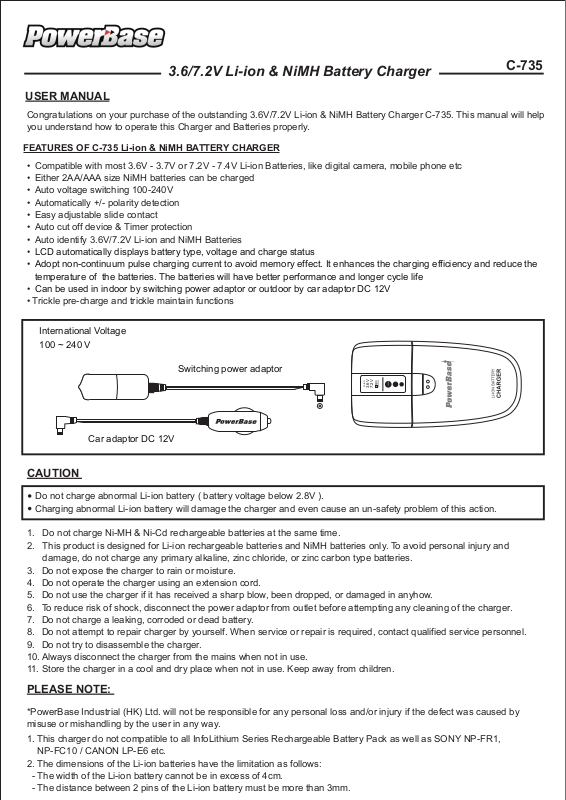

USER MANUAL
Congratulations on your purchase of the outstanding 3.6V/7.2V Li-ion & NiMH Battery Charger C-735. This manual will help
you understand how to operate this Charger and Batteries properly.
FEATURES OF C-735 Li-ion & NiMH BATTERY CHARGER
• Compatible with most 3.6V - 3.7V or 7.2V - 7.4V Li-ion Batteries, like digital camera, mobile phone etc
• Either 2AA/AAA size NiMH batteries can be charged
• Auto voltage switching 100-240V
• Automatically +/- polarity detection
• Easy adjustable slide contact
• Auto cut off device & Timer protection
• Auto identify 3.6V/7.2V Li-ion and NiMH Batteries
•
LCD automatically displays battery type, voltage and charge status
•
Adopt non-continuum pulse charging current to avoid memory effect. It enhances the charging efficiency and reduce the
temperature of the batteries. The batteries will have better performance and longer cycle life
•
Can be used in indoor by switching power adaptor or outdoor by car adaptor DC 12V
• Trickle pre-charge and trickle maintain functions
International Voltage
100 ~ 240 V
Switching power adaptor
/
100%
NiCd
Li-ion
NiMH
3.6V
7.2V
Car adaptor DC 12V
CAUTION
Do not charge abnormal Li-ion battery ( battery voltage below 2.8V ).
Charging abnormal Li-ion battery will damage the charger and even cause an un-safety problem of this action.
1. Do not charge Ni-MH & Ni-Cd rechargeable batteries at the same time.
2. This product is designed for Li-ion rechargeable batteries and NiMH batteries only. To avoid personal injury and
damage, do not charge any primary alkaline, zinc chloride, or zinc carbon type batteries.
3. Do not expose the charger to rain or moisture.
4. Do not operate the charger using an extension cord.
5. Do not use the charger if it has received a sharp blow, been dropped, or damaged in anyhow.
6. To reduce risk of shock, disconnect the power adaptor from outlet before attempting any cleaning of the charger.
7. Do not charge a leaking, corroded or dead battery.
8. Do not attempt to repair charger by yourself. When service or repair is required, contact qualified service personnel.
9. Do not try to disassemble the charger.
10. Always disconnect the charger from the mains when not in use.
11. Store the charger in a cool and dry place when not in use. Keep away from children.
PLEASE NOTE:
*PowerBase Industrial (HK) Ltd. will not be responsible for any personal loss and/or injury if the defect was caused by
misuse or mishandling by the user in any way.
1. This charger do not compatible to all InfoLithium Series Rechargeable Battery Pack as well as SONY NP-FR1,
NP-FC10 / CANON LP-E6 etc.
2. The dimensions of the Li-ion batteries have the limitation as follows:
- The width of the Li-ion battery cannot be in excess of 4cm.
- The distance between 2 pins of the Li-ion battery must be more than 3mm.
CHARGER OPERATION
3.6/7.2V Li-ion & NiMH Battery Charger
C-735
1.)
Li-ion
3.6V
7.2V
/
NiMH
NiCd
100%
i) Flash
Li-ion
3.6V
7.2V
NiMH
NiCd
/
i.) Black line on display will flash on which indicates the
charger is in standby mode.
3.) 3.6V Li-ion battery
Li- ion Batte ry
3.6V
3.6V
7.2V
1)
Fla sh 2)Fla sh
Fla sh 3) Fla sh 4)
5) Ful l
2.) Easy adjustable contact and automatically +/- detection
3.6V
7.2V
Easy
adjustable
contact
Front Back
Adjust 2 pins to the connect position ( Battery )
Place the battery on the charger.
4.) 7.2V Li-ion battery
Li- ion Batte ry
7.2V
1)
3.6V
7.2V
Fla sh
7.2V
Fla sh 2)
7.2V
Fla sh 3) Flas h 4)
7.2V 7.2V
5) Ful l
7.2V
30% 100%60%~70% 30% 100%60%~70%
Adjust the charger case to fit on 3.6V Li-ion battery.
5.) 2AA or AAA batteries
Li-ion
3.6V
7.2V
/
NiMH
NiCd
100%
PowerBase
Ni-M H Battery AA
Ni-M H Battery AA
PowerBase
1)
Fla sh
Fla sh 2) Fla sh 3) Fla sh 4)
When 2 batteries are correctly
inserted, the Blue LCD will indicate
2 batteries either in charging
process or fully charged.
After fully charged, the charger will
go to trickle charge maintain state.
SPECIFICATION
Input Voltage
Charge Capability
Switching Power Adaptor AC 100~240V, 50~60Hz
Li-ion Rechargeable Battery : 3.6V - 3.7V (DC 4.2V : 650mA)
7.2V - 7.4V (DC 8.4V : 650mA)
NiMH Battery : 2xAA 2.8V , 2xAAA 2.8V (DC 2.8V : 650mA)
Adjust the charger case to fit on 7.2V Li-ion battery.
5) Ful l
6.) If the Li-ion or NiMH battery does not work
Li- ion Batt ery
3.6V
All display indication will flash on continuously while
the charger detect any defective battery
(UL, VDE, BS, SAA plugs)
Li-ion
3.6V
7.2V
/
NiMH
NiCd
Ni-M H Battery AA
Ni-M H Battery AA
PowerBase
PowerBase
3.6V
7.2V
NiMH
Li-ion
/
NiCd
100%
Car Adaptor
Termination Method
12V / DC, 2A fuse, (Optional Accessory)
Li-ion Rechargeable Battery : Auto Voltage Monitor
NiMH Battery : Minus Delta
(-△V)
