PLEASE NOTE:
*PowerBase Industrial (HK) Ltd. will not be responsible for any
personnel loss and/or injury if the defect was caused by misuse or
mishandling by the user in any way.

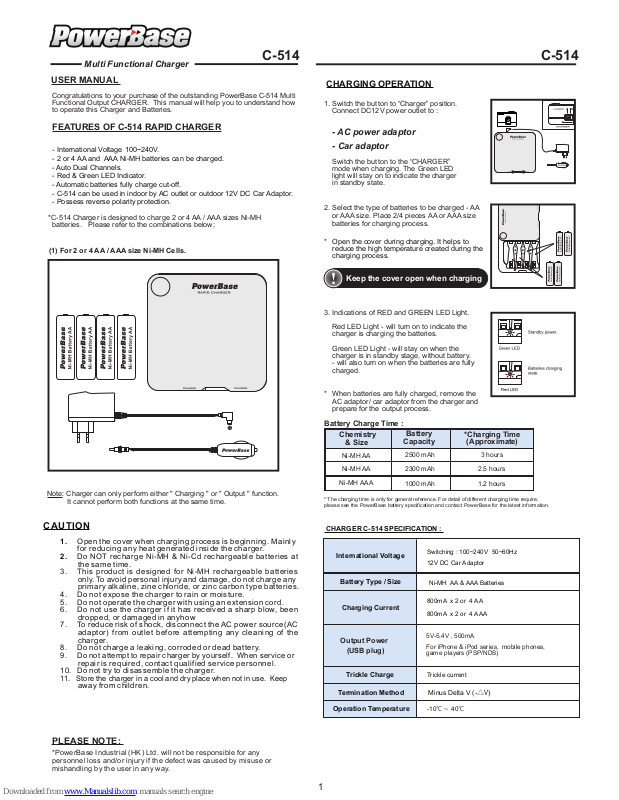

USER MANUAL
Congratulations to your purchase of the outstanding PowerBase C-514 Multi
Functional Output CHARGER. This manual will help you to understand how
to operate this Charger and Batteries.
FEATURES OF C-514 RAPID CHARGER
- International Voltage 100~240V.
- 2 or 4 AA and AAA Ni-MH batteries can be charged.
- Auto Dual Channels.
- Red & Green LED Indicator.
- Automatic batteries fully charge cut-off.
- C-514 can be used in indoor by AC outlet or outdoor 12V DC Car Adaptor.
- Possess reverse polarity protection.
C-514
Multi Functional Charger
C-514
*C-514 Charger is designed to charge 2 or 4 AA / AAA sizes Ni-MH
batteries. Please refer to the combinations below;
(1) For 2 or 4 AA / AAA size Ni-MH Cells.
Note: Charger can only perform either " Charging " or " Output " function.
It cannot perform both functions at the same time.
CAUTION
1. Open the cover when charging process is beginning. Mainly
for reducing any heat generated inside the charger.
2. Do NOT recharge Ni-MH & Ni-Cd rechargeable batteries at
the same time.
3. This product is designed for Ni-MH rechargeable batteries
only. To avoid personal injury and damage, do not charge any
primary alkaline, zine chloride, or zinc carbon type batteries.
4. Do not expose the charger to rain or moisture.
5. Do not operate the charger with using an extension cord.
6. Do not use the charger if it has received a sharp blow, been
dropped, or damaged in anyhow
7. To reduce risk of shock, disconnect the AC power source(AC
adaptor) from outlet before attempting any cleaning of the
charger.
8. Do not charge a leaking, corroded or dead battery.
9. Do not attempt to repair charger by yourself. When service or
repair is required, contact qualified service personnel.
10. Do not try to disassemble the charger.
11. Store the charger in a cool and dry place when not in use. Keep
away from children.
CHARGER C-514 SPECIFICATION :
International Voltage
Operation Temperature
Termination Method
Trickle Charge
Charging Current
Battery Type / Size
Switching : 100~240V 50~60Hz
12V DC Car Adaptor
800mA x 2 or 4 AA
800mA x 2 or 4 AAA
Trickle current
-10℃~ 40℃
Ni-MH AA & AAA Batteries
Output Power
5V-5.4V , 500mA
Minus Delta V (-△V)
For iPhone & iPod series, mobile phones,
game players (PSP/NDS)
(USB plug)
* The charging time is only for general reference. For detail of different charging time require,
please see the PowerBase battery specification and contact PowerBase for the latest information.
Ni-MH AA
Ni-MH AA
2500 mAh
2300 mAh
1000 mAh
3 hours
2.5 hours
1.2 hours
Ni-MH AAA
Battery Charge Time :
Chemistry
& Size
*Charging Time
(Approximate)
Battery
Capacity
1
CHARGING OPERATION
1. Switch the button to “Charger” position.
Connect DC12V power outlet to :
- AC power adaptor
- Car adaptor
Switch the button to the “CHARGER”
mode when charging. The Green LED
light will stay on to indicate the charger
in standby state.
3. Indications of RED and GREEN LED Light.
Red LED Light - will turn on to indicate the
charger is charging the batteries.
Green LED Light - will stay on when the
charger is in standby stage, without battery.
- will also turn on when the batteries are fully
charged.
2. Select the type of batteries to be charged - AA
or AAA size. Place 2/4 pieces AA or AAA size
batteries for charging process.
* Open the cover during charging. It helps to
reduce the high temperature created during the
charging process.
* When batteries are fully charged, remove the
AC adaptor/ car adaptor from the charger and
prepare for the output process.
Keep the cover open when charging
(USB)
OUTPUT
CHARGER
C-514
Multi Functional Charger
OUTPUT FUNCTION
Output Features of POWERBASE C-514 Multi functional Charger.
- Portable Emergency power back up for peripheral Equipment.
- USB Output for various devices.
- Suitable for equipment :
- iPhone & iPod series
- Mobile Phones (Nokia. Motorola, Sony Ericsson etc)
- MP3 / MP4 P la yer
- Game Pl ay ers ( PSP, ND S )
- With one output channel (USB plug).
- 4 pcs of AA / AAA Ni-MH batteries are required for any output
function through the C-514 output channel.
- Small in size and easy to carry and use.
- After the AA / AAA batteries are fully charged, can also remove
the batteries from the C-514 and place for other application.
- Continuously output supply : More than one equipment unit can
acquire power from C-514
- Alternative Power source for emergency use:
If the fully charged AA/AAA batteries in C-514 have consumed most
of its remaining capacity, and min. recharge time would not be allowed
at that m om ent, 4 pc s of Alkaline batteries can be placed inside. The
C-514 in order to provide output power to various units.
(1) Output function with accessories.
Note: Never put Ni-MH and Ni-Cd batteries together in the POWERBASE
C-514 Multi Function Output Charger.
CAUTION
1. For best result of Output, please make sure the batteries in
the cha rg er are fu ll y charg ed .
2. Do not put difference types of battery (Ni-Cd/ Alkaline/ Ni-MH
in difference capacity) mixed together during the stage of
Charging / Output.
3. When not using the charger or batteries, please take out the
batteries from the charger.
(USB)
OUTPUT
CHARGER
Power Output "ON"
2
SAMSUNG
D528; D808
D838
SAMSUNG
D528; D808
D838
SONY Ericisson
W800/750
NOKIA
N71; 9300;
N80
MOTOROLA
Mini USB; V3;V3i
NOKIA
3210;8310;
8250;3200
NOKIA
3210;8310;
8250;3200
OUTPUT PROCESS PROCEDURES
1 : Place 4 pieces of Fully Charged AA/AAA batteries into the C-514 charger.
Switch the button to
Output position, LED red light will turn on ,
show that the Output function is ready to start.
(USB)
OUTPUT
CHARGER
SONY
PSP
NOKIA
N71; 9300;N80
For Mobile : Nokia , Motorola , Sony-Ericsson , Samsung
Game player : NDS , PSP
1
2
3
4
5
6
7
8
9
0
GAMEBOY NDS
GAMEBOY NDS
Sony Ericsson
W800/750
MOTOROLA
Mini USB; V3;V3i
2 : Output Function (1)
Connect the USB cable into “Output” position & plug to iPod or iPhone series.
The charging process will start automatically.
Power Output "OFF"
Take out the batteries.
4) After fully charged the selected devices, unplug the cables and switch the
button back to the "Charger" position. RED LED light will turn off
immediately and the output process will be stopped. For safety reason,
please take off the batteries from the C-514 charger after used.
(USB)
OUTPUT
CHARGER
(USB)
OUTPUT
CHARGER
3 : Output Function (2)
Connect the USB cable into “Output” position with the selected suitable plug
to various devices such as mobile phone, game players or mp3/mp4 player.
The charging will start automatically.
